Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

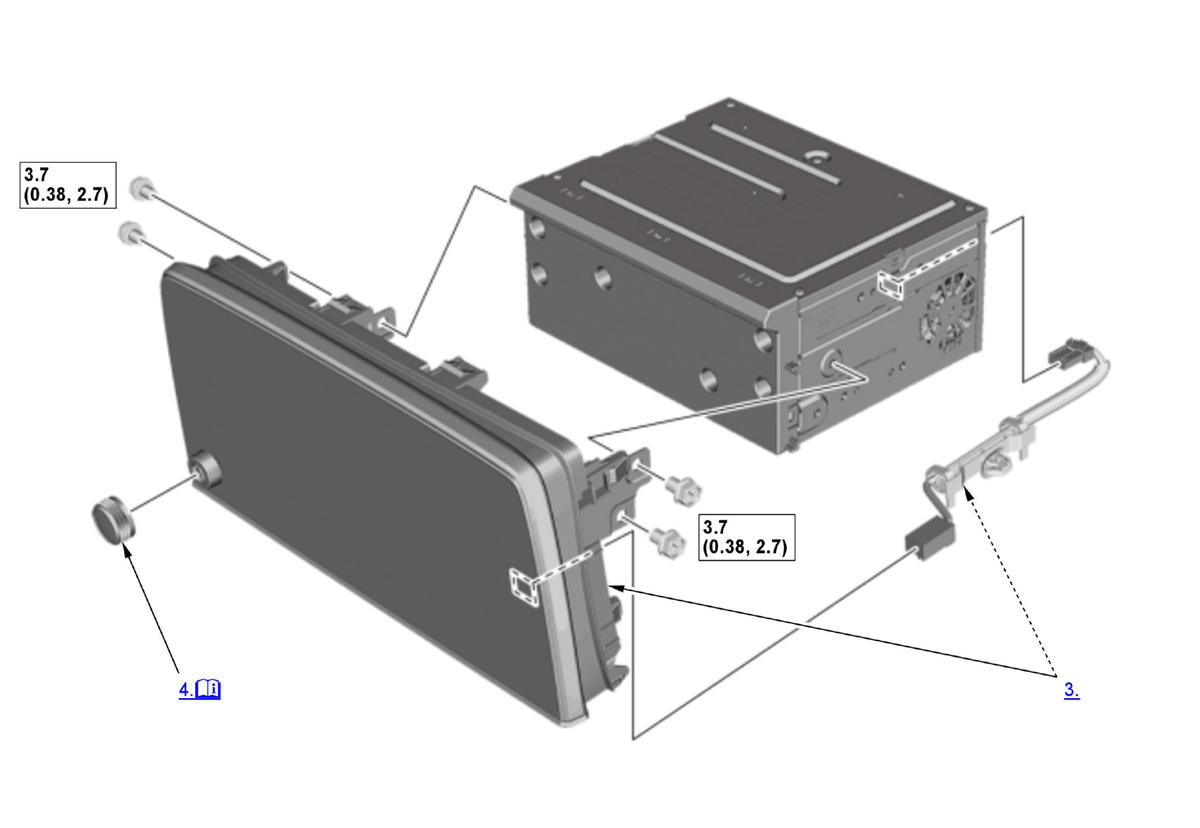

Fig 1: Exploded View Of Center Display Unit Components
GHH374700Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
  1. Audio-Navigation Unit Assembly - Remove (With Navigation)
  2. Audio Unit Assembly - Remove (Without Navigation)
  3. Center Display Unit - Remove
  4. Volume Knob - Remove

    If necessary, remove the knob.

  5. All Removed Parts - Install

    Install the parts in the reverse order of removal.
