Communication Systems Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

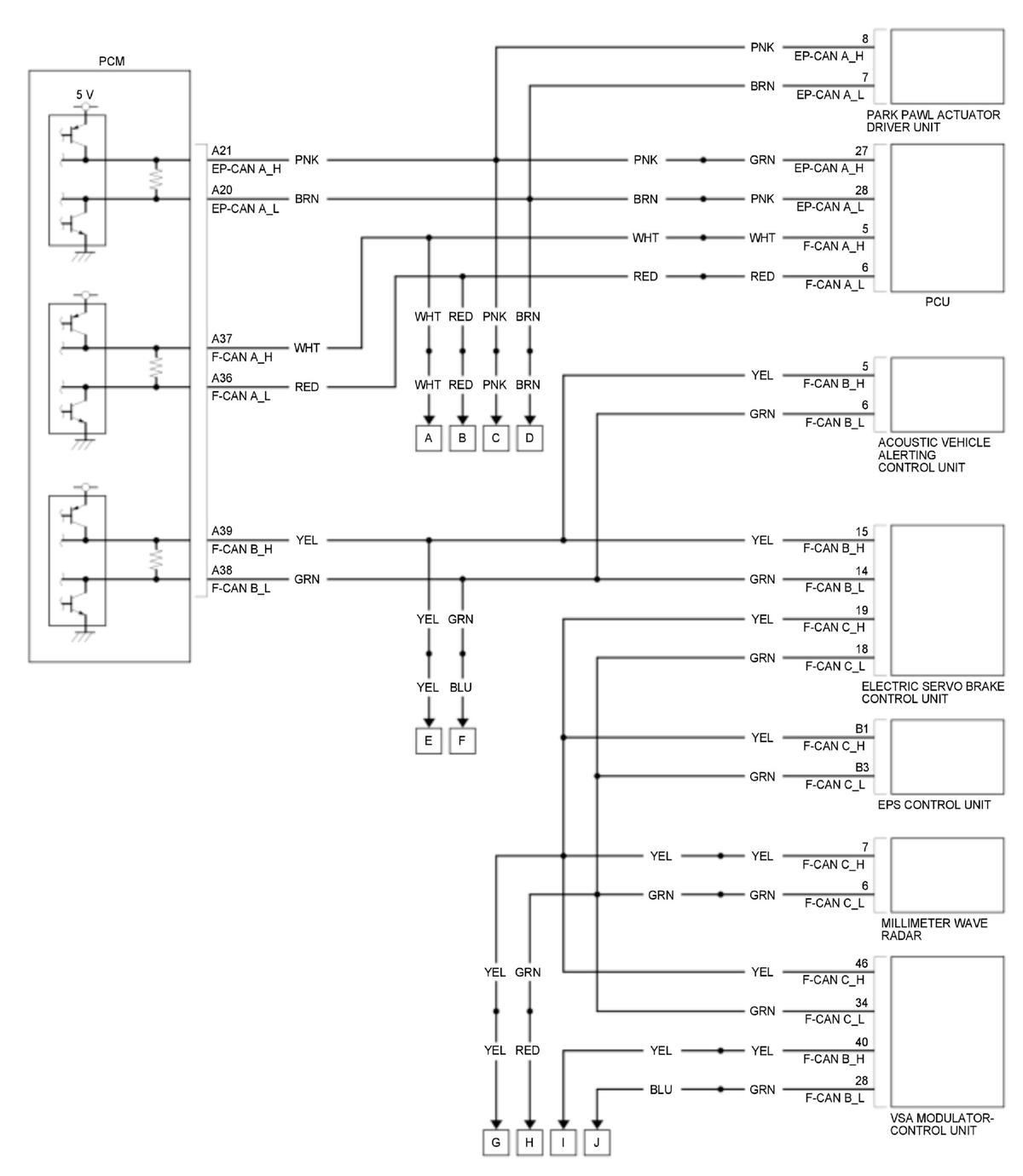

GHH380147Courtesy of HONDA, U.S.A., INC.

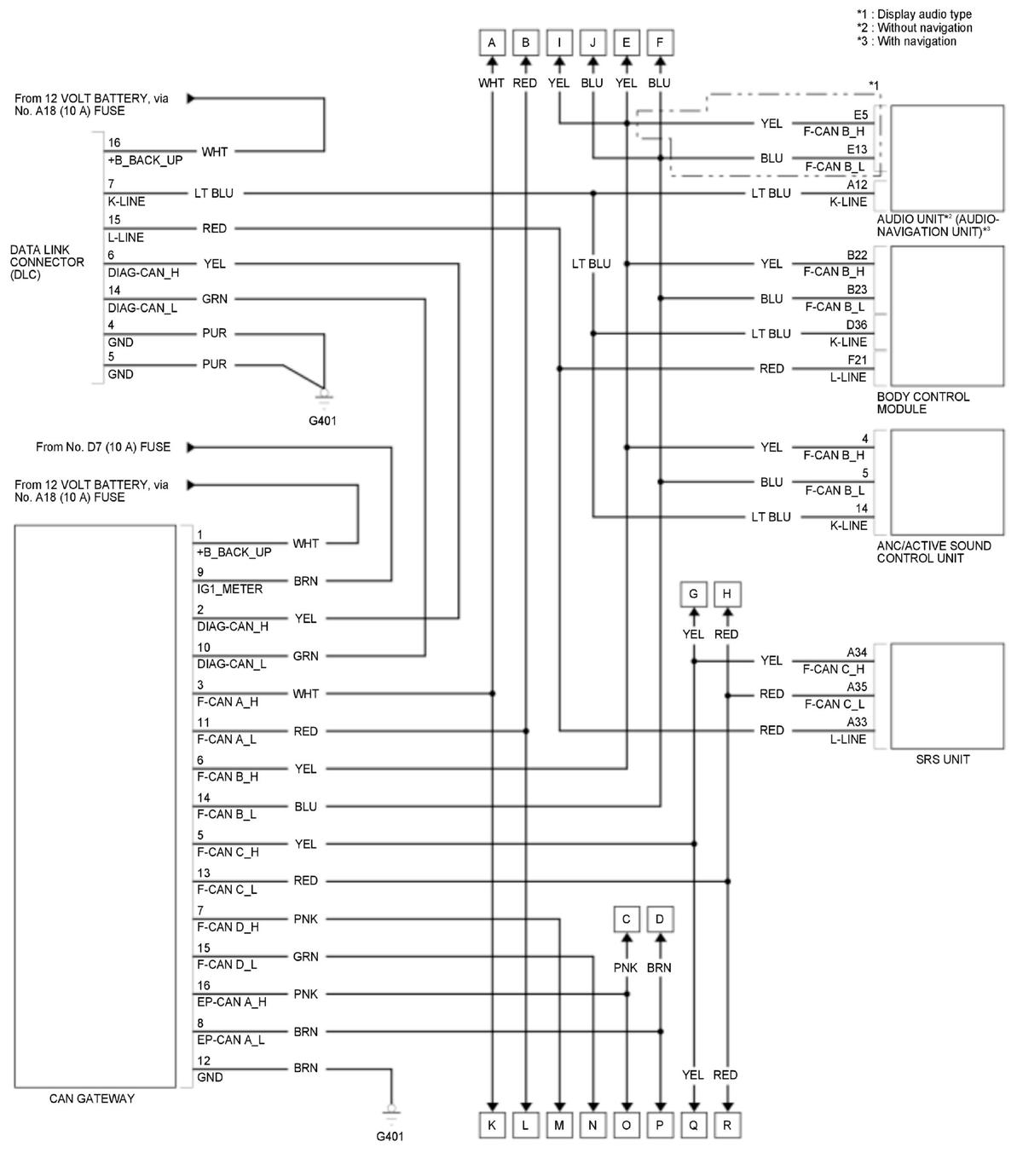

GHH380148Courtesy of HONDA, U.S.A., INC.

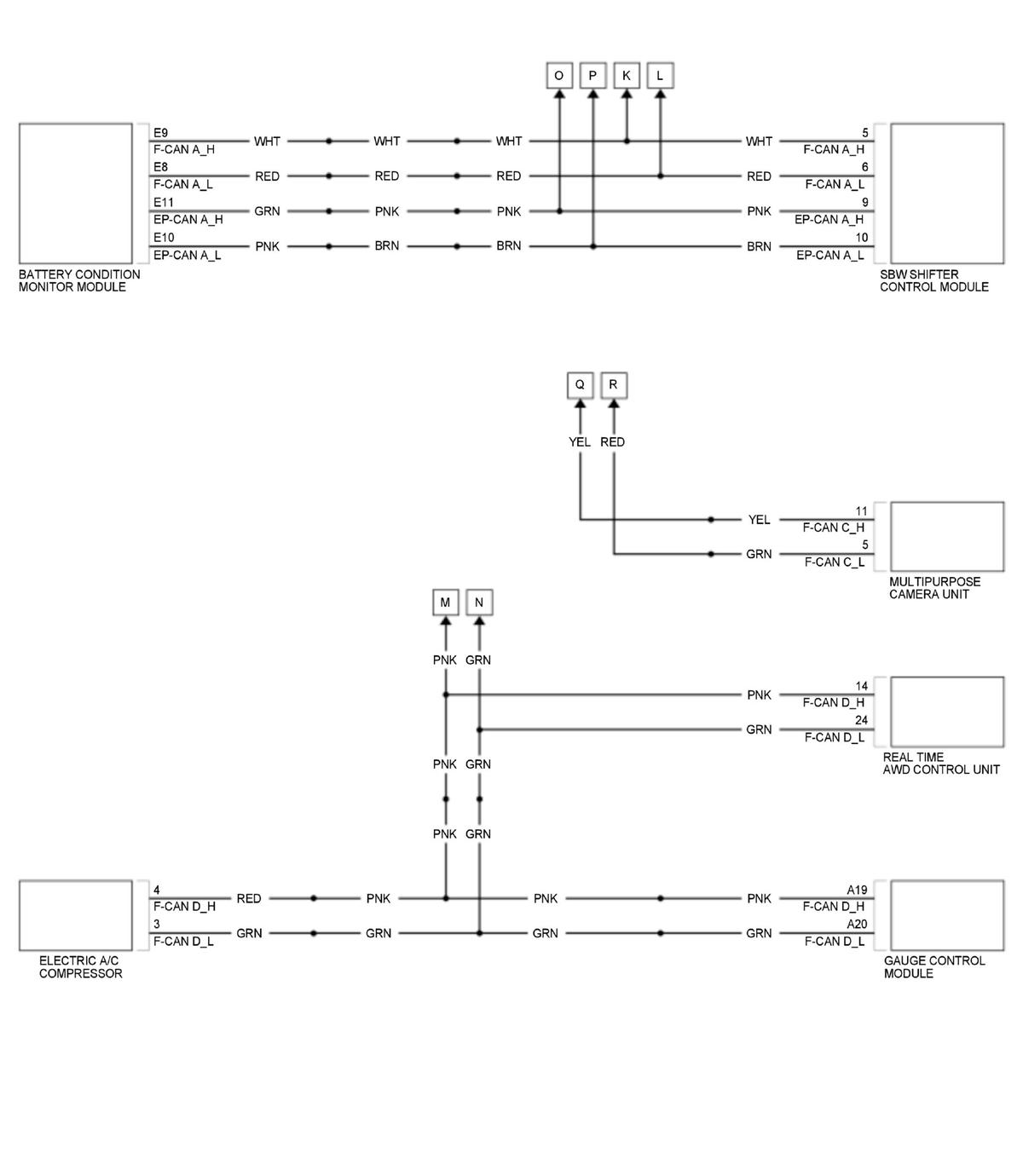

GHH380149Courtesy of HONDA, U.S.A., INC.
