A/C System Contamination Inspection: Replacement

NOTE:  The parts illustrations are samples. External appearance may vary from model to model.

1. A/C Components - Replace

   Courtesy of HONDA, U.S.A., INC.

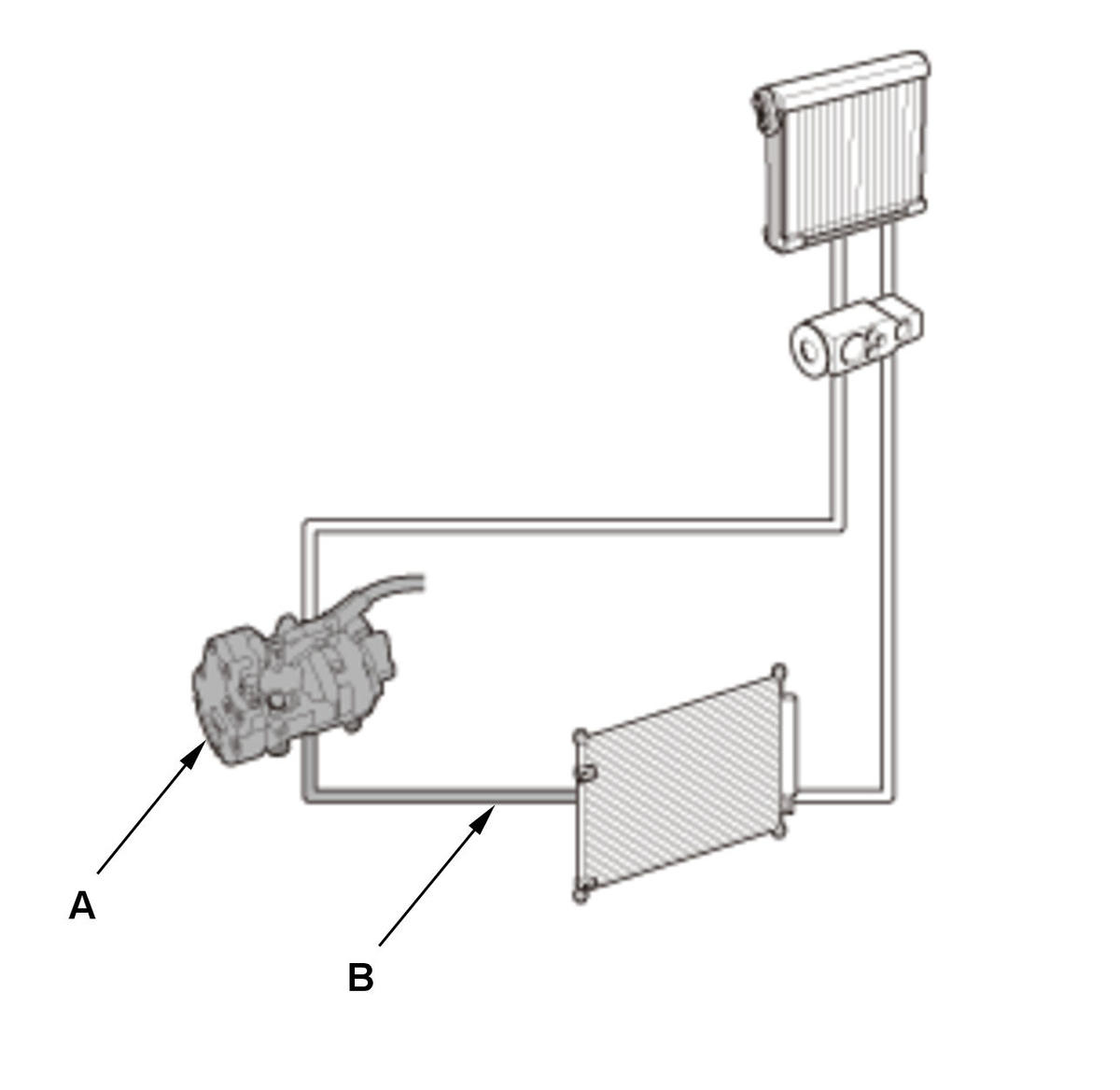

   Repair Procedure A

   Replace the following parts:

   • Electric A/C compressor (A)
   • Discharge hose (B)

   Courtesy of HONDA, U.S.A., INC.

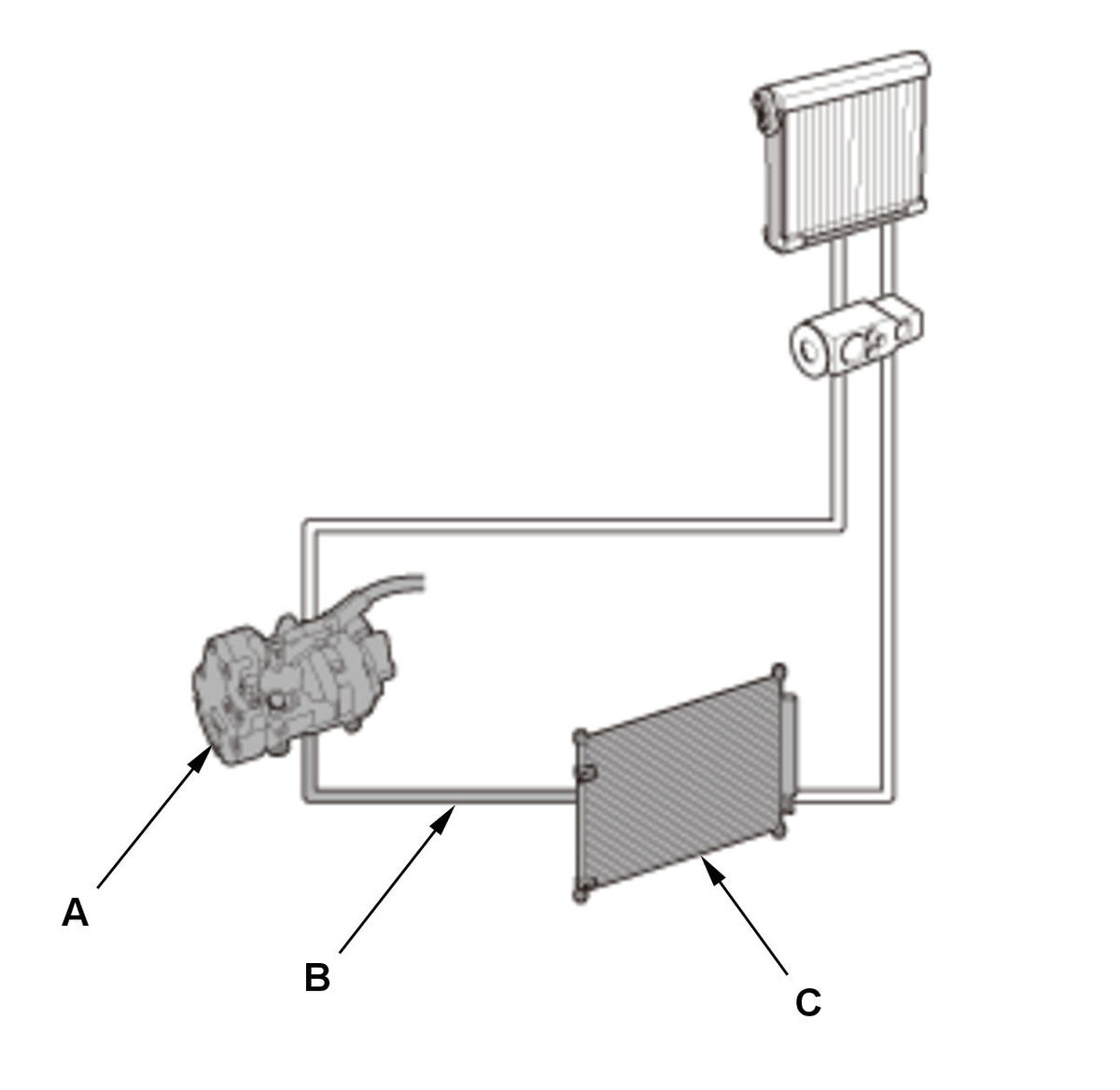

   Repair Procedure B

   Replace the following parts:

   • Electric A/C compressor (A)
   • Discharge hose (B)
   • A/C condenser (C)

   Courtesy of HONDA, U.S.A., INC.

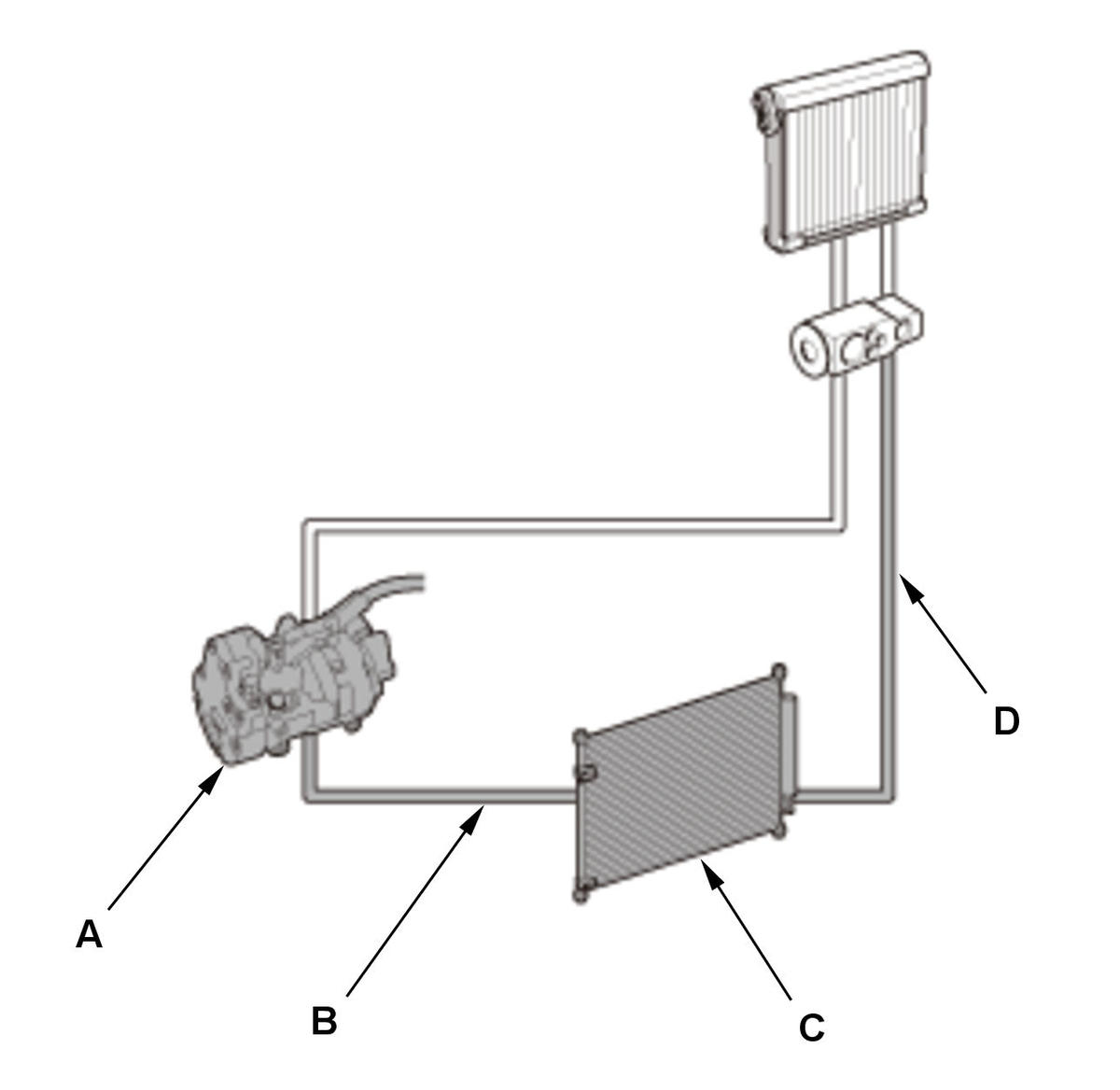

   Repair Procedure C

   Replace the following parts:

   • Electric A/C compressor (A)
   • Discharge hose (B)
   • A/C condenser (C)
   • Receiver line (D)

   Courtesy of HONDA, U.S.A., INC.

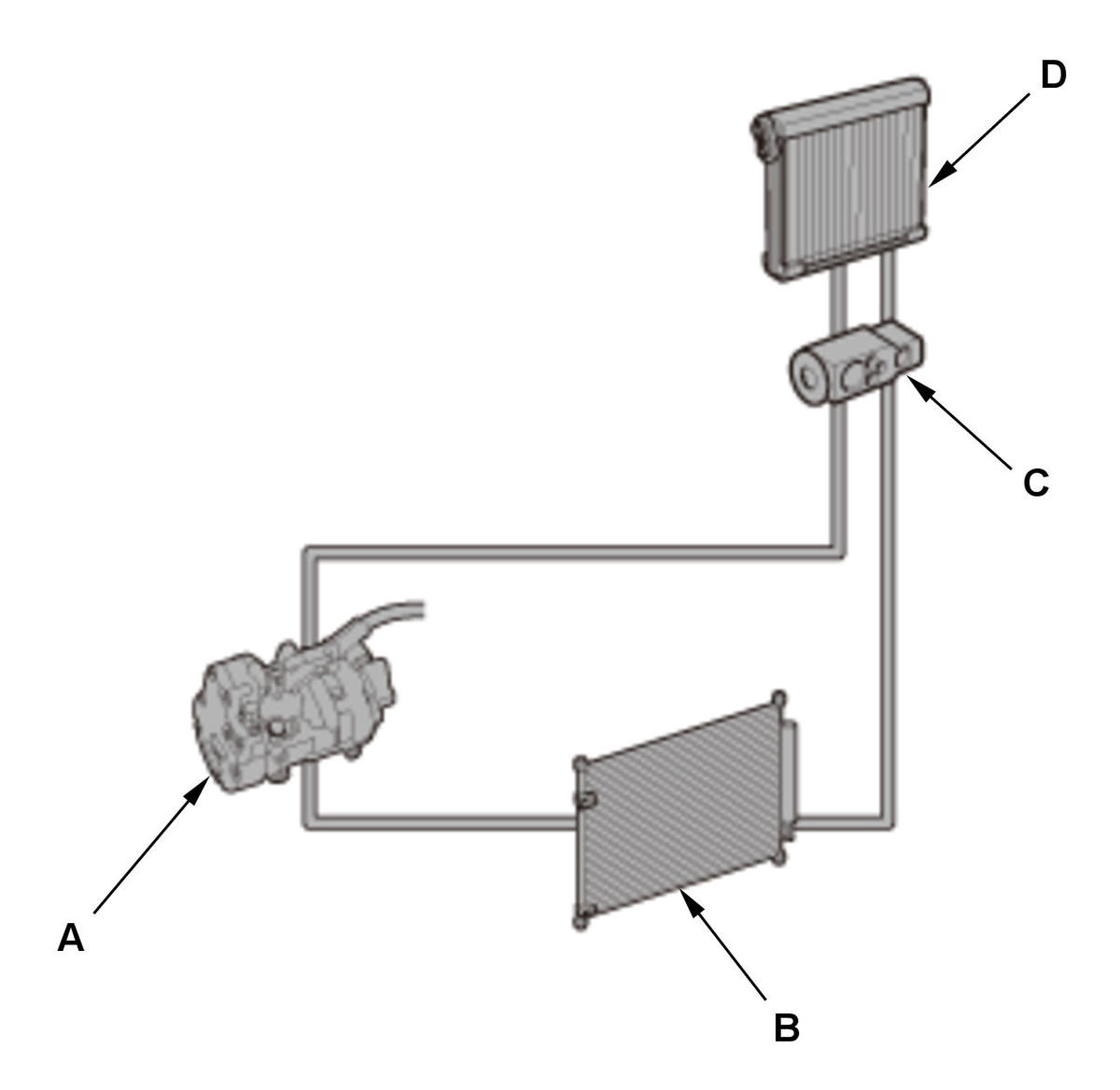

   Repair Procedure D

   Replace the following parts:

   • Electric A/C compressor (A)
   • A/C condenser (B)
   • Expansion valve (C)
   • Evaporator core (D)
   • All A/C hoses and lines
