A/C System Description - System Diagram

WARNING: This page is about a different variant/trim than selected.

For locations of each component on vehicle, refer to Component Location Index .

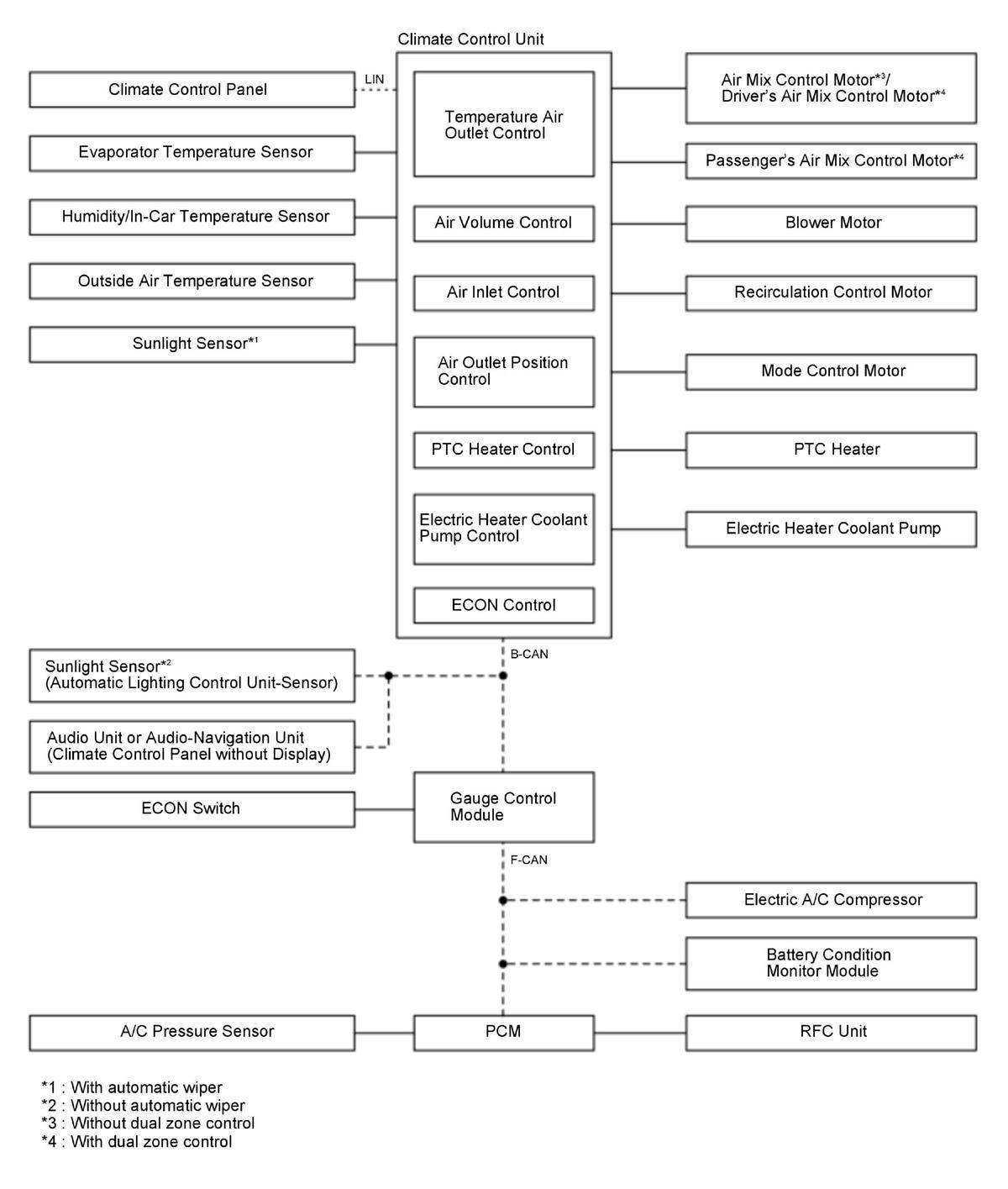

System Diagram

GHH379195

Courtesy of HONDA, U.S.A., INC.
