Removal and Installation: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

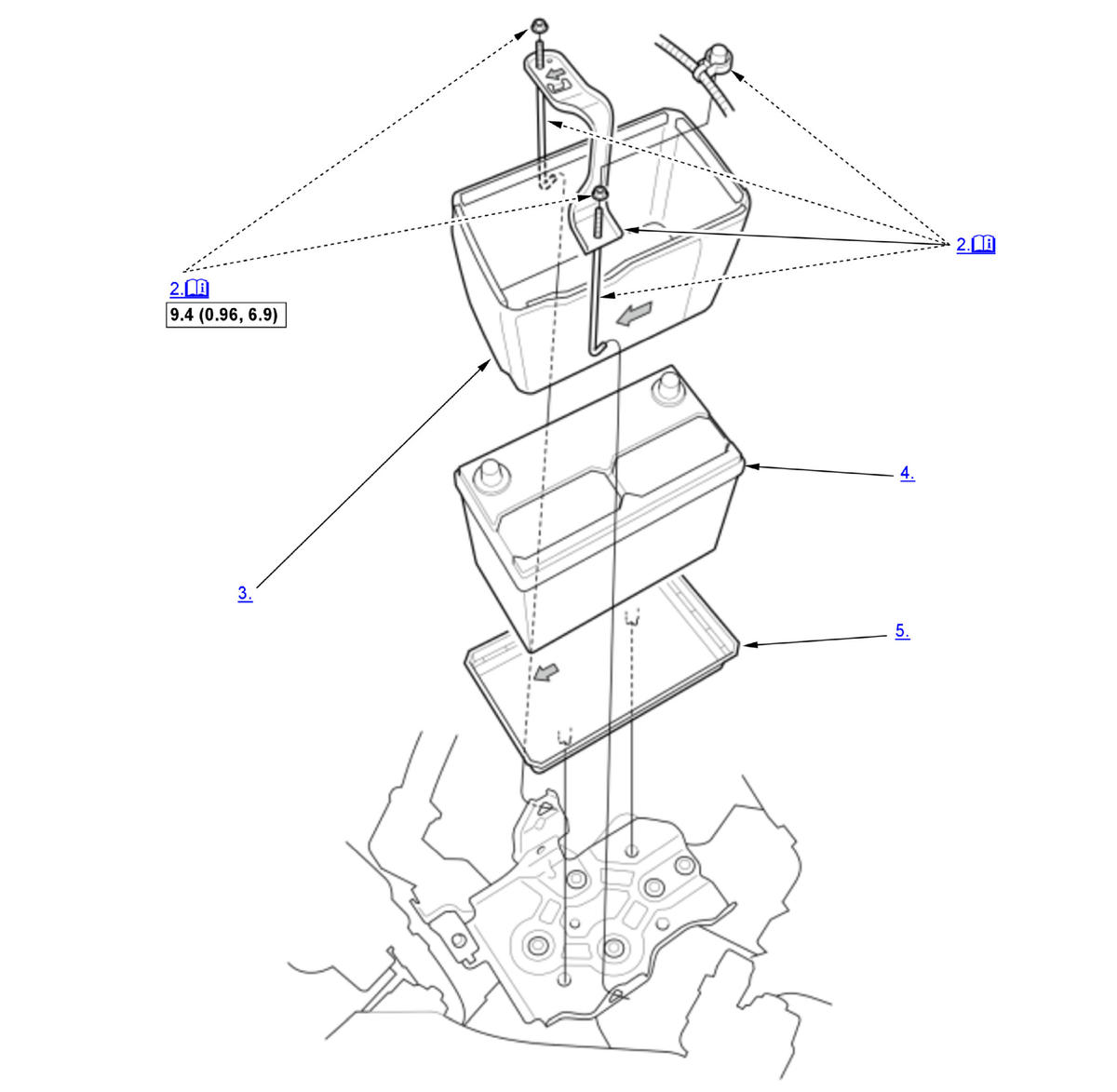

Fig 1: Exploded View Of 12 Volt Battery Replacement Components
GHH376827Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. 12 Volt Battery Terminals - Disconnect

    Note for installation

    Do reconnection procedure after reconnecting the 12 volt battery terminal.

  2. 12 Volt Battery Setting Plate - Remove

    NOTE:  Do not deform the 12 volt battery setting plate by over-tightening the nuts.

  3. 12 Volt Battery Cover - Remove
  4. 12 Volt Battery - Remove
  5. 12 Volt Battery Box - Remove
  6. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
  7. 12 Volt Battery - After the Installation Procedure
