12 Volt Battery Terminal Disconnection and Reconnection: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: With the driver's door open, turn the vehicle to the OFF (LOCK) mode, then wait at least 3 minutes before disconnecting the 12 volt negative battery cable.

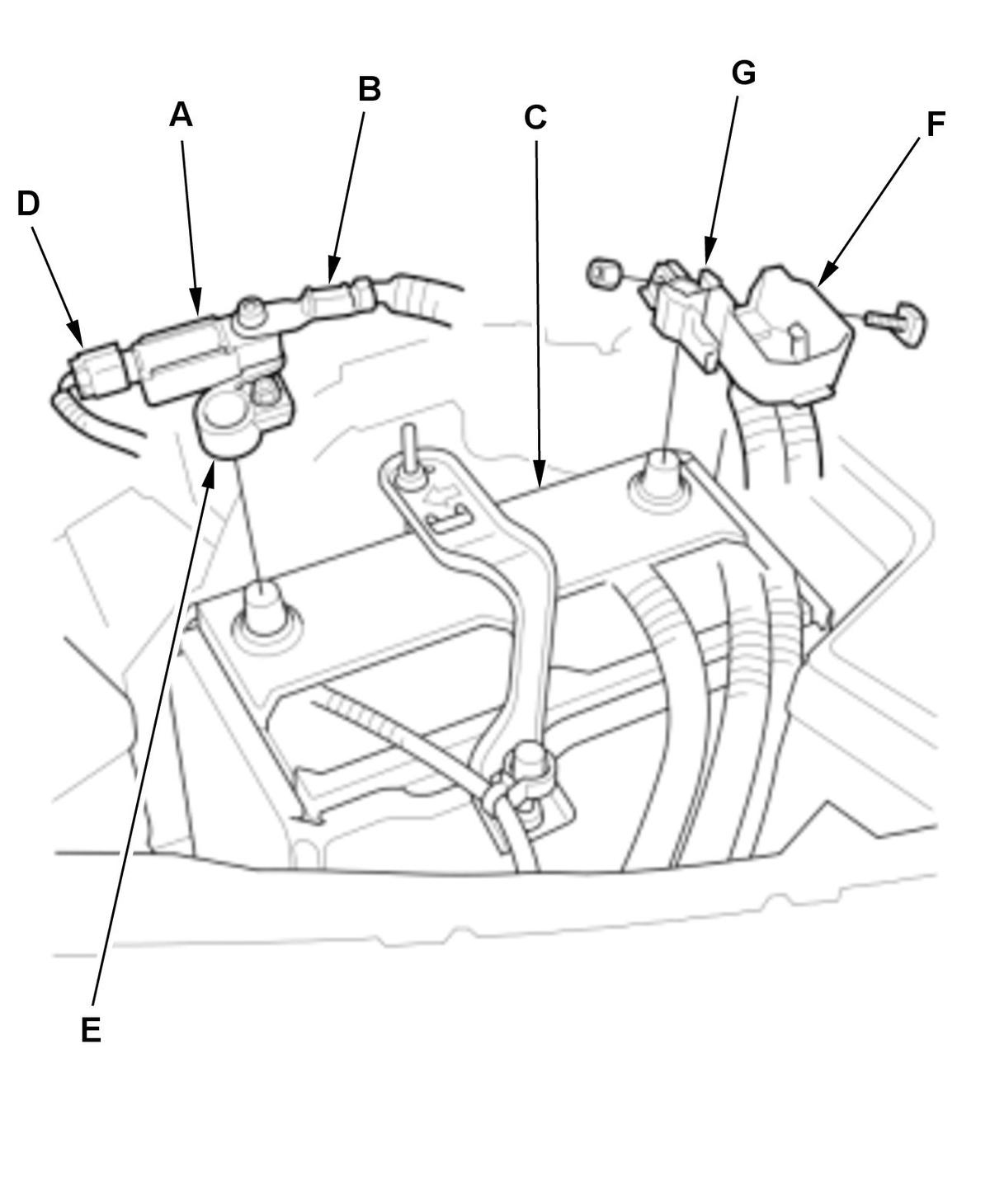

12 Volt Battery Terminals - Disconnect

Courtesy of HONDA, U.S.A., INC.

1. Make sure the vehicle is in the OFF (LOCK) mode.

2. Disconnect and isolate the 12 volt battery sensor (A) with the cable (B) from the 12 volt battery (C).

NOTE:

Always disconnect the negative side first.
To protect the 12 volt battery sensor connector (D) from damage, do not hold it when removing the terminal (E).
Do not disconnect the cable from the 12 volt battery sensor unless you replace the 12 volt battery sensor.

3. Open the cover (F).

4. Disconnect the terminal (G) from the 12 volt battery.
