12 Volt Battery Terminal Disconnection and Reconnection: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- How to read the torque specifications.
- If the 12 volt battery performed abnormally, test the 12 volt battery before installation .
- 12 Volt Battery Terminals - Connect

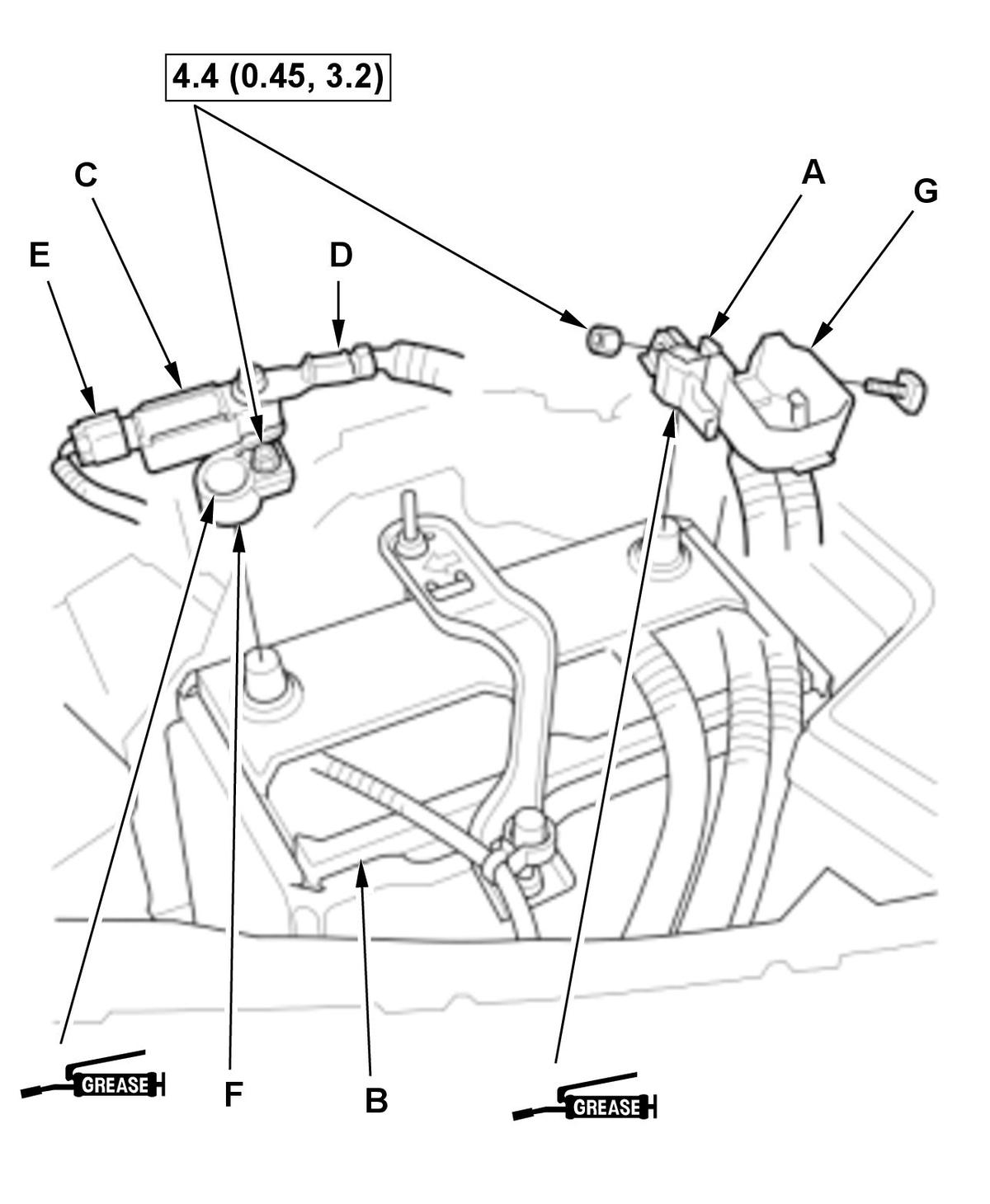

1. Clean the 12 volt battery terminals. 2. Connect the terminal (A) to the 12 volt battery (B).
NOTE: Always connect the positive side first.
3. Connect the 12 volt battery sensor (C) with the cable (D) to the 12 volt battery.
NOTE: To protect the 12 volt battery sensor connector (E) from damage, do not hold it when installing the terminal (F).
4. Apply multipurpose grease to the terminals to prevent corrosion.
5. Close the cover (G).
Procedure After Installation 12 Volt Battery
- Steering Angle Neutral Position - Learn
