Windshield Wiper Control Unit/Motor Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.

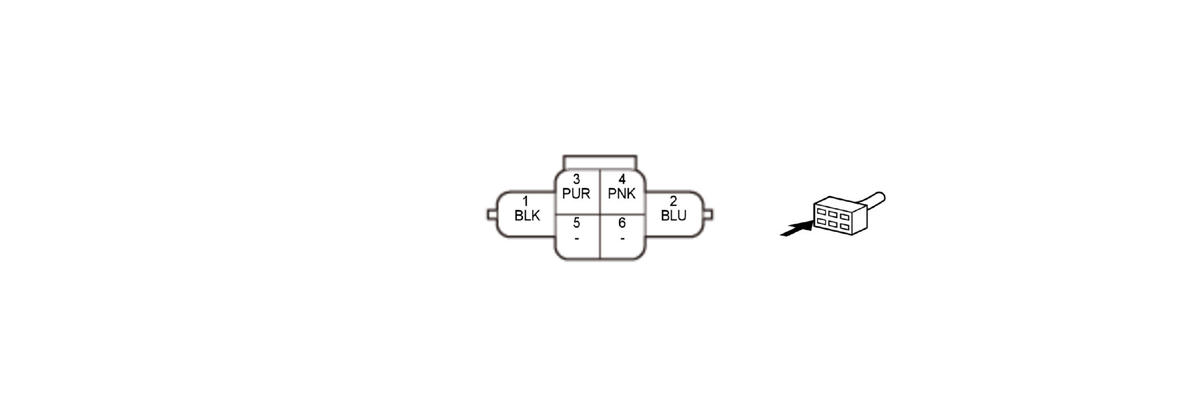

Windshield Wiper Control Unit/Motor 6P Connector (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | Windshield wiper control unit/motor ground | Less than 0.2 V at all times |
| 2 | +B_WIPER | +B power source | About battery voltage at all times |
| 3 | BACK_UP(WIPER) | Detects windshield wiper control unit/motor HI or LO signal | With vehicle in ON mode and wiper HI or LO operation: about battery voltage If none of the above conditions are met: less than 0.2V |
| 4 | LIN(FR_WIPER) | Communication line | --- |
| 5 | --- | Not used | --- |
| 6 | --- | Not used | --- |
