Wipers/Washers Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

Windshield

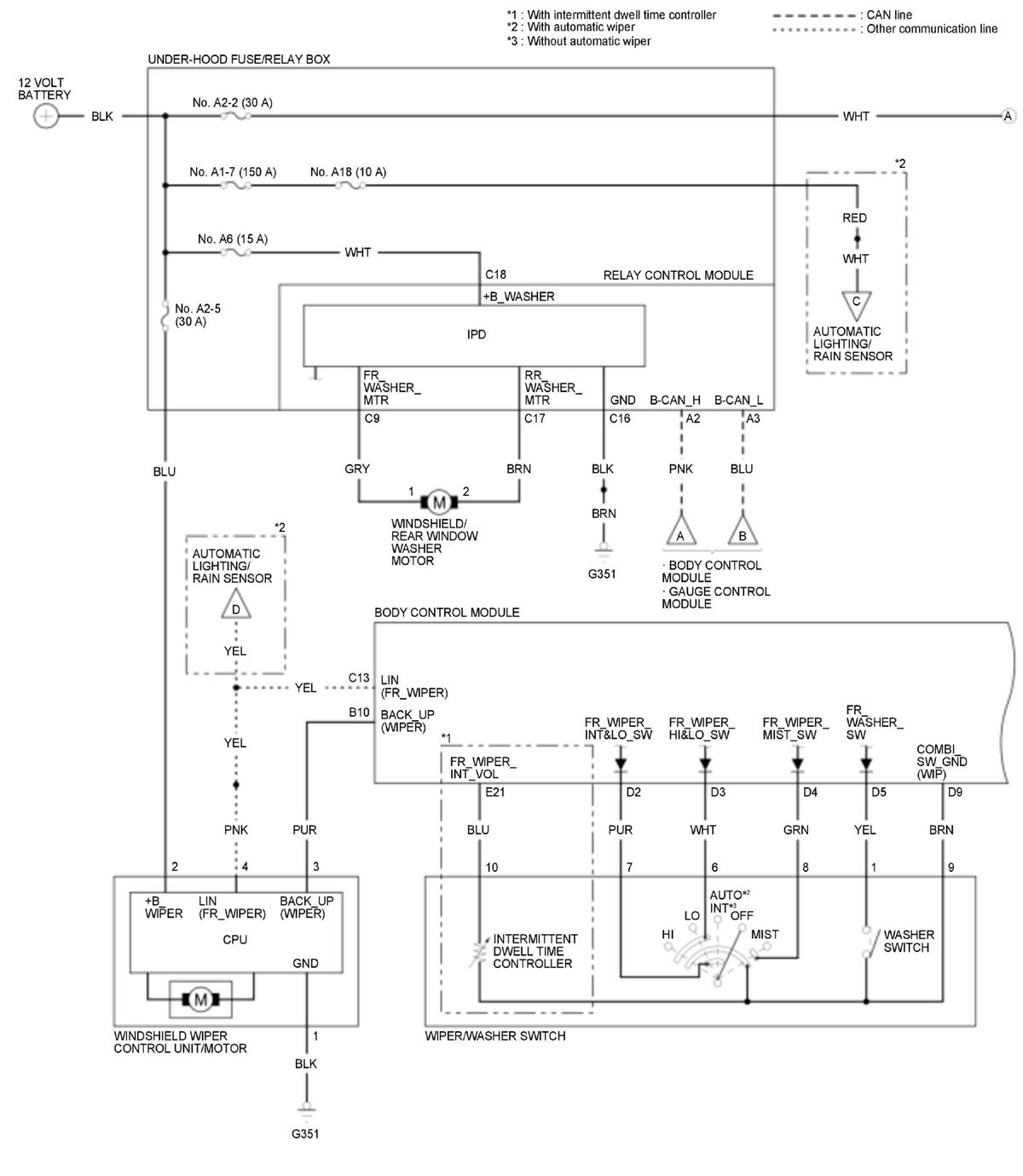

GHH378701Courtesy of HONDA, U.S.A., INC.

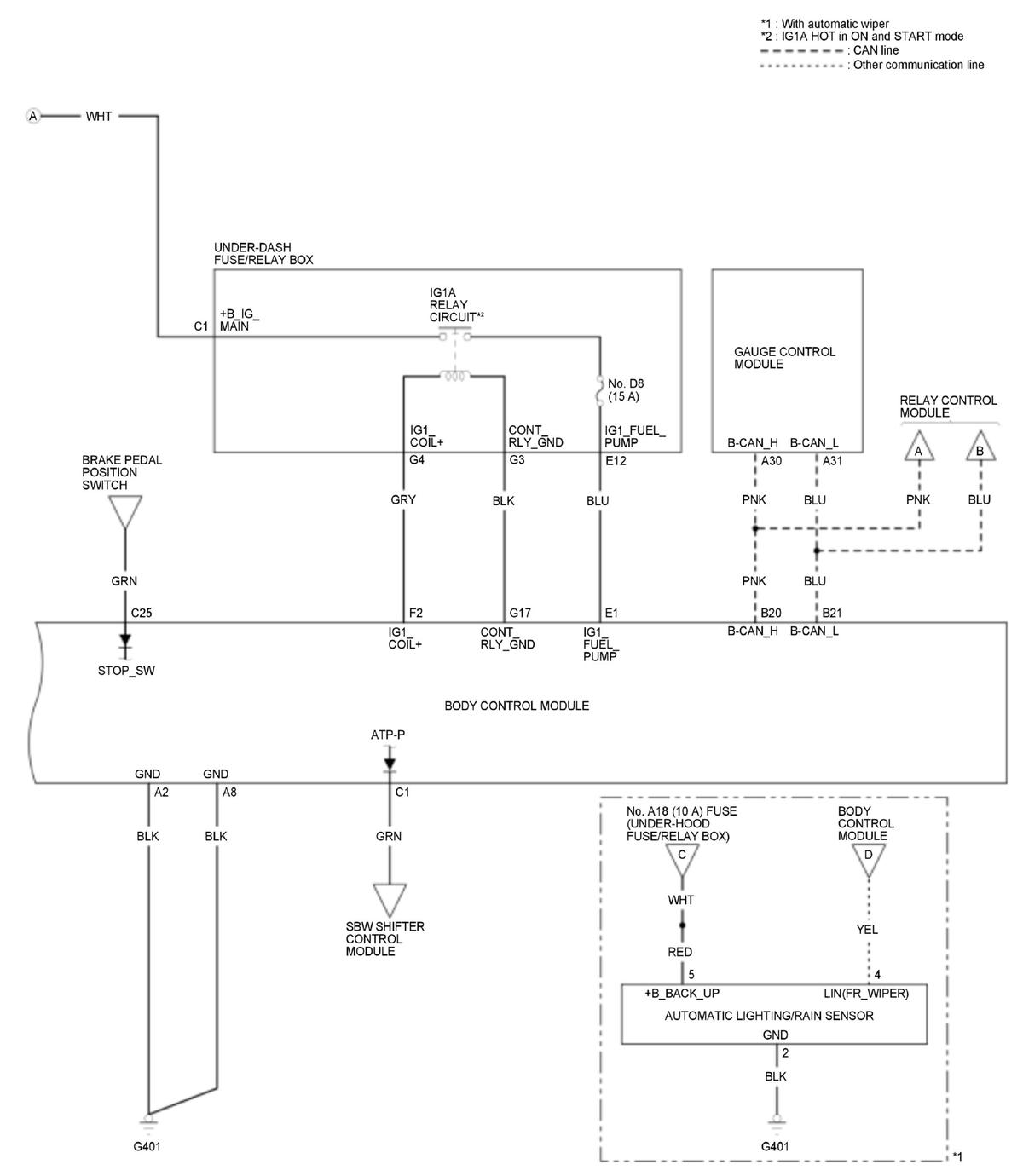

GHH378702Courtesy of HONDA, U.S.A., INC.

Rear Window

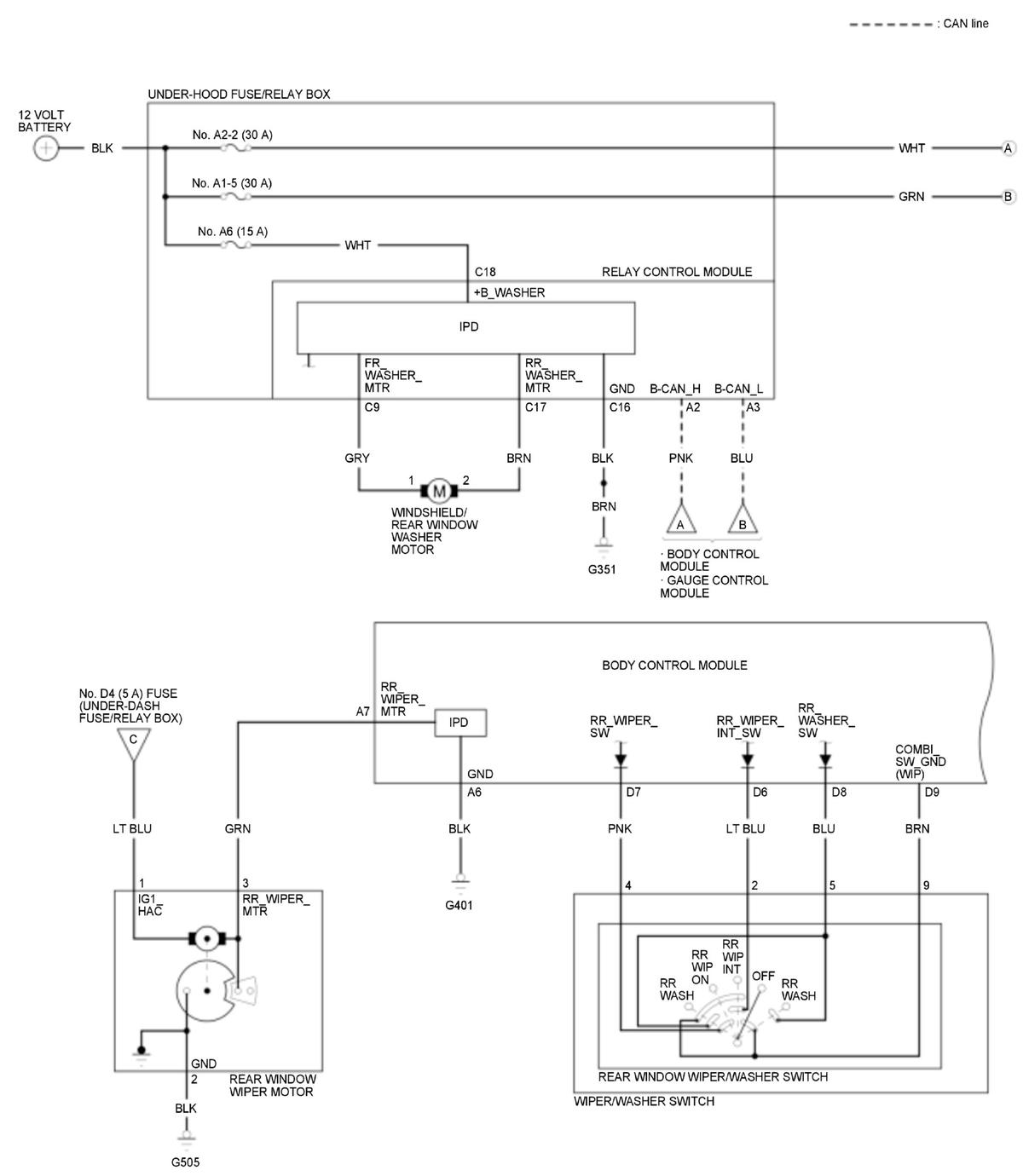

GHH378703Courtesy of HONDA, U.S.A., INC.

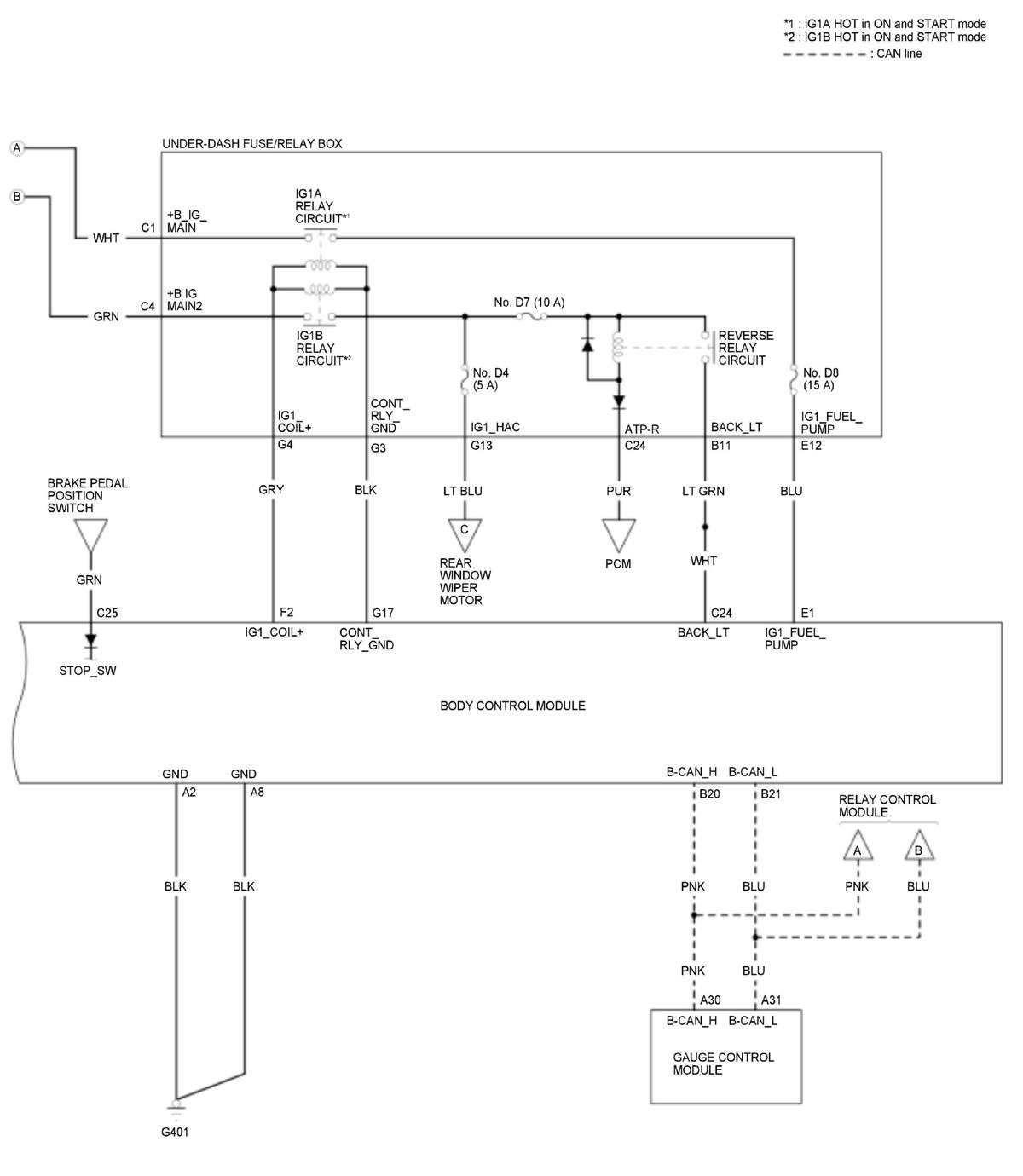

GHH378704Courtesy of HONDA, U.S.A., INC.
