Run the Sensor Input Display Mode

WARNING: This page is about a different variant/trim than selected.

1. Turn the vehicle to the OFF (LOCK) mode.

2. Press and hold both the AUTO and RECIRCULATION buttons, then turn the vehicle to the READY TO DRIVE mode.

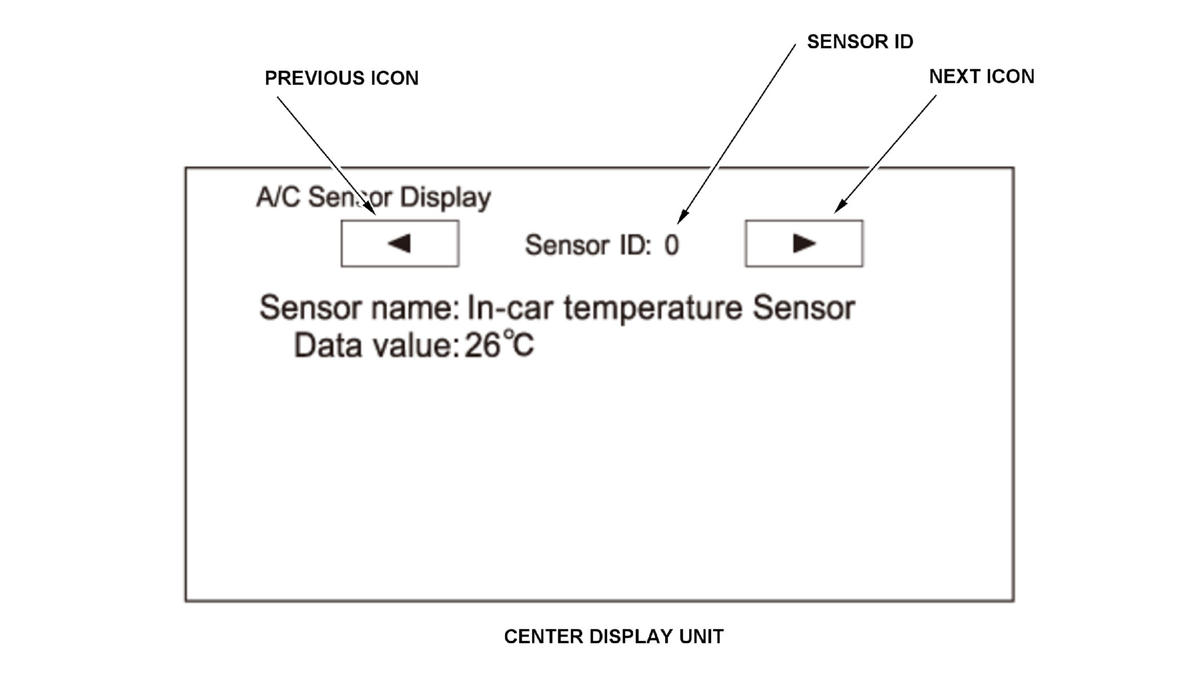

3. Release both buttons. The display screen goes directly to the A/C sensor display mode shown. The display screen indicates the sensor ID and then the value for that sensor.

Courtesy of HONDA, U.S.A., INC.

4. To advance to the next sensor, touch the sensor ID previous/next icon or press the REAR WINDOW DEFOGGER/MIRROR DEFOGGER * button.*: With mirror defogger To cancel the sensor input display mode, press the AUTO button or turn the vehicle to the OFF (LOCK) mode.

NOTE:

The sensor values will be displayed in degrees Celsius (deg.C) or an alphanumeric code. Use the chart to convert the value to degrees Fahrenheit (deg.F).
If the sensor value displays "Error", this indicates there is an open or short in the circuit or sensor. Check for DTCs using the HDS, or use the climate control self-diagnostic function.
If necessary, compare the sensor input display to a known-good vehicle under the same test conditions.
If the sensor displayed value is out of the normal range, refer to the sensor test or substitute a known-good sensor, and recheck.
Unsupported items shall be skipped.

Sensor ID	Sensor Name	Data Value Unit
0	In-car temperature Sensor	deg.C
1	Ambient temperature Sensor	deg.C
2	Solar radiation Sensor	10 W/m 2
3	Water temperature Sensor	deg.C
4	Evaporator Sensor	deg.C
5	Humidity Sensor	%
8	A/M motor potentiometer (Dr)	% of opening
9	A/M motor potentiometer (As)	% of opening

Sensor ID	Sensor Name	Data Value Unit
10	Mode motor potentiometer	0.1 V
11	R/F motor potentiometer	% of opening
16	ECOMP Real RPM	100 rpm
26	COMP Oil circulation	Unfinished Finished
27	Solar radiation Sensor Variation	Hard Wire BCAN Unknown

Celsius to Fahrenheit Conversion Table

deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F
0	32	10	50	20	68	30	86	40	104
1	34	11	52	21	70	31	88	41	106
2	36	12	54	22	72	32	90	42	108
3	37	13	55	23	73	33	91	43	109
4	39	14	57	24	75	34	93	44	111
5	41	15	59	25	77	35	95	45	113
6	43	16	61	26	79	36	97	46	115
7	45	17	63	27	81	37	99	47	117
8	46	18	64	28	82	38	100	48	118
9	48	19	66	29	84	39	102	49	120

deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F	deg.C	deg.F
50	122	60	140	70	158	80	176	90	194
51	124	61	142	71	160	81	178	91	196
52	126	62	144	72	162	82	180	92	198
53	127	63	145	73	163	83	181	93	199
54	129	64	147	74	165	84	183	94	201
55	131	65	149	75	167	85	185	95	203
56	133	66	151	76	169	86	187	96	205
57	135	67	153	77	171	87	189	97	207
58	136	68	154	78	172	88	190	98	208
59	138	69	156	79	174	89	192	99	210

Alphanumeric Conversion Table

Display Reading (Alphanumeric)	deg.C	deg.F	%
F9	109 thru 200	228 thru 392	109 thru 200
F0 thru F8	100 thru 108	212 thru 226	100 thru 108
0 thru 99	0 thru 99	32 thru 210	0 thru 99
A1 thru A9	-1 thru -9	30 thru 16	-1 thru -10
B0 thru B9	-10 thru -19	14 thru -2	-10 thru -19
C0 thru C9	-20 thru -29	-4 thru -20	-20 thru -29
D0 thru D9	-30 thru -39	-22 thru -38	-30 thru -39
E0 thru E9	-40 thru -49	-40 thru -56	-40 thru -49

Alphanumeric Conversion Table (Mode Positioning)

Display Reading (Volt)	Indication	Mode Position
0.5-0.6	Courtesy of HONDA, U.S.A., INC.	VENT
1.1-1.2	Courtesy of HONDA, U.S.A., INC.	HEAT/VENT-1
1.4-1.5		HEAT/VENT-2
1.8-1.9		HEAT/VENT-3
2.3-2.4	Courtesy of HONDA, U.S.A., INC.	HEAT-1
2.8-2.9	Courtesy of HONDA, U.S.A., INC.	HEAT-2
3.2-3.3	Courtesy of HONDA, U.S.A., INC.	HEAT/DEF-1
4.0-4.1	Courtesy of HONDA, U.S.A., INC.	HEAT/DEF-2
4.4-4.5	Courtesy of HONDA, U.S.A., INC.	DEF
4.4-4.5	Not indication *2	DEF

*1: Auto mode

*2: Manual mode
