Automatic Brake Hold Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

Automatic Brake Hold Switch - Test

Courtesy of HONDA, U.S.A., INC.

Switch Internal Resistance Check:

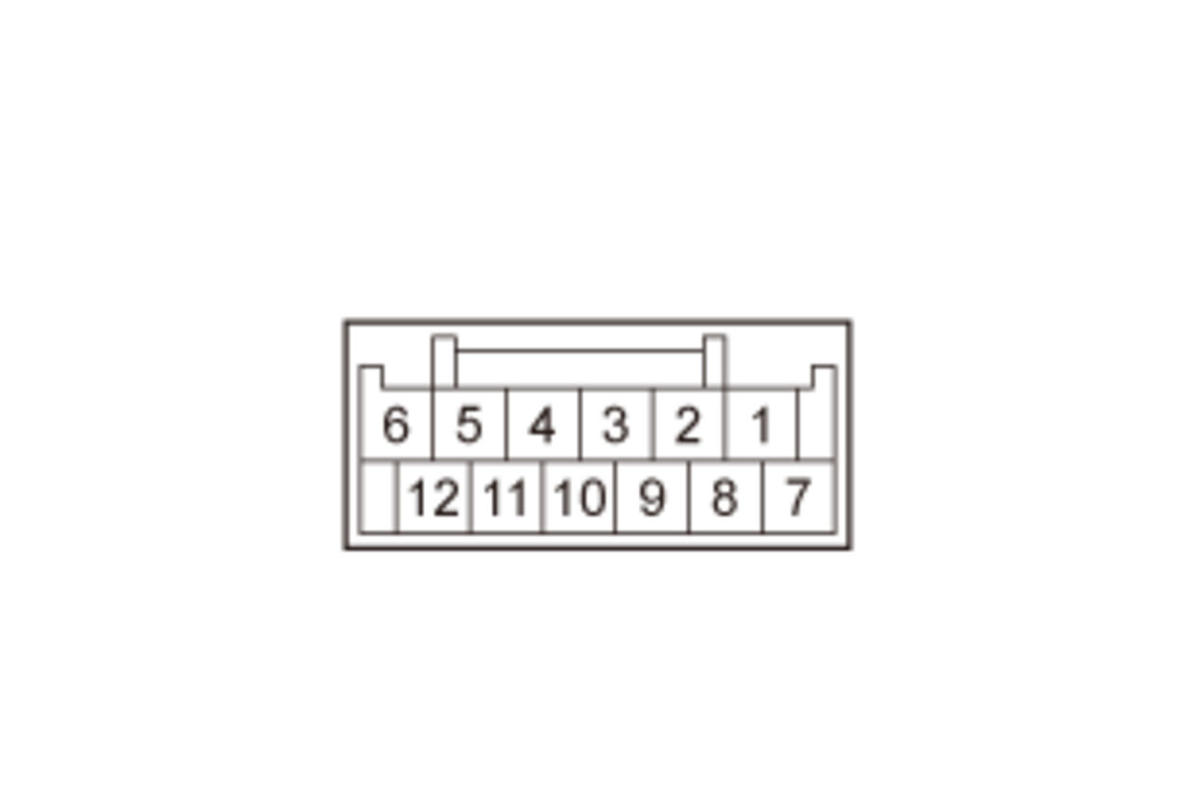

1. On the switch side, measure the resistance between the connector terminal (male terminals) in each switch position according to the table.

Terminal	Position	Resistance
No. 7 and No. 8	PRESSED	About 559 Ω
No. 7 and No. 8	RELEASED	About 2200 Ω

2. If the switch does not work as described in the table, replace the switch.

Courtesy of HONDA, U.S.A., INC.

Switch Illumination Circuit Check:

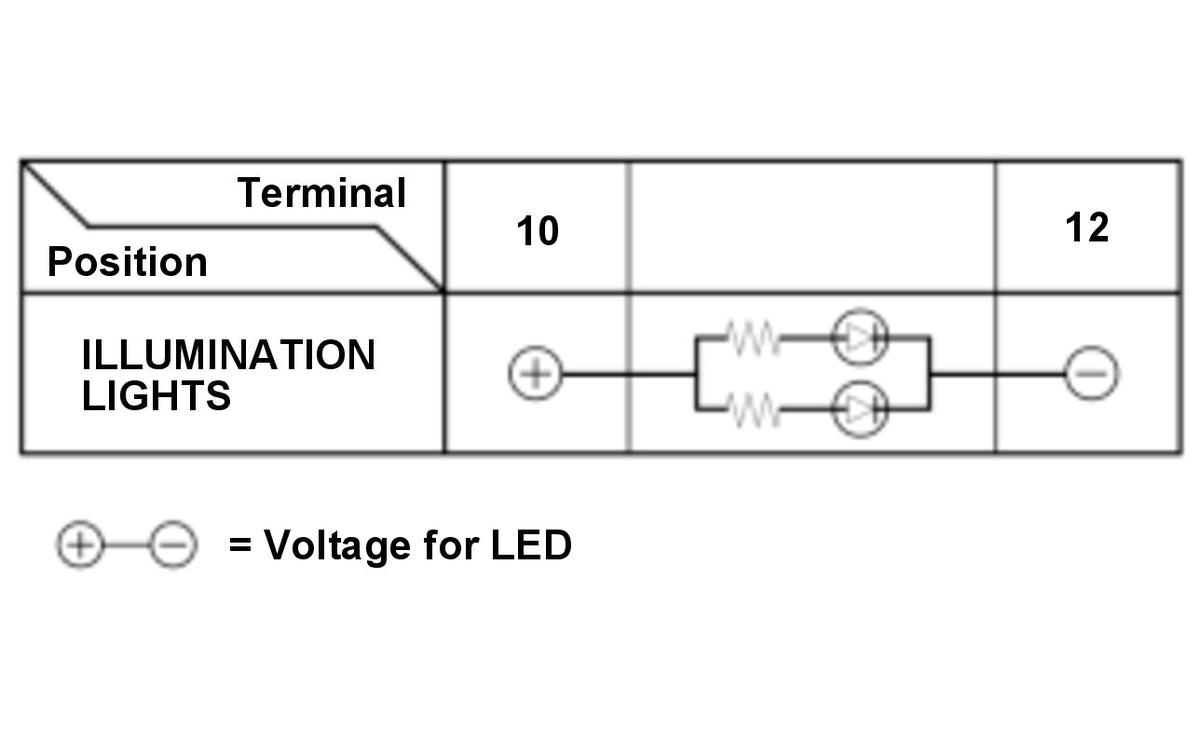

1. On the switch side, check the LED for illumination by applying power and ground to the terminals according to the table.

NOTE: Important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the switch.
