Brake Hose Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Review the Service Precautions before doing repairs or service .

Front

  1. Vehicle - Lift
  2. Front Wheel - Remove
  3. Brake Hose - Remove

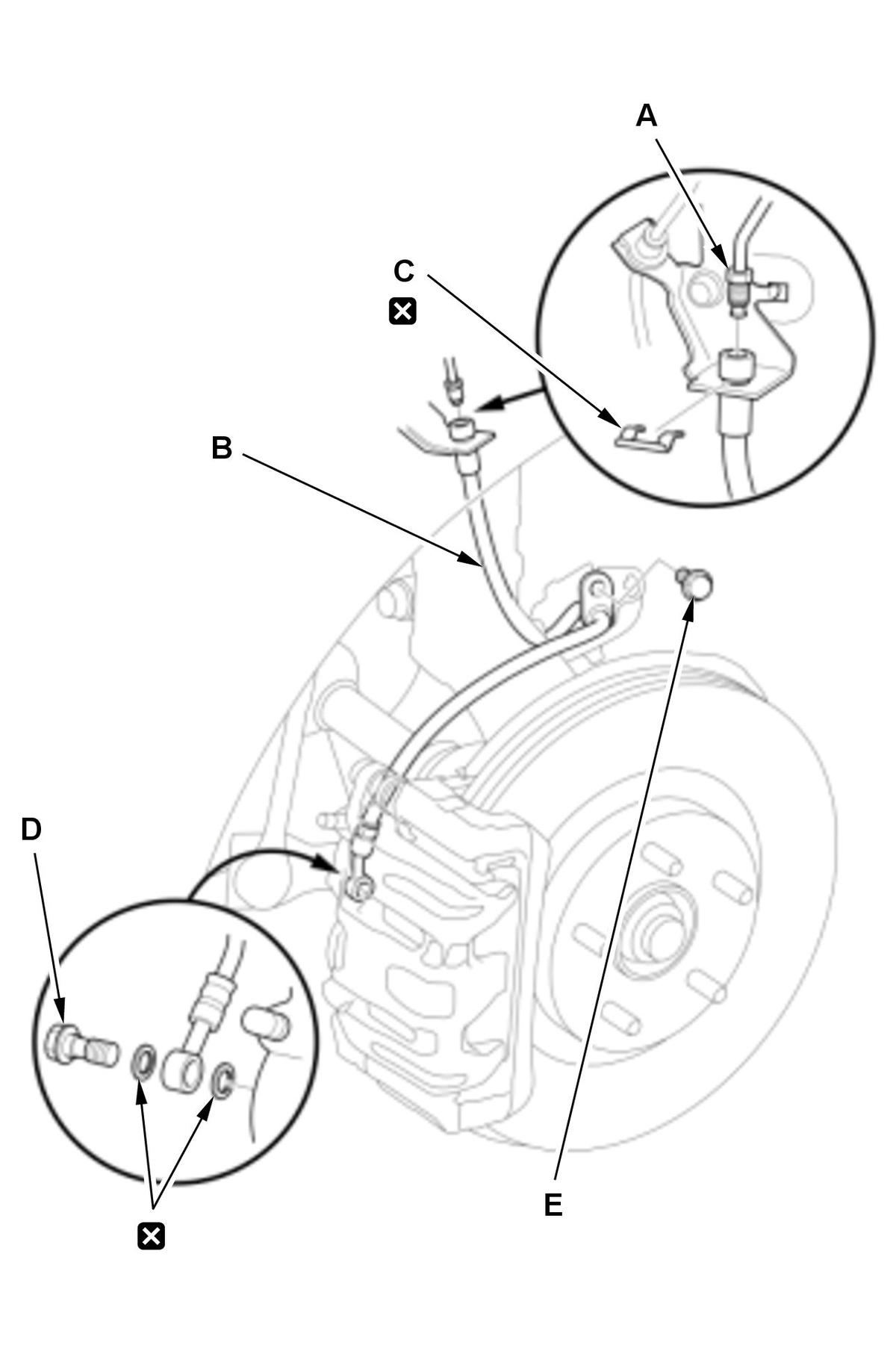

    GHH375860Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the brake line (A) from the brake hose (B).

    2. Remove the brake hose clip (C).

    3. Remove the banjo bolt (D), and disconnect the brake hose from the caliper body.

    4. Remove the brake hose mounting bolt (E).

Rear

  1. Vehicle - Lift
  2. Rear Wheel - Remove
  3. Brake Hose - Remove

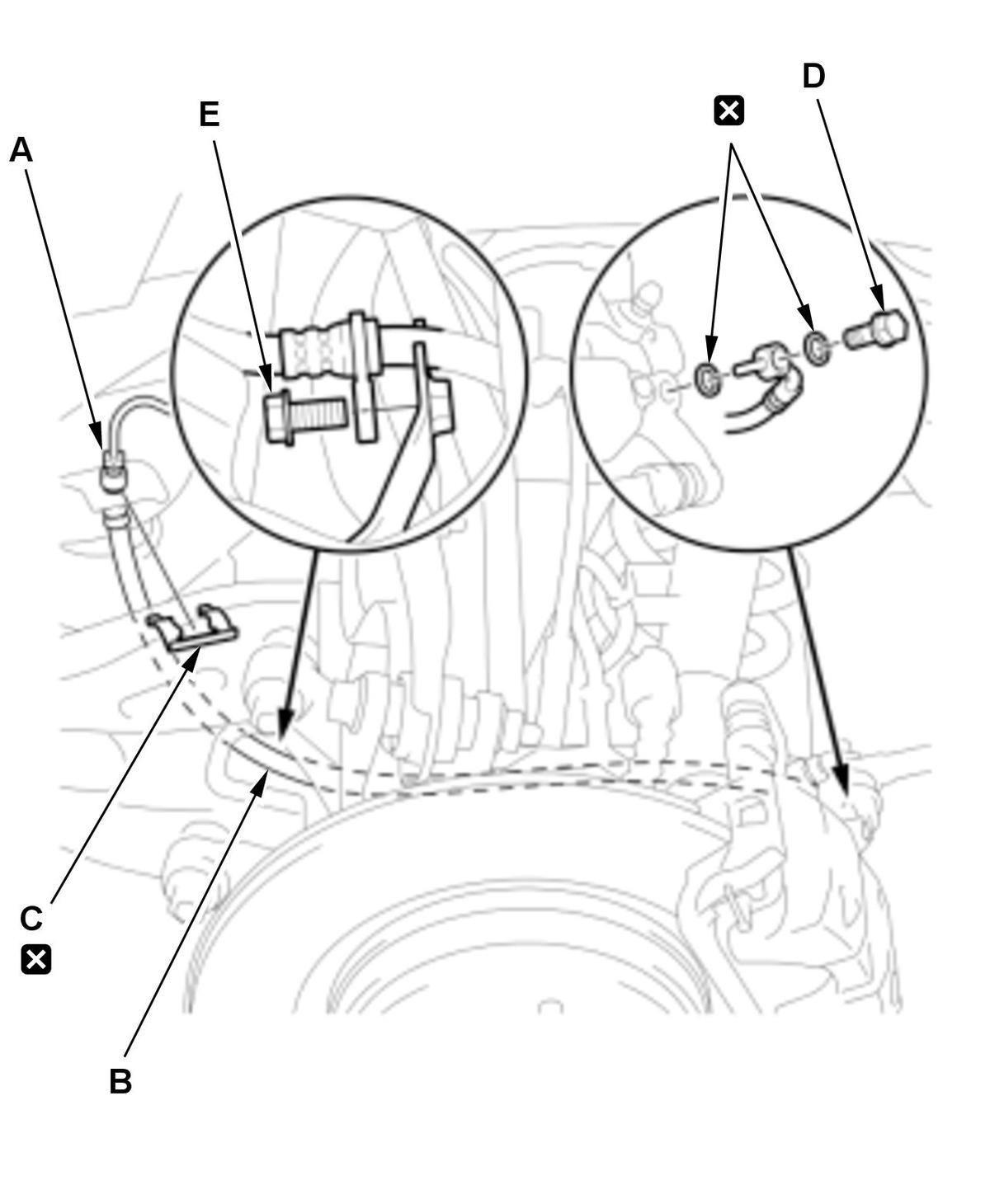

    GHH375861Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the brake line (A) from the brake hose (B).

    2. Remove the brake hose clip (C).

    3. Remove the banjo bolt (D), and disconnect the brake hose from the caliper body.

    4. Remove the brake hose mounting bolt (E).
