Rear Brake Caliper Overhaul: Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

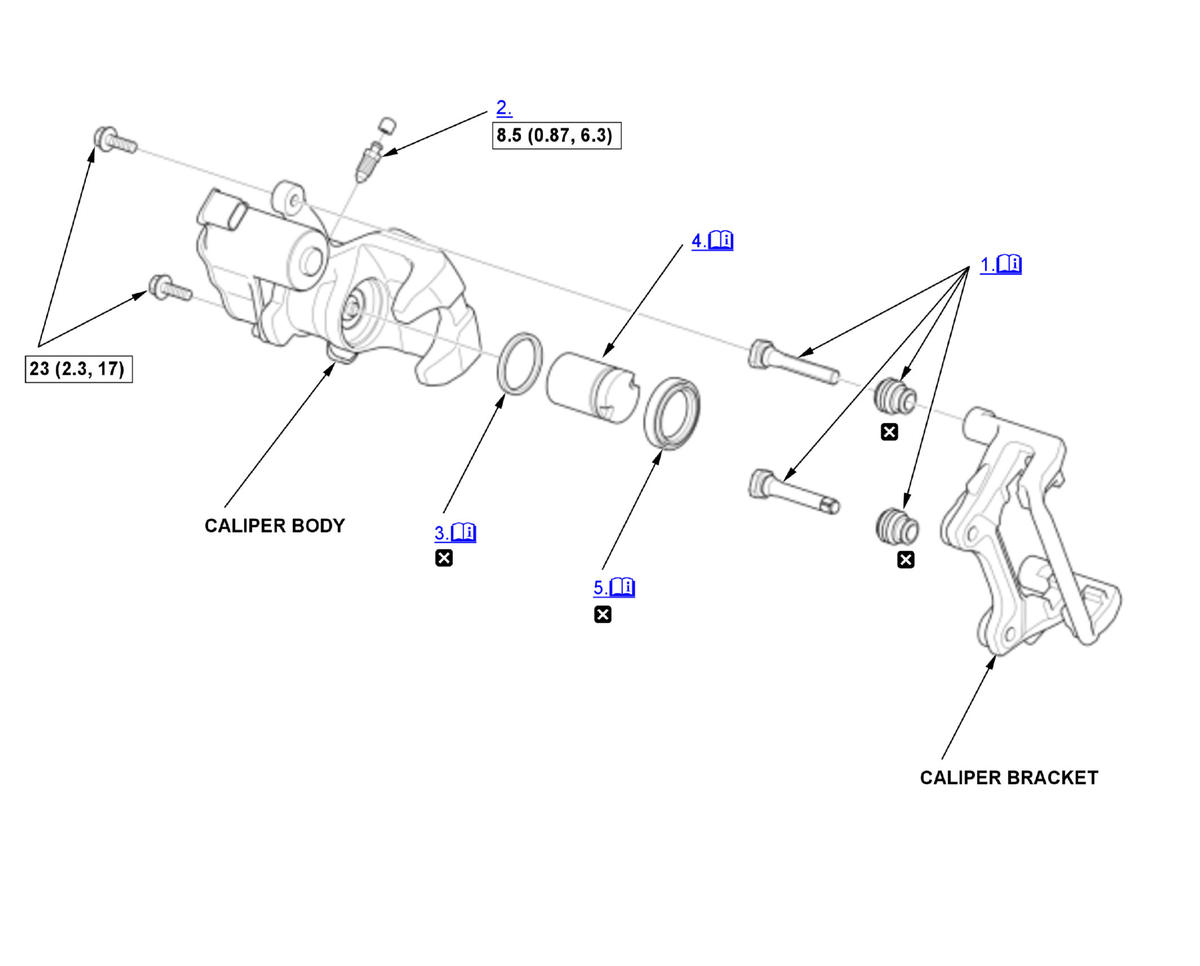

Fig 1: Exploded View Of Rear Brake Caliper Components With Torque Specifications For Reassembly
GHH375853Courtesy of HONDA, U.S.A., INC.
Detailed information, notes, and precautions
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Caliper Pin and Pin Boot - Install
    GHH375854Courtesy of HONDA, U.S.A., INC.

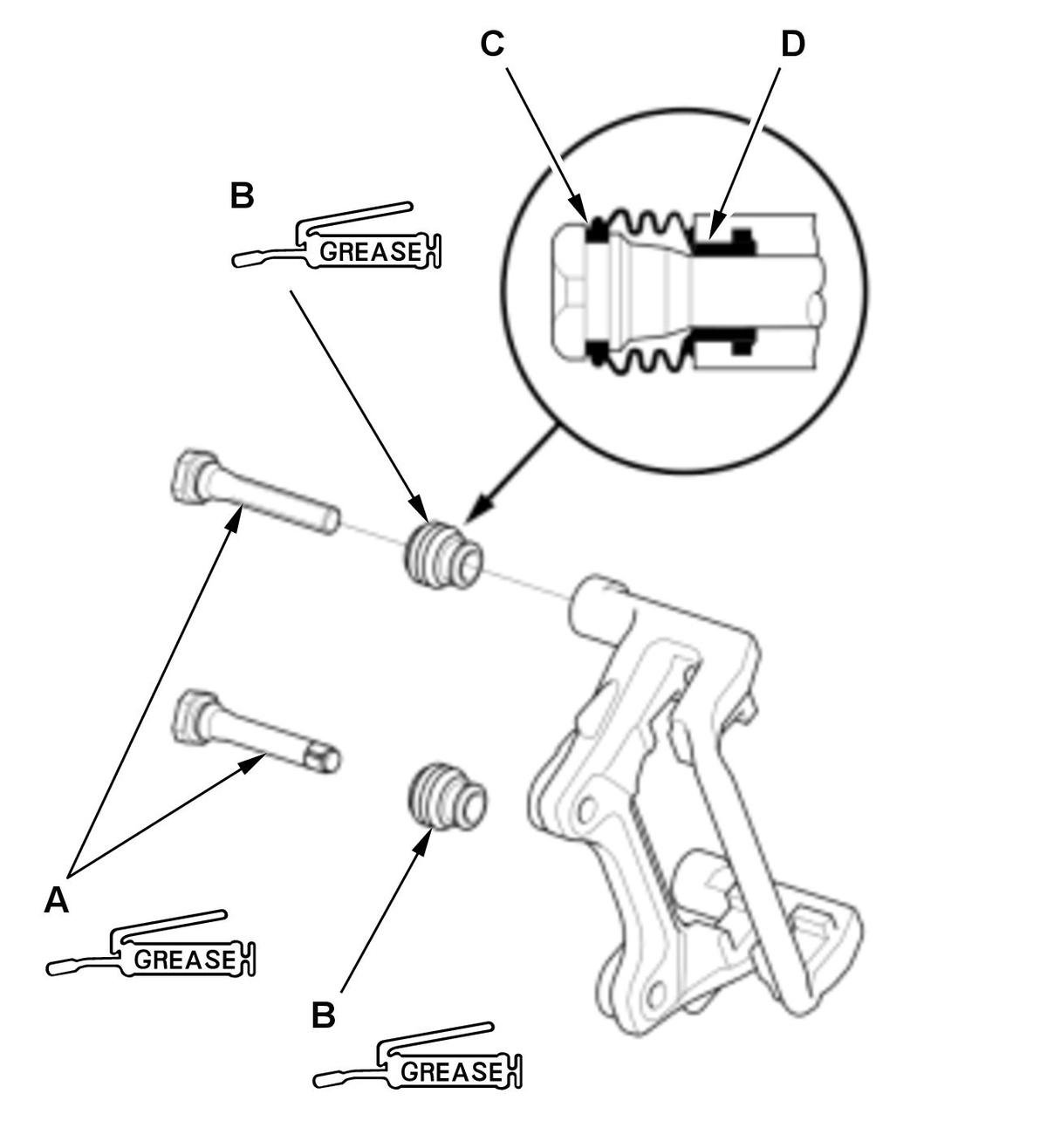

    		 1. Apply a thin coat of Honda silicone grease (P/N 08C30-B0234M) or caliper set grease to the caliper pins (A) and the pin boots (B).

    NOTE:  Use the grease (NIGLUBE RM) that is included in the caliper set.

    2. Install the pin boots.

    3. Install the caliper pins.

    NOTE:

    • Make sure that the caliper pins are installed correctly. The upper caliper pin and the lower caliper pin are different. If these caliper pins are installed in the wrong location, it will cause vibration, uneven or rapid brake pad wear, and possibly uneven tire wear.
    • Make sure that the pin boots are properly positioned into the grooves (C) of the caliper pin and the grooves (D) of the caliper body.
    • Remove air from within the pin boots.
  2. Bleed Screw - Install
  3. Piston Seal - Install
    GHH375855Courtesy of HONDA, U.S.A., INC.

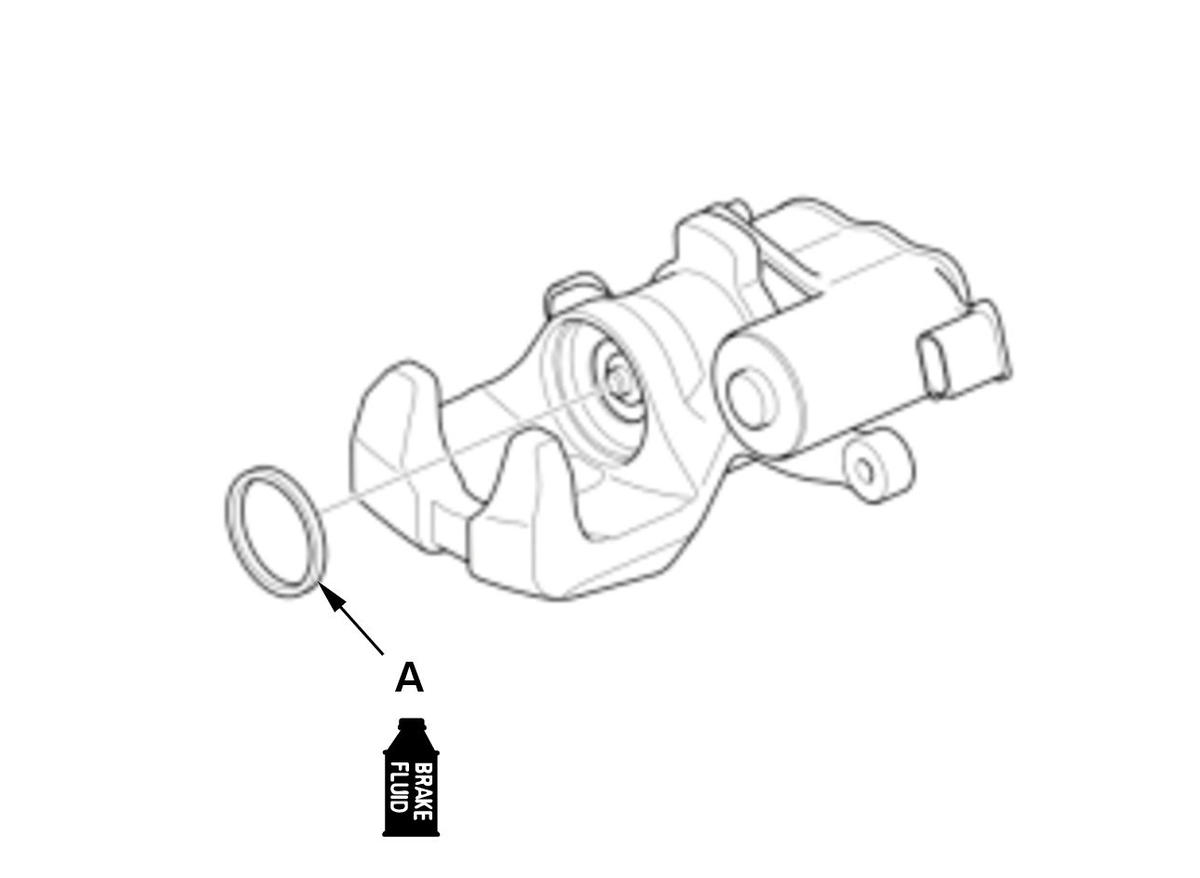

    		 1. Apply brake fluid to the piston seal (A).

    2. Install the piston seal.

    NOTE:  If necessary, remove the adjuster nut before installing the piston seal. When installing the adjuster nut, turn the adjuster nut until it comes to a lock.
  4. Piston - Install
    GHH375856Courtesy of HONDA, U.S.A., INC.
    		 1. Install the piston boot to the piston.

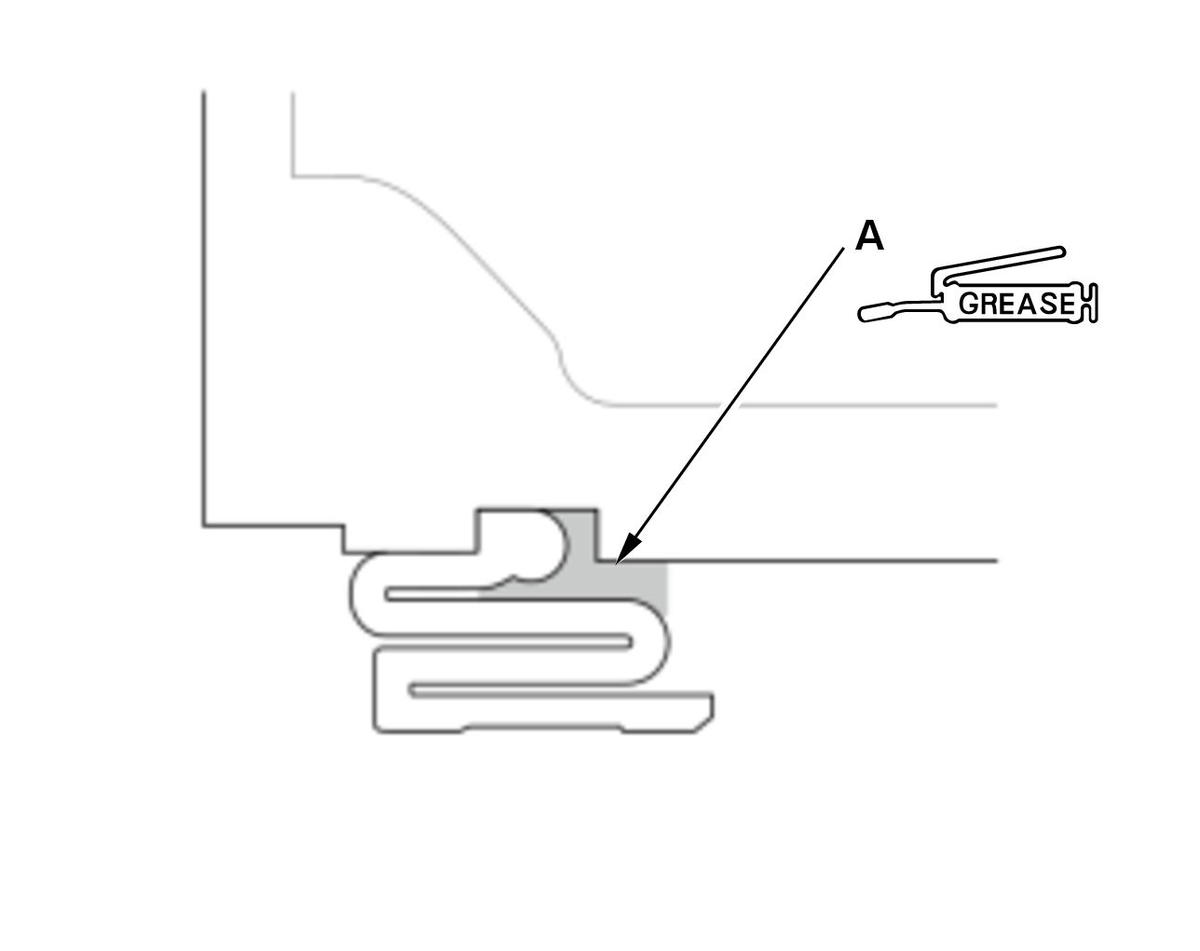

    2. Apply caliper set grease (GB3G) (A) to the piston boot as shown.

    NOTE:  Use the grease that is included in the caliper set.
    GHH375857Courtesy of HONDA, U.S.A., INC.

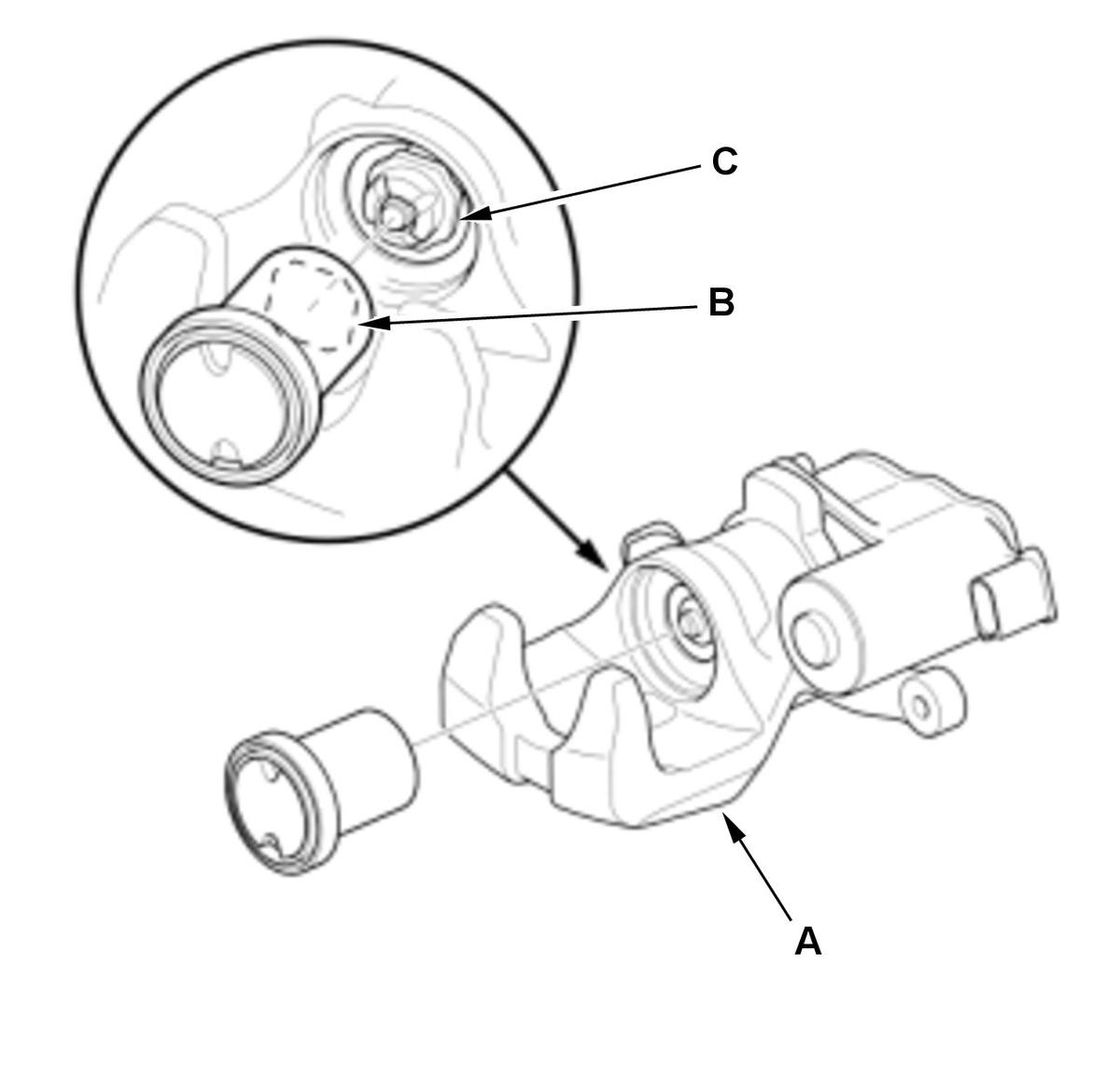

    		 3. Set the piston in place on the caliper body (A) and align the groove (B) of the piston and the adjuster nut (C).
    GHH375858Courtesy of HONDA, U.S.A., INC.

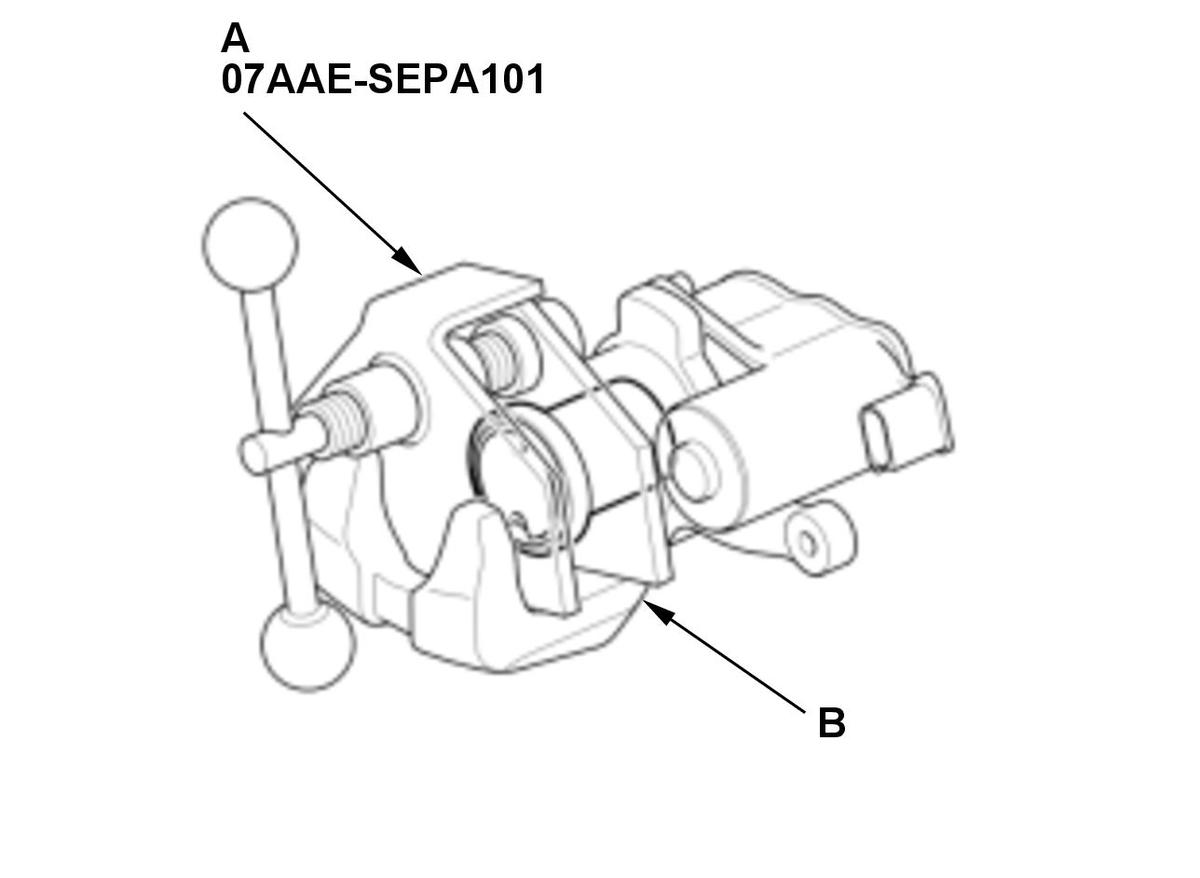

    		 4. Install the brake caliper piston compressor tool (A) on the caliper body (B).

    5. Press in the piston with the brake caliper piston compressor tool.

    NOTE:

    • Do not press the piston diagonally, and do not force it.
    • Be careful not to damage the piston boot when pressing in the piston.
  5. Piston Boot - Install
    GHH375859Courtesy of HONDA, U.S.A., INC.

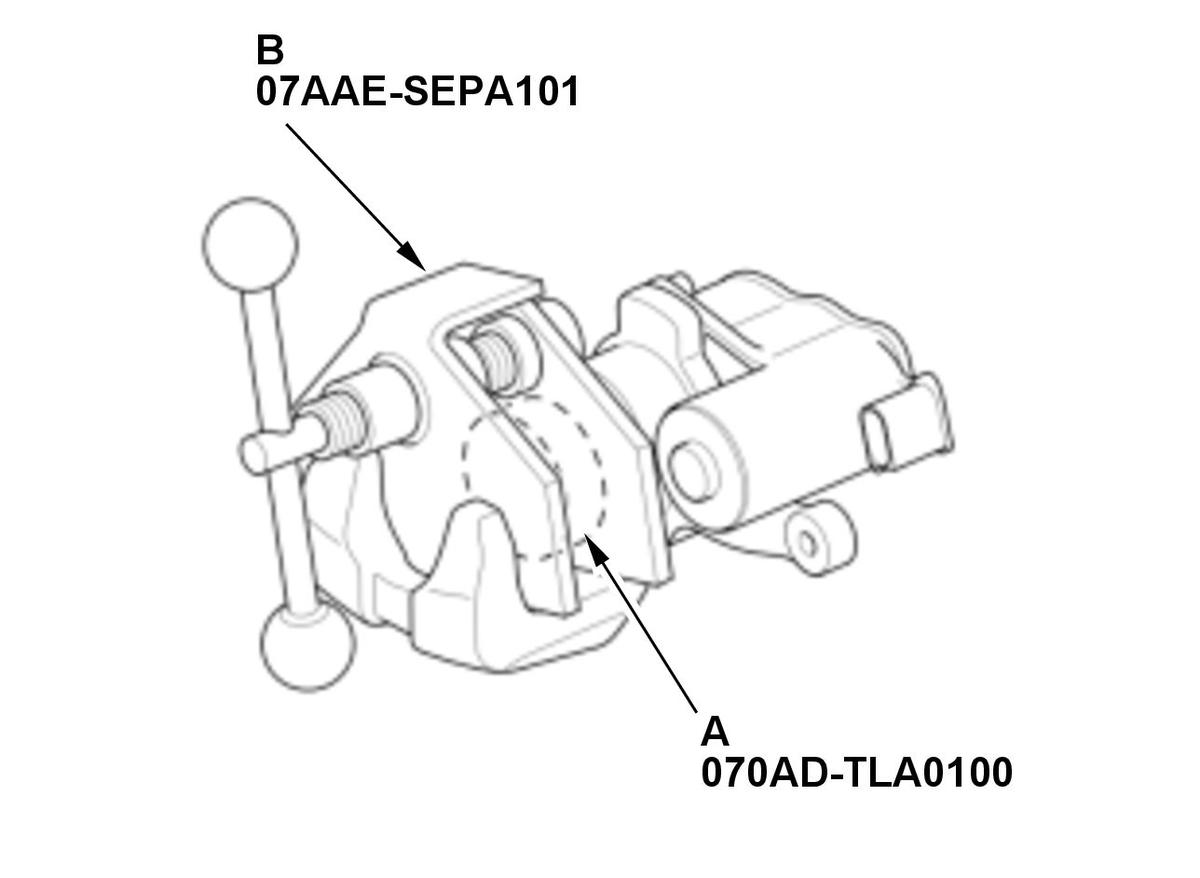

    		 1. Press the piston boot into the caliper body using the rear brake caliper dust boot installer (A) and the brake caliper piston compressor tool (B).
    NOTE:  Make sure that the piston boot is properly positioned into the groove of the caliper body.
