Front Brake Caliper Overhaul: Disassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

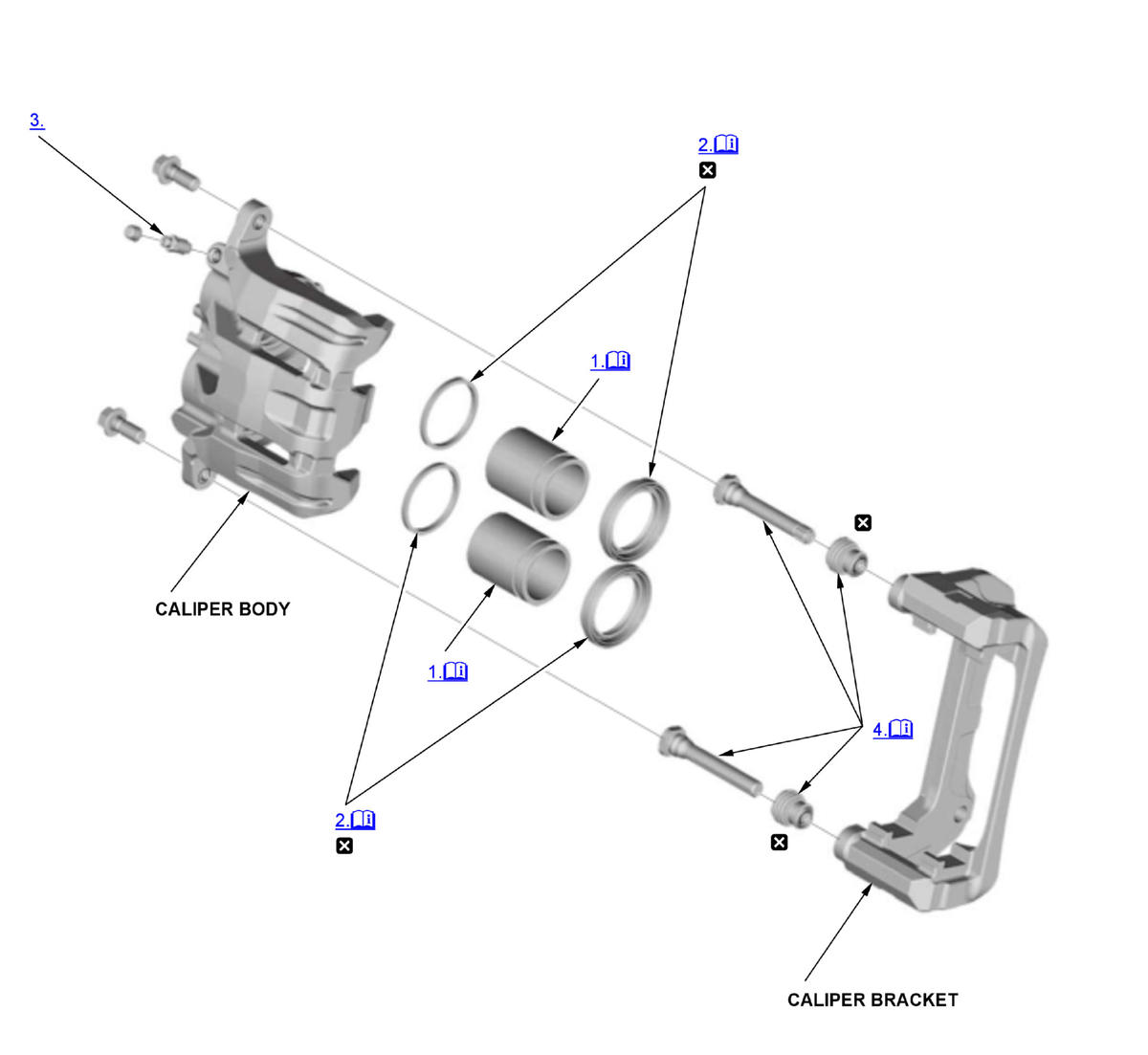

Fig 1: Exploded View Of Front Brake Caliper Components For Disassembly

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Replace

Pistons - Remove

Courtesy of HONDA, U.S.A., INC.

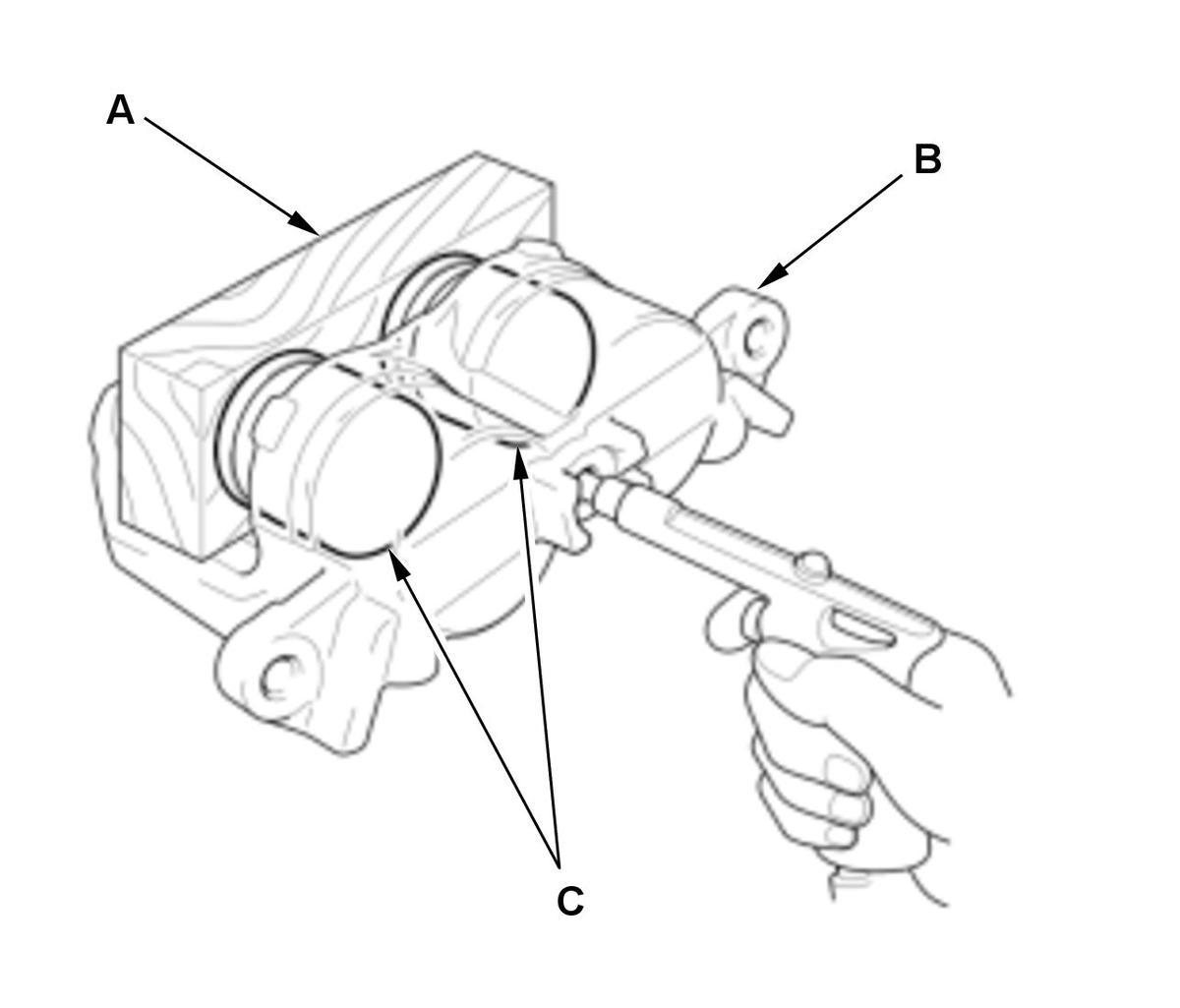

1. Set the wooden block (A) or several shop towels in the caliper body (B) as shown.

2. Blow out the pistons (C) with compressed air gradually, and remove the piston from the caliper body.

NOTE: Do not put your hand into the caliper body because the piston will come out forcibly from the caliper body.

Piston Boots and Piston Seals - Remove
NOTE: Be careful not to damage the inner surface of the cylinder wall with the tool.
Bleed Screw - Remove
Caliper Pins and Pin Boots - Remove
NOTE: The upper and lower caliper pins are different. During installation, make sure the caliper pins are in the proper positions.
