Brake Tandem Motor Cylinder Disassembly and Reassembly: Reassembly: Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

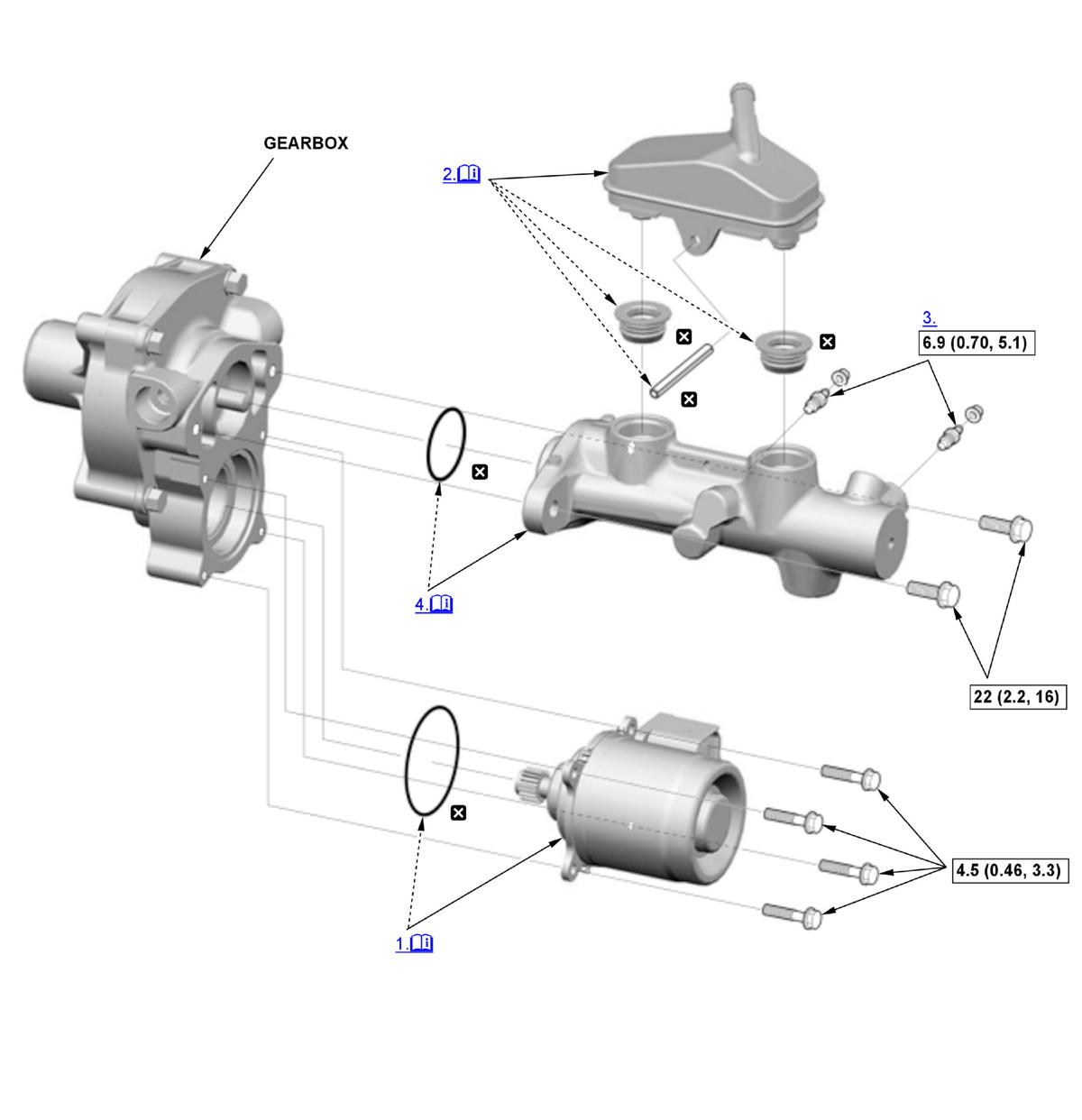

Fig 1: Exploded View Of Brake Tandem Motor Cylinder Components With Torque Specifications For Reassembly

Courtesy of HONDA, U.S.A., INC.

	Detailed information, notes, and precautions
	Torque: N.m (kgf.m, lbf.ft)
	Replace

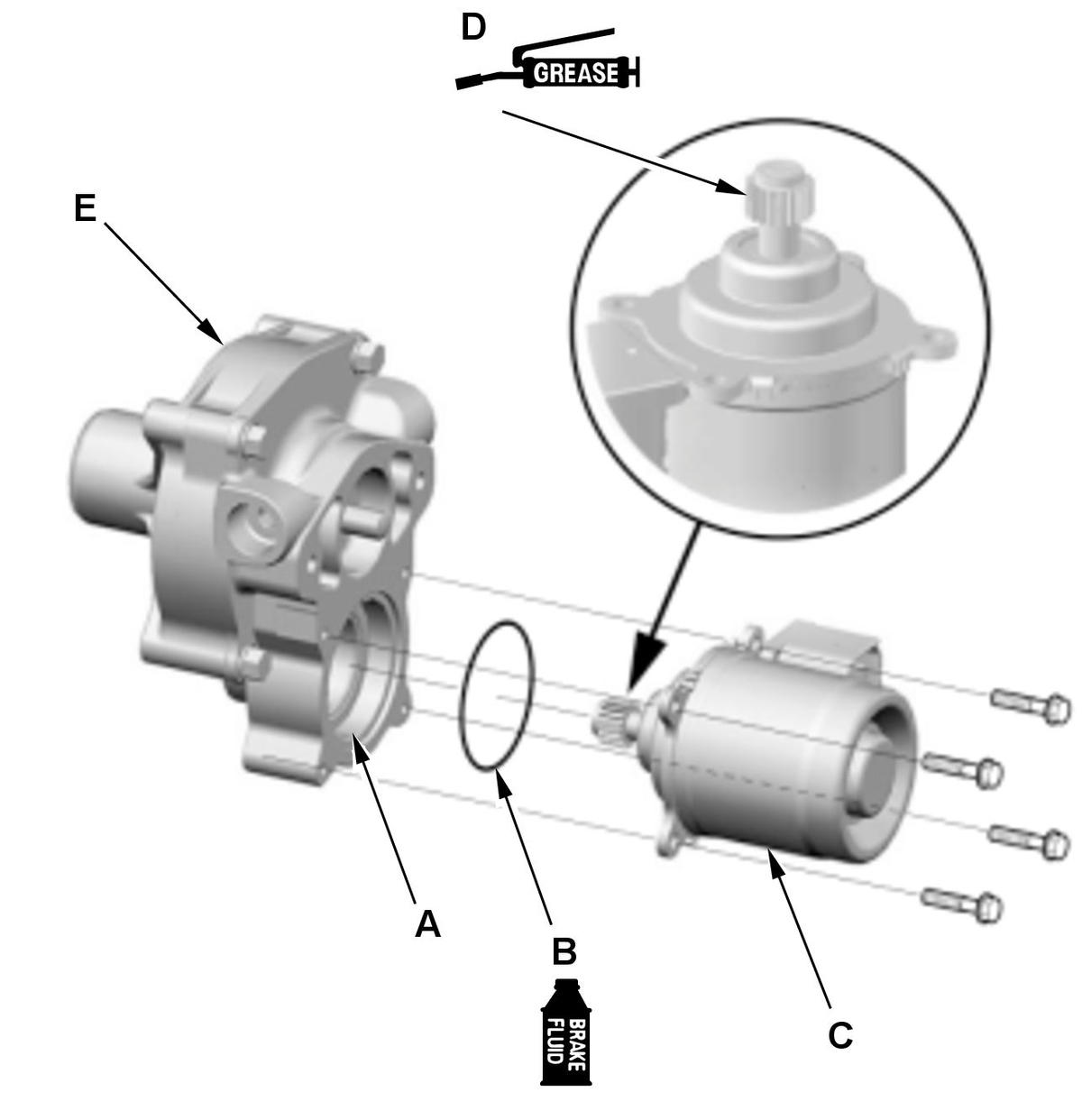

Motor - Install

Courtesy of HONDA, U.S.A., INC.

1. Clean off any rust or contamination around the gearbox mating surfaces (A).

2. Apply brake fluid to the O-ring (B).

3. Install the O-ring to the motor (C).

4. Apply multipurpose grease included in the motor set to the motor shaft (D).

5. Install the motor to the gearbox (E).

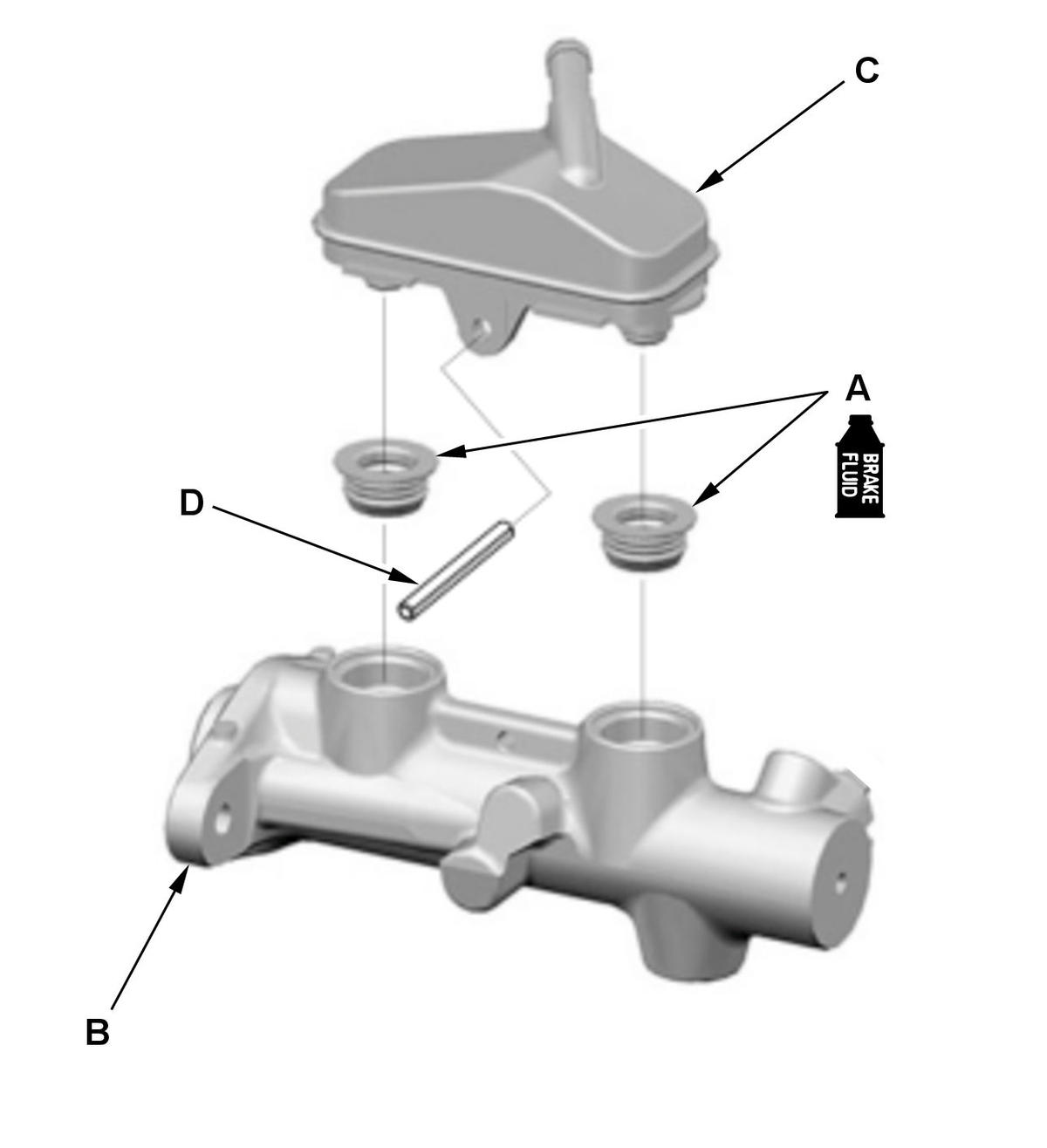

Reservoir Union - Install

Courtesy of HONDA, U.S.A., INC.

1. Apply brake fluid to the grommets (A).

2. Install the grommets to the slave cylinder (B).

3. Install the reservoir union (C).

4. Install the spring pin (D).

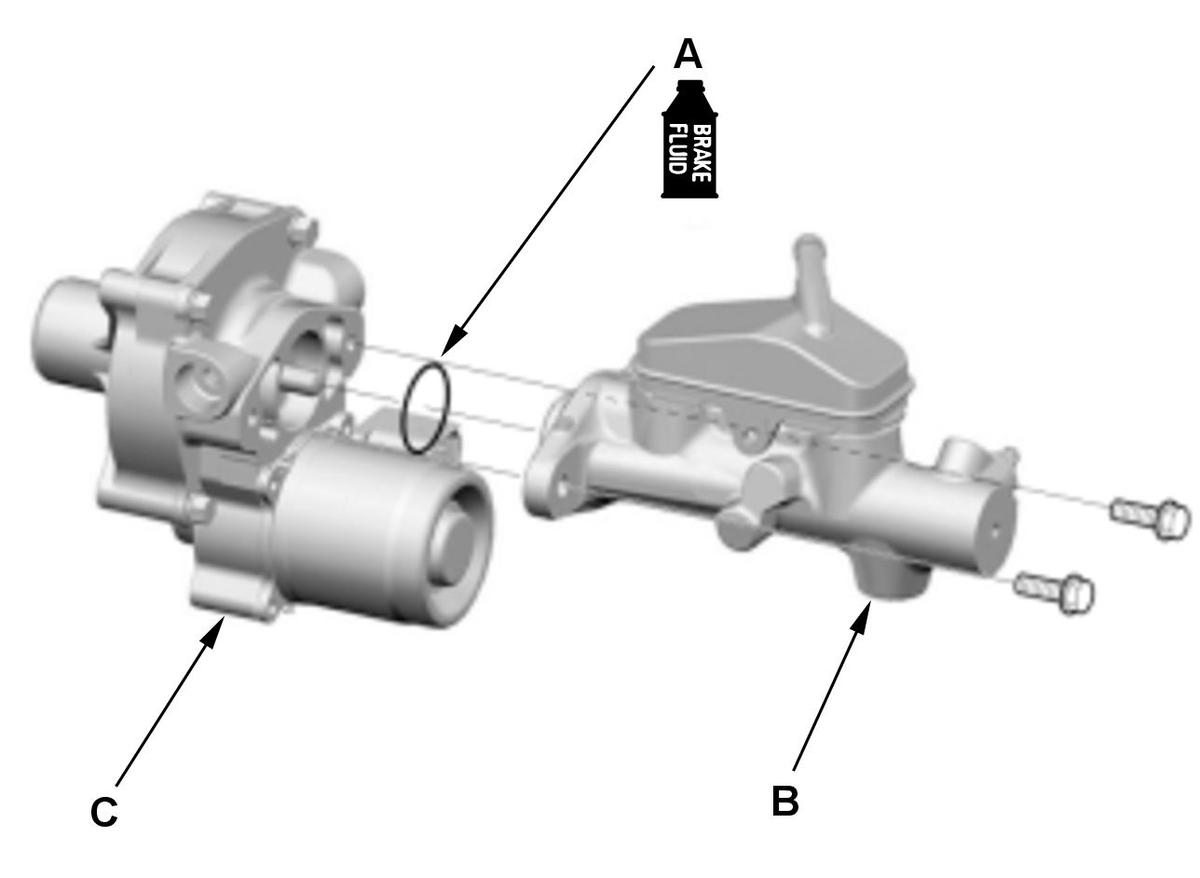

Slave Cylinder - Install

Courtesy of HONDA, U.S.A., INC.

1. Apply brake fluid to the O-ring (A).

2. Install the O-ring to the slave cylinder (B).

3. Install the slave cylinder to the gearbox (C).
