DTC B0082-13

DTC B0082-13  : Open or Increased Resistance in the Selectable Energy Absorption Device of the Front Passenger's Seat Belt Tensioner

NOTE:

• Before doing this troubleshooting procedure, find out if the vehicle was in a collision. If so, verify that all the required components were replaced with new components of the correct part number and were properly installed .
• Before doing this troubleshooting procedure, review SRS Precautions and Procedures , General Troubleshooting Information , and 12 Volt Battery Terminal Disconnection and Reconnection .

DTC (SRS)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Turn the vehicle to the ON mode, then wait for 10 seconds.

   -3. Check for DTCs with the HDS.

   DTC Description	DTC
   B0082-13 Open or increased resistance in the selectable energy absorption device of the front passenger's seat belt tensioner

   Is DTC B0082-13 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. If another DTC is indicated, troubleshoot the DTC.

2. Selectable energy absorption device check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

   -3. Remove the right side B-pillar lower trim .

   -4. Disconnect the following connector.

   Selectable energy absorption device 2P connector (on the floor wire harness)

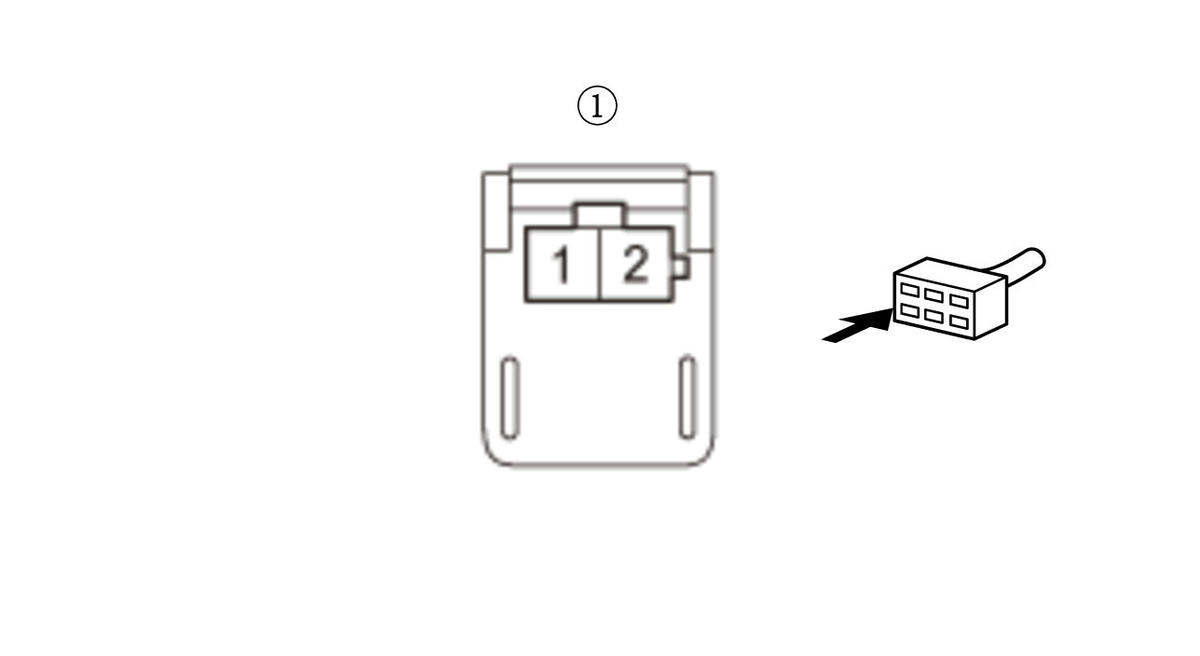

   -5. Connect terminals A and B with a jumper wire.

   Terminal A	Selectable energy absorption device 2P connector No. 1 (on the floor wire harness)
   Terminal B	Selectable energy absorption device 2P connector No. 2 (on the floor wire harness)

   Courtesy of HONDA, U.S.A., INC.

   -6. Reconnect the negative cable to the 12 volt battery.

   -7. Clear the DTCs with the HDS.

   -8. Turn the vehicle to the ON mode, then wait for 10 seconds.

   -9. Check for DTCs with the HDS.

   DTC Description	DTC
   B0082-13 Open or increased resistance in the selectable energy absorption device of the front passenger's seat belt tensioner

   Is DTC B0082-13 indicated?

   YES

   Go to step 3.

   NO

   Open in the selectable energy absorption device; replace the front passenger's seat belt , then clear the DTC.

3. Open wire check (RVEA+, RVEA- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the negative cable from the 12 volt battery, then wait at least 3 minutes.

   -3. Remove the jumper wire from the selectable energy absorption device 2P connector on the floor wire harness.

   -4. Disconnect the following connector.

   SRS unit connector A (39P)

   -5. Connect terminals A and B with a jumper wire.

   Terminal A	SRS unit connector A (39P) No. 2
   Terminal B	SRS unit connector A (39P) No. 3

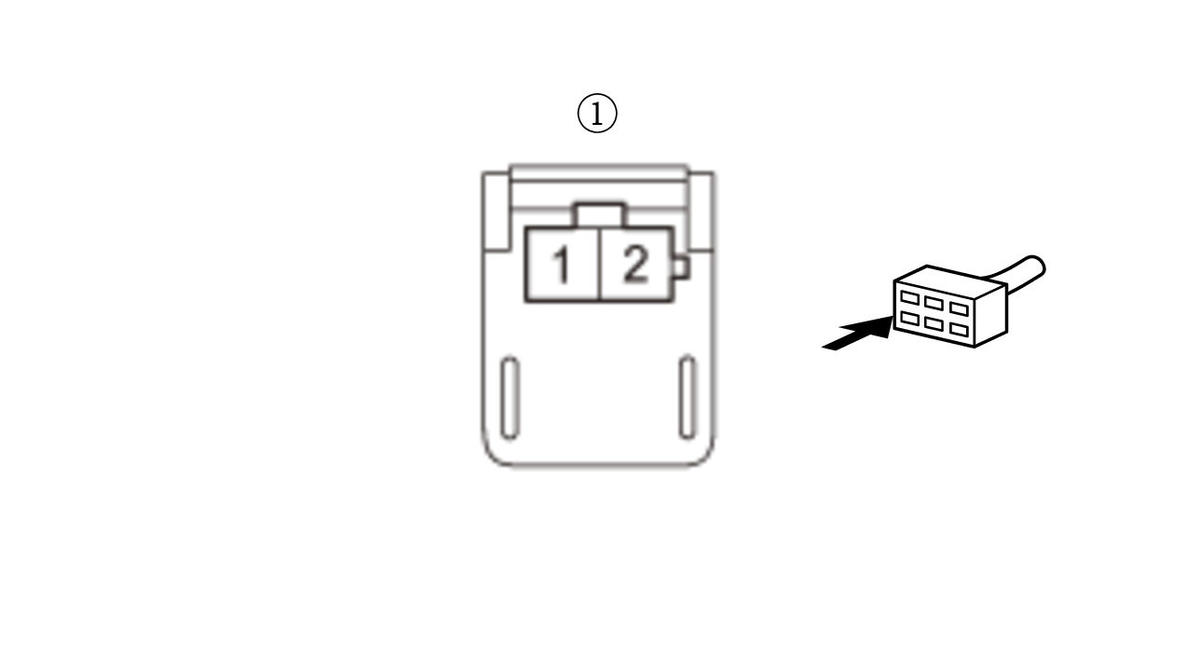

   -6. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Selectable energy absorption device 2P connector (on the floor wire harness): disconnected
   	SRS unit connector A (39P): disconnected
   	SRS unit connector A (39P) terminals No. 2 and No. 3: jumped
   Test point 1	Selectable energy absorption device 2P connector No. 1 (on the floor wire harness)
   Test point 2	Selectable energy absorption device 2P connector No. 2 (on the floor wire harness)

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The RVEA+ and RVEA- wires are OK. Faulty SRS unit or poor connection at SRS unit connector A (39P) and the SRS unit. Check the connection; if the connection is OK, replace the SRS unit . If the DTC does not clear, replace the floor wire harness.

   NO

   Open in the floor wire harness; replace the floor wire harness, then clear the DTC.
