Removal and Installation

NOTE: How to read the torque specifications .

Front

1. Vehicle - Lift
2. Front Wheel - Remove
3. Front Wheel Speed Sensor - Remove

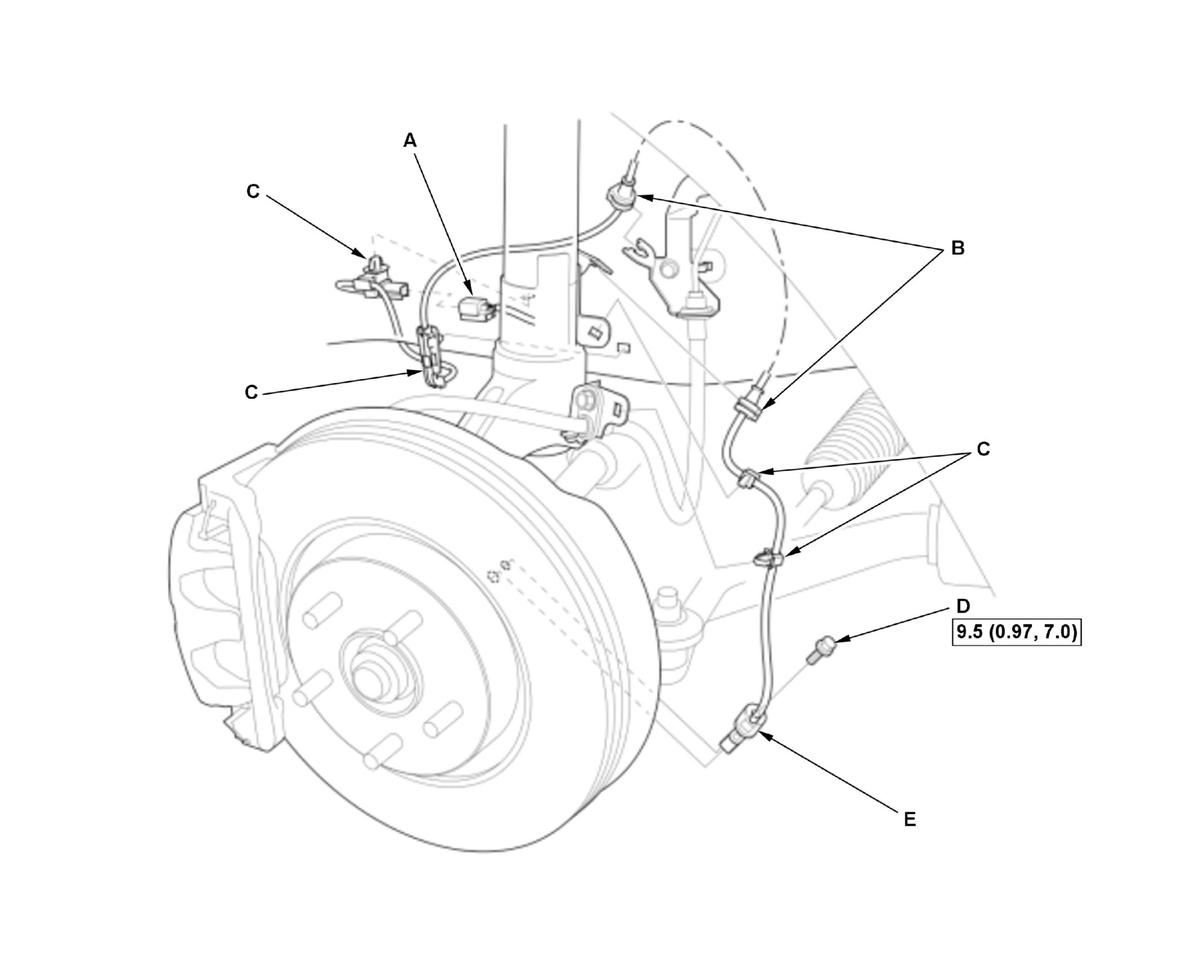

   1. Disconnect the connector (A).

   Courtesy of HONDA, U.S.A., INC.

   2. Remove the wire guide rubbers (B), the clips (C), and the bolt (D).

   3. Remove the wheel speed sensor (E).

4. All Removed Parts - Install

   1. Install all removed parts in the reverse order of removal. NOTE:  Install the sensor carefully to avoid twisting the wires. If the wheel speed sensor comes in contact with the wheel bearing, it will become faulty. Make sure there is no debris in the sensor mounting hole.

Rear

1. Vehicle - Lift
2. Rear Wheel - Remove
3. Middle Floor Undercover - Remove

   1. Remove the middle floor undercover as needed .

4. Rear Wheel Speed Sensor - Remove

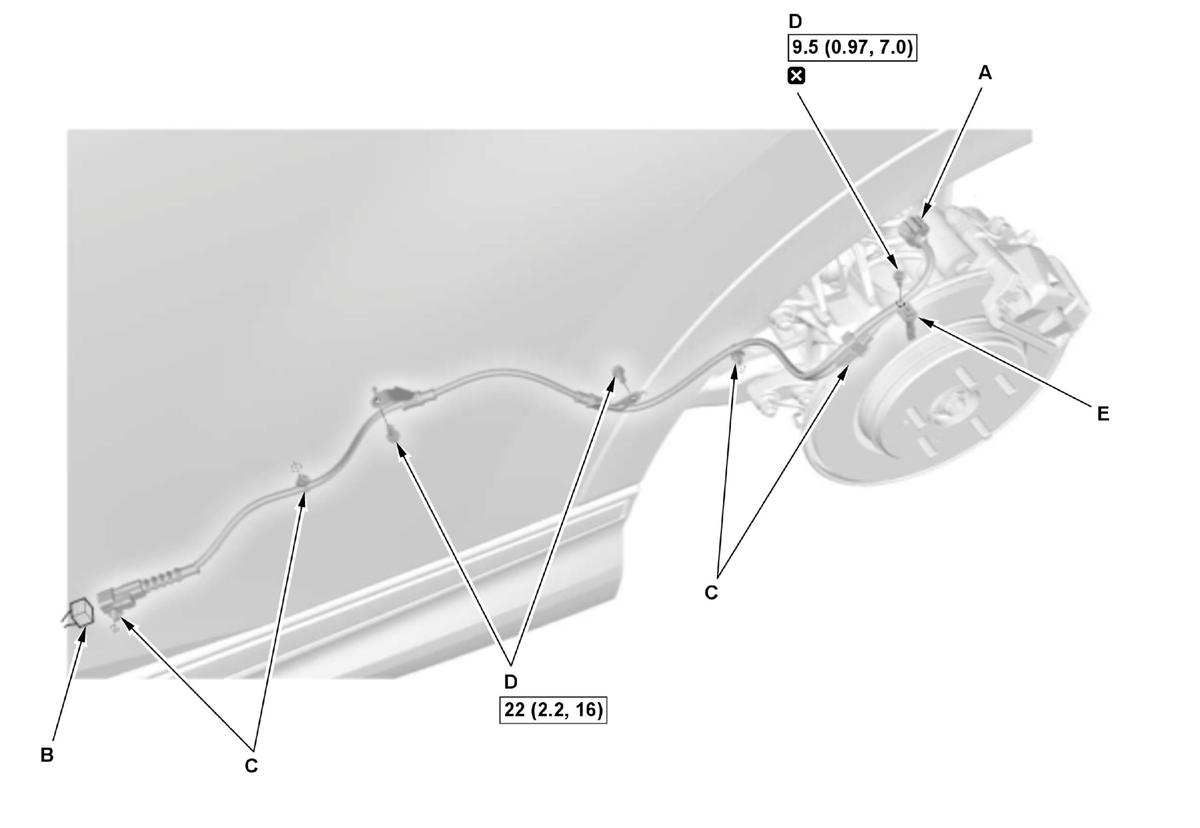

   1. Disconnect the connector (A).

   NOTE:  If the connector lock tab is difficult to release, push in on the connector body before pushing on the release lock.

   Fig 1: Rear Wheel Speed Sensor Components With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

   2. Disconnect the connector (B).

   3. Remove the clips (C) and bolts (D).

   4. Remove the wheel speed sensor (E).

5. All Removed Parts - Install

   1. Install all removed parts in the reverse order of removal. NOTE:  Install the sensor carefully to avoid twisting the wires. If the wheel speed sensor comes in contact with the hub bearing unit, it will become faulty. Make sure there is no debris in the sensor mounting hole.
