VSA Modulator-Control Unit Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE:

Review the Service Precautions before doing repairs or service .
Do not damage or drop the VSA modulator-control unit as it is sensitive.
Do not use power tools when removing the VSA modulator-control unit.
When replacing the VSA modulator-control unit, do the immobilizer system registration.

VSA Modulator-Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

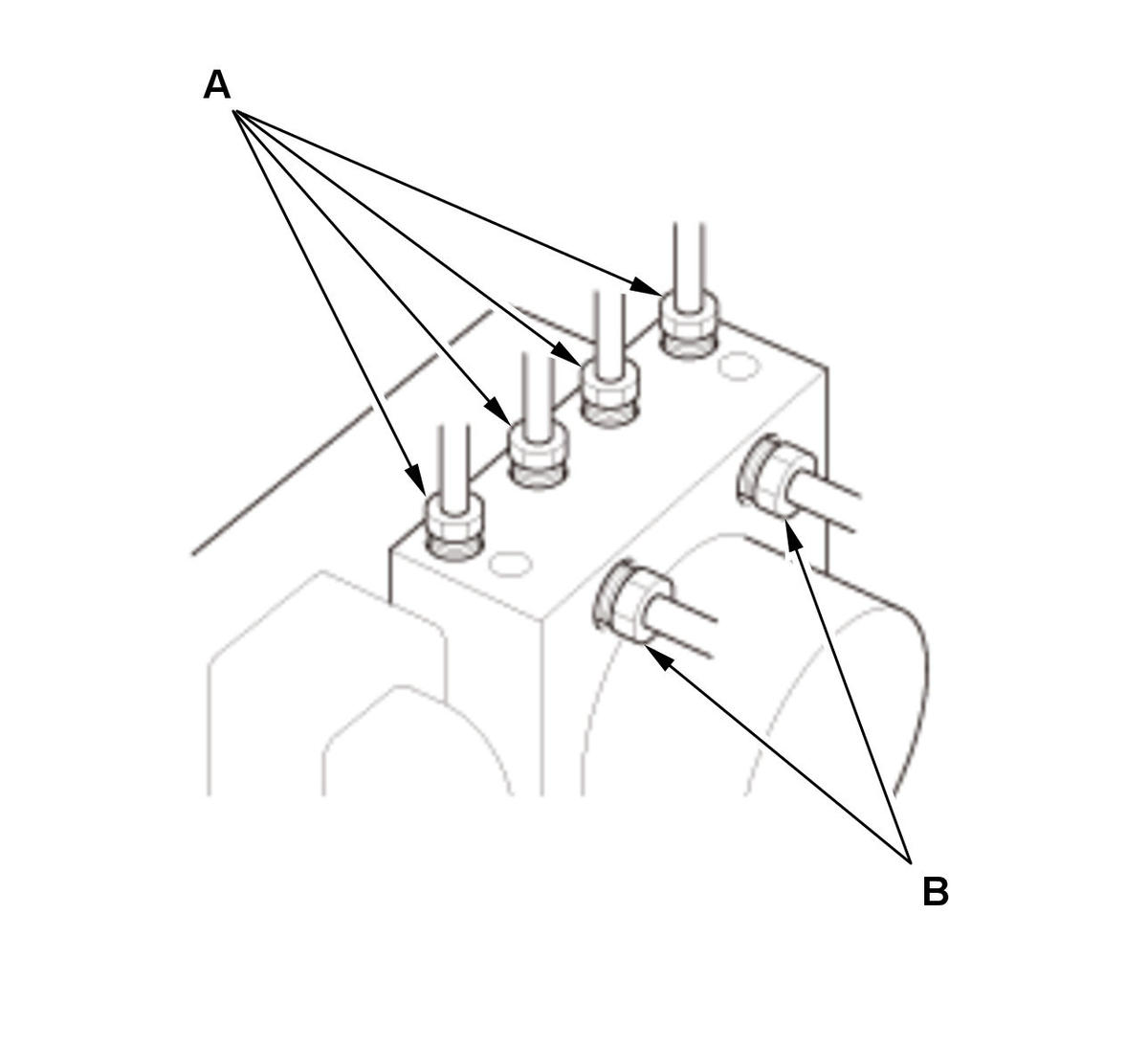

1. Disconnect the 10 mm brake lines (A).

2. Disconnect the 12 mm brake lines (B).

Courtesy of HONDA, U.S.A., INC.

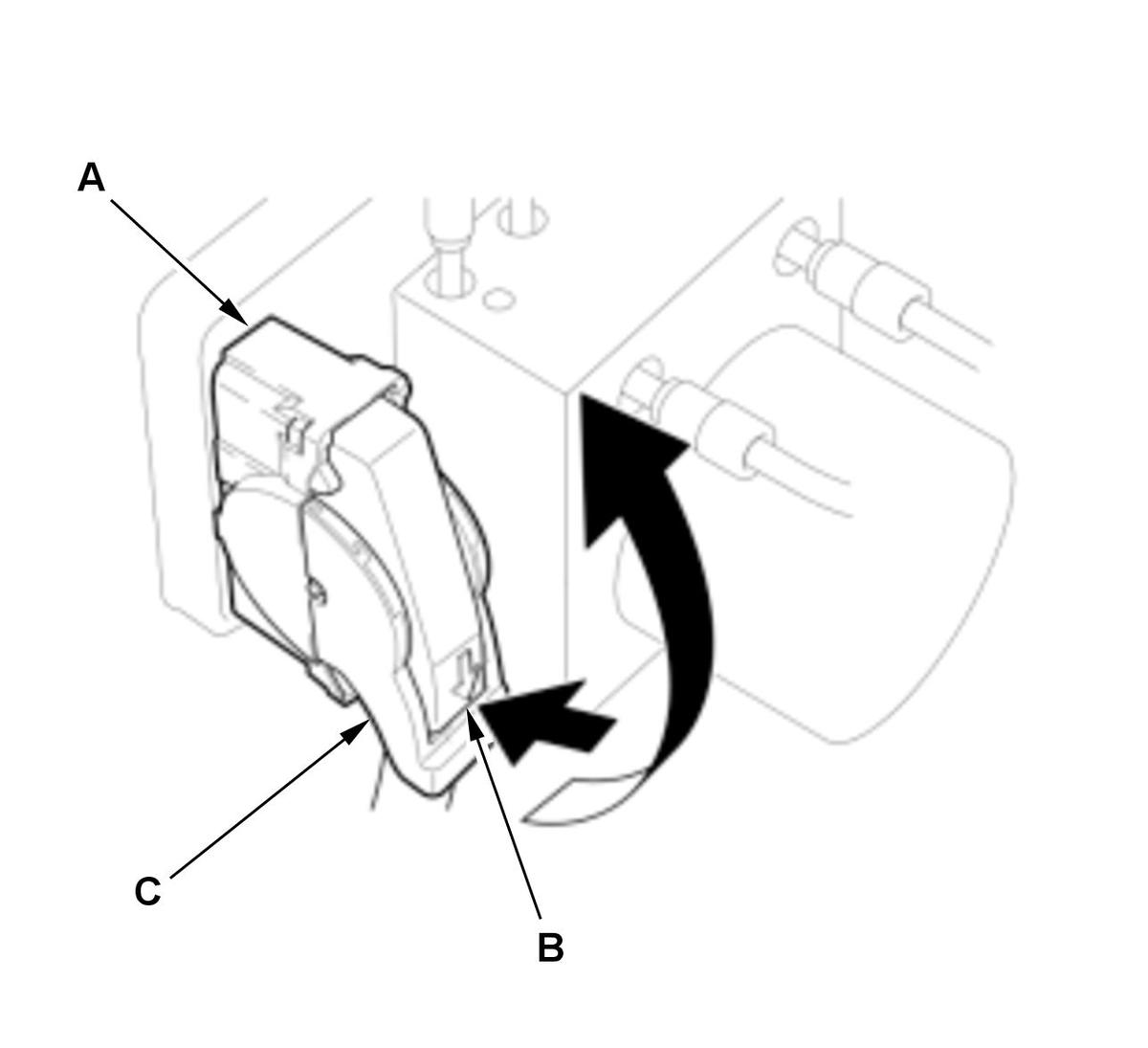

3. Disconnect the connector (A) by pushing the lock (B) and pulling up the lever (C); the connector disconnects itself.

Courtesy of HONDA, U.S.A., INC.

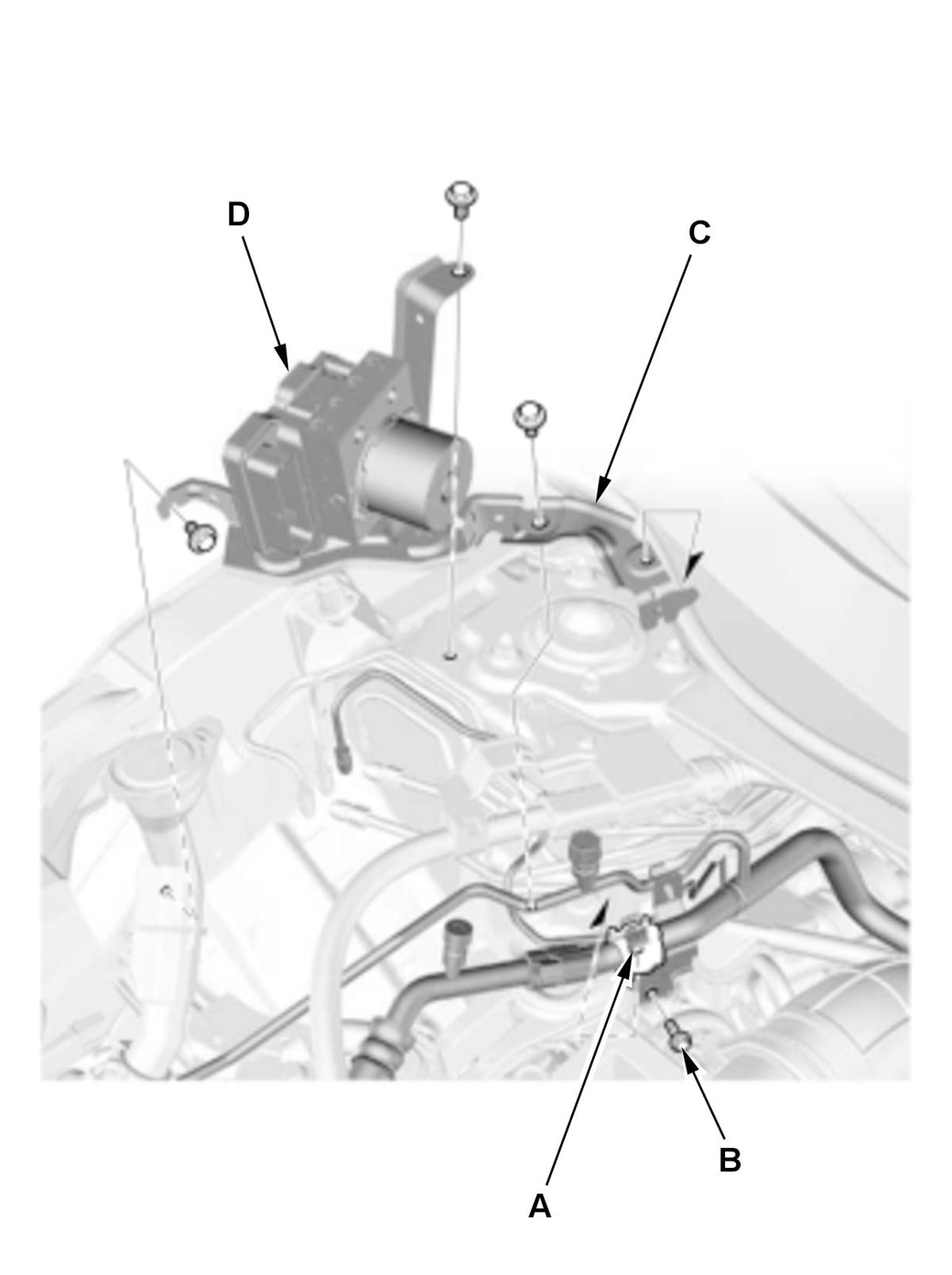

4. Remove the clip (A) and the A/C line bracket mounting bolt (B) from the VSA modulator-control unit bracket (C).

5. Remove the VSA modulator-control unit (D) with the bracket.

VSA Modulator-Control Unit Bracket - Remove

Courtesy of HONDA, U.S.A., INC.

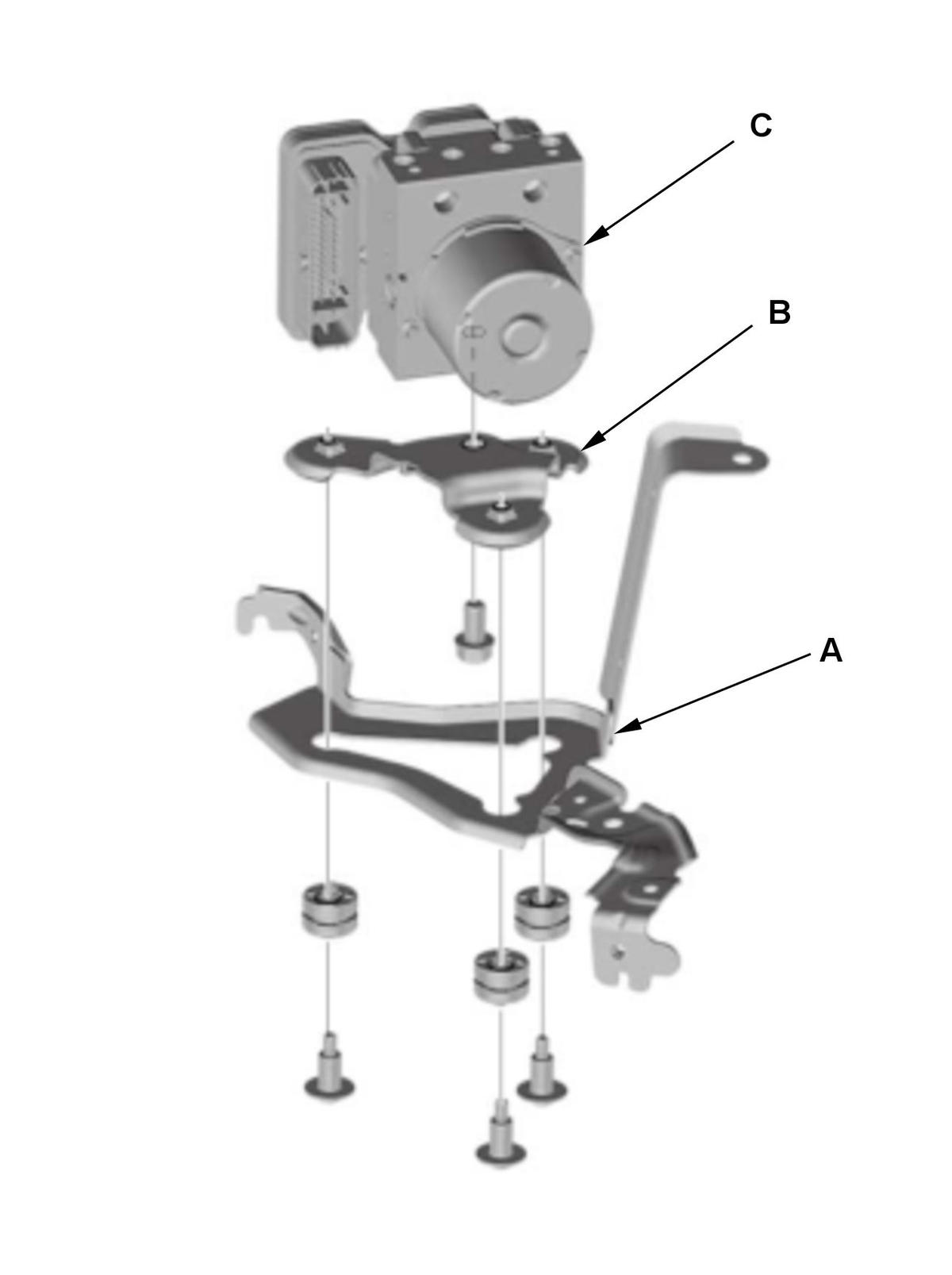

1. Remove the modulator bracket (A) from the modulator sub bracket (B).

2. Remove the VSA modulator-control unit (C) from the modulator sub bracket.
