VSA Modulator-Control Unit Removal and Installation: Installation

NOTE:

• How to read the torque specifications .
• Review the Service Precautions before doing repairs or service .
• Do not damage or drop the VSA modulator-control unit as it is sensitive.
• Do not use power tools when installing the VSA modulator-control unit.
• When replacing the VSA modulator-control unit, do the immobilizer system registration.

1. VSA Modulator-Control Unit Bracket - Install
   Fig 1: VSA Modulator-Control Unit Bracket Components With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

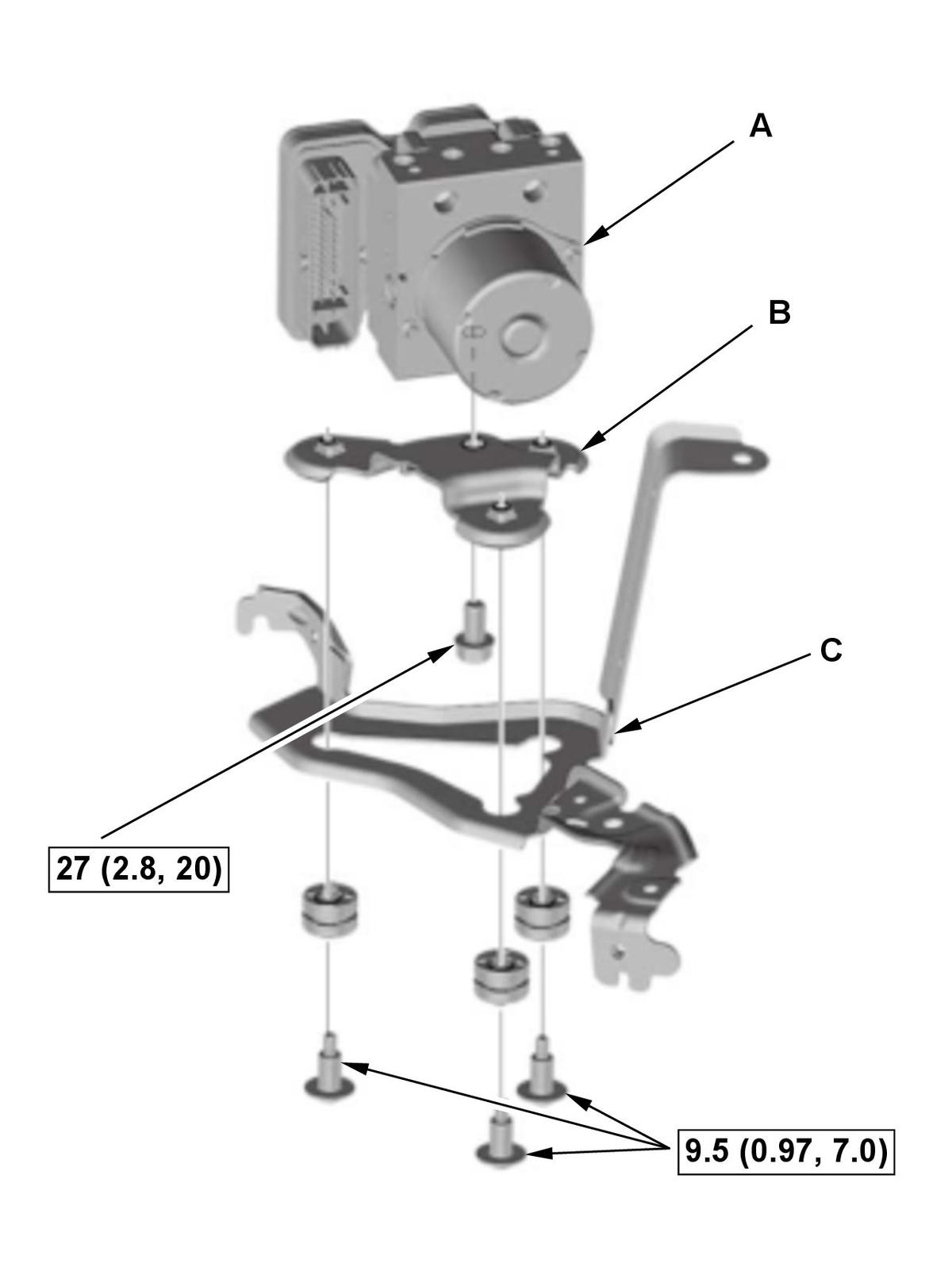

   1. Install the VSA modulator-control unit (A) to the modulator sub bracket (B). 2. Install the modulator bracket (C) to the modulator sub bracket.

2. VSA Modulator-Control Unit - Install

   Courtesy of HONDA, U.S.A., INC.

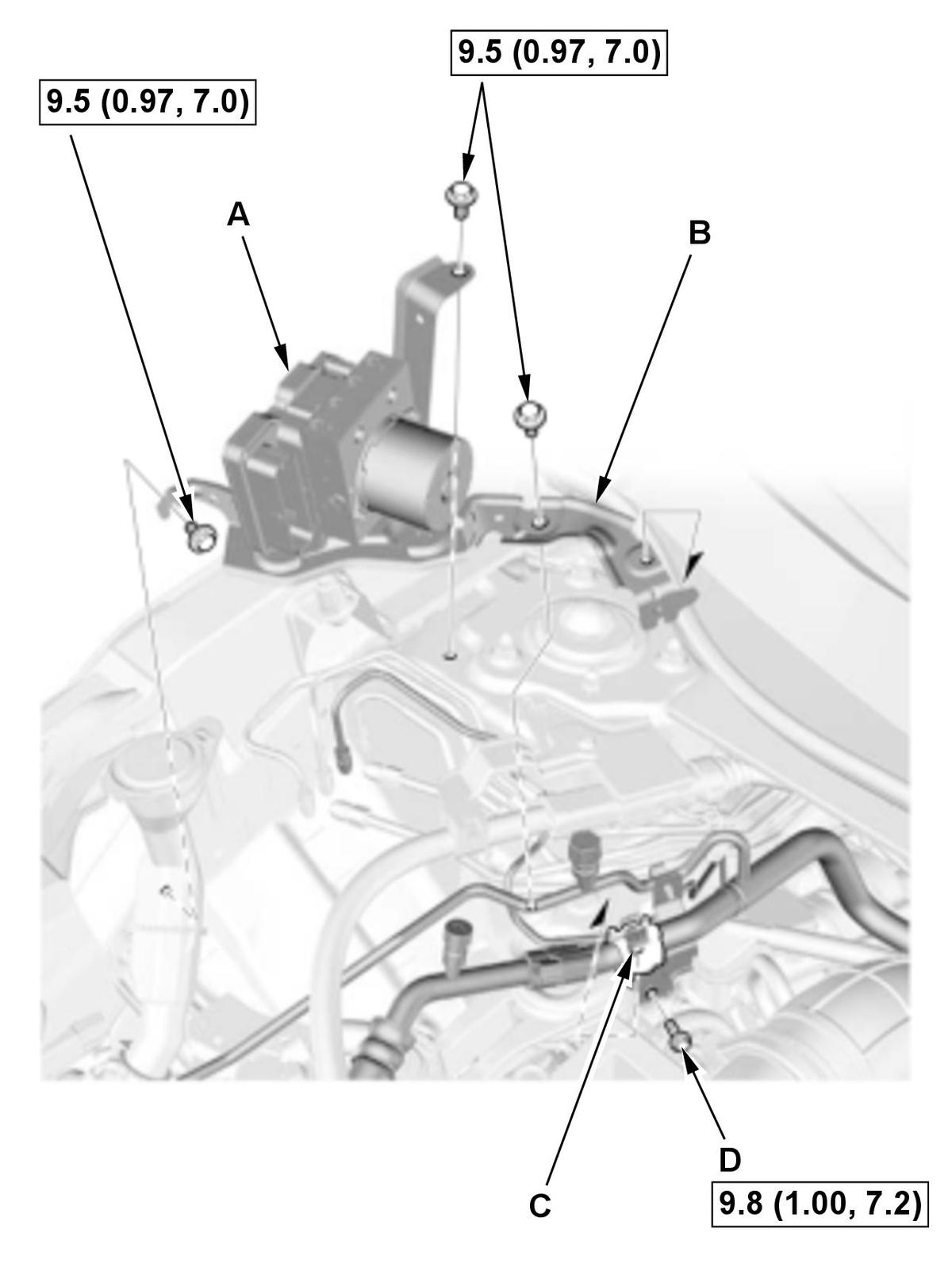

   1. Install the VSA modulator-control unit (A) with the bracket (B). 2. Install the clip (C) and the A/C line bracket mounting bolt (D) to the VSA modulator-control unit bracket.

   Courtesy of HONDA, U.S.A., INC.

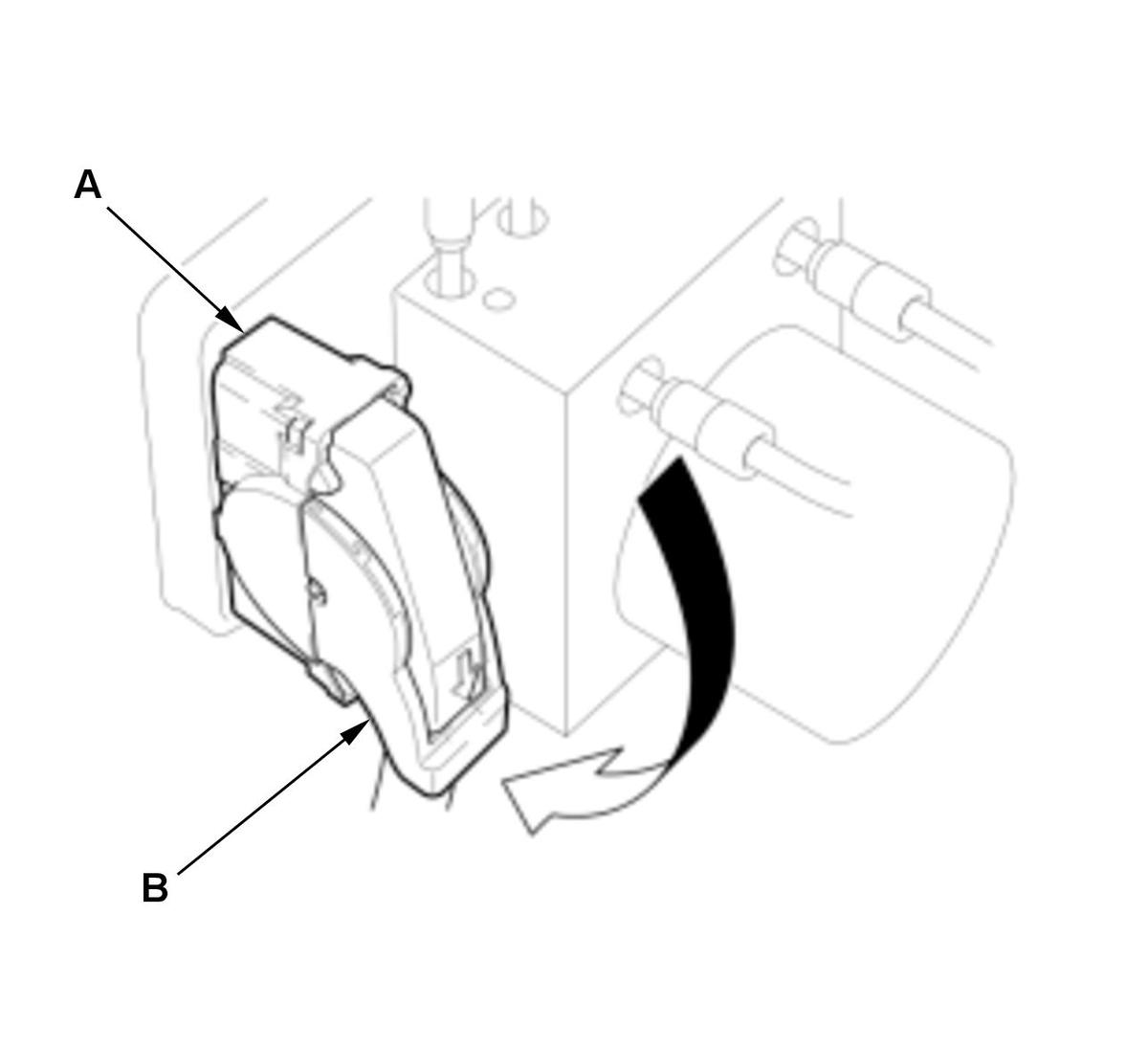

   3. Align the connecting surface of the VSA modulator-control unit connector (A). 4. Pull down the lever (B) of the VSA modulator-control unit connector, then confirm the connector is fully seated.

   Fig 2: VSA Modulator-Control Unit And Brake Lines With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

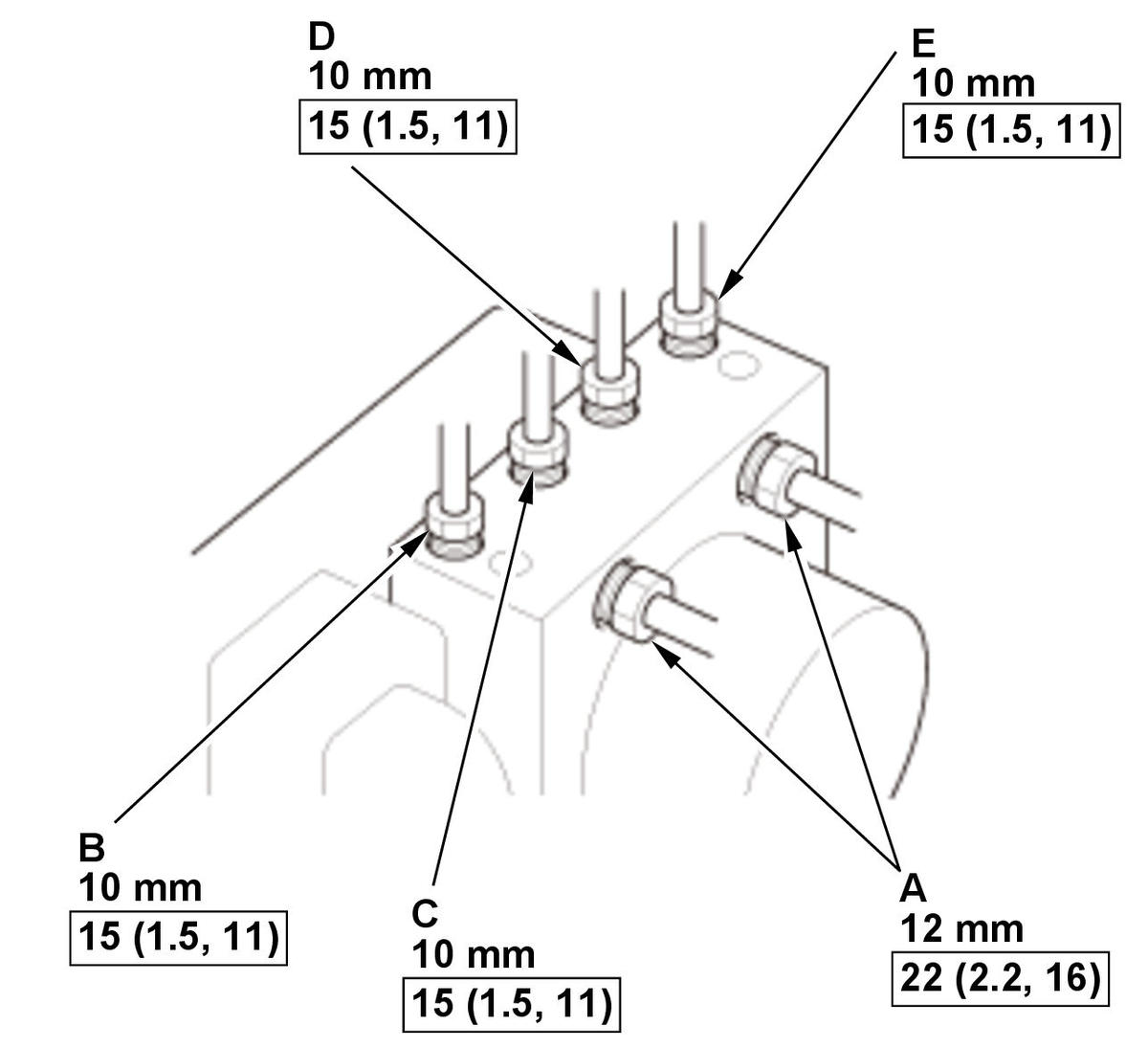

   5. Connect the brake lines. NOTE:  Brake lines are connected to the pedal feel simulator (A), the right-rear (B), the left-front (C), the right-front (D), and the left-rear (E) brake systems.

3. 12 Volt Battery Terminal - Connect
4. Brake System - Bleed
5. Keyless Access System - Register

   NOTE:  When replacing the VSA modulator-control unit, do the keyless access system registration. Failure to complete the keyless access system registration will lead to a no-start condition the next time the 12 volt battery is disconnected. 1. Do the keyless access system registration procedure .

6. VSA Modulator-Control Unit Software - Check

   1. Make sure the VSA modulator-control unit has the latest software. If it does not have the latest, update the software in the VSA modulator-control unit .

7. VSA Modulator-Control Unit After Install - Check

   1. Turn the vehicle to the ON mode. 2. Apply and release the parking brake 2 times, then make sure that the brake system indicator (red) goes OFF. NOTE:  If the brake system indicator (red) does not go OFF, check for a poor connection at the VSA modulator-control unit connector. 3. Turn the vehicle to the OFF (LOCK) mode.

8. VSA Sensor Neutral Position - Memorize
9. TPMS - Calibrate
