Moonroof Switch Removal, Installation, and Test: Test

WARNING: This page is about a different variant/trim than selected.

NOTE: The moonroof switch is built into the interior light switch.

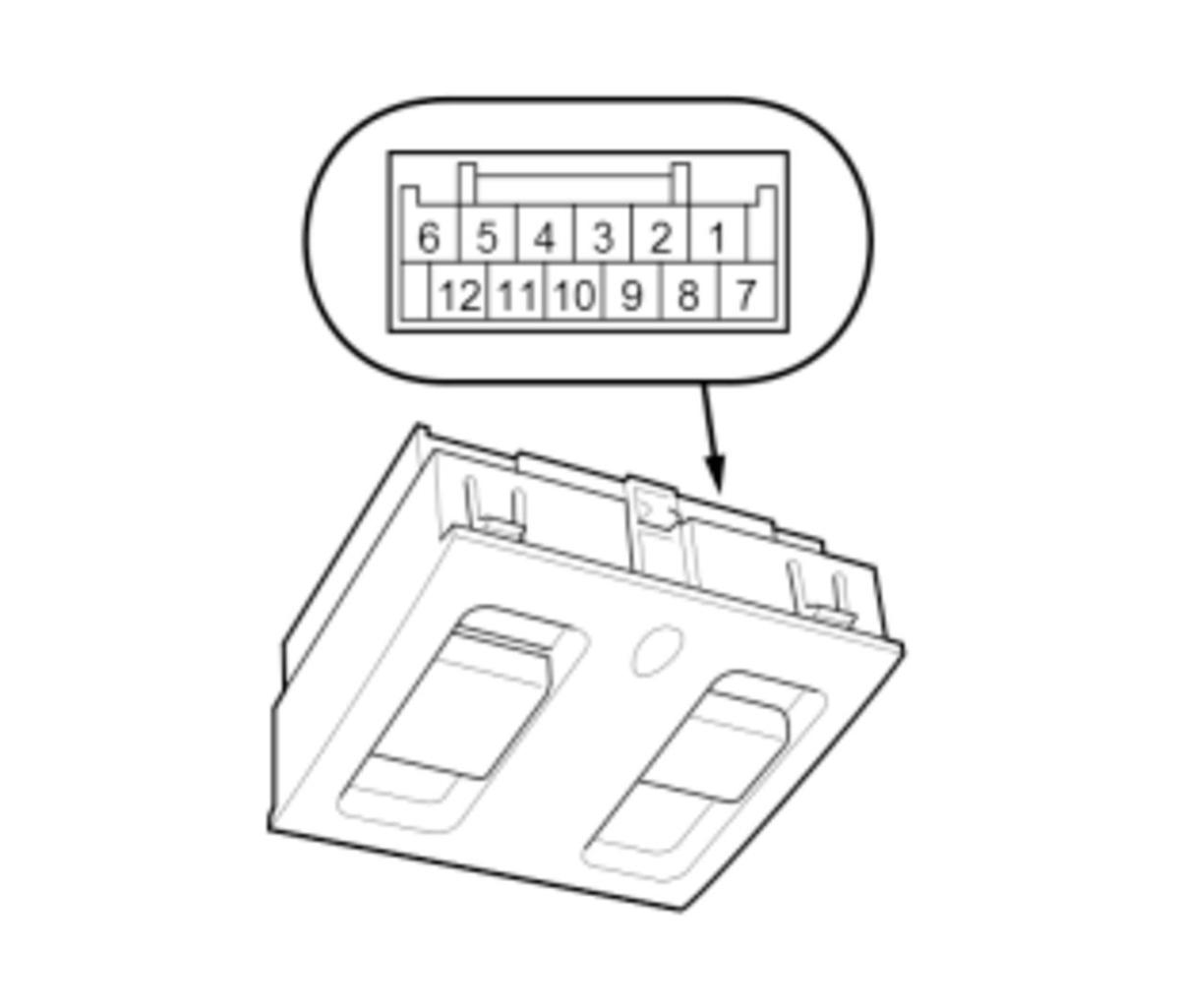

Moonroof Switch - Test

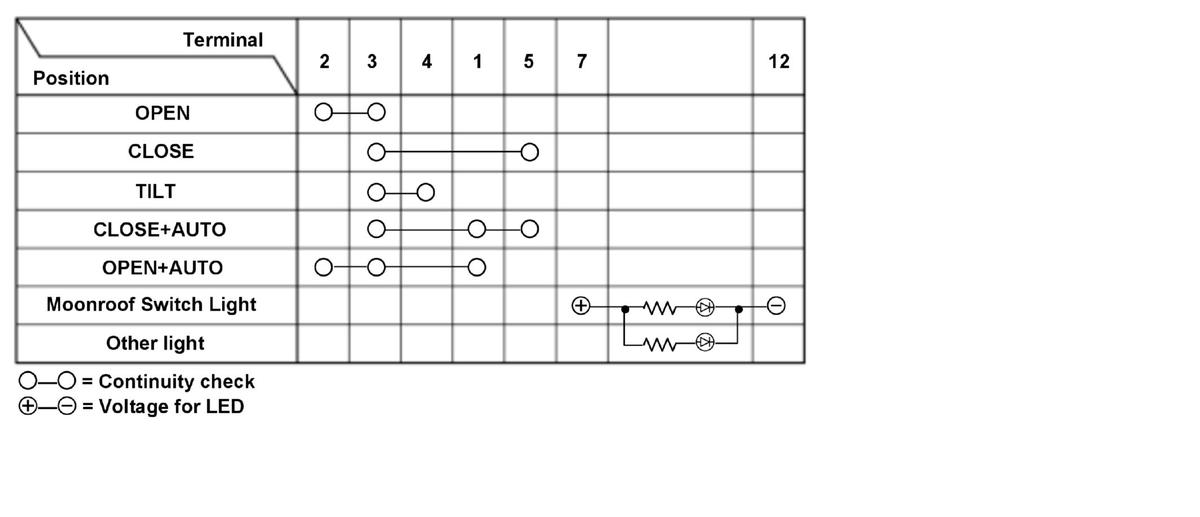

1. Check for continuity between the terminals in each switch position according to the table.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the continuity is not as specified, replace the interior light switch.
