DTC B1661, B1667

DTC B1661  : Middle Interior Antenna Circuit Shorted

DTC B1667  : Rear Shelf (Middle Interior) LF Antenna Circuit Short

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Keyless Access Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Select the KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter the SELF CHECK.

   -3. Do the SELF CHECK.

   One-Push - KEYLESS ACCESS CONTROL UNIT - SELF CHECK

   -4. Check for DTCs with the HDS.

   DTC Description	DTC
   B1661 Middle Interior Antenna Circuit Shorted

   DTC Description	DTC
   B1667 Rear Shelf (Middle Interior) LF Antenna Circuit Short

   Is DTC B1661 or B1667 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Shorted wire check (EXT_M+, EXT_M- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Body control module connector F (36P) Middle interior LF antenna 2P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector F (36P): disconnected Middle interior LF antenna 2P connector: disconnected
   Test point 1	Body control module connector F (36P) No. 15
   Test point 2	Body ground

   Test point 1	Body control module connector F (36P) No. 33
   Test point 2	Body ground

   Is there 1.0 MΩ or more?

   YES

   The EXT_M+ and EXT_M- wires are not shorted. Go to step 3.

   NO

   Repair a short to ground in the wire.

3. Shorted wire check (EXT_M+ to EXT_M- line)

   -1. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector F (36P): disconnected Middle interior LF antenna 2P connector: disconnected
   Test point 1	Body control module connector F (36P) No. 15
   Test point 2	Body control module connector F (36P) No. 33

   Is there 1.0 MΩ or more?

   YES

   The EXT_M+ and EXT_M- wires are OK. Go to step 4.

   NO

   Repair a short in EXT_M+ to EXT_M- wire.

4. Body control module EXT_M+, EXT_M- line output check

   -1. Reconnect the following connector.

   Body control module connector F (36P)

   -2. Turn the vehicle to the ON mode.

   -3. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter FUNCTIONAL TESTS.

   One-Push - KEYLESS ACCESS CONTROL UNIT - FUNCTIONAL TESTS

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Middle interior LF antenna 2P connector: disconnected

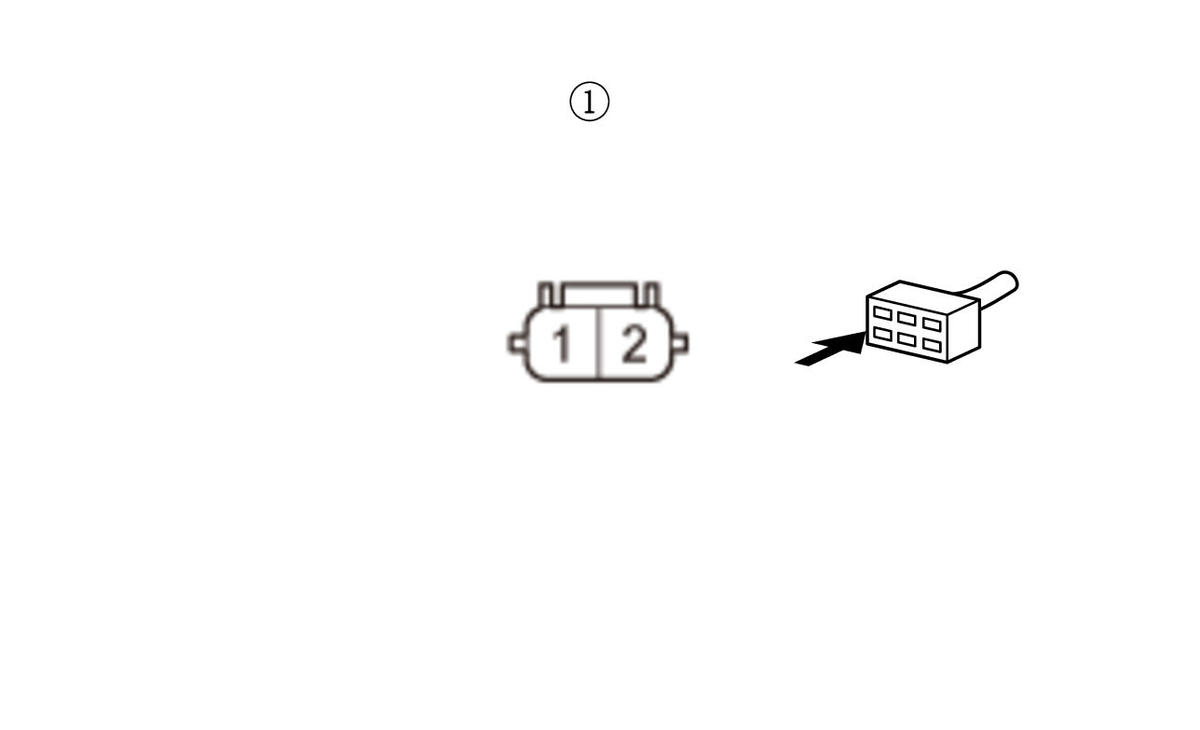

   Test point 1	Middle interior LF antenna 2P connector (female terminals) No. 2:
   Test point 2	Middle interior LF antenna 2P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   -5. Select CABIN MIDDLE ANTENNA L DC OUTPUT with the HDS.

   Is there voltage?

   YES

   Faulty middle interior LF antenna; Replace the middle interior LF antenna .

   NO

   Replace the body control module .
