DTC B1660

DTC B1660  : Front Interior LF Antenna Circuit Open

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Keyless Access Control Unit)

1. Problem verification

   -1. Clear the DTCs with the HDS.

   -2. Select the KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter the SELF CHECK.

   One-Push - KEYLESS ACCESS CONTROL UNIT - SELF CHECK

   -3. Do the SELF CHECK.

   -4. Check for DTCs with the HDS.

   DTC Description	DTC
   B1660 Front Interior LF Antenna Circuit Open

   Is DTC B1660 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Body control module EXT_F+, EXT_F- line output check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Front interior LF antenna 2P connector

   -3. Turn the vehicle to the ON mode.

   -4. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS, and enter FUNCTIONAL TESTS.

   One-Push - KEYLESS ACCESS CONTROL UNIT - FUNCTIONAL TESTS

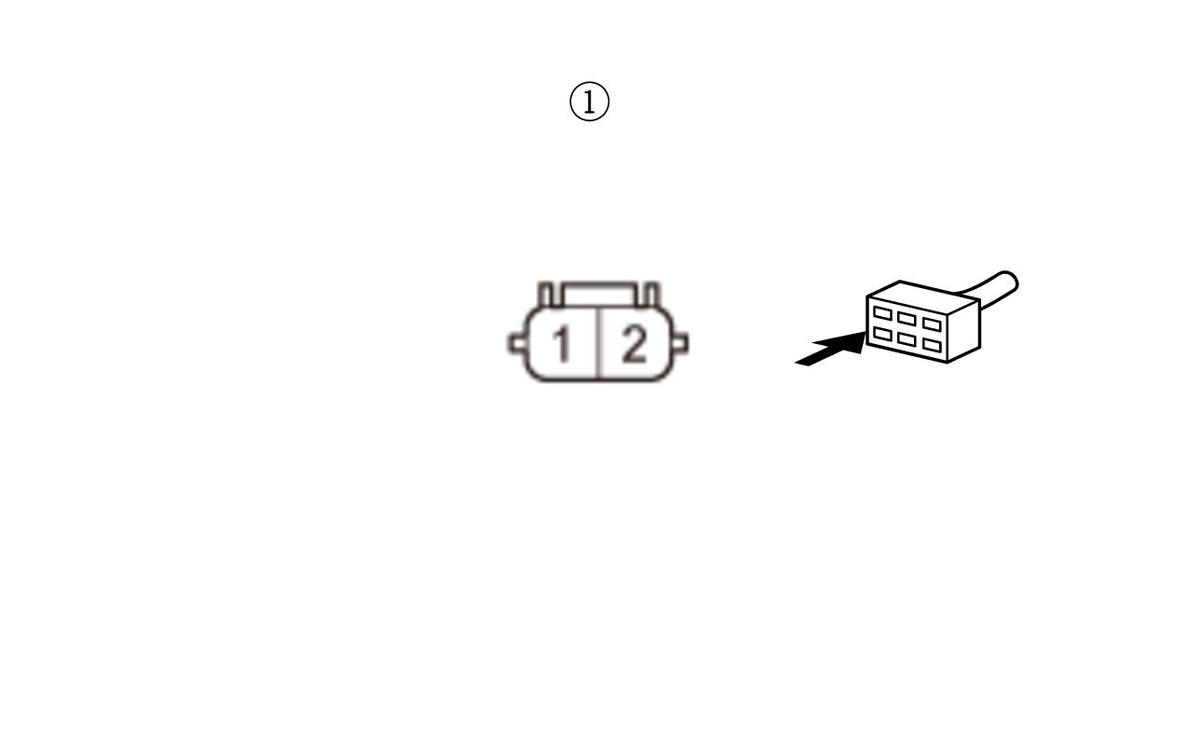

   -5. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode Front interior LF antenna 2P connector: disconnected
   Test point 1	Front interior LF antenna 2P connector (female terminals) No. 2:
   Test point 2	Front interior LF antenna 2P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   -6. Select CABIN FRONT ANTENNA L DC OUTPUT with the HDS.

   Is there voltage?

   YES

   Faulty front interior LF antenna; replace the front interior LF antenna .

   NO

   Go to step 3.

3. Open wire check (EXT_F+, EXT_F- lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Connect terminals A and B with a jumper wire.

   Terminal A	Front interior LF antenna 2P connector (female terminals) No. 2:
   Terminal B	Front interior LF antenna 2P connector (female terminals) No. 1:

   Courtesy of HONDA, U.S.A., INC.

   -3. Disconnect the following connector.

   Body control module connector F (36P)

   -4. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Body control module connector F (36P): disconnected Front interior LF antenna 2P connector: disconnected Front interior LF antenna 2P connector No. 1 and No. 2: jumped
   Test point 1	Body control module connector F (36P) No. 16
   Test point 2	Body control module connector F (36P) No. 34

   Is there 1.0 Ω or less?

   YES

   The EXT_F+ and EXT_F- wires are OK. Replace the body control module .

   NO

   Repair an open or high resistance in the wire.
