Rear Bumper

WARNING: This page is about a different variant/trim than selected.
NOTE:

Numbered call-outs in figure pertain to list numbers in following procedure.

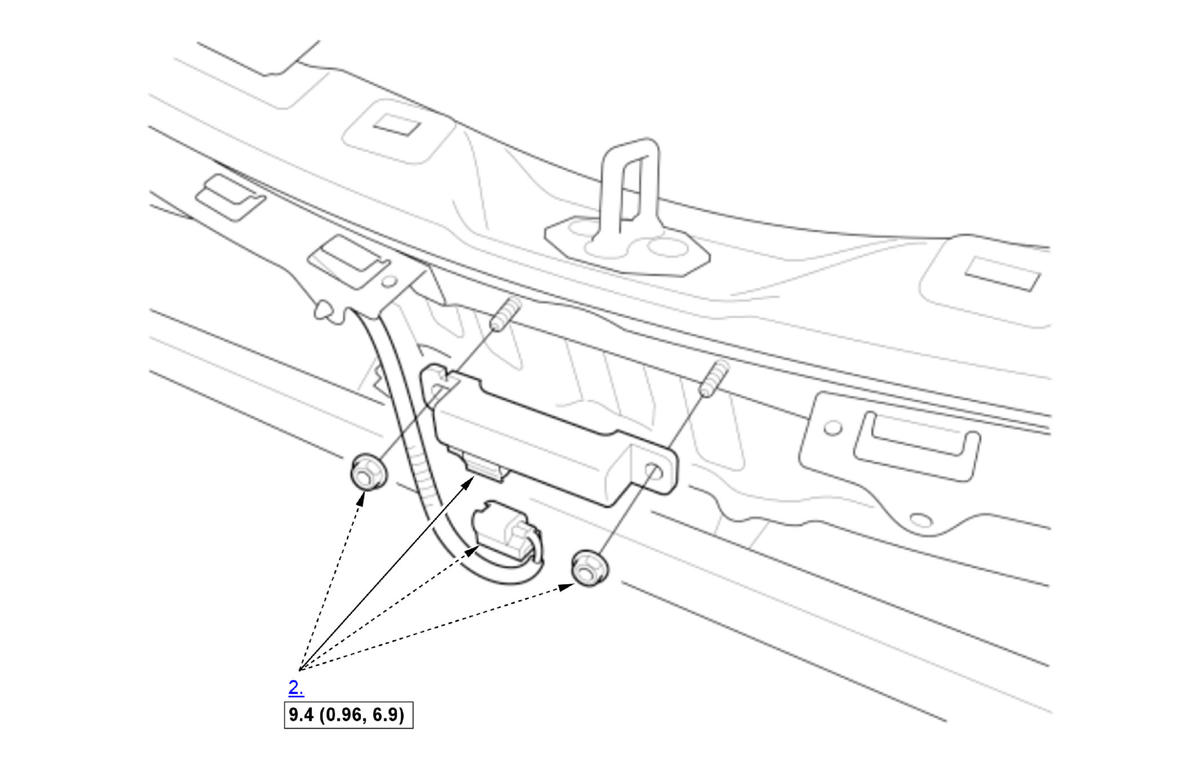

Fig 1: Rear Bumper Keyless Access LF Antenna Components
GHH381078Courtesy of HONDA, U.S.A., INC.
  1. Rear Bumper - Remove
  2. Rear Bumper LF Antenna - Remove
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
