Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: How to read the torque specifications .

1. Front Seat - Remove
2. Front Seat Front Cushion Cover - Remove (Driver's Power Seat)
3. Front Seat Belt Buckle - Remove

   Courtesy of HONDA, U.S.A., INC.

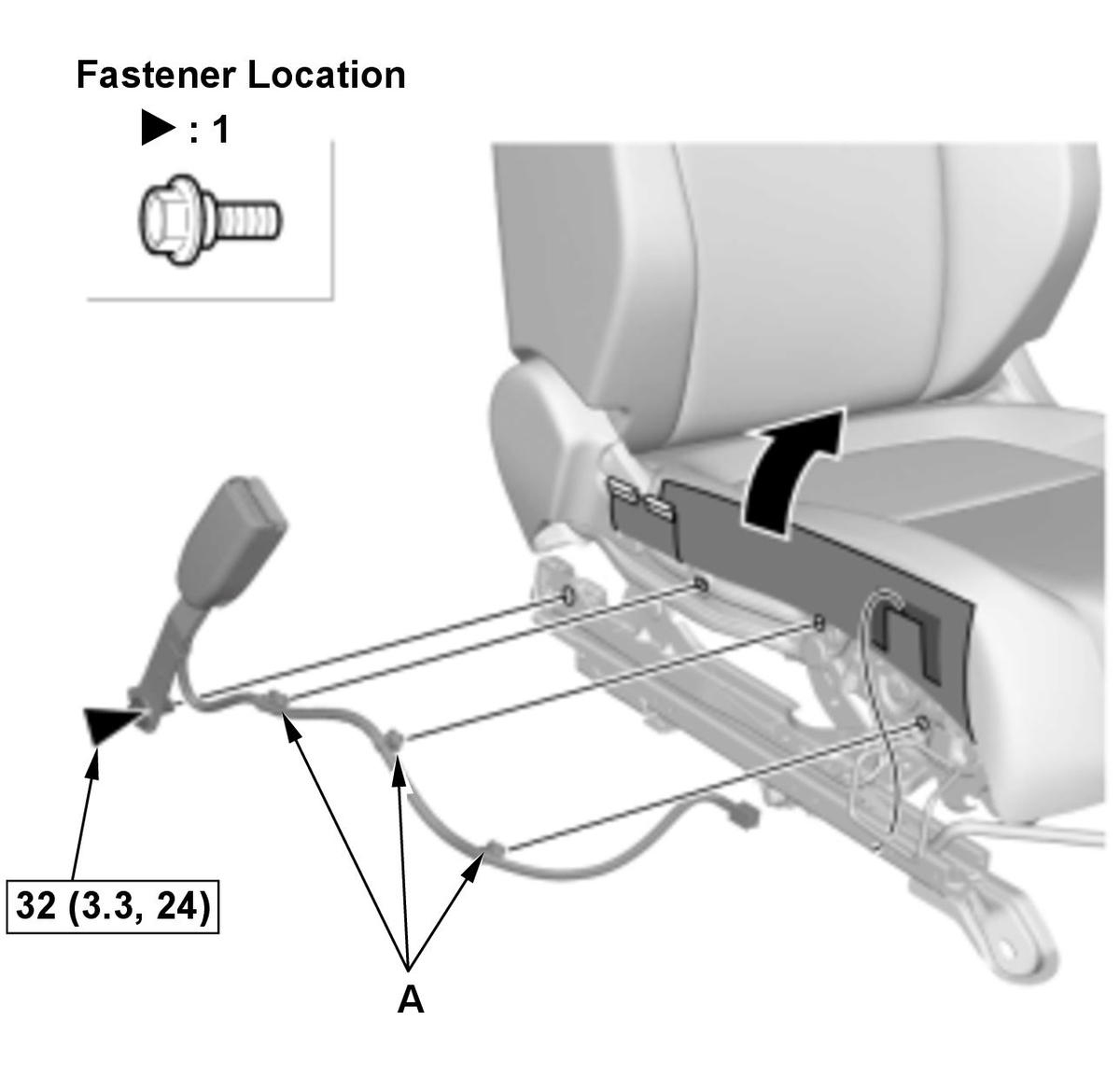

   Fig 1: Front Seat Belt Buckle Components With Torque Specifications (Driver's Power Seat)

   Courtesy of HONDA, U.S.A., INC.

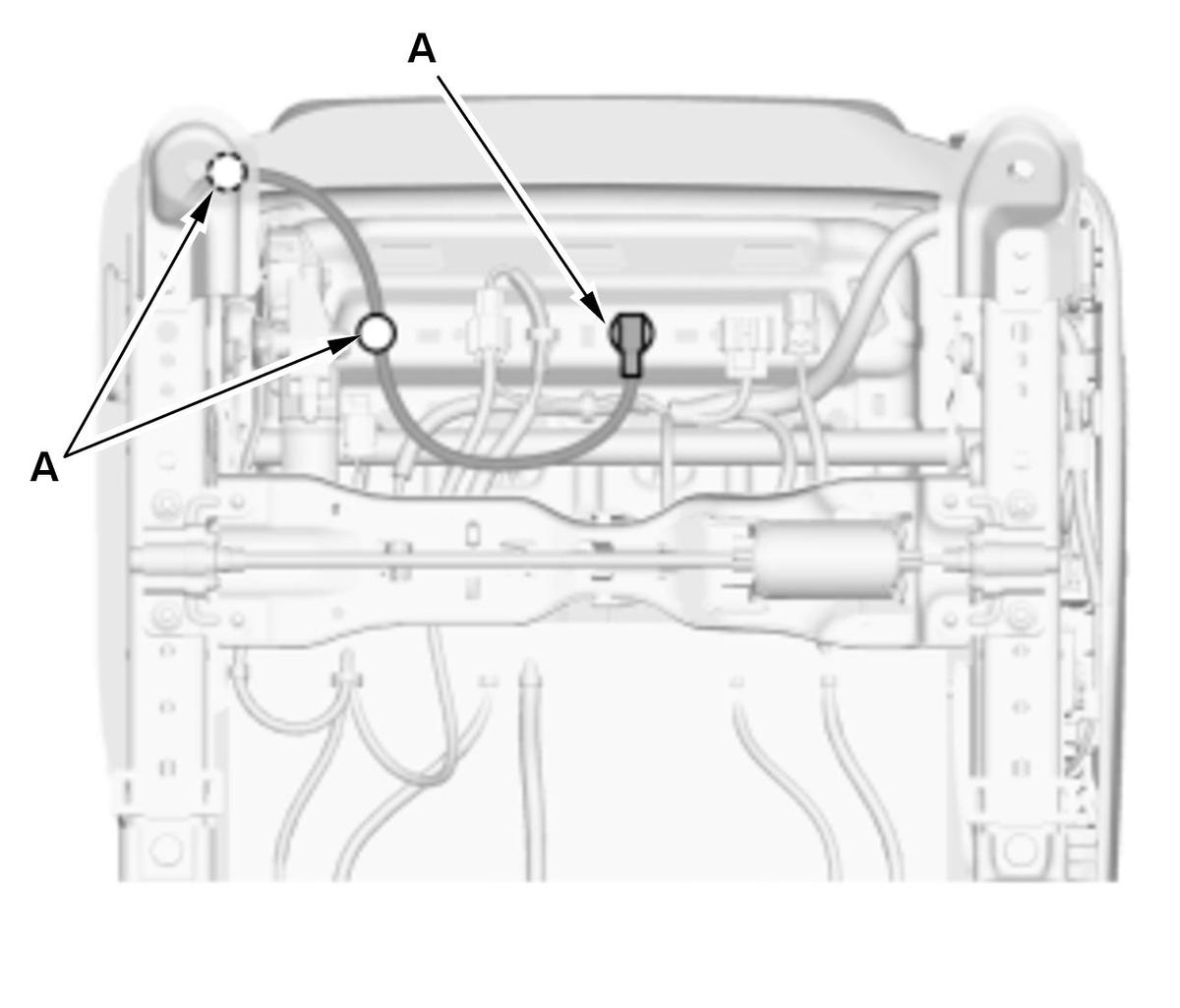

   Driver's Power Seat

   1. Release the clips (A) and the remove the bolt.

   Courtesy of HONDA, U.S.A., INC.

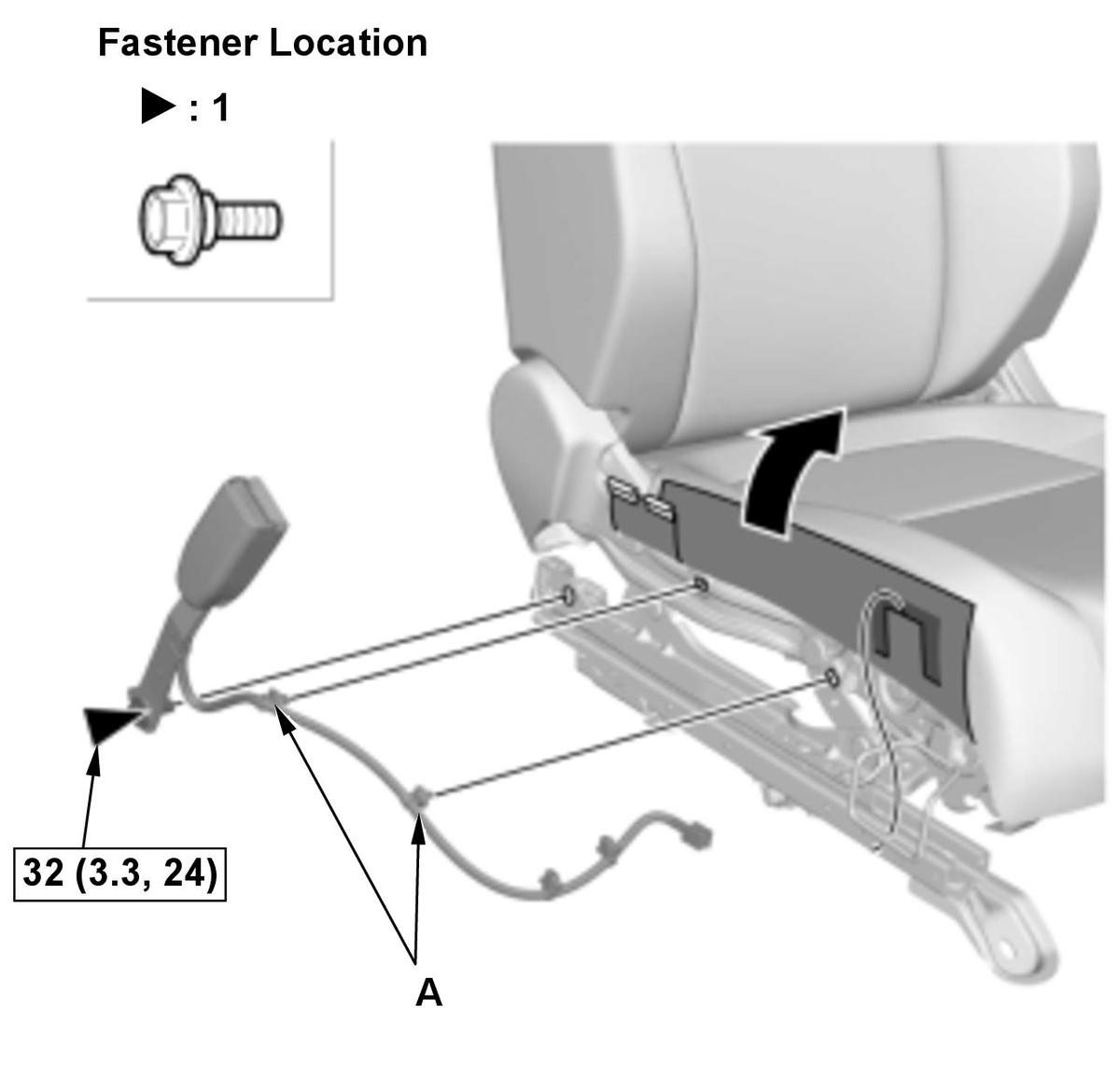

   Fig 2: Front Seat Belt Buckle Components With Torque Specifications (Driver's Manual Seat)

   Courtesy of HONDA, U.S.A., INC.

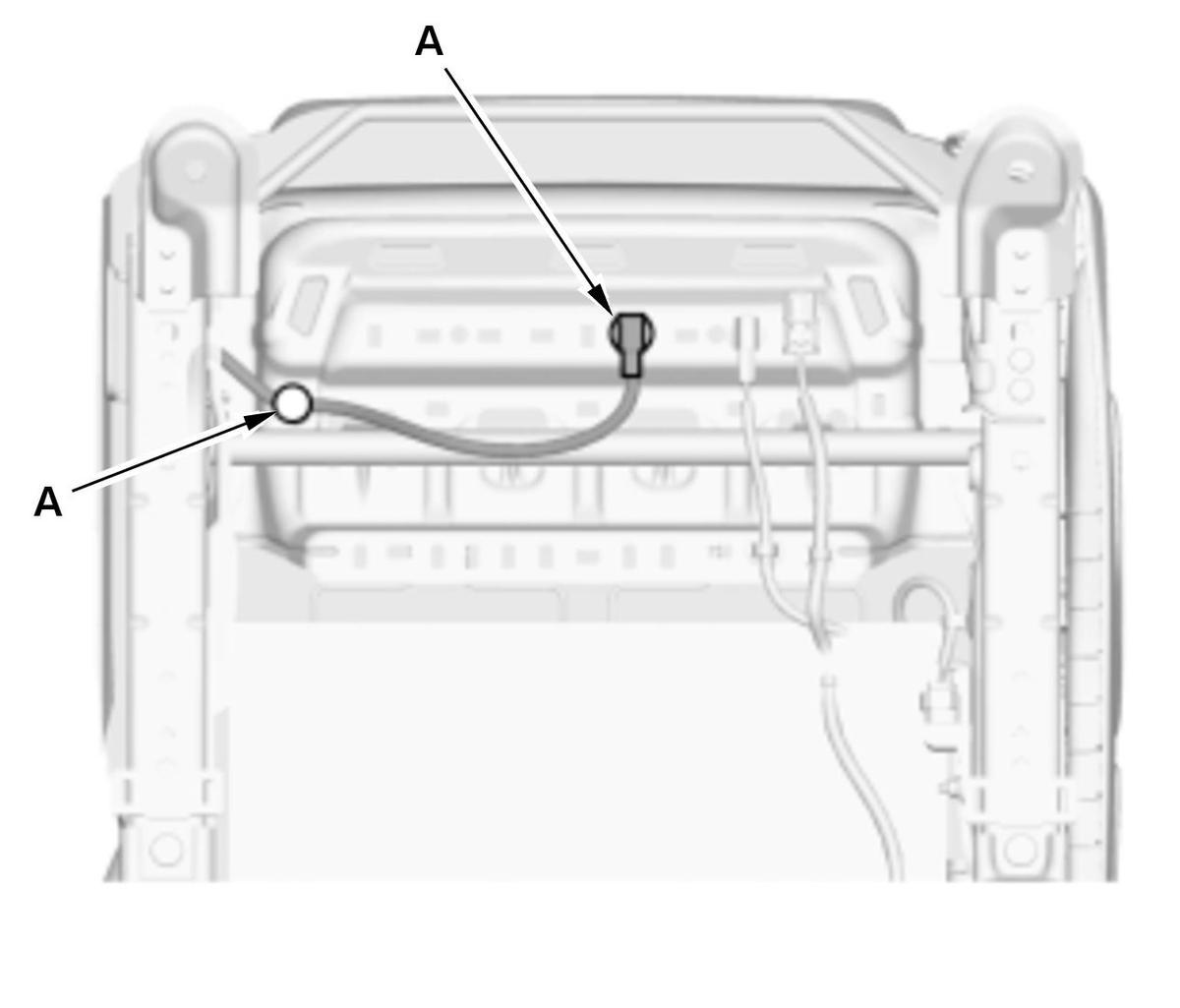

   Driver's Manual Seat

   1. Release the clips (A) and the remove the bolt.

   Courtesy of HONDA, U.S.A., INC.

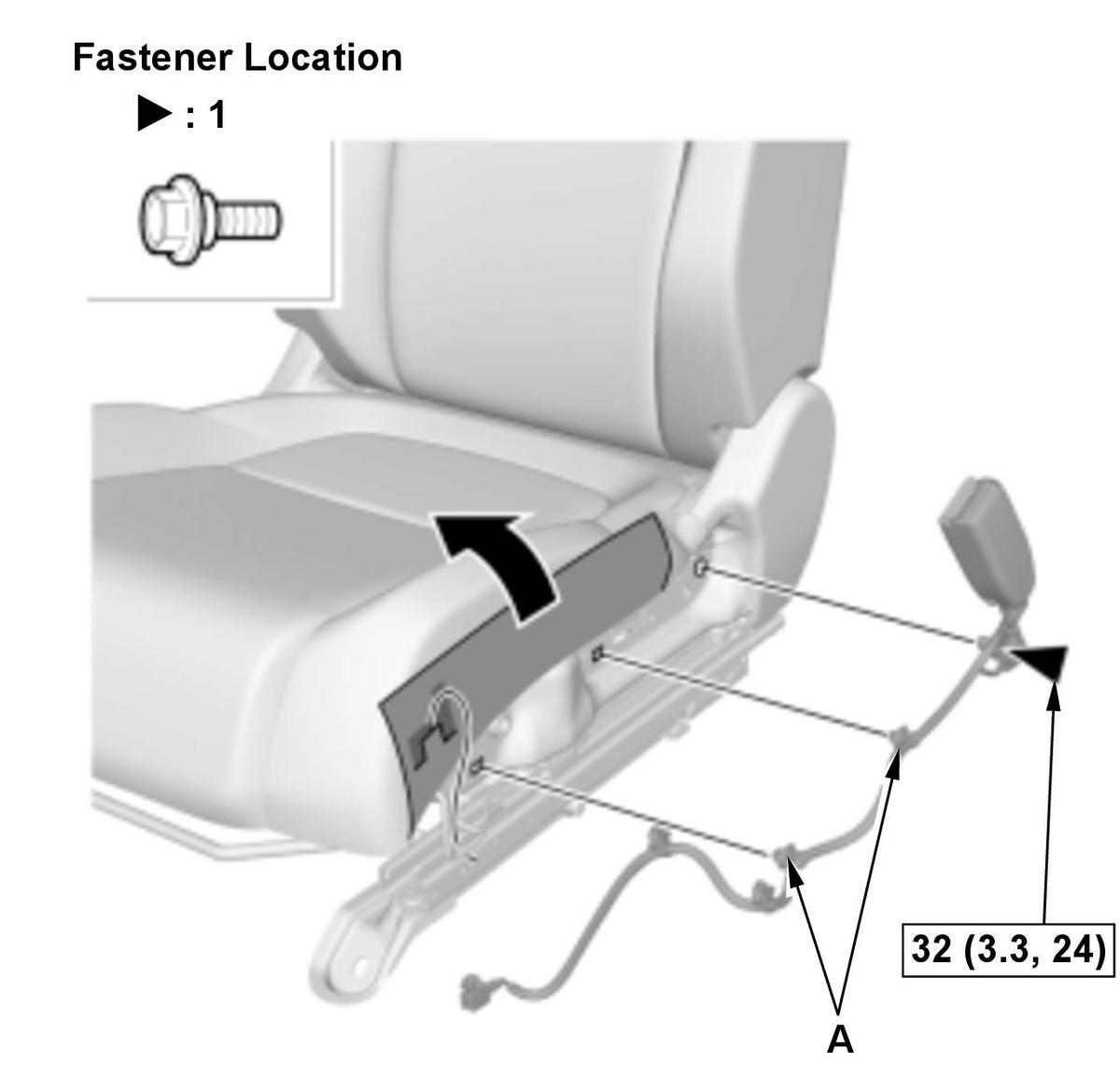

   Fig 3: Front Seat Belt Buckle Components With Torque Specifications (Passenger's Seat)

   Courtesy of HONDA, U.S.A., INC.

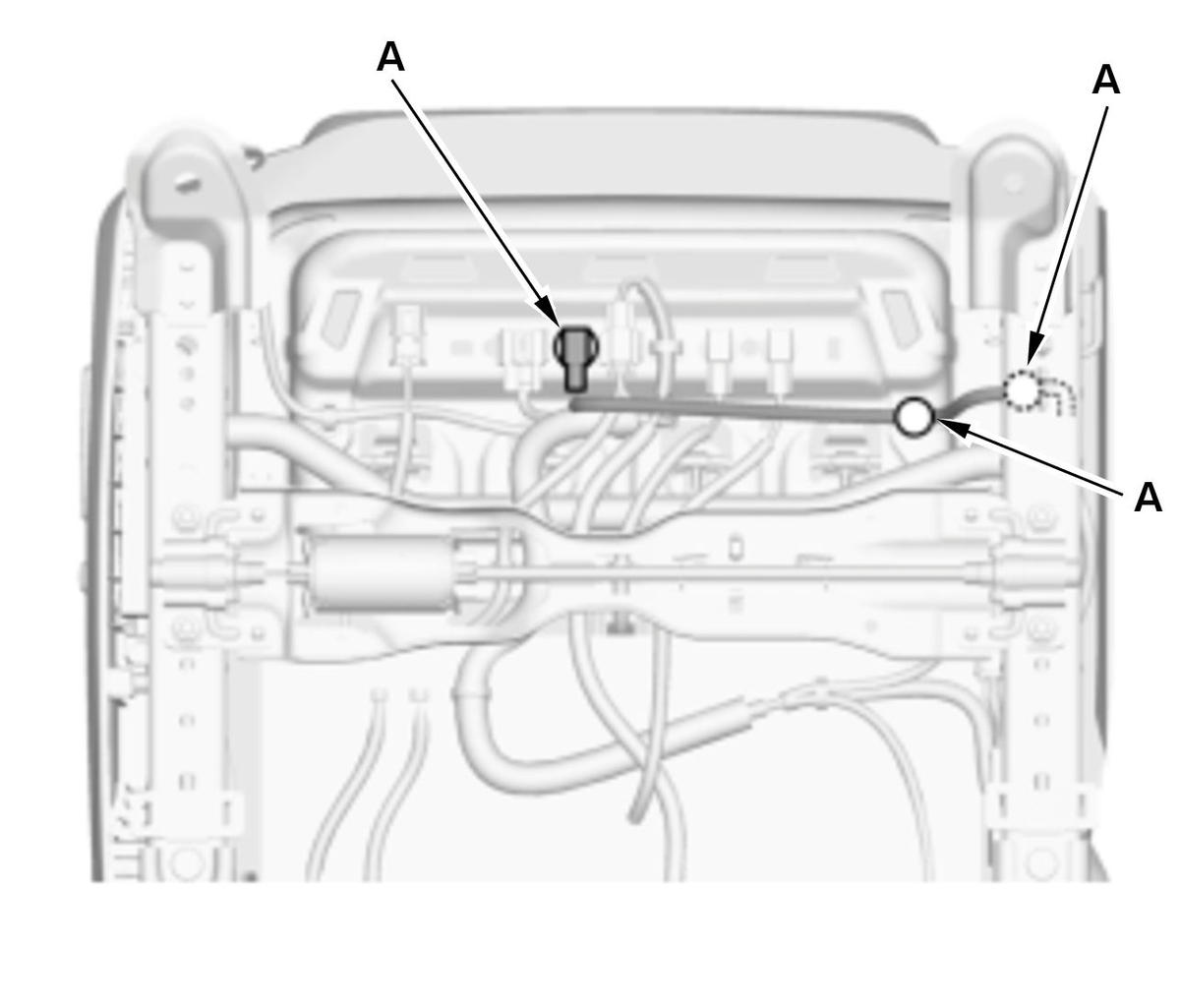

   Passenger's Seat

   1. Release the clips (A) and the remove the bolt.

4. All Removed Parts - Install

   Driver's Seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Passenger's Seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

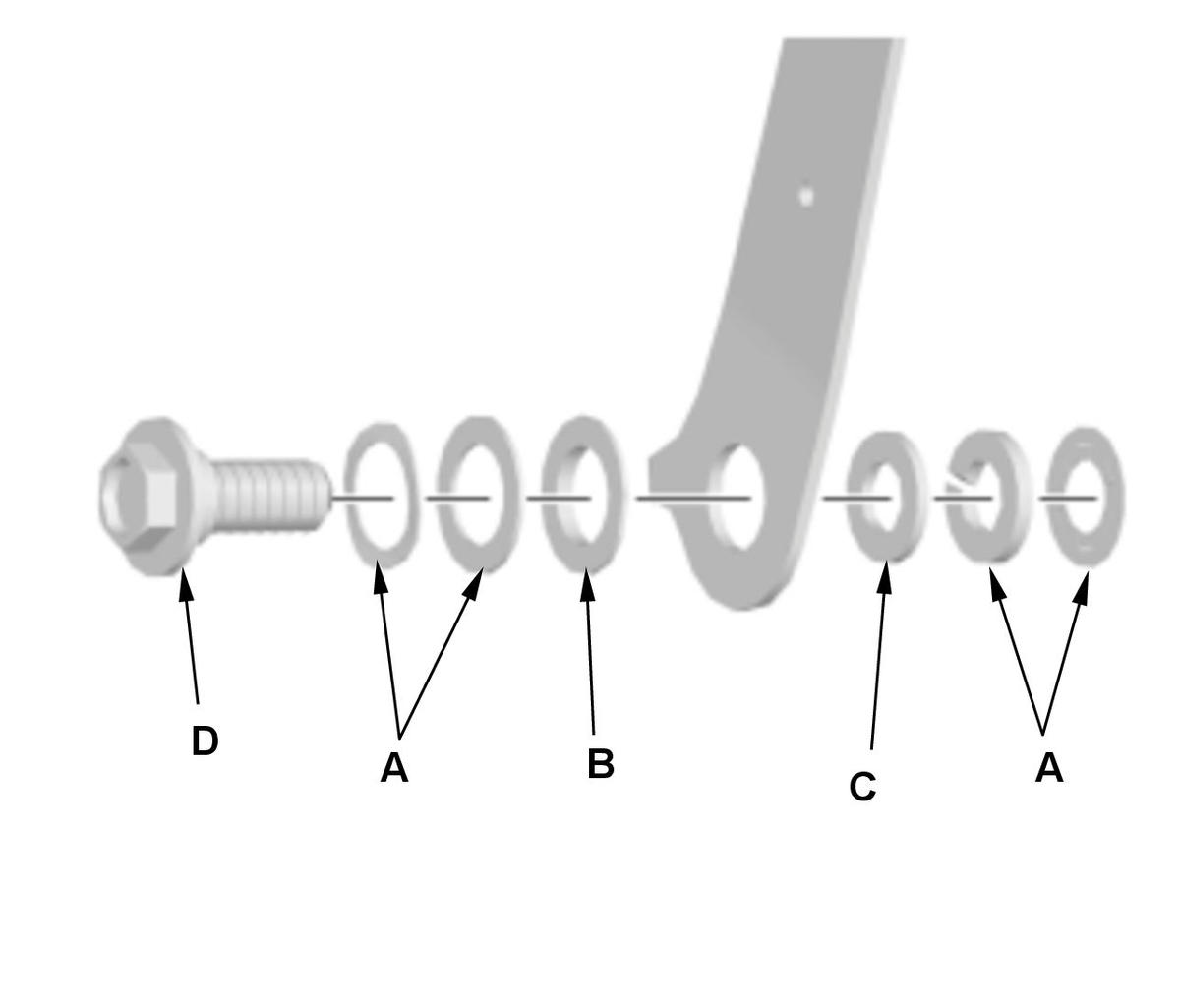

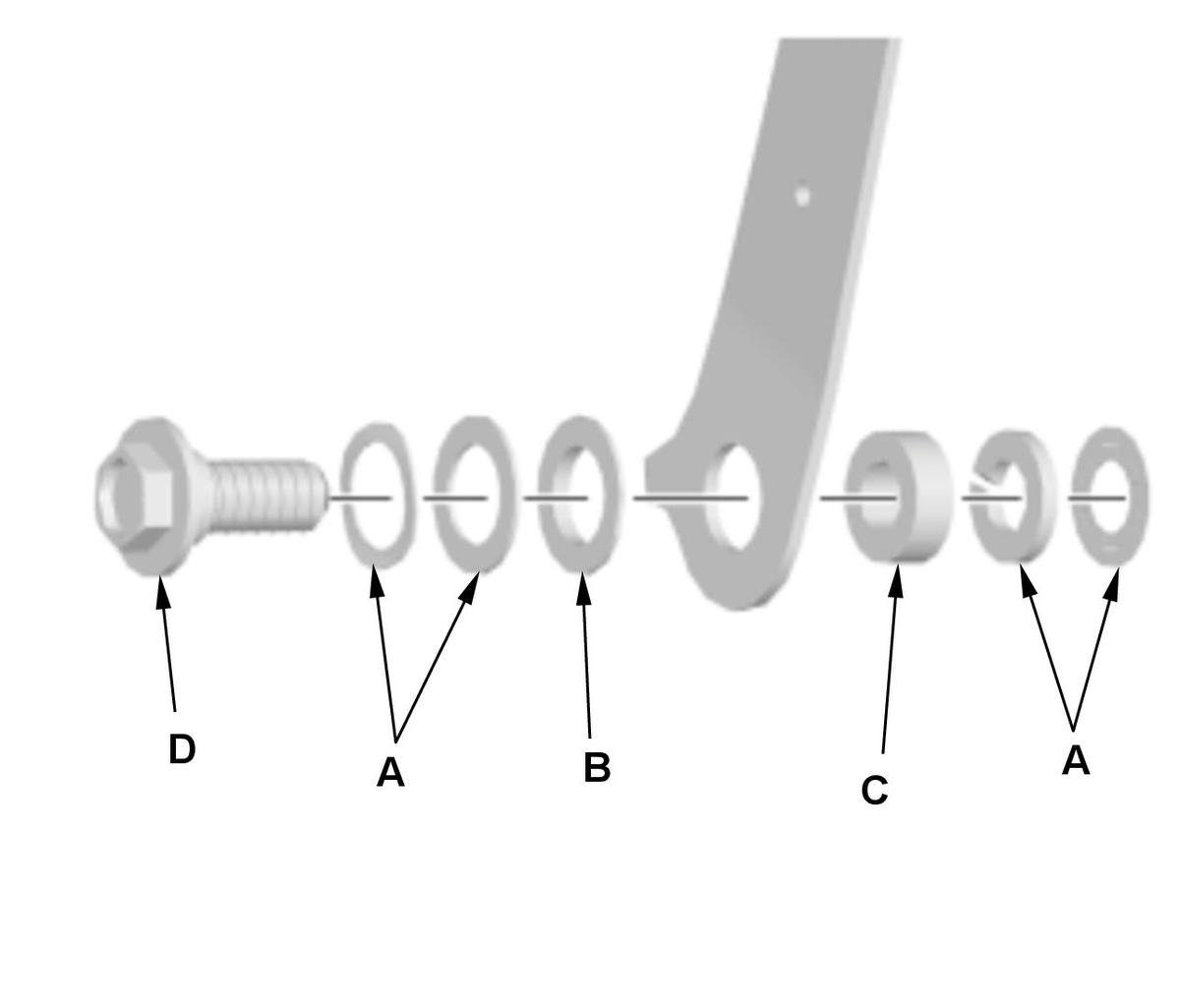

   1. Install the parts in the reverse order of removal. NOTE:  Assemble the washers (A), the bearing (B) and the collar (C) on the anchor bolt (D) as shown.
