Dashboard Component Location Index

WARNING: This page is about a different variant/trim than selected.

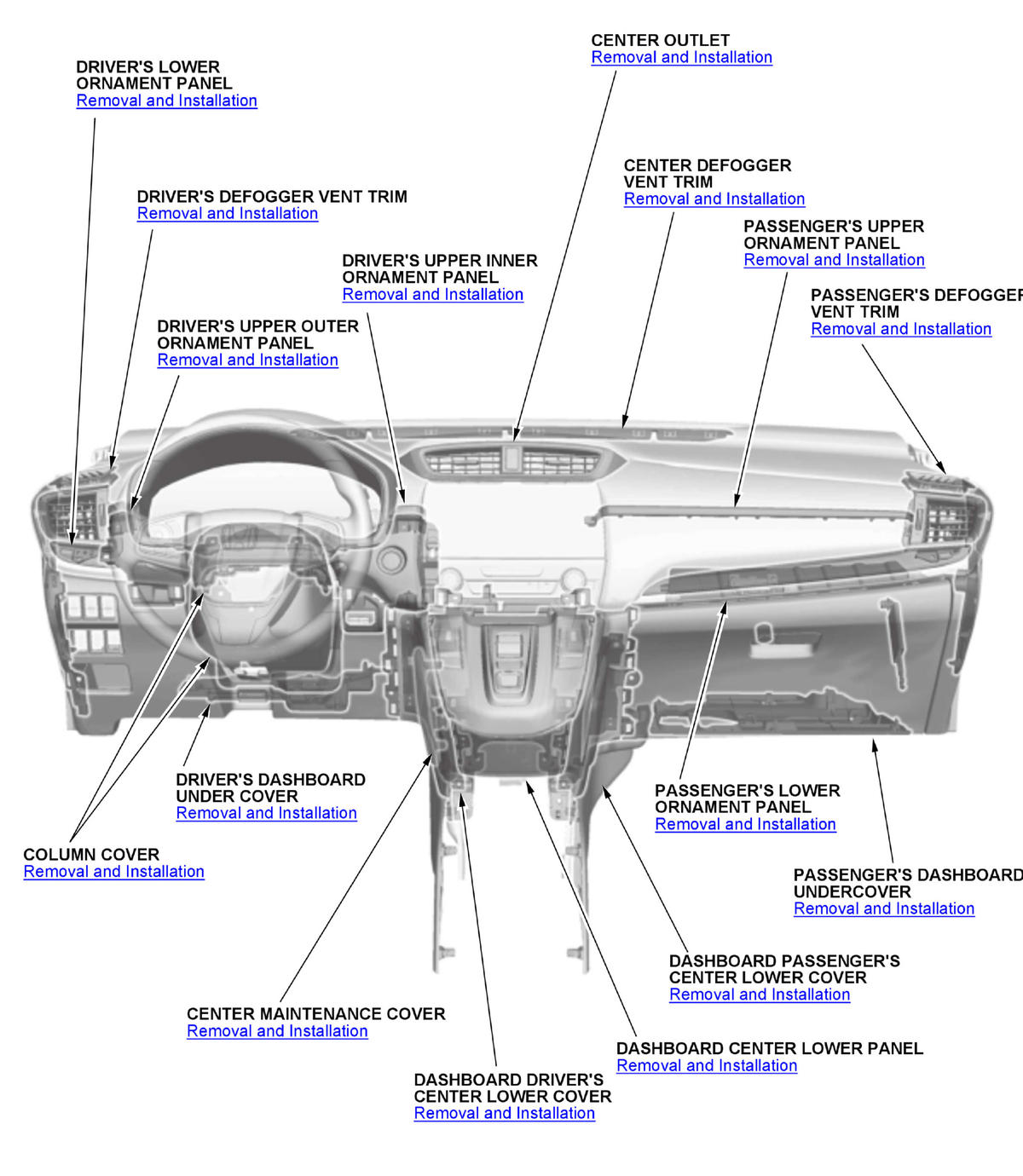

GHH379607

Courtesy of HONDA, U.S.A., INC.

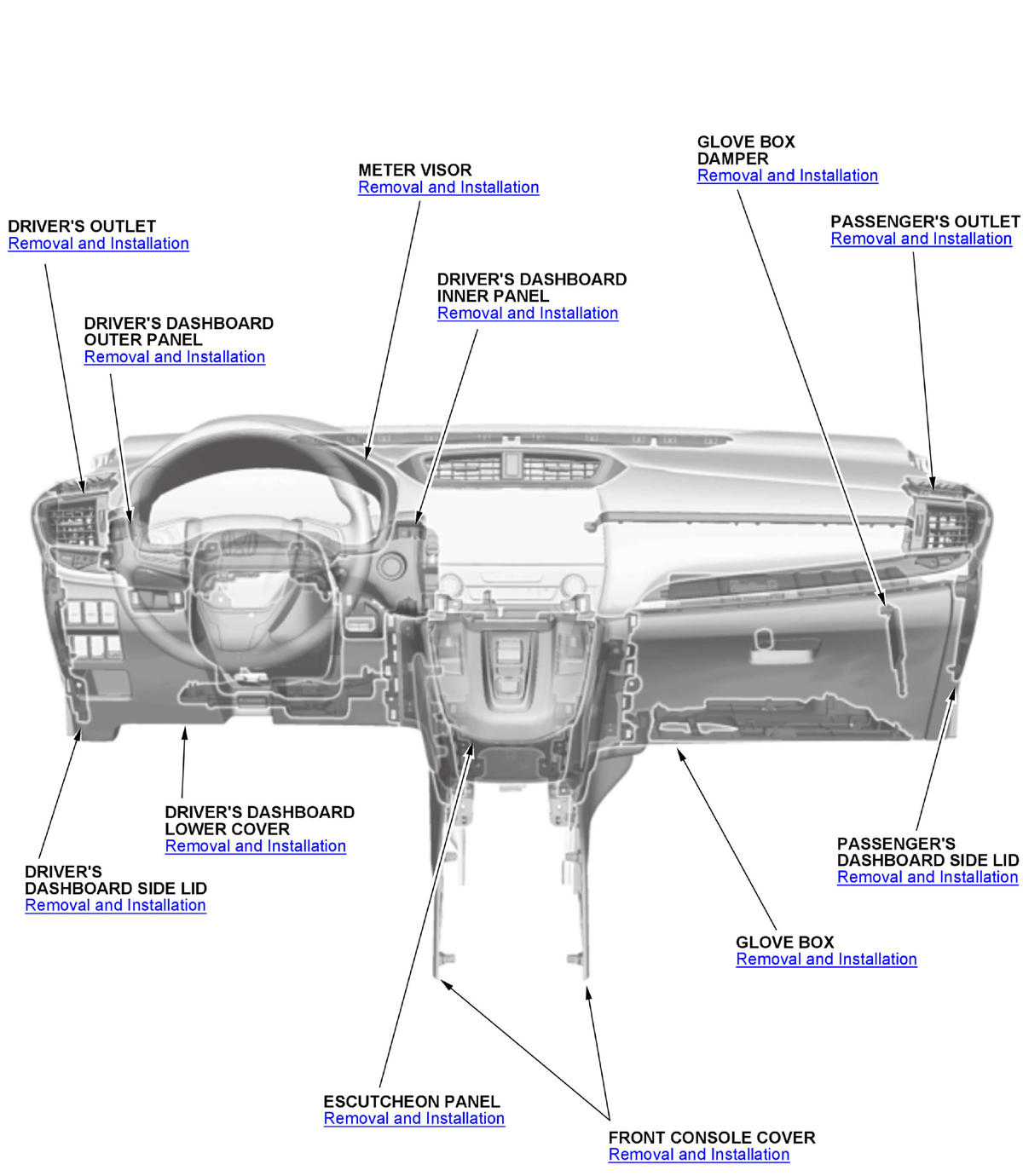

GHH379608

Courtesy of HONDA, U.S.A., INC.

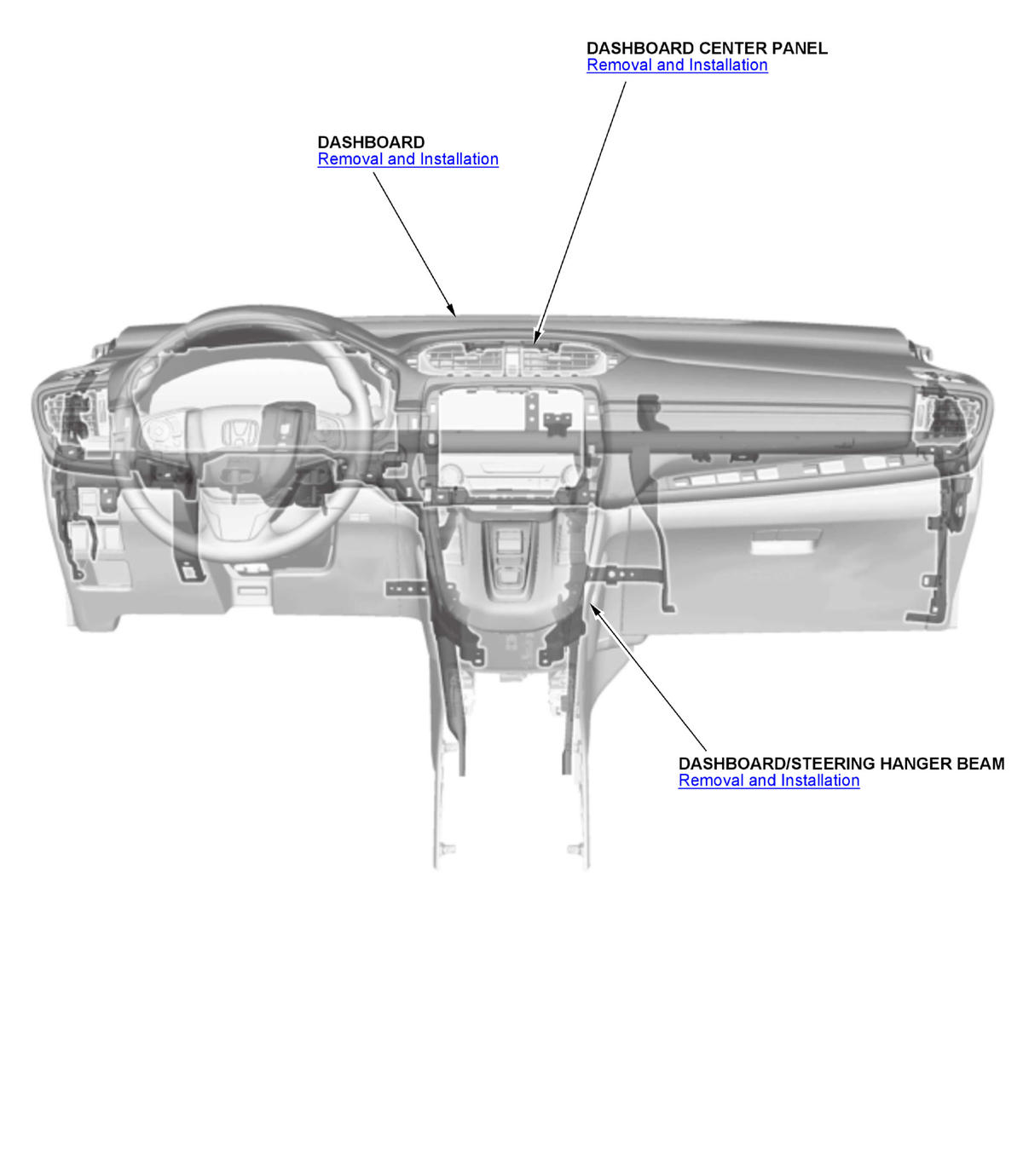

GHH379609

Courtesy of HONDA, U.S.A., INC.
