Rear Brake Pad Removal, Installation, and Inspection: Inspection

NOTE: Review the Service Precautions before doing repairs or service .

1. Vehicle - Lift
2. Rear Wheels - Remove
3. Rear Brake Pad - Inspect

   Courtesy of HONDA, U.S.A., INC.

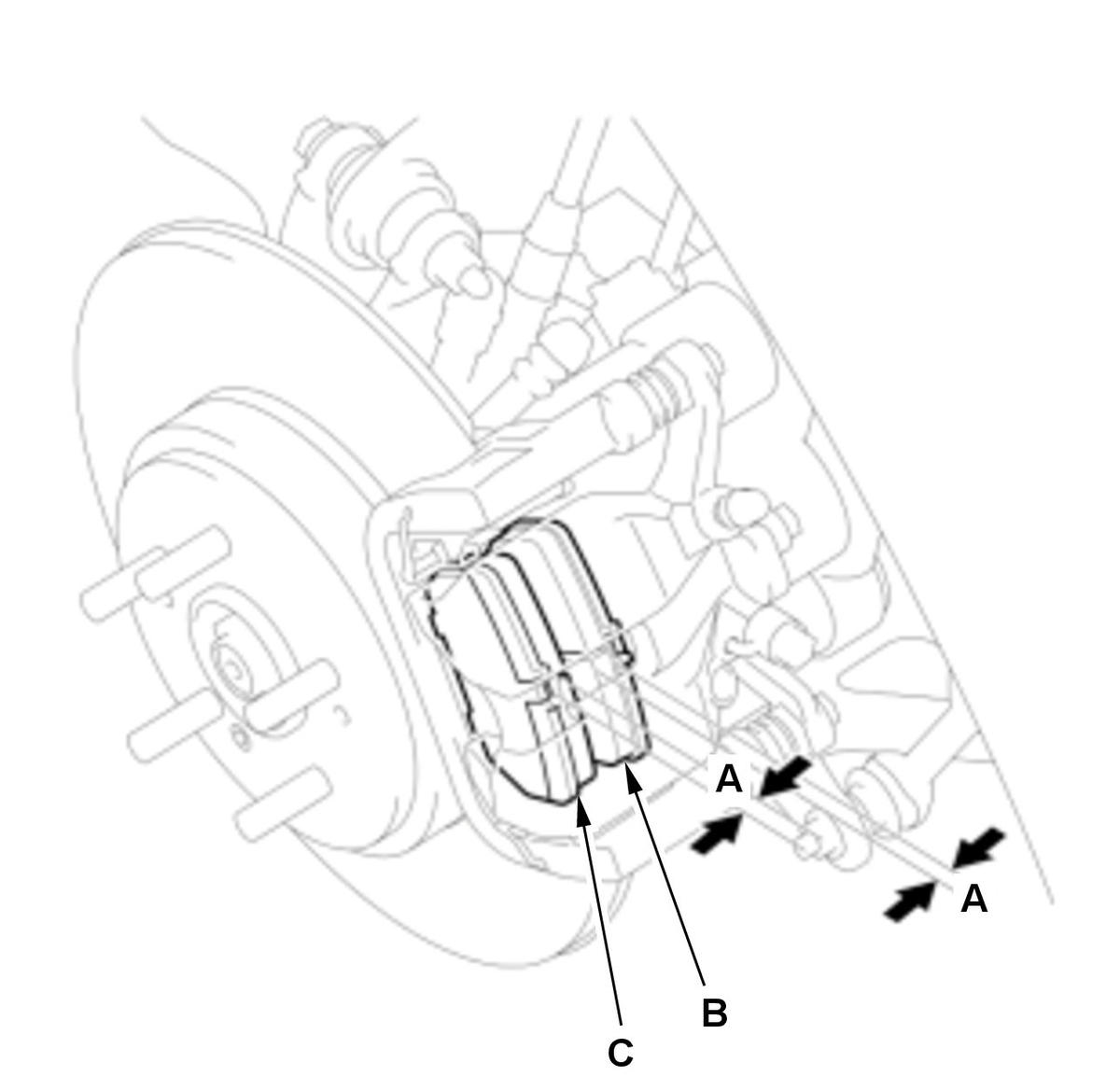

   1. Check the thickness (A) of the inner pad (B) and the outer pad (C). Do not include the thickness of the backing plate. 2. If any part of the brake pad thickness is less than the service limit, replace the brake pads as a set.

   Brake pad thickness:
   	Standard:	10.0 mm (0.394 in)
   	Service limit:	1.6 mm (0.063 in)

4. Rear Wheels - Install
