Removal and Installation

WARNING: This page is about a different variant/trim than selected.

NOTE:

How to read the torque specifications .
Review the Service Precautions before doing repairs or service .

Vehicle - Lift
Front Wheel - Remove
Front Brake Caliper - Remove

1. Remove the caliper assembly without disconnecting the brake hose from the caliper body .

Front Brake Disc - Remove

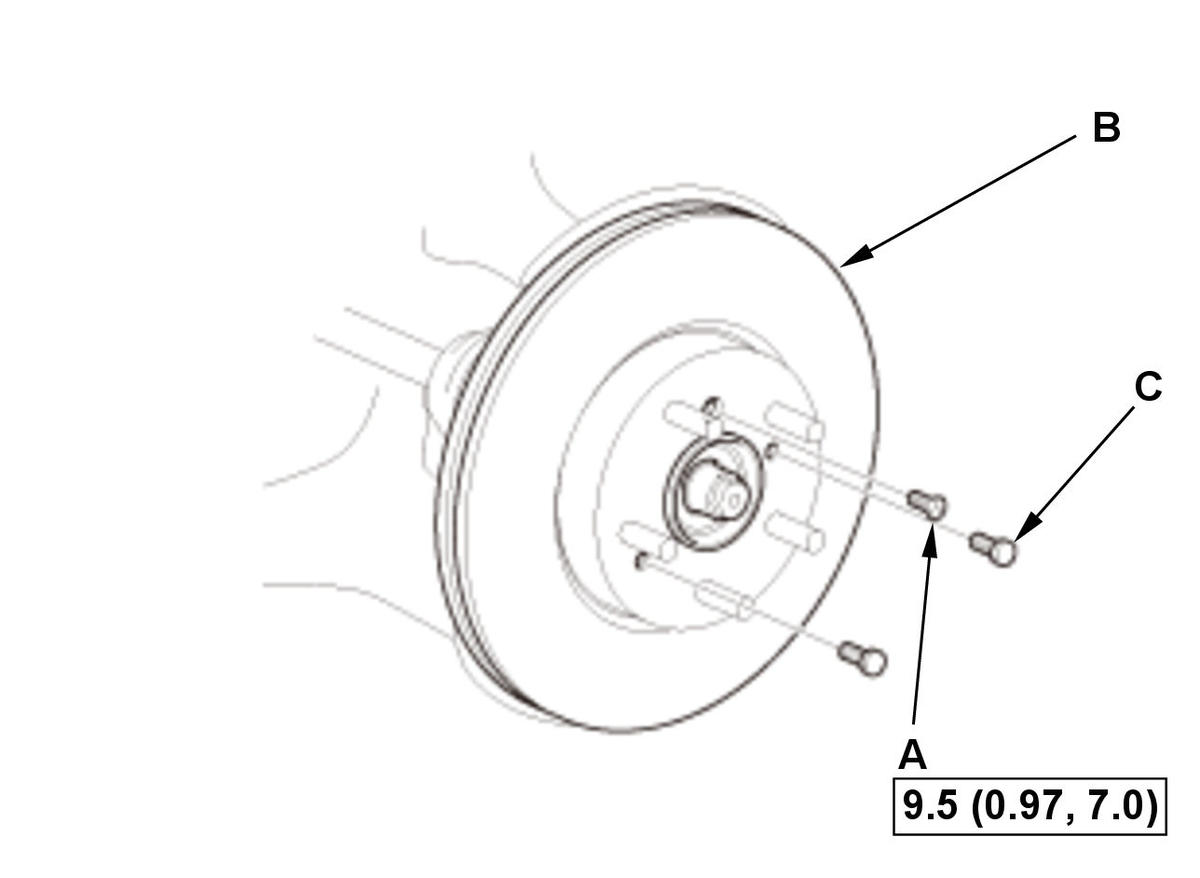

Fig 1: Brake Disc Flathead Screws With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the brake disc flathead screw (A).

2. Remove the brake disc (B).

NOTE: If the brake disc is stuck to the front hub, thread two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the front hub. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.

All Removed Parts - Install

1. Install all removed parts in the reverse order of removal.
Front Brake Disc Runout - Inspect
