Electric Servo Brake Control Unit Connector for Inputs and Outputs
WARNING: This page is about a different variant/trim than selected.

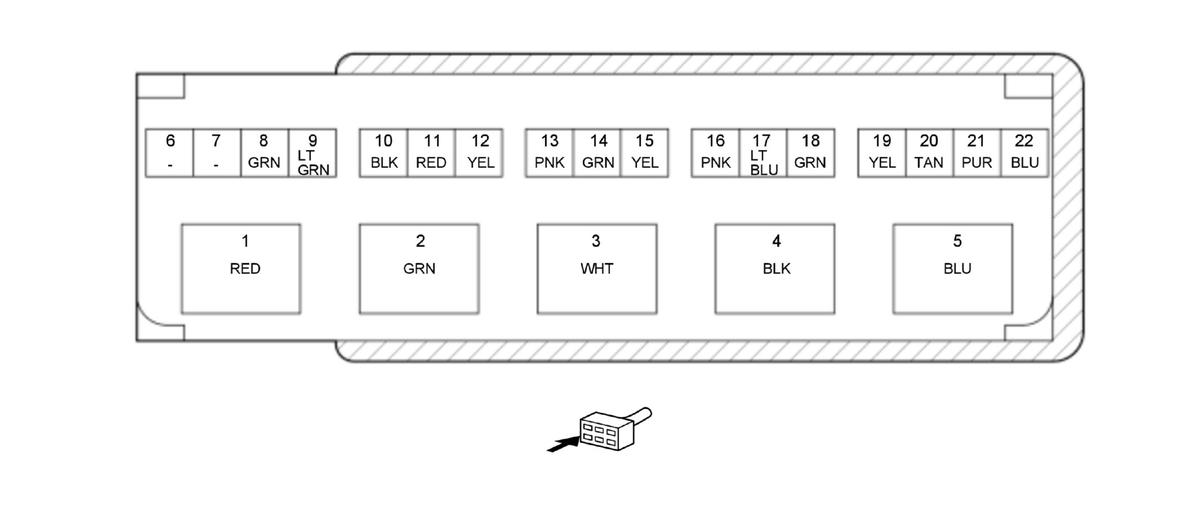

Electric Servo Brake Control Unit 22P Connector (female terminals) (Connector Disconnected)
| Terminal number | Terminal sign | Description |
|---|---|---|
| 1 | MV | Drive the motor |
| 2 | MU | Drive the motor |
| 3 | MW | Drive the motor |
| 4 | GND | Ground for the electric servo brake control unit |
| 5 | +B_ESB | Power source for the electric servo brake control unit |
| 6 | Not used | --- |
| 7 | Not used | --- |
| 8 | BPS | Detects brake pedal stroke sensor signal |
| 9 | ESV_SGND | Ground for the sensors |
| 10 | FL_DOOR_SW | Detects driver's door switch signal |
| 11 | BPSR | Detects brake pedal stroke sensor redundant signal |
| 12 | ESB_SVCC | Power source for the sensors |
| 13 | BRK_LAMP | Drive the brake light relay |
| 14 | F-CAN B_L | F-CAN communication circuit |
| 15 | F-CAN B_H | F-CAN communication circuit |
| 16 | BRK_DIAG | Detects brake light relay signal |
| 17 | IG1_HAC | Power source for activating the system |
| 18 | F-CAN C_L | F-CAN communication circuit |
| 19 | F-CAN C_H | F-CAN communication circuit |
| 20 | HALL_U | Detects motor angle sensor signal |
| 21 | HALL_V | Detects motor angle sensor signal |
| 22 | HALL_W | Detects motor angle sensor signal |
