Section 10 (Brake System - Service, Testing & Troubleshooting (Hybrid))
>>
Circuit Diagram
>>

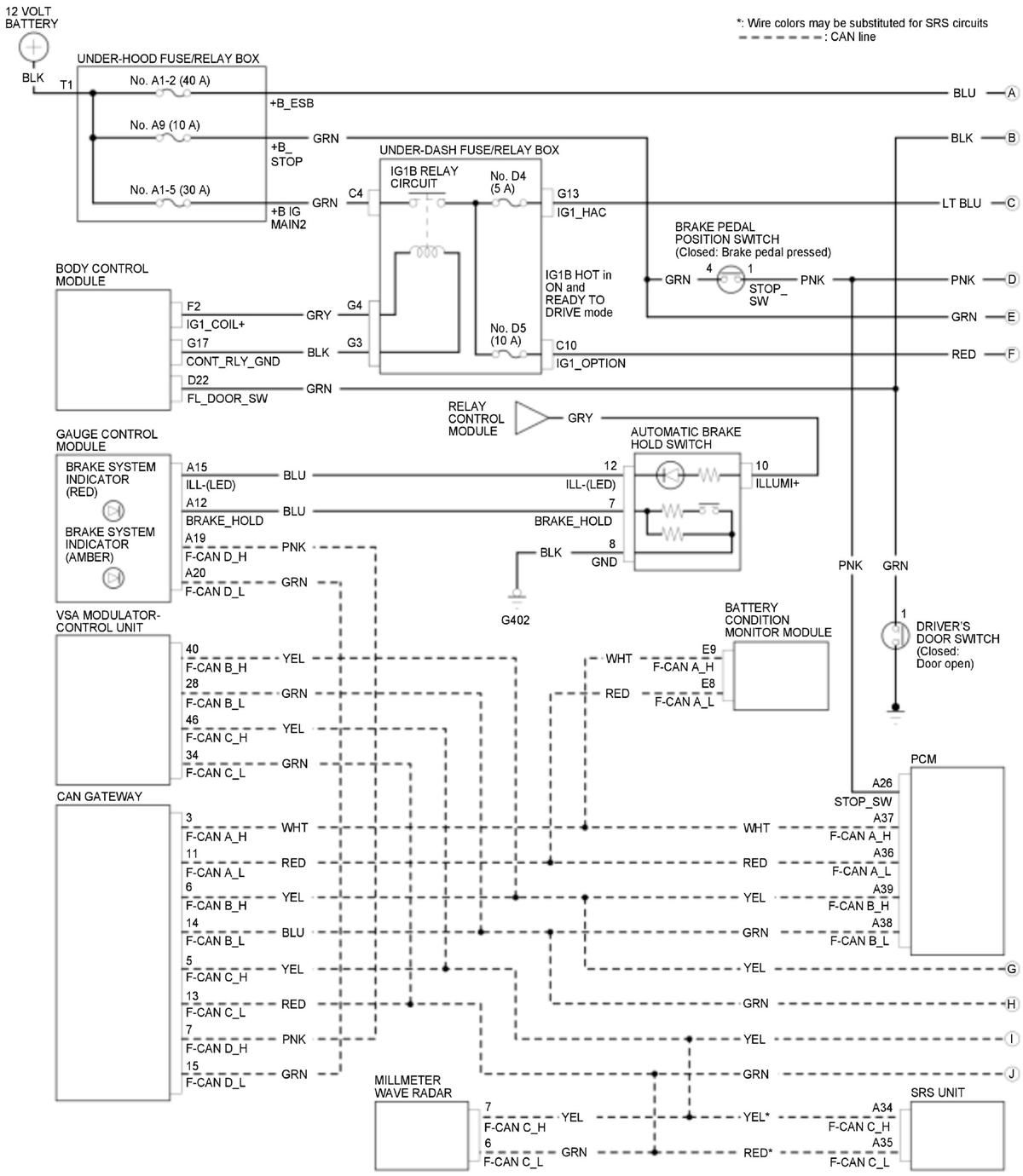

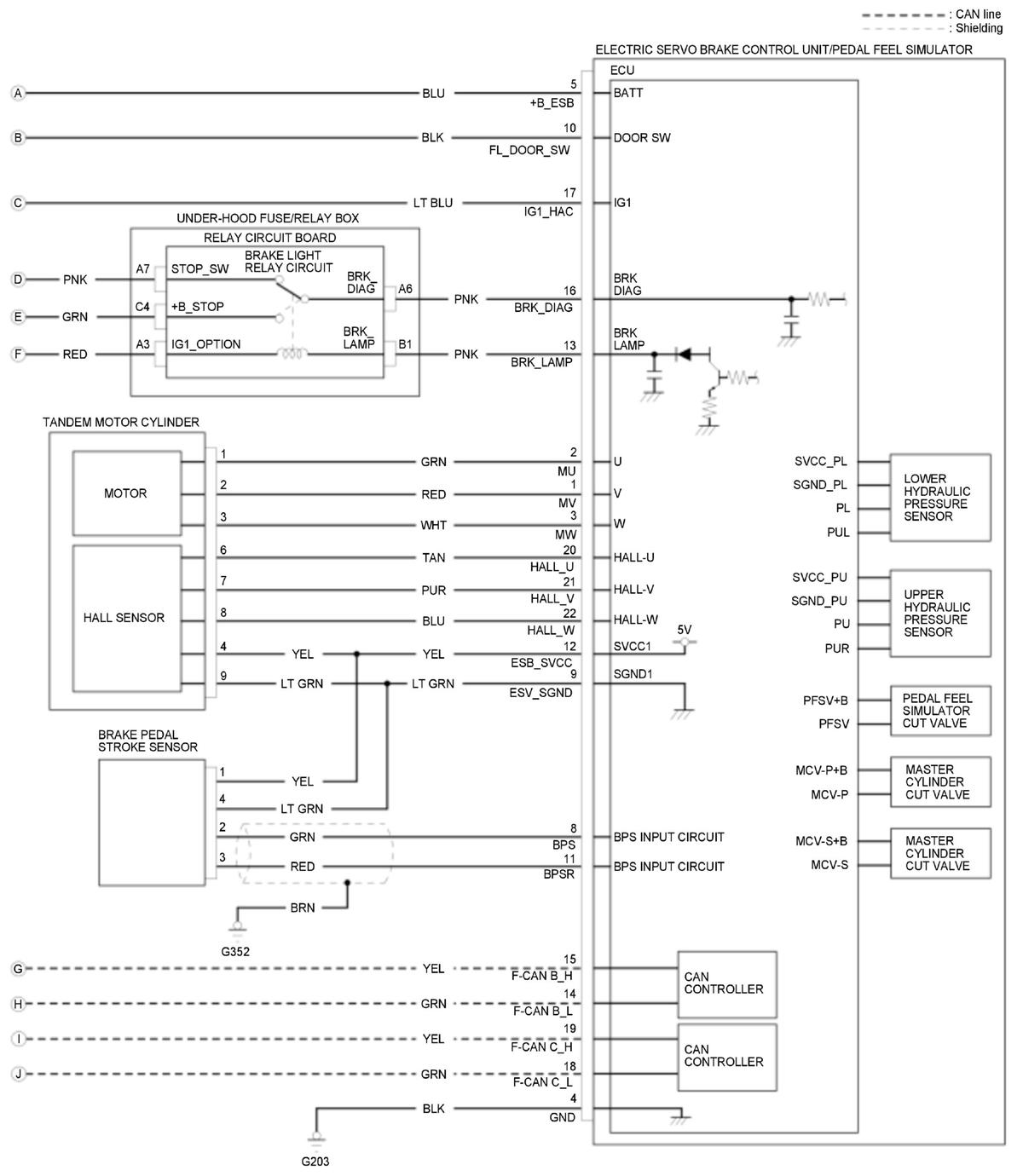

Electric Servo Brake System Circuit Diagram
Electric Servo Brake System Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
