DTC P16F3 (1.5 L Engine)

DTC P16F3  : Starter Cut Relay 1 Control Circuit Low Voltage

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Engine starting check

   -1. Start the engine.

   Does the engine start?

   YES

   Go to step 2.

   NO

   Go to step 4.

2. Problem verification

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Turn the vehicle to the ON mode.

   -3. Clear the DTC with the HDS.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16F3 Starter Cut Relay 1 Control Circuit Low Voltage

   Is DTC P16F3 indicated?

   YES

   The failure is duplicated. Go to step 3.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the relay circuit board (starter cut relay 1 circuit) and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

3. Shorted wire check (ST CUT RLY1 CL- line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connectors.

   PCM connector A (50P)

   Relay circuit board connector A (8P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Relay circuit board connector A (8P): disconnected
   	PCM connector A (50P): disconnected
   Test point 1	PCM connector A (50P) No. 15
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short in the ST CUT RLY1 CL- wire between the PCM (A15) and the relay circuit board (starter cut relay 1 circuit).

   NO

   The ST CUT RLY1 CL- wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

4. Determine possible failure area (PCM, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector A (50P)

   -4. Turn the vehicle to the ON mode.

   -5. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	PCM connector A (50P): disconnected
   Test point 1	PCM connector A (50P) No. 15
   Test point 2	Body ground

   Is there battery voltage?

   YES

   Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

   NO

   Go to step 5.

5. Open wire check (ST CUT RLY1 CL- line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Relay circuit board connector A (8P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector A (50P): disconnected
   	Relay circuit board connector A (8P): disconnected

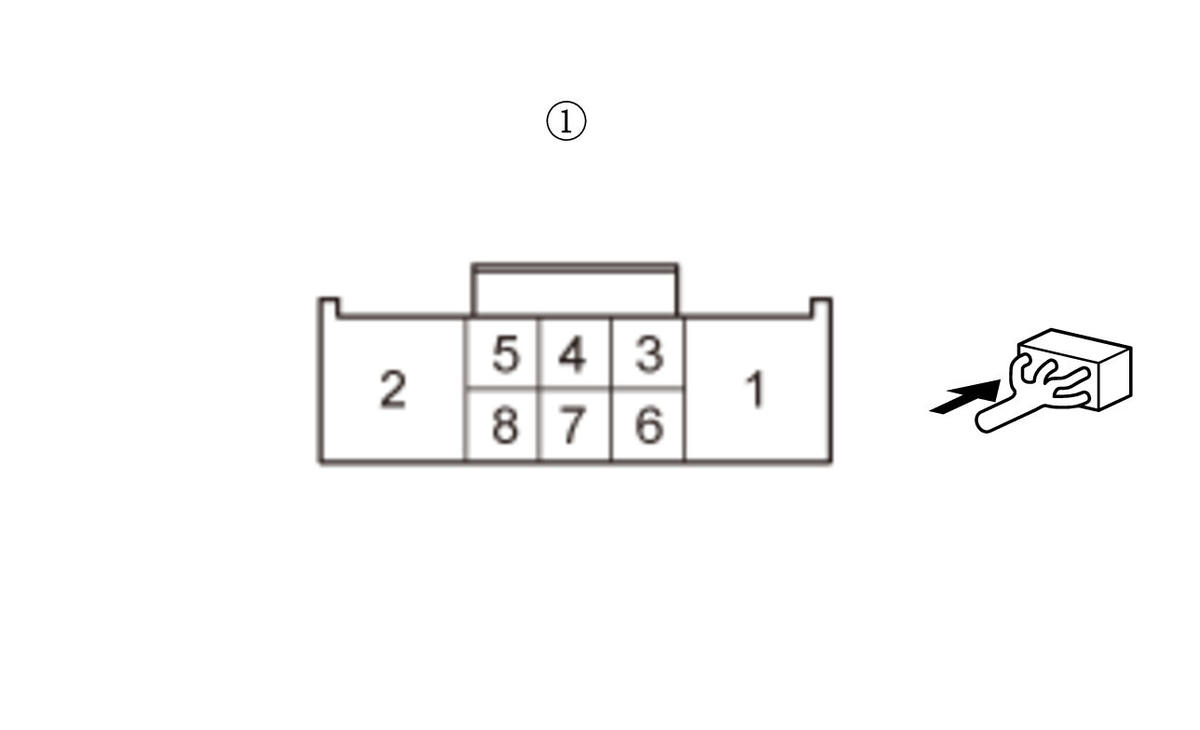

   Test point 1	Relay circuit board connector A (8P) (female terminals) No. 5:
   Test point 2	PCM connector A (50P) No. 15

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The ST CUT RLY1 CL- wire is OK. Go to step 6.

   NO

   Repair an open in the ST CUT RLY1 CL- wire between the PCM (A15) and the relay circuit board (starter cut relay 1 circuit).

6. Fuse check

   -1. Check the following fuse.

   Fuse	No. D20 (10 A)

   Location

   Under-dash fuse/relay box

   Is the fuse OK?

   YES

   Go to step 7.

   NO

   Check for a short in the IG1 STARTER CUT wire between the No. D20 (10 A) fuse and the relay circuit board, and repair it as needed. Also replace the No. D20 (10 A) fuse.

7. Open wire check (IG1 STARTER CUT line)

   -1. Disconnect the following connectors.

   Under-dash fuse/relay box connector C (27P)

   Relay circuit board connector B (6P)

   -2. Connect terminals A and B with a jumper wire.

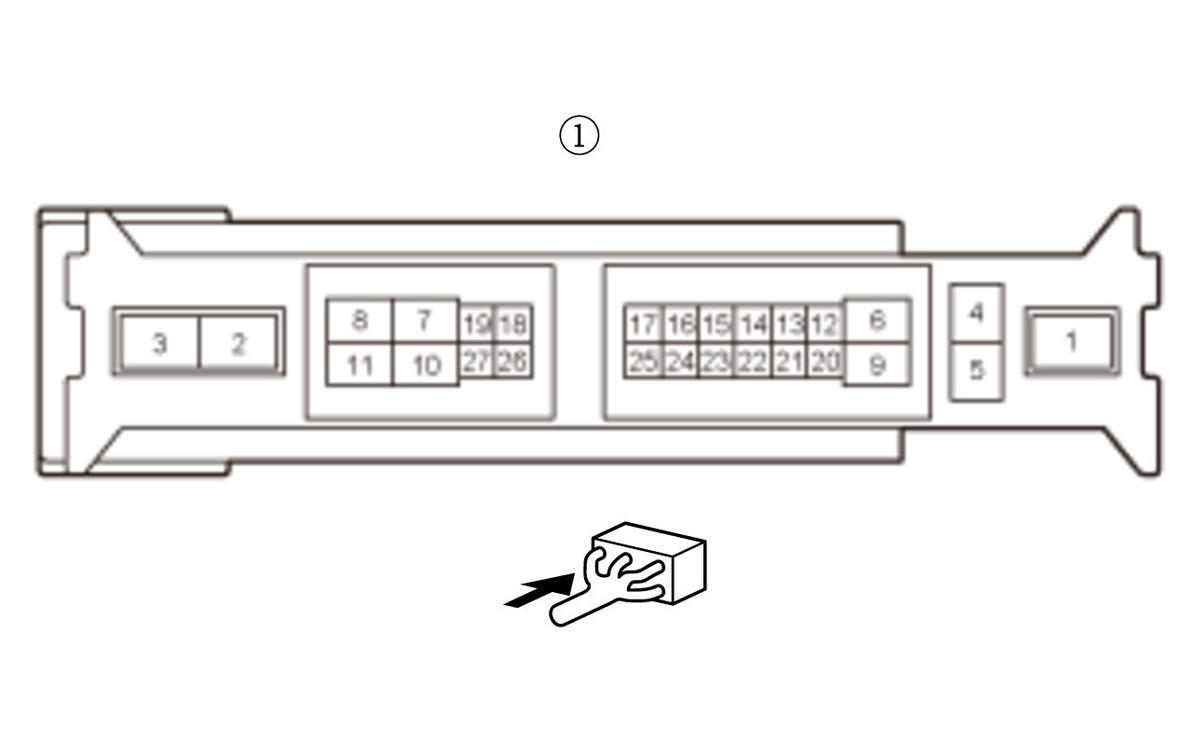

   Terminal A	Under-dash fuse/relay box connector C (27P) (female terminals) No. 23:
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector A (50P): disconnected
   	Relay circuit board connector A (8P): disconnected
   	Relay circuit board connector B (6P): disconnected
   	Under-dash fuse/relay box connector C (27P): disconnected
   	Under-dash fuse/relay box connector C (27P) No. 23: jumped to body ground

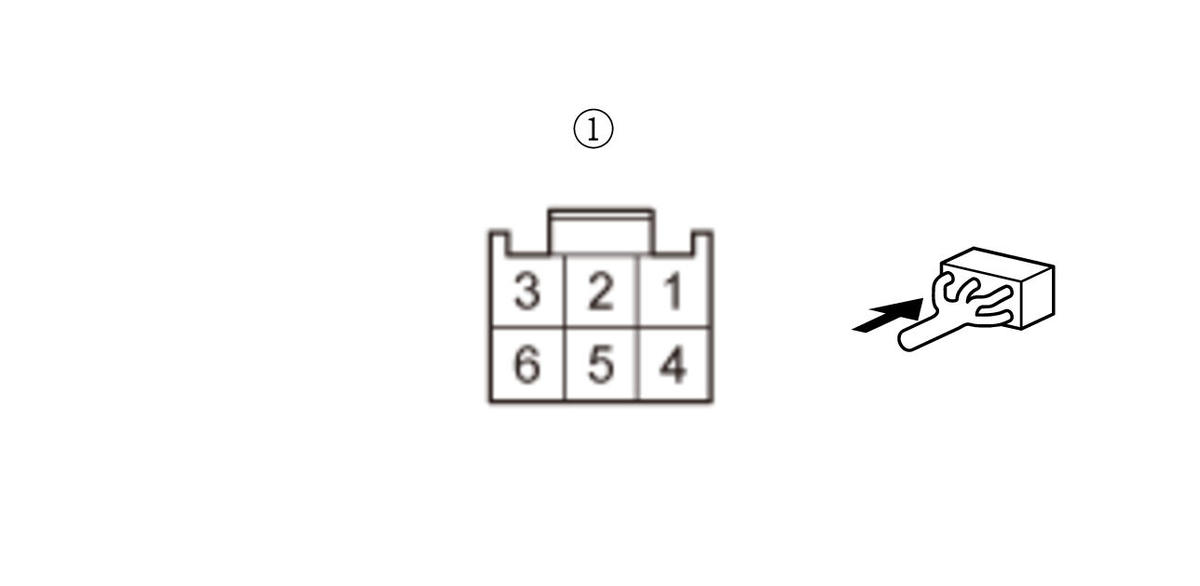

   Test point 1	Relay circuit board connector B (6P) (female terminals) No. 4:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The IG1 STARTER CUT wire is OK. Replace the under-dash fuse/relay box .

   NO

   Repair an open in the IG1 STARTER CUT wire between the under-dash fuse/relay box and the relay circuit board (starter cut relay 1 circuit).
