DTC P16E8 (1.5 L Engine)

DTC P16E8  : PGM-FI-Shutter Grille LIN Communication Error

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode, and wait 10 seconds.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E8 PGM-FI-Shutter Grille LIN Communication Error

   Is DTC P16E8 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the shutter grille and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. DTC check 1

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E2 PGM-FI-ACG LIN Communication Error

   Is DTC P16E2 indicated?

   YES

   Go to step 5.

   NO

   Go to step 3.

3. DTC check 2

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E3 PGM-FI-Battery Sensor LIN Communication Error

   Is DTC P16E3 indicated?

   YES

   Go to step 10.

   NO (Without auto idle stop system)

   Go to step 23.

   NO (With auto idle stop system)

   Go to step 4.

4. DTC check 3

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E5 LIN Communication Error (PCM-DC-DC Converter)

   Is DTC P16E5 indicated?

   YES

   Go to step 15.

   NO

   Go to step 20.

5. Determine possible failure area (LIN (BATT SENSOR)/LIN line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Shutter grille (upper/lower) 4P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Shutter grille (upper/lower) 4P connector: disconnected
   Test point 1	Shutter grille (upper/lower) 4P connector (female terminal) No. 3:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Go to step 7.

   NO

   Go to step 6.

6. Shorted wire check (LIN (BATT SENSOR)/LIN line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   Continue to check for continuity between the shutter grille (upper/lower) 4P connector terminal and body ground, while disconnecting these connectors, one at a time:

   • PCM connector A (50P)
   • Alternator 1P connector
   • 12 volt battery sensor 2P connector
   • DC-DC converter connector A (3P) (With auto idle stop system)

   Does continuity go away when one of the above connectors is disconnected?

   YES

   The LIN (BATT SENSOR)/LIN wire is OK. Replace the part that caused an open when it was disconnected.

   NO

   Repair a short in the LIN (BATT SENSOR)/LIN wire between the PCM (A10), the alternator, the 12 volt battery sensor, the DC-DC converter (with auto idle stop system), and the shutter grille.

7. Determine possible failure area (shutter grille (upper), others)

   -1. Reconnect the shutter grille (upper) 4P connector.

   -2. Disconnect the following connector.

   Alternator 1P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   	Shutter grille (lower) 4P connector: disconnected

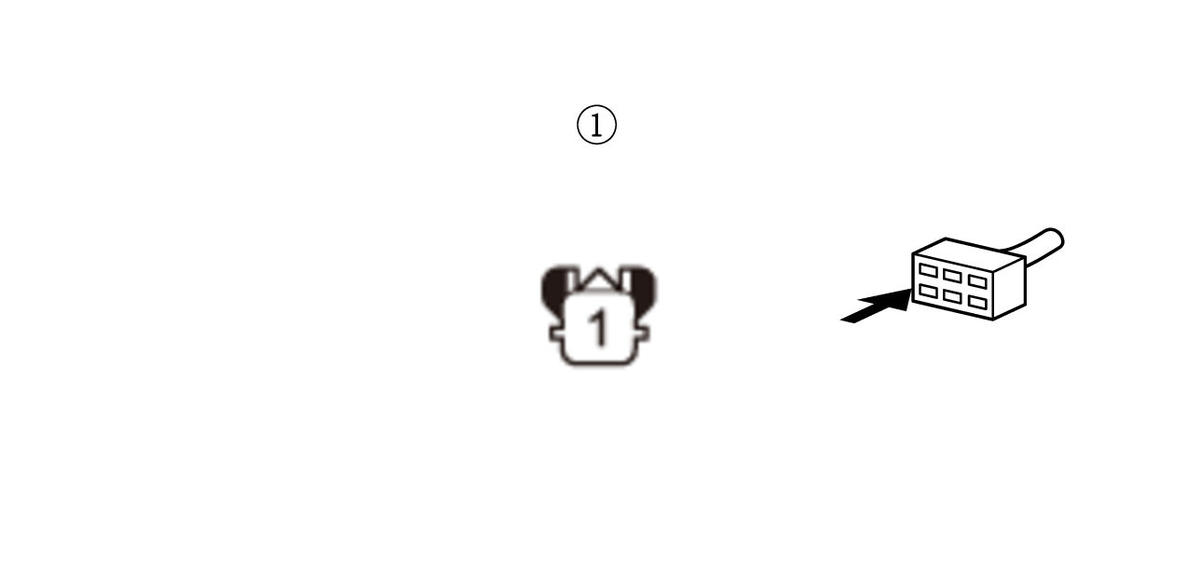

   Test point 1	Alternator 1P connector (female terminal) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Go to step 8.

   NO

   Replace the shutter grille (upper) .

8. Determine possible failure area (shutter grille (lower), others)

   -1. Reconnect the shutter grille (lower) 4P connector.

   -2. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   Test point 1	Alternator 1P connector (female terminal) No. 1:

   Test point 2

   Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Go to step 9.

   NO

   Replace the shutter grille (lower) .

9. Open wire check (LIN (BATT SENSOR)/LIN line) 1

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connectors.

   Shutter grille (upper/lower) 4P connector

   PCM connector A (50P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Shutter grille (upper/lower) 4P connector: disconnected
   	Alternator 1P connector: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	Shutter grille (upper/lower) 4P connector (female terminal) No. 3:
   Test point 2	PCM connector A (50P) No. 10

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The LIN (BATT SENSOR)/LIN wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

   NO

   Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the shutter grille.

10. Determine possible failure area (LIN (BATT SENSOR)/LIN line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Shutter grille (upper/lower) 4P connector

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Shutter grille (upper/lower) 4P connector: disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminal) No. 3:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 12.

    NO

    Go to step 11.

11. Shorted wire check (LIN (BATT SENSOR)/LIN line)

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    Continue to check for continuity between the shutter grille (upper/lower) 4P connector terminal and body ground, while disconnecting these connectors, one at a time:

    • PCM connector A (50P)
    • 12 volt battery sensor 2P connector
    • Alternator 1P connector
    • DC-DC converter connector A (3P) (with auto idle stop system)

    Does continuity go away when one of the above connectors is disconnected?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Replace the part that caused an open when it was disconnected.

    NO

    Repair a short in the LIN (BATT SENSOR)/LIN wire between the PCM (A10), the alternator, the 12 volt battery sensor, the DC-DC converter (with auto idle stop system), and the shutter grille.

12. Determine possible failure area (shutter grille (upper), others)

    -1. Reconnect the shutter grille (upper) 4P connector.

    -2. Disconnect the following connector.

    12 volt battery sensor 2P connector

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected
    	Shutter grille (lower) 4P connector: disconnected

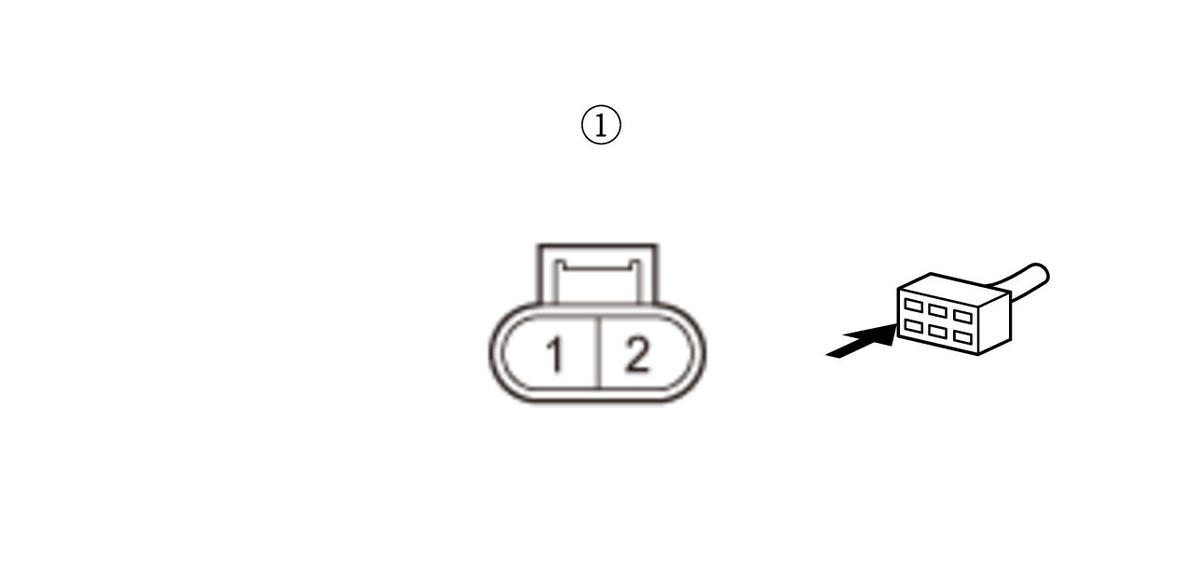

    Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 13.

    NO

    Replace the shutter grille (upper) .

13. Determine possible failure area (shutter grille (lower), others)

    -1. Reconnect the shutter grille (lower) 4P connector.

    -2. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected
    Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 14.

    NO

    Replace the shutter grille (lower) .

14. Open wire check (LIN (BATT SENSOR)/LIN line) 1

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    -2. Disconnect the following connectors.

    Shutter grille (upper/lower) 4P connector

    PCM connector A (50P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected

    	Shutter grille (upper/lower) 4P connector: disconnected
    	PCM connector A (50P): disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminal) No. 3:
    Test point 2	PCM connector A (50P) No. 10

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the shutter grille.

15. Determine possible failure area (LIN (BATT SENSOR)/LIN line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    Shutter grille (upper/lower) 4P connector

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Shutter grille (upper/lower) 4P connector: disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminal) No. 3:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 17.

    NO

    Go to step 16.

16. Shorted wire check (LIN (BATT SENSOR)/LIN line)

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    Continue to check for continuity between the shutter grille (upper/lower) 4P connector terminal and body ground, while disconnecting these connectors, one at a time:

    • PCM connector A (50P)
    • 12 volt battery sensor 2P connector
    • Alternator 1P connector
    • DC-DC converter connector A (3P) (with auto idle stop system)

    Does continuity go away when one of the above connectors is disconnected?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Replace the part that caused an open when it was disconnected.

    NO

    Repair a short in the LIN (BATT SENSOR)/LIN wire between the PCM (A10), the alternator, the 12 volt battery sensor, the DC-DC converter (with auto idle stop system), and the shutter grille.

17. Determine possible failure area (shutter grille (upper), others)

    -1. Reconnect the shutter grille (upper) 4P connector.

    -2. Disconnect the following connector.

    DC-DC converter connector A (3P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	DC-DC converter connector A (3P): disconnected
    	Shutter grille 4P (lower) connector: disconnected

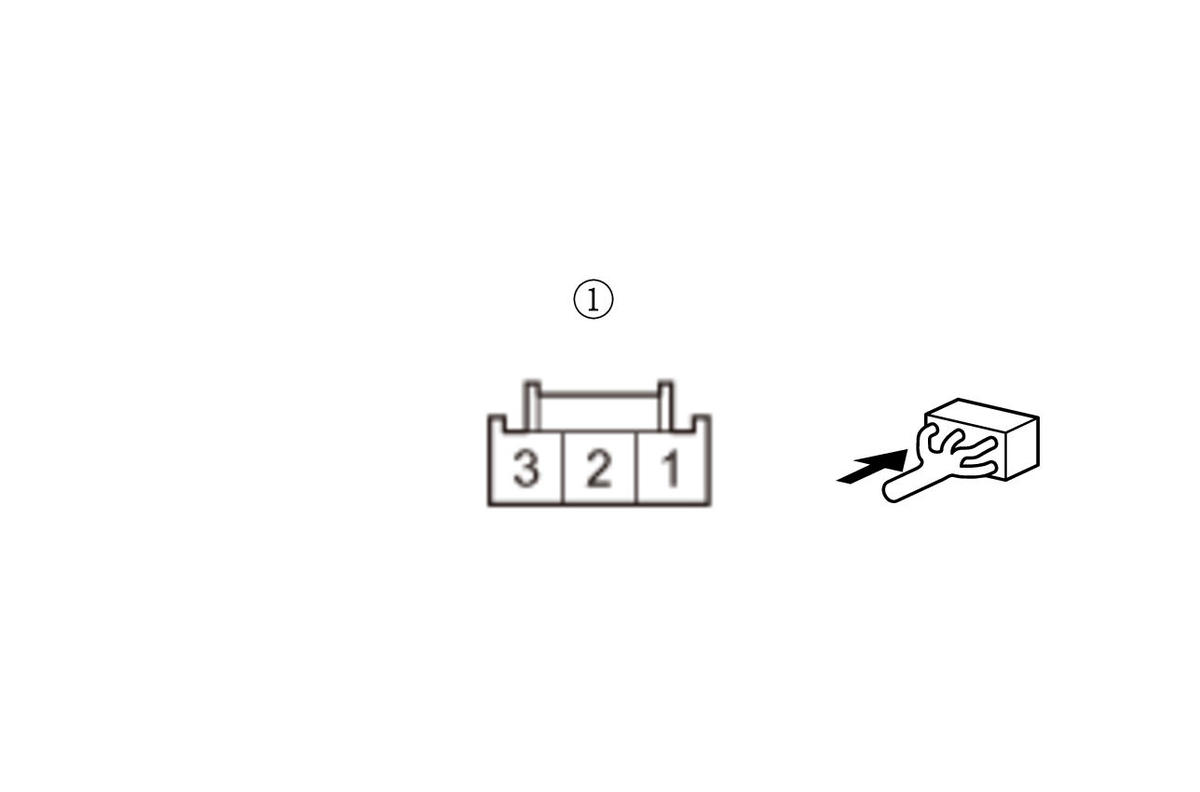

    Test point 1	DC-DC converter connector A (3P) (female terminals) No. 1:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 18.

    NO

    Replace the shutter grille (upper) .

18. Determine possible failure area (shutter grille (lower), others)

    -1. Reconnect the shutter grille (lower) 4P connector.

    -2. Disconnect the following connector.

    DC-DC converter connector A (3P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition

    Vehicle OFF (LOCK) mode

    	DC-DC converter connector A (3P): disconnected
    Test point 1	DC-DC converter connector A (3P) (female terminals) No. 1:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 19.

    NO

    Replace the shutter grille (lower) .

19. Open wire check (LIN (BATT SENSOR)/LIN line) 1

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    -2. Disconnect the following connectors.

    Shutter grille (upper/lower) 4P connector

    PCM connector A (50P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	DC-DC converter connector A (3P): disconnected
    	Shutter grille (upper/lower) 4P connector: disconnected
    	PCM connector A (50P): disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminal) No. 3:
    Test point 2	PCM connector A (50P) No. 10

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the shutter grille.

20. Fuse check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check the following fuse.

    Fuse	No. G31 shutter grille (upper) *2
    Fuse	No. A23 shutter grille (upper)
    Fuse	No. A22 shutter grille (lower)

    Is the fuse OK?

    YES

    Go to step 21.

    NO

    • Check for a short in the VMP wire between the No. A23 fuse and the shutter grille (upper). Also replace the No. A23 fuse. *1
    • Check for a short in the VMP wire between the No. G31 fuse and the shutter grille (upper). Also replace the No. G31 fuse. *2
    • Check for a short in the +B FI ECU MAIN wire between the No. A23 fuse and the G31 fuse. Also replace the No. A23 fuse. *2
    • Check for a short in the +B FR FOG/VMP wire between the No. A22 fuse and the shutter grille (lower). Also replace the No. A22 fuse.
21. Determine possible failure area (LIN (BATT SENSOR) line, VMP line *1, +B FI ECU MAIN/VMP line *2, +B FR FOG/VMP line):

    -1. Disconnect the following connector.

    Shutter grille (upper/lower) 4P connector

    -2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Shutter grille (upper/lower) 4P connector: disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminals) No. 1:
    Test point 2	Shutter grille (upper/lower) 4P connector (female terminals) No. 4:

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 23.

    NO

    Go to step 22.

22. Open wire check (VMP line *1, +B FI ECU MAIN/VMP line *2, +B FR FOG/VMP line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Shutter grille (upper/lower) 4P connector: disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminals) No. 1:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    1. YES

       • Repair an open in the GND wire between the shutter grille (upper) and G351.
       • Repair an open in the GND wire between the shutter grille (lower) and G251.

       NO

       • Repair an open in the VMP wire between the shutter grille (upper) and the No. A23 fuse *1.
       • Repair an open in the VMP wire between the shutter grille (upper) and the No. G31 fuse. *2
       • Repair an open in the +B FI ECU MAIN wire between the G31 fuse and the No. A23 fuse. *2
       • Repair an open in the +B FR FOG/VMP wire between the shutter grille (lower) and the No. A22 fuse.
23. Open wire check (LIN (BATT SENSOR)/LIN line) 2

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    -2. Disconnect the following connectors.

    PCM connector A (50P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Shutter grille (upper/lower) 4P connector: disconnected
    	PCM connector A (50P): disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminal) No. 3:
    Test point 2	PCM connector A (50P) No. 10

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Replace the shutter grille .

    NO

    Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the shutter grille (upper/lower).
