DTC P16E3 (1.5 L Engine)

DTC P16E3  : PGM-FI-Battery Sensor LIN Communication Error

NOTE:

• Before you troubleshoot, review the general troubleshooting information .
• Check for loose terminals on the 12 volt battery sensor (12 volt battery negative (-) terminal).

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode, and wait 60 seconds.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E3 PGM-FI-Battery Sensor LIN Communication Error

   Is DTC P16E3 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the 12 volt battery sensor and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. DTC check 1

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E2 PGM-FI-ACG LIN Communication Error

   Is DTC P16E2 indicated?

   YES

   Go to step 5

   NO

   Go to step 3.

3. DTC check 2

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E8 PGM-FI-Shutter Grille LIN Communication Error

   Is DTC P16E8 indicated?

   YES

   Go to step 9.

   NO

   Go to step 17.

4. DTC check 3

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P16E5 LIN Communication Error (PCM-DC-DC Converter)

   Is DTC P16E5 indicated?

   YES

   Go to step 13.

   NO

   Go to step 17.

5. Determine possible failure area (LIN (BATT SENSOR)/LIN line shorted, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

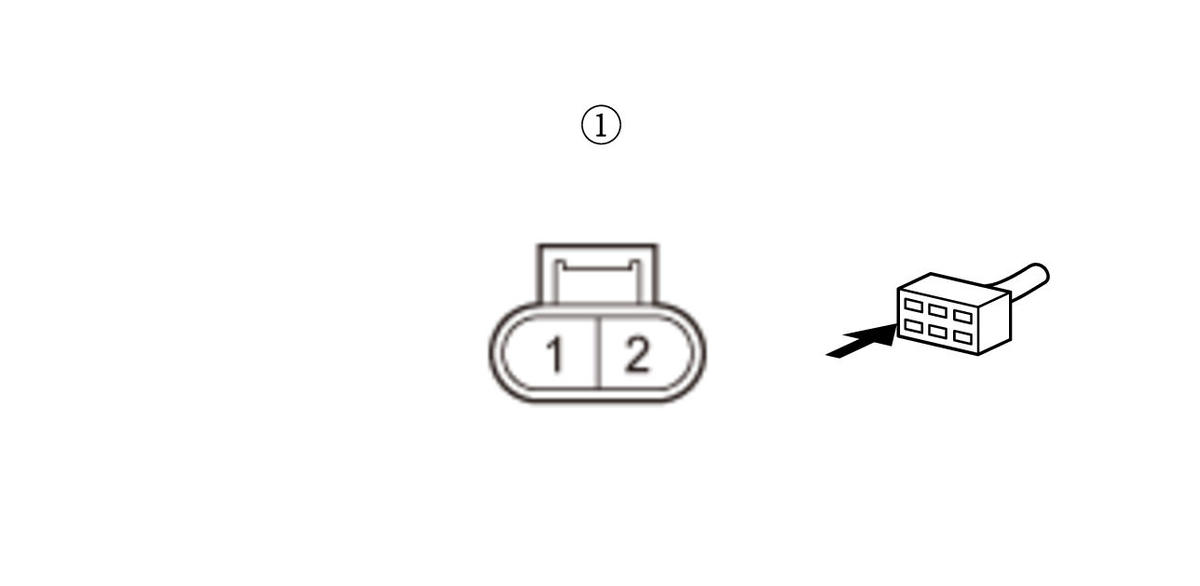

   12 volt battery sensor 2P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	12 volt battery sensor 2P connector: disconnected
   Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Go to step 7.

   NO

   Go to step 6.

6. Shorted wire check (LIN (BATT SENSOR)/LIN line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   Continue to check for continuity between 12 volt battery sensor 2P connector terminal No. 2 and body ground, while disconnecting these connectors, one at a time:

   • Alternator 1P connector
   • PCM connector A (50P)
   • Shutter grille (upper) 4P connector
   • Shutter grille (lower) 4P connector
   • DC-DC converter connector A (3P) (with auto idle stop system)

   Does continuity go away when one of the above connectors is disconnected?

   YES

   The LIN (BATT SENSOR)/LIN wire is OK. Replace the part that caused an open when it was disconnected.

   NO

   Repair a short in the LIN (BATT SENSOR)/LIN wire between the 12 volt battery sensor, the alternator, the shutter grille, the DC-DC converter (with auto idle stop system), and the PCM (A10).

7. Determine possible failure area (12 volt battery sensor, others)

   -1. Reconnect the 12 volt battery sensor 2P connector.

   -2. Disconnect the following connector.

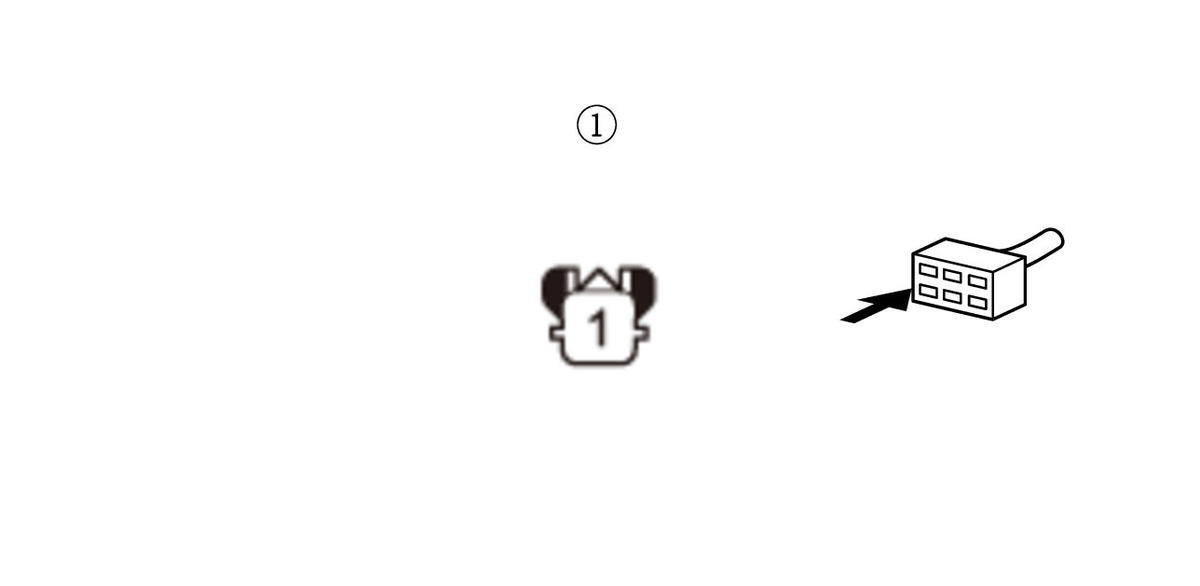

   Alternator 1P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   Test point 1	Alternator 1P connector (female terminal) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Go to step 8.

   NO

   Replace the 12 volt battery sensor .

8. Open wire check (LIN (BATT SENSOR)/LIN line) 1

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connectors.

   12 volt battery sensor 2P connector

   PCM connector A (50P)

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Alternator 1P connector: disconnected
   	12 volt battery sensor 2P connector: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
   Test point 2	PCM connector A (50P) No. 10

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The LIN (BATT SENSOR)/LIN wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

   NO

   Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the 12 volt battery sensor.

9. Determine possible failure area (LIN (BATT SENSOR)/LIN line shorted, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   12 volt battery sensor 2P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	12 volt battery sensor 2P connector: disconnected
   Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there 1 MΩ or more?

   YES

   Go to step 11.

   NO

   Go to step 10.

10. Shorted wire check (LIN (BATT SENSOR)/LIN line)

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    Continue to check for continuity between 12 volt battery sensor 2P connector terminal No. 2 and body ground, while disconnecting these connectors, one at a time:

    • PCM connector A (50P)
    • Alternator 1P connector
    • Shutter grille (upper) 4P connector
    • Shutter grille (lower) 4P connector
    • DC-DC converter connector A (3P) (with auto idle stop system)

    Does continuity go away when one of the above connectors is disconnected?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Replace the part that caused an open when it was disconnected.

    NO

    Repair a short in the LIN (BATT SENSOR)/LIN wire between the 12 volt battery sensor, the alternator, the shutter grille, the DC-DC converter (with auto idle stop system), and the PCM (A10).

11. Determine possible failure area (12 volt battery sensor, others)

    -1. Reconnect the 12 volt battery sensor 2P connector.

    -2. Disconnect the following connector.

    Shutter grille (upper/lower) 4P connector

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Shutter grille (upper/lower) 4P connector: disconnected
    Test point 1	Shutter grille (upper/lower) 4P connector (female terminals) No. 3:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 12.

    NO

    Replace the 12 volt battery sensor .

12. Open wire check (LIN (BATT SENSOR)/LIN line) 1

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    -2. Disconnect the following connectors.

    12 volt battery sensor 2P connector

    PCM connector A (50P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected
    	Shutter grille (upper/lower) 4P connector: disconnected
    	PCM connector A (50P): disconnected
    Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
    Test point 2	PCM connector A (50P) No. 10

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the 12 volt battery sensor.

13. Determine possible failure area (LIN (BATT SENSOR)/LIN line shorted, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    12 volt battery sensor 2P connector

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected
    Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 15.

    NO

    Go to step 14.

14. Shorted wire check (LIN (BATT SENSOR)/LIN line)

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    Continue to check for continuity between 12 volt battery sensor 2P connector terminal No. 2 and body ground, while disconnecting these connectors, one at a time:

    • PCM connector A (50P)
    • Alternator 1P connector
    • Shutter grille (upper) 4P connector
    • Shutter grille (lower) 4P connector
    • DC-DC converter connector A (3P) (with auto idle stop system)

    Does continuity go away when one of the above connectors is disconnected?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Replace the part that caused an open when it was disconnected.

    NO

    Repair a short in the LIN (BATT SENSOR)/LIN wire between the 12 volt battery sensor, the alternator, the shutter grille (with shutter grille), the DC-DC converter (with auto idle stop system), and the PCM (A10).

15. Determine possible failure area (12 volt battery sensor, others)

    -1. Reconnect the 12 volt battery sensor 2P connector.

    -2. Disconnect the following connector.

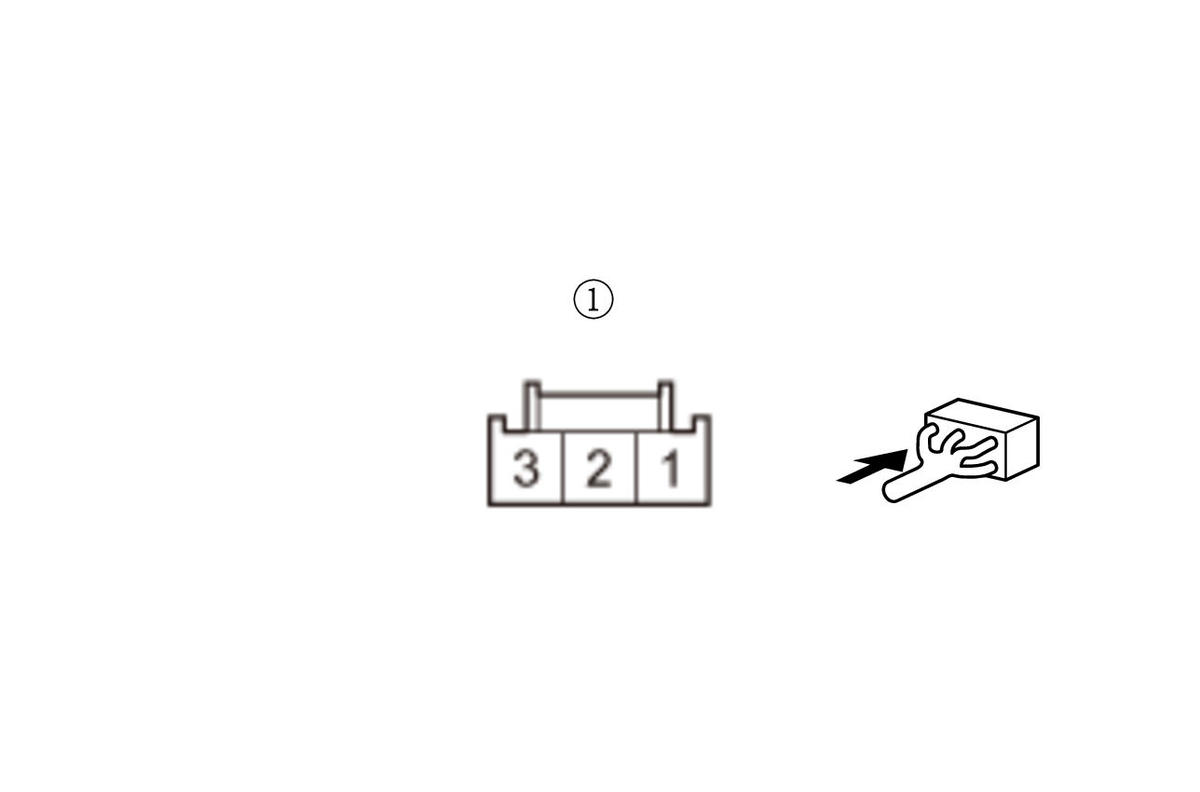

    DC-DC converter connector A (3P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	DC-DC converter connector A (3P): disconnected
    Test point 1	DC-DC converter connector A (3P) (female terminals) No. 1:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there 1 MΩ or more?

    YES

    Go to step 16.

    NO

    Replace the 12 volt battery sensor .

16. Open wire check (LIN (BATT SENSOR)/LIN line) 1

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    -2. Disconnect the following connectors.

    12 volt battery sensor 2P connector

    PCM connector A (50P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected
    	DC-DC converter connector A (3P): disconnected
    	PCM connector A (50P): disconnected
    Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
    Test point 2	PCM connector A (50P) No. 10

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the 12 volt battery sensor.

17. Fuse check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check the following fuse.

    Fuse

    No. A24

    Is the fuse OK?

    YES

    Go to step 18.

    NO

    Repair a short in the +B HORN wire between the 12 volt battery sensor and the No. A24 fuse. Also replace the No. A24 fuse.

18. Open wire check (+B HORN line)

    -1. Disconnect the following connector.

    12 volt battery sensor 2P connector

    -2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected
    Test point 1	12 volt battery sensor 2P connector (female terminals) No. 1:
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 19.

    NO

    Repair an open in the +B HORN wire between the 12 volt battery sensor and the No. A24 fuse .

19. Open wire check (LIN (BATT SENSOR)/LIN line) 2

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    -2. Disconnect the following connector.

    PCM connector A (50P)

    -3. Measure the resistance between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	12 volt battery sensor 2P connector: disconnected
    	PCM connector A (50P): disconnected
    Test point 1	12 volt battery sensor 2P connector (female terminals) No. 2:
    Test point 2	PCM connector A (50P) No. 10

    Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The LIN (BATT SENSOR)/LIN wire is OK. Replace the 12 volt battery sensor .

    NO

    Repair an open in the LIN (BATT SENSOR)/LIN wire between the PCM (A10) and the 12 volt battery sensor.
