DTC P0967 (CVT (ECM/Pcm))

DTC P0967  : CVT Driven Pulley Pressure Control Valve Circuit High

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information .
• This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

DTC (CVT)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Start the engine, and wait for at least 1 second.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0967 CVT Driven Pulley Pressure Control Valve Circuit High

   Is DTC P0967 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals between the CVT driven pulley pressure control solenoid valve and the PCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. CVT driven pulley pressure control solenoid valve check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   NOTE:  This step must be done to protect the PCM from damage.

   -3. Disconnect the following connector.

   PCM connector C (51P)

   -4. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector C (51P): disconnected
   Test point 1	PCM connector C (51P) No. 10
   Test point 2	Body ground

   Is there 5.0-6.3 Ω?

   YES

   The CVT driven pulley pressure control solenoid valve is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or replace the original PCM .

   NO

   Go to step 3.

3. Shorted wire check (DN LS line to power)

   -1. Disconnect the following connector.

   Solenoid wire harness A 8P connector

   -2. Turn the vehicle to the ON mode.

   -3. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Solenoid wire harness A 8P connector : disconnected
   	PCM connector C (51P): disconnected
   Test point 1	PCM connector C (51P) No. 10
   Test point 2	Body ground

   Is there voltage?

   YES

   Repair a short to power in the DN LS wire between the solenoid wire harness A 8P connector and the PCM.

   NO

   The DN LS wire is not shorted to power. Go to step 4.

4. Open wire check (DN LS line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Solenoid wire harness A 8P connector: disconnected
   	PCM connector C (51P): disconnected

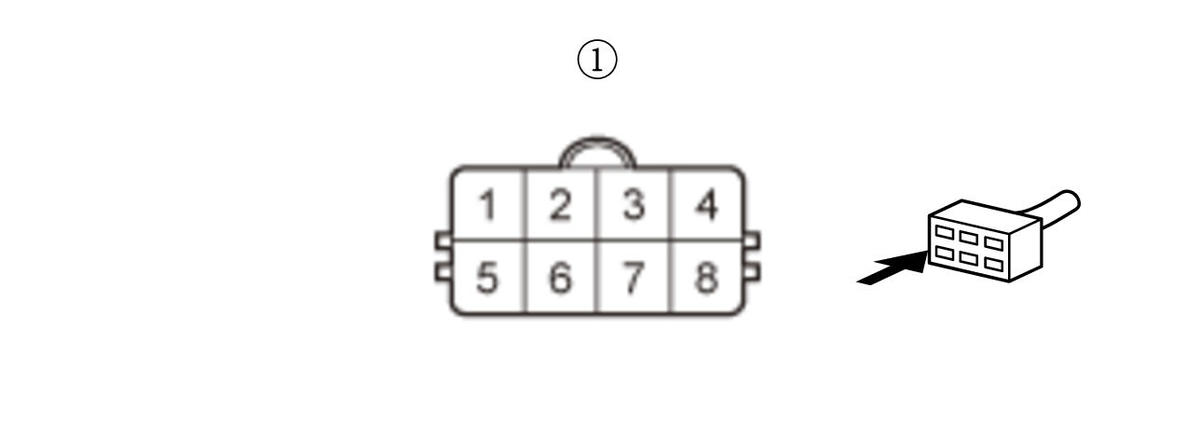

   Test point 1	Solenoid wire harness A 8P connector (female terminals) No. 3 :
   Test point 2	PCM connector C (51P) No. 10

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 5.

   NO

   Repair an open in the DN LS wire between the solenoid wire harness A 8P connector and the PCM.

5. Open wire check (GND1 line, GND2 line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector B (51P): disconnected
   	PCM connector C (51P): disconnected
   Test Circuit 1
   Test point 1	PCM connector B (51P) No. 11
   Test point 2	Body ground
   Test Circuit 2
   Test point 1	PCM connector B (51P) No. 12
   Test point 2	Body ground

   Are there continuity?

   YES

   Go to step 6.

   NO

   Repair an open in GND1 wire and/or GND2 wire between the PCM and body ground (G101), or repair poor body ground (G101).

6. CVT driven pulley pressure control solenoid valve internal resistance check

   -1. Disconnect the following connector.

   CVT driven pulley pressure control solenoid valve 2P connector

   -2. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CVT driven pulley pressure control solenoid valve 2P connector: disconnected

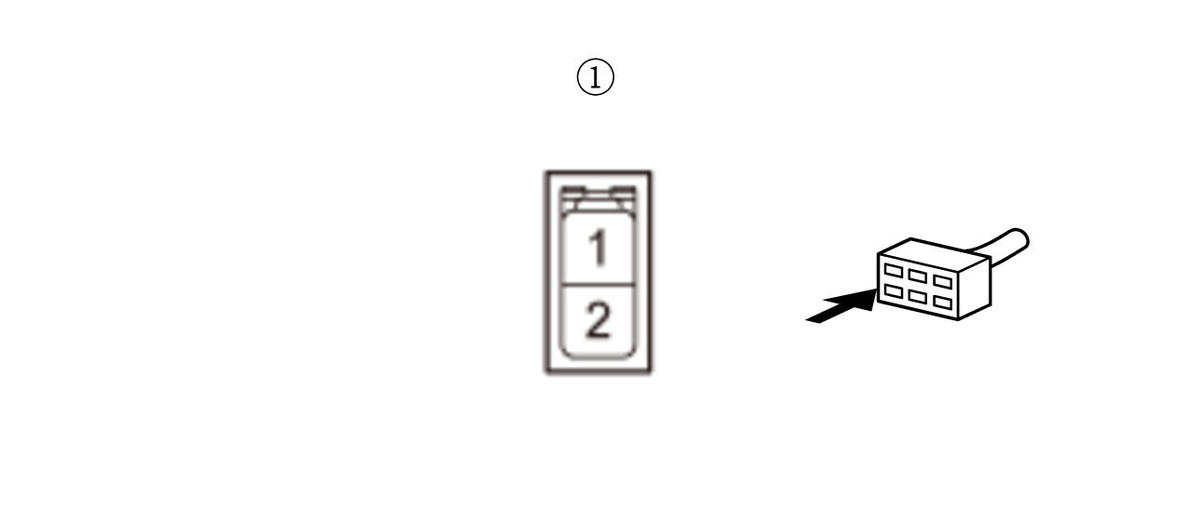

   Test point 1	CVT driven pulley pressure control solenoid valve 2P connector (male terminals) No. 1 :
   Test point 2	CVT driven pulley pressure control solenoid valve 2P connector (male terminals) No. 2 :

   Courtesy of HONDA, U.S.A., INC.

   Is there 5.0-6.3 Ω?

   YES

   Go to step 7.

   NO

   Faulty CVT driven pulley pressure control solenoid valve. Replace the valve body assembly .

7. Open wire check (DNC- line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CVT driven pulley pressure control solenoid valve 2P connector: disconnected

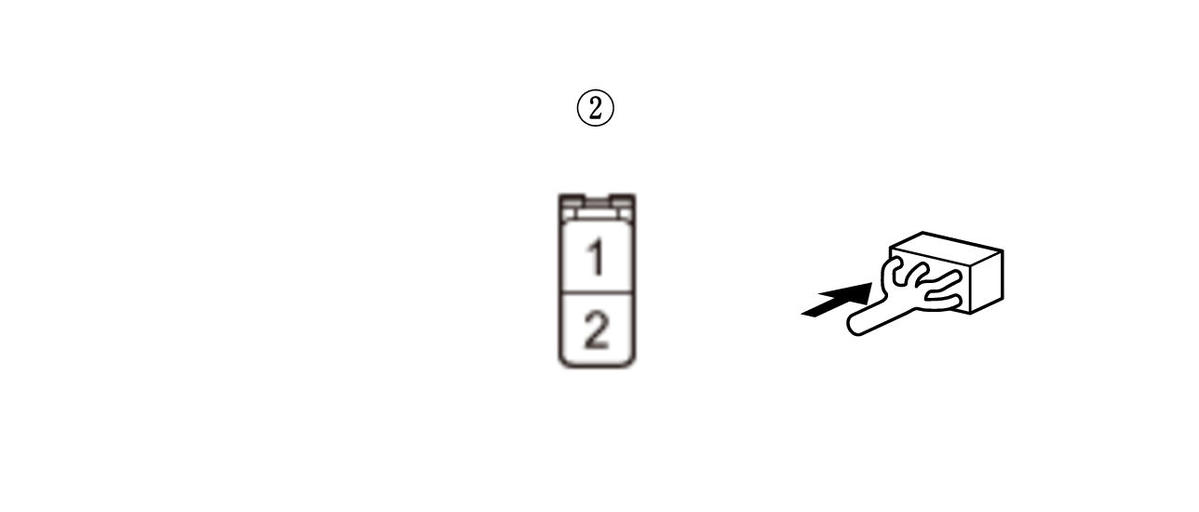

   Test point 1	CVT driven pulley pressure control solenoid valve 2P connector (female terminals) No. 1 :
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 8.

   NO

   Repair an open in the DNC- wire between the CVT driven pulley pressure control solenoid valve and body ground (G161), or repair poor body ground (G161).

8. Determine opened wire in either solenoid wire harness A or B (DNC+ line)

   -1. Disconnect the following connector.

   Solenoid wire harness B 6P connector

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Solenoid wire harness A 8P connector: disconnected
   	Solenoid wire harness B 6P connector: disconnected
   	CVT driven pulley pressure control solenoid valve 2P connector: disconnected

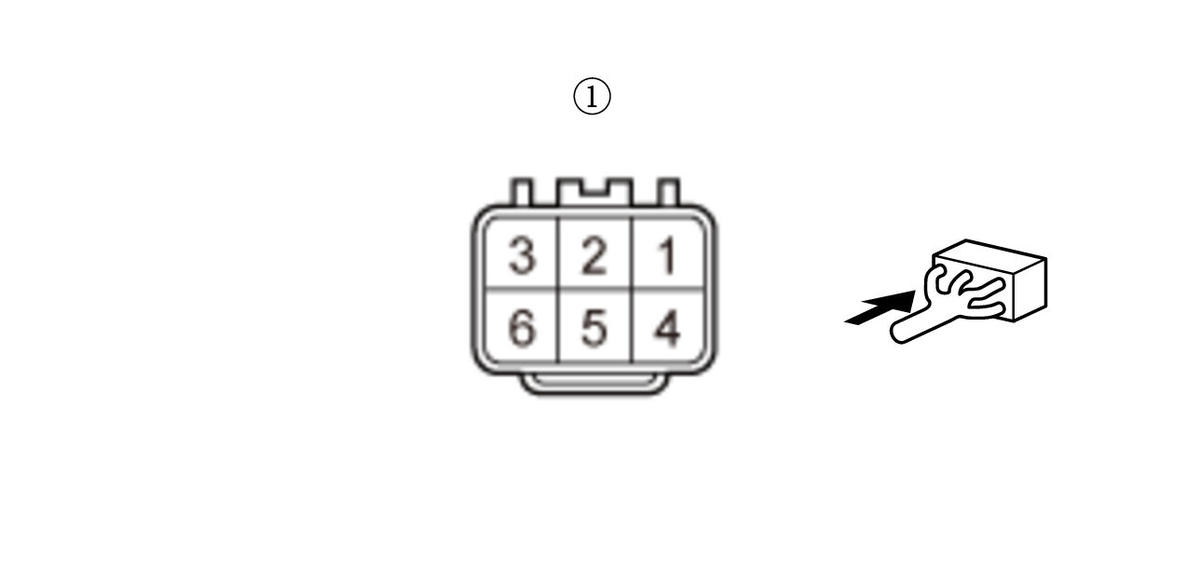

   Test point 1	Solenoid wire harness B 6P connector (male terminals) No. 2 :
   Test point 2	CVT driven pulley pressure control solenoid valve 2P connector (female terminals) No. 2 :

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open in the DNC+ wire between the solenoid wire harness A 6P connector and the solenoid wire harness A 8P connector.

   NO

   Repair an open in the DNC+ wire between the CVT driven pulley pressure control solenoid valve and the solenoid wire harness B 6P connector.
