DTC P0706 (CVT (ECM/Pcm))

DTC P0706  : Transmission Range Switch Open

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information .
• This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

DTC (CVT)

1. Problem verification

   -1. Make sure the shift cable is properly adjusted .

   -2. Turn the vehicle to the ON mode.

   -3. Clear the DTC with the HDS.

   -4. Test-drive the vehicle in D position/mode until the vehicle speed reaches 37 mph (60 km/h), then slow down to 6 mph (10 km/h).

   -5. Turn the engine off. Repeat the test-drive in step 1-4 again.

   -6. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0706 Transmission Range Switch Open

   Is DTC P0706 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Transmission range switch check

   -1. Do the transmission range switch test .

   Is the transmission range switch OK?

   YES

   The transmission range switch is OK. Go to step 3.

   NO

   Check for proper transmission range switch installation, then recheck. If the transmission range switch installation is OK, replace the transmission range switch .

3. Open wire check (FWD line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Transmission range switch 10P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Transmission range switch 10P connector: disconnected

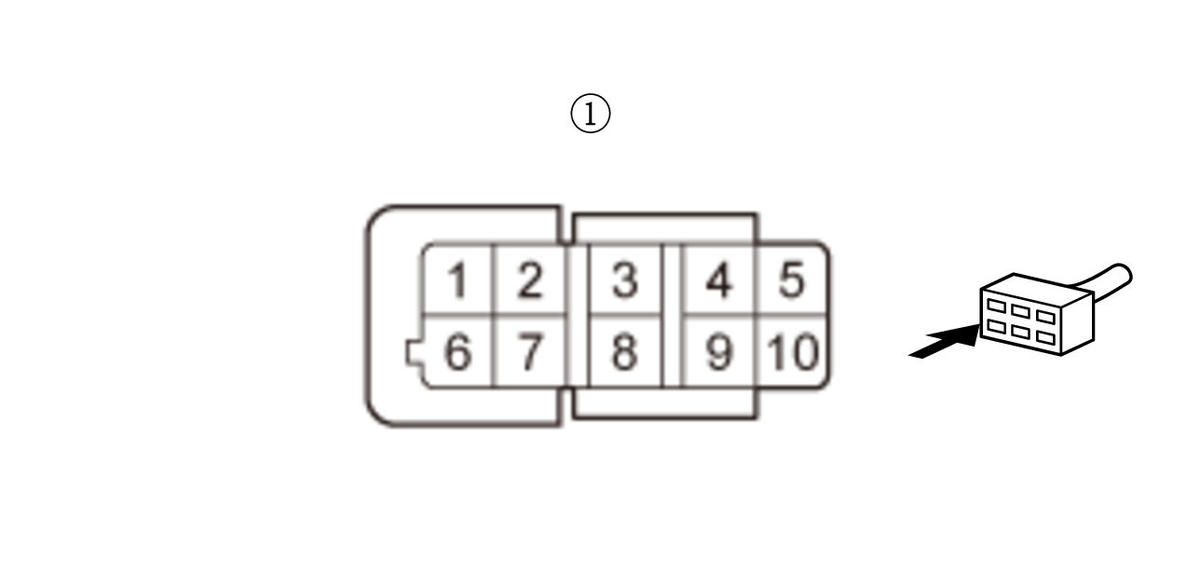

   Test point 1	Transmission range switch 10P connector (female terminals) No. 6 :
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there voltage?

   YES

   The FWD wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or replace the original PCM .

   NO

   Repair an open in the FWD wire between the transmission range switch and the PCM.
