DTC P0657 (1.5 L Engine)

DTC P0657  : PCM Power Supply Circuit Malfunction

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC Description Confirmed DTC Pending DTC
P0657 PCM Power Supply Circuit Malfunction

DTC (PGM-FI)

  1. Problem verification

    -1. Turn the vehicle to the ON mode.

    -2. Clear the DTC with the HDS.

    -3. Start the engine.

    -4. Check for Pending or Confirmed DTCs with the HDS.

    DTC Description Confirmed DTC Pending DTC
    P0657 PCM Power Supply Circuit Malfunction

    Is DTC P0657 indicated?

    YES

    The failure is duplicated. Go to step 2.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the relay circuit board and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

  2. Relay circuit board check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove and test the relay circuit board .

    Is the relay circuit board OK?

    YES

    Go to step 3.

    NO

    Replace the relay circuit board .

  3. Fuse check

    -1. Check the following fuse.

    Fuse No. A7 (15 A)
    Location Under-hood fuse/relay box

    Is the fuse OK?

    YES

    Go to step 7.

    NO

    Go to step 4.

  4. Determine possible failure area (+B IGP line, others)

    -1. Remove the blown No. A7 (15 A) fuse from the under-hood fuse/relay box.

    -2. Remove the injector relay .

    -3. Check for continuity the between following test points and body ground individually.

    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
      Injector relay: disconnected
    Connector Terminal
    Relay circuit board connector C (18P) (female terminals): No. 18
    Injector relay 4P socket (female terminals): No. 3

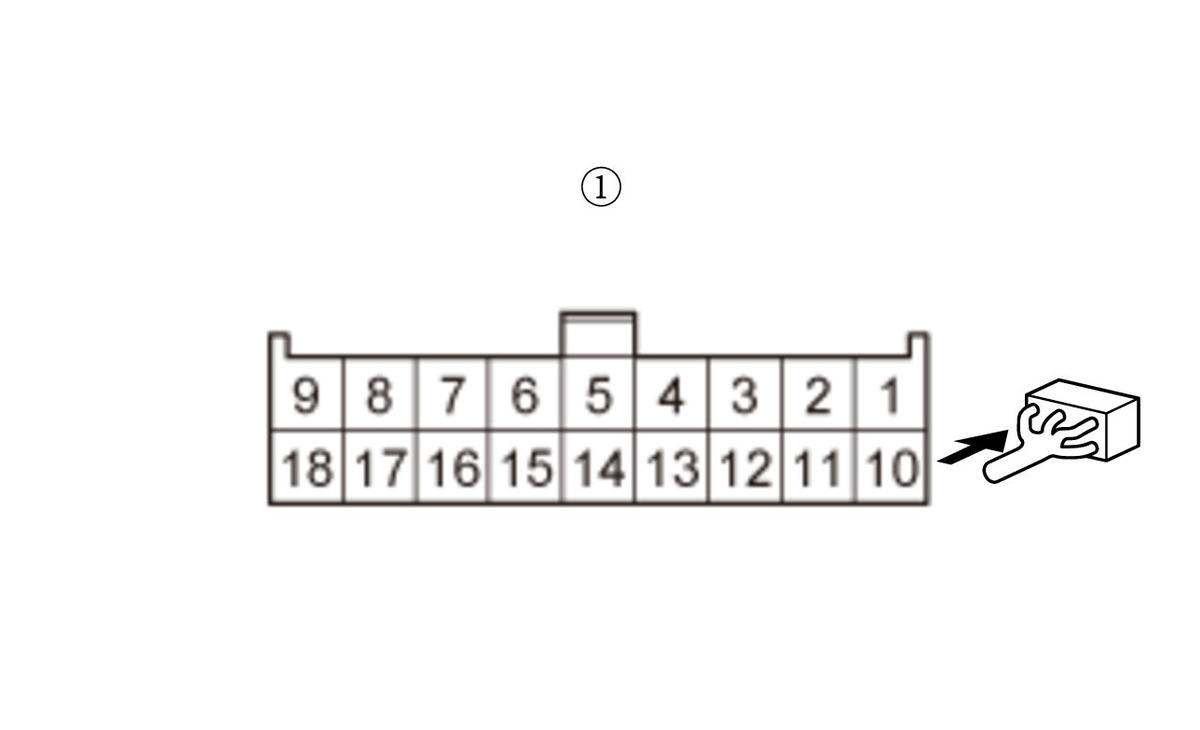

    GHH425807Courtesy of HONDA, U.S.A., INC.

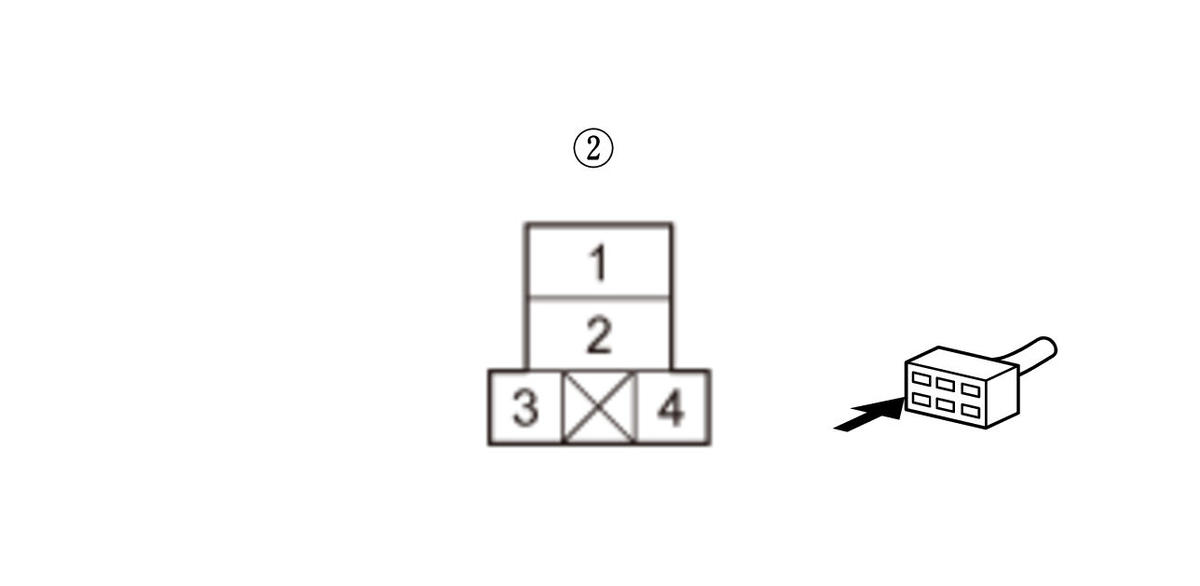

    GHH425808Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the +B IGP wire between the No. A7 (15 A) fuse in the under-hood fuse/relay box and the relay circuit board and the injector relay. Also replace the No. A7 (15 A) fuse.

    NO

    Go to step 5.

  5. Parts internal circuit check

    -1. Jump the SCS line with the HDS, and wait more than 1 minute.

    Check for continuity between test points 1 and 2 while disconnecting these parts, one at a time:

    • PGM-FI main relay 2
    • PCM connector A (50P)
    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 17:
    Test point 2 Body ground

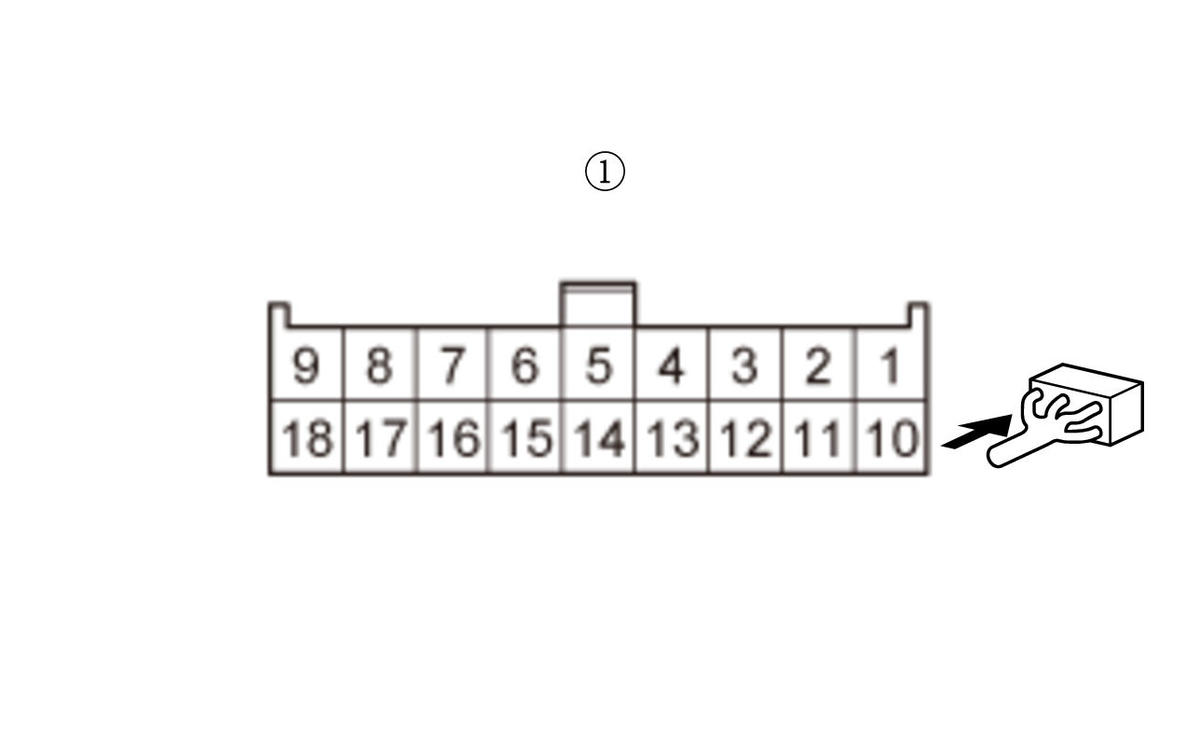

    GHH425810Courtesy of HONDA, U.S.A., INC.

    Does continuity go away with the part (s) removed?

    YES

    Replace the part that continuity goes away when it was disconnected. If the part is PCM, Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM . Also replace the No. A7 (15 A) fuse.

    NO

    Go to step 6.

  6. Shorted wire check (FI MAIN RLY OUT line)

    -1. Disconnect the following connectors.

    PGM-FI main relay 2
    PCM connector A (50P)

    -2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Relay circuit board: removed
      PGM-FI main relay 2: disconnected
      PCM connector A (50P): disconnected
    Test point 1 PCM connector A (50P) No. 8
    Test point 2 Body ground

    Is there continuity?

    YES

    Repair a short in the FI MAIN RLY OUT line between the relay circuit board, PGM-FI main relay 2, and the PCM (A8). Also replace the No. A7 (15 A) fuse.

    NO

    Replace the relay circuit board. Also replace the No. A7 (15 A) fuse in the under-hood fuse/relay box.

  7. Determine possible failure area (PGM-FI main relay 1 control circuit, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Install the relay circuit board .

    -3. Jump the SCS line with the HDS, and wait more than 1 minute.

    -4. Disconnect the following connector.

    PCM connector A (50P)

    -5. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (50P): disconnected
    Test point 1 PCM connector A (50P) No. 5
    Test point 2 Body ground

    Is there battery voltage?

    YES

    Go to step 10.

    NO

    Go to step 8.

  8. Determine possible failure area (+B IGP line, others)

    -1. Disconnect the following connector.

    Relay circuit board connector C (18P)

    -2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (50P): disconnected
      Relay circuit board connector C (18P): disconnected
    Test point 1 Relay circuit board connector C (18P) (female terminals) No. 18:
    Test point 2 Body ground

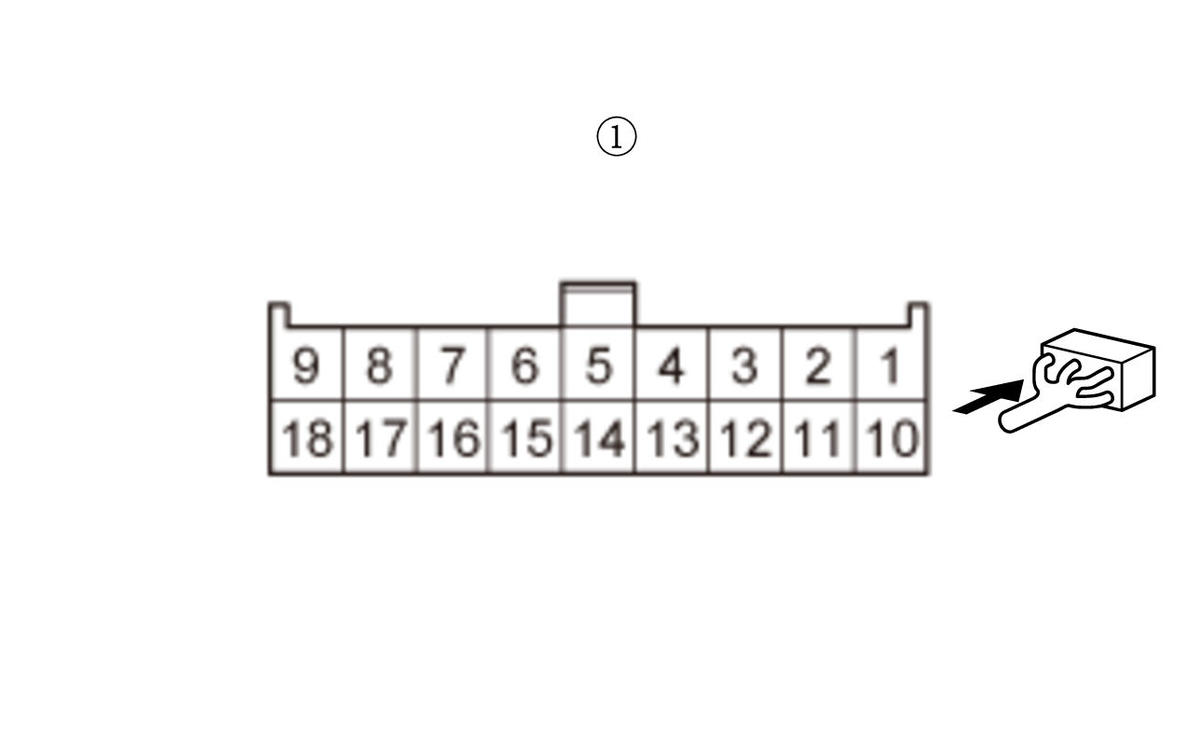

    GHH425812Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 9.

    NO

    Repair an open in the +B IGP wire between the No. A7 (15 A) fuse in the under-hood fuse/relay box and the relay circuit board.

  9. Open wire check (FI MAIN RLY CL- line)

    -1. Disconnect the following connector.

    Relay circuit board connector A (8P)

    -2. Connect terminals A and B with a jumper wire.

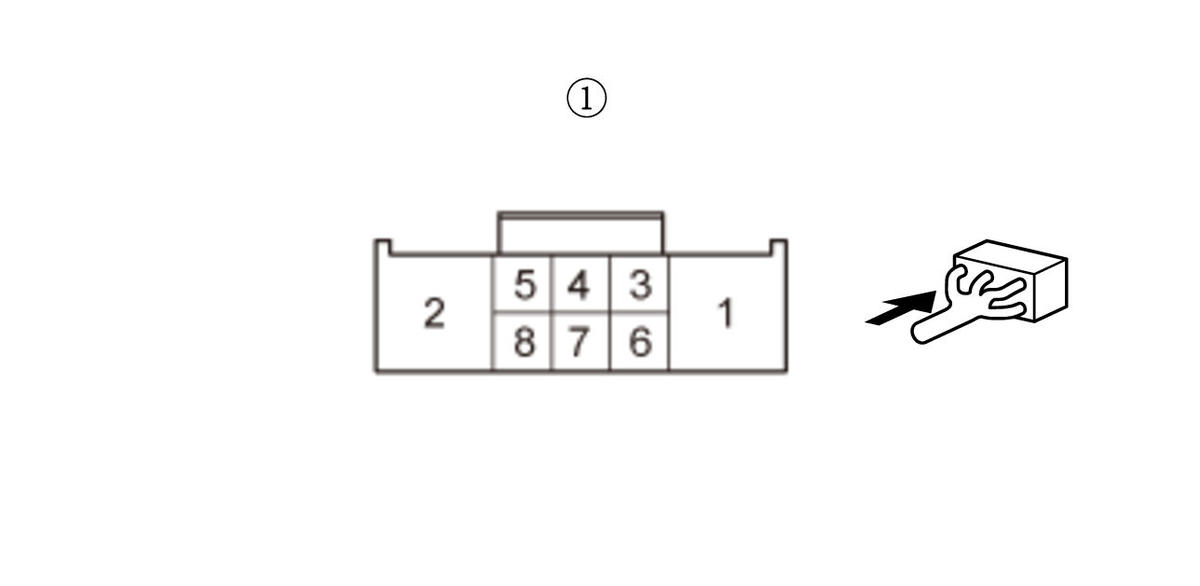

    Terminal A Relay circuit board connector A (8P) (female terminals) No. 7:
    Terminal B Body ground
    GHH425814Courtesy of HONDA, U.S.A., INC.

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (50P): disconnected
      Relay circuit board connector A (8P): disconnected
      Relay circuit board connector C (18P): disconnected
      Relay circuit board connector A (8P) No. 7: jumped to body ground
    Test point 1 PCM connector A (50P) No. 5
    Test point 2 Body ground

    Is there continuity?

    YES

    Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the FI MAIN RLY CL- wire between the PCM (A5) and the relay circuit board.

  10. Open wire check (FI MAIN RLY OUT line)

    -1. Disconnect the following connector.

    Relay circuit board connector C (18P)

    -2. Connect terminals A and B with a jumper wire.

    Terminal A Relay circuit board connector C (18P) (female terminals) No. 17:
    Terminal B Body ground

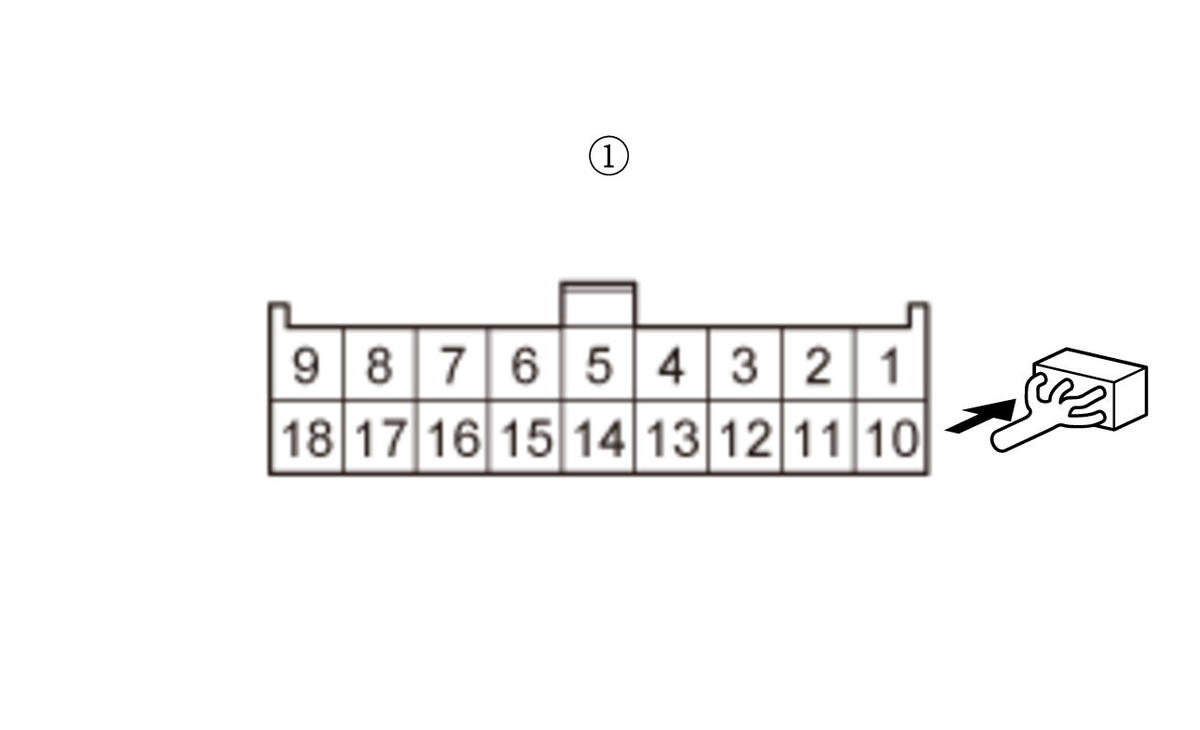

    GHH425816Courtesy of HONDA, U.S.A., INC.

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      PCM connector A (50P): disconnected
      Relay circuit board connector C (18P): disconnected
      Relay circuit board connector C (18P) No. 17: jumped to body ground
    Test point 1 PCM connector A (50P) No. 8
    Test point 2 Body ground

    Is there continuity?

    YES

    Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the FI MAIN RLY OUT wire between the PCM (A8) and relay circuit board.
