DTC P0502 (CVT (ECM/Pcm))

DTC P0502  : CVT Speed Sensor Circuit Open/Short

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information .
• This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

DTC (CVT)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Raise the vehicle on a lift. Make sure it is securely supported, and allow the front wheels to rotate freely.

   -4. Start the engine.

   -5. Enter the VSA maintenance mode .

   -6. Test-drive the vehicle in D position/mode, and the engine speed at 1, 000 rpm or higher, then release the accelerator without pressing it again, for at least 4 seconds. Slow down and stop the wheels.

   -7. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0502 CVT Speed Sensor Circuit Open/Short

   Is DTC P0502 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Determine possible failure area (VCC2 line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   CVT speed sensor 3P connector

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	CVT speed sensor 3P connector: disconnected

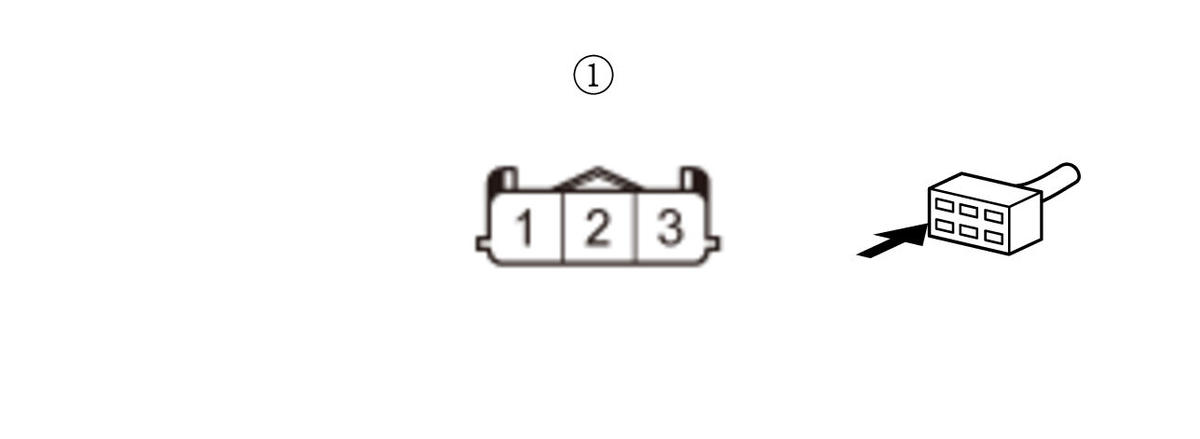

   Test point 1	CVT speed sensor 3P connector (female terminals) No. 3 :
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The VCC2 wire is OK. Go to step 4.

   NO

   Go to step 3.

3. Open wire check (VCC2 line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   NOTE:  This step must be done to protect the PCM from damage.

   -3. Disconnect the following connector.

   PCM connector C (51P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CVT speed sensor 3P connector: disconnected
   	PCM connector C (51P): disconnected
   Test point 1	CVT speed sensor 3P connector (female terminals) No. 3 :
   Test point 2	PCM connector C (51P) No. 30

   Is there continuity?

   YES

   The VCC2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or replace the original PCM .

   NO

   Repair an open in the VCC2 wire between the CVT speed sensor and the PCM.

4. Open wire check (SG2 line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	CVT speed sensor 3P connector: disconnected
   Test point 1	CVT speed sensor 3P connector (female terminals) No. 2 :
   Test point 2	CVT speed sensor 3P connector (female terminals) No. 3 :

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The SG2 wire is OK. Go to step 5.

   NO

   Repair an open in the SG2 wire between the CVT speed sensor and the PCM.

5. Shorted wire check (VEL DD line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   NOTE:  This step must be done to protect the PCM from damage.

   -3. Disconnect the following connector.

   PCM connector C (51P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CVT speed sensor 3P connector: disconnected
   	PCM connector C (51P): disconnected

   Test point 1	CVT speed sensor 3P connector (female terminals) No. 1 :
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to body ground in the VEL DD wire between the CVT speed sensor and the PCM.

   NO

   The VEL DD wire is not shorted. Go to step 6.

6. Open wire check (VEL DD line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	CVT speed sensor 3P connector: disconnected
   	PCM connector C (51P): disconnected
   Test point 1	CVT speed sensor 3P connector (female terminals) No. 1 :
   Test point 2	PCM connector C (51P) No. 32

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The VEL DD wire is OK. Replace the CVT speed sensor .

   NO

   Repair an open in the VEL DD wire between the CVT speed sensor and the PCM.
