DTC P0351, P0352, P0353, P0354 (1.5 L Engine)

DTC P0351  : No. 1 Cylinder Ignition Coil Circuit Malfunction DTC P0352  : No. 2 Cylinder Ignition Coil Circuit Malfunction DTC P0353  : No. 3 Cylinder Ignition Coil Circuit Malfunction DTC P0354  : No. 4 Cylinder Ignition Coil Circuit Malfunction

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Start the engine.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0351 No. 1 Cylinder Ignition Coil Circuit Malfunction
   P0352 No. 2 Cylinder Ignition Coil Circuit Malfunction
   P0353 No. 3 Cylinder Ignition Coil Circuit Malfunction
   P0354 No. 4 Cylinder Ignition Coil Circuit Malfunction

   Is DTC P0351, P0352, P0353, and/or P0354 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the ignition coil and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Ignition coil check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Exchange the ignition coil from the problem cylinder with one from another cylinder .

   -3. Start the engine.

   -4. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0351 No. 1 Cylinder Ignition Coil Circuit Malfunction
   P0352 No. 2 Cylinder Ignition Coil Circuit Malfunction

   DTC Description	Confirmed DTC	Pending DTC
   P0353 No. 3 Cylinder Ignition Coil Circuit Malfunction
   P0354 No. 4 Cylinder Ignition Coil Circuit Malfunction

   Is DTC indicated at the exchanged position?

   YES

   Replace the faulty ignition coil .

   NO

   Go to step 3.

3. Fuse check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the following fuse.

   Fuse	No. A15 (15 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   Go to step 4.

   NO

   Check for a short in the +B IG COIL wire between the No. A15 (15 A) fuse and the relay circuit board, and repair it as needed. Also replace the No. A15 (15 A) fuse.

4. Relay circuit board check

   -1. Remove and test the relay circuit board .

   Is the relay circuit board OK?

   YES

   Go to step 5.

   NO

   Replace the relay circuit board .

5. Open wire check (+B IG COIL line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Relay circuit board: removed

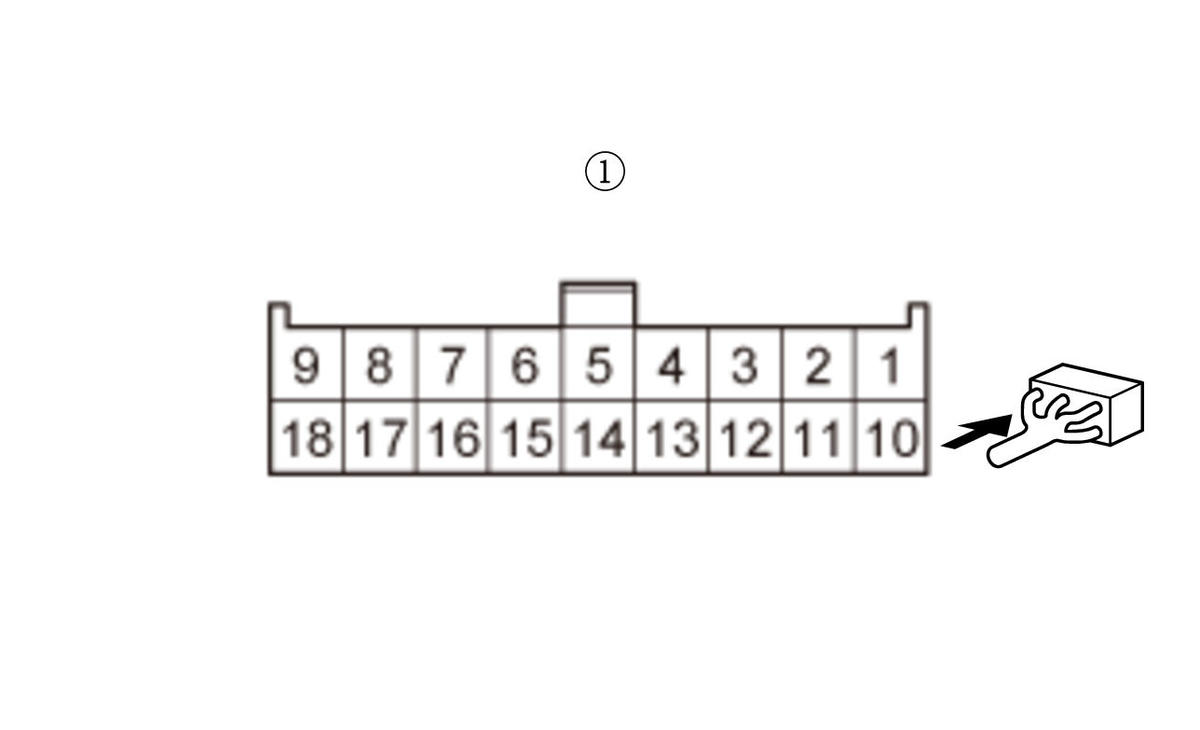

   Test point 1	Relay circuit board connector C (18P) (female terminals) No. 9:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 6.

   NO

   Check for an open in the +B IG COIL wire between the No. A15 (15 A) fuse and the relay circuit board.

6. Open wire check (IG COIL RLY OUT/IG1 (COIL)/IG1 (IGN) line)

   -1. Reinstall the relay circuit board.

   -2. Disconnect the following connector (s).

   Ignition coil 3P connector (problem cylinder)

   -3. Turn the vehicle to the ON mode.

   -4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Ignition coil 3P connector (problem cylinder): disconnected

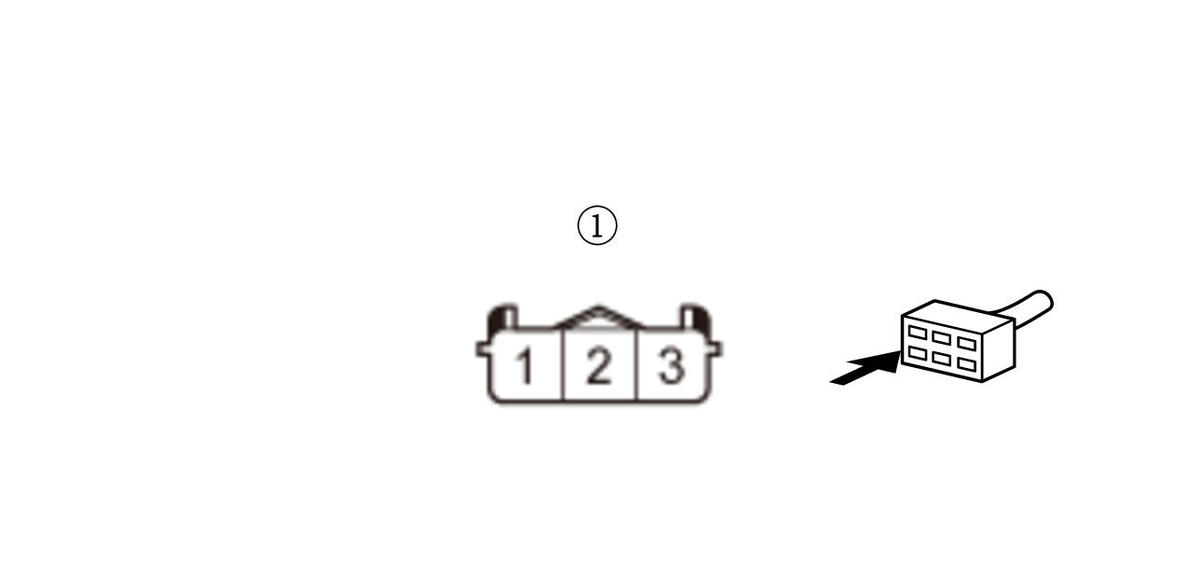

   Test point 1	Ignition coil 3P connector (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 7.

   NO

   Repair an open in the IG COIL RLY OUT/IG1 (COIL)/IG1 (IGN) wire between the ignition coil and the relay circuit board (ignition coil relay circuit).

7. Open wire check (PG (COIL) line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Ignition coil 3P connector (problem cylinder): disconnected
   Test point 1	Ignition coil 3P connector (female terminals) No. 2:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 8.

   NO

   Repair an open in the PG (COIL) wire between the ignition coil and G101.

8. Shorted wire check (IGN lines)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connector.

   PCM connector E (80P)

   -3. Check for continuity between body ground and the appropriate PCM connector terminal of the problem ignition coil (see table).

   Test condition	Vehicle OFF (LOCK) mode
   	Ignition coil 3P connector (problem cylinder): disconnected
   	PCM connector E (80P): disconnected

   Problem cylinder	DTC	Connector	Terminal
   No. 1	P0351	PCM connector E (80P)	No. 37
   No. 2	P0352		No. 38
   No. 3	P0353		No. 39
   No. 4	P0354		No. 40

   Is there continuity?

   YES

   Repair a short in the IGN wire between the PCM and the ignition coil.

   NO

   Go to step 9.

9. Open wire check (IGN lines)

   -1. Check for continuity between appropriate ignition coil 3P connector terminal (female terminals) No. 3: and the appropriate PCM connector terminal of the problem ignition coil (see table).

   Test condition	Vehicle OFF (LOCK) mode
   	Ignition coil 3P connector (problem cylinder): disconnected
   	PCM connector E (80P): disconnected

   Problem cylinder	DTC	Connector	Terminal
   No. 1	P0351	PCM connector E (80P)	No. 37
   No. 2	P0352		No. 38
   No. 3	P0353		No. 39
   No. 4	P0354		No. 40

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The IGN wires are OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

   NO

   Repair an open in the IGN wire between the PCM and the ignition coil.
