DTC P0202, P0203 (1.5 L Engine)

DTC P0202  : No. 2 Cylinder Injector Circuit Malfunction DTC P0203  : No. 3 Cylinder Injector Circuit Malfunction

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Start the engine (If the engine does not start, crank the engine for 20 seconds).

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0202 No. 2 Cylinder Injector Circuit Malfunction
   P0203 No. 3 Cylinder Injector Circuit Malfunction

   Is DTC P0202 and/or P0203 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the injector and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Engine starting check

   -1. Try to start the engine.

   Does the engine start?

   YES

   Go to step 11.

   NO

   Go to step 3.

3. Relay check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the injector relay .

   -3. Test the injector relay .

   Is the relay OK?

   YES

   Go to step 4.

   NO

   Replace the injector relay.

4. Open wire check (+B IGP line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Injector relay: disconnected

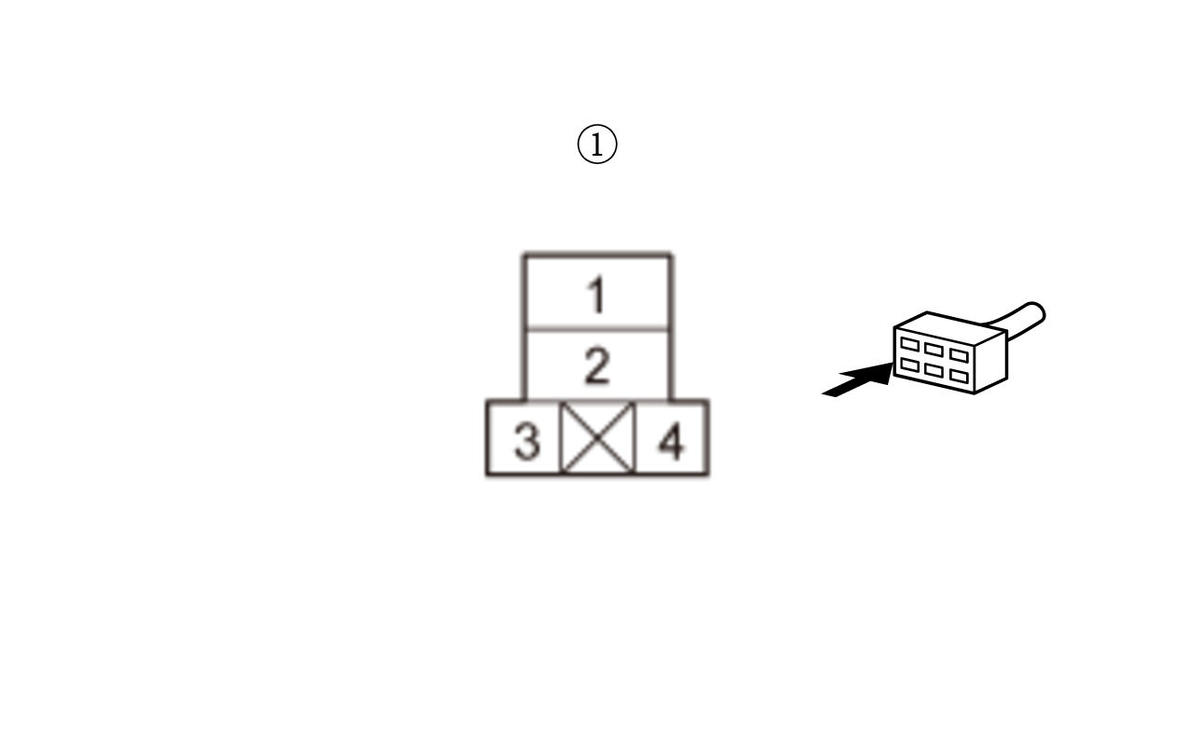

   Test point 1	Injector relay 4P socket (female terminals) No. 3:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B IGP wire is OK. Go to step 6.

   NO

   Go to step 5.

5. Fuse check 1

   -1. Check the following fuse.

   Fuse	No. A7 (15 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   Repair an open in the +B IGP wire between the No. A7 (15 A) fuse and the injector relay.

   NO

   Repair a short in the +B IGP wire between the No. A7 (15 A) fuse and the injector relay. Also replace the No. A7 (15 A) fuse.

6. Open wire check (+B INJ line)

   -1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Injector relay: disconnected
   Test point 1	Injector relay 4P socket (female terminals) No. 1:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The +B INJ wire is OK. Go to step 8.

   NO

   Go to step 7.

7. Fuse check

   -1. Check the following fuse.

   Fuse	No. A10 (20 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   Repair an open in the +B INJ wire between the No. A10 (20 A) fuse and the injector relay.

   NO

   Repair a short in the +B INJ wire between the No. A10 (20 A) fuse and the injector relay. Also replace the No. A10 (20 A) fuse.

8. Determine possible failure area (FI MAIN RLY CL- line, others)

   -1. Turn the vehicle to the ON mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	Injector relay: disconnected
   Test point 1	Injector relay 4P socket (female terminals) No. 3:
   Test point 2	Injector relay 4P socket (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   Go to step 10.

   NO

   Go to step 9.

9. Open wire check (FI MAIN RLY CL- line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connector.

   PCM connector A (50P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Injector relay: disconnected
   	PCM connector A (50P): disconnected
   Test point 1	Injector relay 4P socket (female terminals) No. 4:
   Test point 2	PCM connector A (50P) No. 5

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The FI MAIN RLY CL- wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

   NO

   Repair an open in the FI MAIN RLY CL- wire between the PCM (A5) and the injector relay.

10. Open wire check (INJ RLY OUT line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A	Injector relay 4P socket (female terminals) No. 1:
    Terminal B	Injector relay 4P socket (female terminals) No. 2:

    Courtesy of HONDA, U.S.A., INC.

    -3. Jump the SCS line with the HDS, and wait more than 1 minute.

    -4. Disconnect the following connector.

    PCM connector A (50P)

    -5. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	Injector relay: disconnected
    	Injector relay 4P socket No. 1 and No. 2: jumped
    	PCM connector A (50P): disconnected
    Test point 1	PCM connector A (50P) No. 1 and No. 2
    Test point 2	Body ground

    Is there battery voltage?

    YES

    Go to step 11.

    NO

    Repair an open in the INJ RLY OUT wire between the PCM (A1, A2) and the injector relay.

11. DTC check

    -1. Check the indicated DTC in step 1.

    Is DTC P0202 indicated?

    YES

    Go to step 12.

    NO

    Go to step 20.

12. Open wire check (INJH2 line, INJL2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Reinstall the injector relay.

    -3. Jump the SCS line with the HDS, and wait more than 1 minute.

    -4. Disconnect the following connector.

    PCM connector E (80P)

    -5. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    Test point 1	PCM connector E (80P) No. 5
    Test point 2	PCM connector E (80P) No. 17

    Is there continuity?

    YES

    Go to step 15.

    NO

    Go to step 13.

13. Open wire check (INJH2 line)

    -1. Disconnect the following connector.

    No. 2 injector 2P connector

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 2 injector 2P connector: disconnected

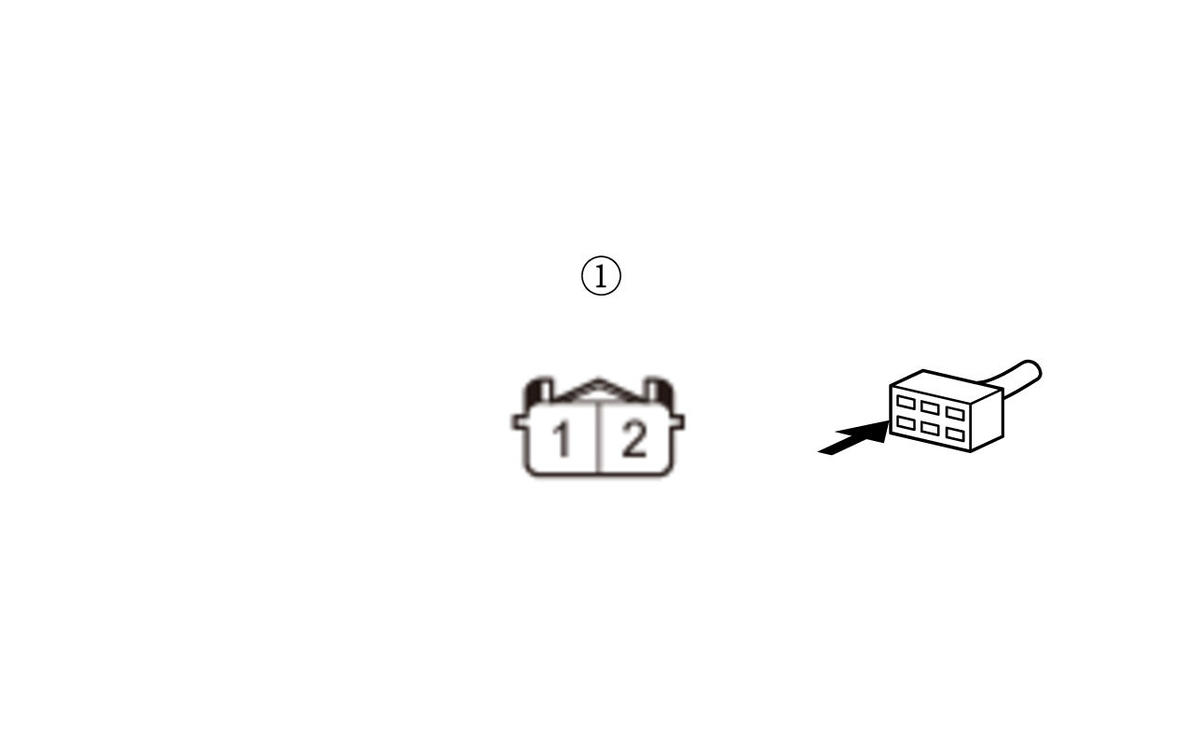

    Test point 1	No. 2 injector 2P connector (female terminals) No. 1:
    Test point 2	PCM connector E (80P) No. 5

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 14.

    NO

    Repair an open in the INJH2 wire between the PCM (E5) and the No. 2 injector.

14. Open wire check (INJL2 line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 2 injector 2P connector: disconnected
    Test point 1	No. 2 injector 2P connector (female terminals) No. 2:
    Test point 2	PCM connector E (80P) No. 17

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The INJL2 wire is OK. Replace the No. 2 injector .

    NO

    Repair an open in the INJL2 wire between the PCM (E17) and the No. 2 injector.

15. Shorted wire check (INJH2 line to power)

    -1. Disconnect the following connector.

    No. 2 injector 2P connector

    -2. Turn the vehicle to the ON mode.

    -3. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 2 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 5
    Test point 2	Body ground

    Is there any voltage?

    YES

    Repair a short to power in the INJH2 wire between the PCM (E5) and the No. 2 injector.

    NO

    Go to step 16.

16. Shorted wire check (INJL2 line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 2 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 17
    Test point 2	Body ground

    Is there any voltage?

    YES

    Repair a short to power in the INJL2 wire between the PCM (E17) and the No. 2 injector.

    NO

    Go to step 17.

17. Shorted wire check (INJH2 line to ground)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 2 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 5
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the INJH2 wire between the PCM (E5) and the No. 2 injector.

    NO

    Go to step 18.

18. Shorted wire check (INJL2 line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 2 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 17
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the INJL2 wire between the PCM (E17) and the No. 2 injector.

    NO

    Go to step 19.

19. Shorted wire check (INJH3 line)

    -1. Disconnect the following connector.

    No. 3 injector 2P connector

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 2 injector 2P connector: disconnected
    	No. 3 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 6
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short in the INJH3 wire between the PCM (E6) and the No. 3 injector.

    NO

    The INJH3 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

20. Open wire check (INJH3 line, INJL3 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Reinstall the injector relay.

    -3. Jump the SCS line with the HDS, and wait more than 1 minute.

    -4. Disconnect the following connector.

    PCM connector E (80P)

    -5. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    Test point 1	PCM connector E (80P) No. 4
    Test point 2	PCM connector E (80P) No. 6

    Is there continuity?

    YES

    Go to step 23.

    NO

    Go to step 21.

21. Open wire check (INJH3 line)

    -1. Disconnect the following connector.

    No. 3 injector 2P connector

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 3 injector 2P connector: disconnected
    Test point 1	No. 3 injector 2P connector (female terminals) No. 1:
    Test point 2	PCM connector E (80P) No. 6

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Go to step 22.

    NO

    Repair an open in the INJH3 wire between the PCM (E6) and the No. 3 injector.

22. Open wire check (INJL3 line)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 3 injector 2P connector: disconnected
    Test point 1	No. 3 injector 2P connector (female terminals) No. 2:
    Test point 2	PCM connector E (80P) No. 4

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The INJL3 wire is OK. Replace the No. 3 injector .

    NO

    Repair an open in the INJL3 wire between the PCM (E4) and the No. 3 injector.

23. Shorted wire check (INJH3 line to power)

    -1. Disconnect the following connector.

    No. 3 injector 2P connector

    -2. Turn the vehicle to the ON mode.

    -3. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 3 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 6
    Test point 2	Body ground

    Is there any voltage?

    YES

    Repair a short to power in the INJH3 wire between the PCM (E6) and the No. 3 injector.

    NO

    Go to step 24.

24. Shorted wire check (INJL3 line to power)

    -1. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle ON mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 3 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 4

    Test point 2

    Body ground

    Is there any voltage?

    YES

    Repair a short to power in the INJL3 wire between the PCM (E4) and the No. 3 injector.

    NO

    Go to step 25.

25. Shorted wire check (INJH3 line to ground)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 3 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 6
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the INJH3 wire between the PCM (E6) and the No. 3 injector.

    NO

    Go to step 26.

26. Shorted wire check (INJL3 line to ground)

    -1. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 3 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 4
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short to ground in the INJL3 wire between the PCM (E4) and the No. 3 injector.

    NO

    Go to step 27.

27. Shorted wire check (INJH2 line)

    -1. Disconnect the following connector.

    No. 2 injector 2P connector

    -2. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    	PCM connector A (50P): disconnected
    	PCM connector E (80P): disconnected
    	No. 3 injector 2P connector: disconnected
    	No. 2 injector 2P connector: disconnected
    Test point 1	PCM connector E (80P) No. 5
    Test point 2	Body ground

    Is there continuity?

    YES

    Repair a short in the INJH2 wire between the PCM (E5) and the No. 2 injector.

    NO

    The INJH2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .
