DTC P0135 (1.5 L Engine)

DTC P0135  : A/F Sensor (Sensor 1) Heater Circuit Malfunction

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Start the engine.

   -5. Hold the engine speed at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.

   -6. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0135 A/F Sensor (Sensor 1) Heater Circuit Malfunction

   Is DTC P0135 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the A/F sensor (Sensor 1), the relay circuit board (PGM-FI subrelay), and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. DTC check

   -1. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P1658 ETCS Control Relay ON Malfunction
   P1659 ETCS Control Relay OFF Malfunction

   Is DTC P1658 and/or P1659 indicated?

   YES

   Go to the indicated DTCs troubleshooting.

   NO

   Go to step 3.

3. Fuse check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Check the following fuse.

   Fuse	No. A11 (7.5 A)
   Location	Under-hood fuse/relay box

   Is the fuse OK?

   YES

   Go to step 4.

   NO

   Repair a short in the IGPS (LAF) wire between the No. A11 (7.5 A) fuse in the under-hood fuse/relay box and the A/F sensor (Sensor 1). Also replace the No. A11 (7.5 A) fuse.

4. A/F sensor (Sensor 1) internal heater resistance check

   -1. Disconnect the following connector.

   A/F sensor (Sensor 1) 6P connector

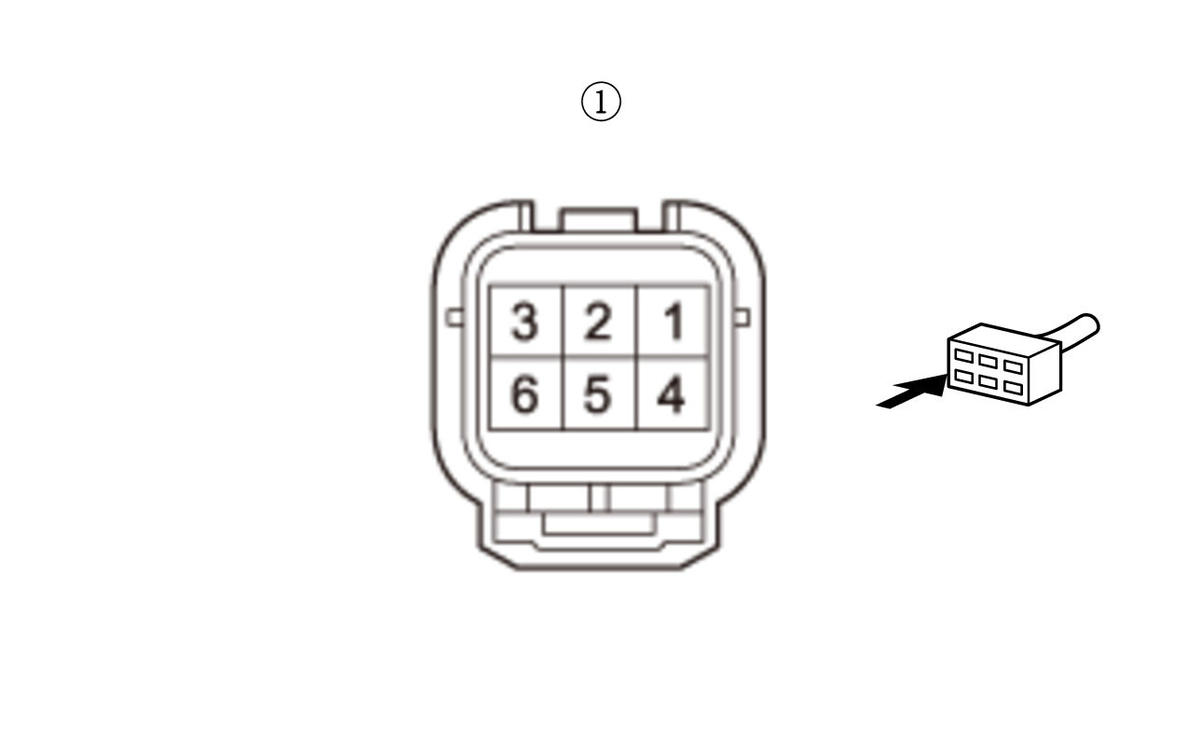

   -2. At the sensor side, measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/F sensor (Sensor 1) 6P connector: disconnected
   Test point 1	A/F sensor (Sensor 1) 6P connector (male terminals) No. 2 (A/F sensor (Sensor 1) side):
   Test point 2	A/F sensor (Sensor 1) 6P connector (male terminals) No. 3 (A/F sensor (Sensor 1) side):

   Courtesy of HONDA, U.S.A., INC.

   Is there 2.8-4.5 Ω at room temperature?

   YES

   Go to step 5.

   NO

   Replace the A/F sensor (Sensor 1) .

5. A/F sensor (Sensor 1) internal circuit check 1

   -1. Check for continuity between the following test points and body ground individually.

   Test condition	Vehicle OFF (LOCK) mode
   	A/F sensor (Sensor 1) 6P connector: disconnected

   Connector	Test circuit	Terminal
   A/F sensor (Sensor 1) (A/F sensor (Sensor 1) side)	AFHT N	(male terminals) No. 2:
   	IGPS (LAF)	(male terminals) No. 3:
   	VCENT	(male terminals) No. 4:
   	IP	(male terminals) No. 5:
   	VS	(male terminals) No. 6:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the A/F sensor (Sensor 1) .

   NO

   Go to step 6.

6. A/F sensor (Sensor 1) internal circuit check 2

   -1. Check for continuity between the following test points and the A/F sensor (Sensor 1) 6P connector No. 3 individually.

   Test condition	Vehicle OFF (LOCK) mode
   	A/F sensor (Sensor 1) 6P connector: disconnected

   Connector	Test circuit	Terminal
   A/F sensor (Sensor 1) (A/F sensor (Sensor 1) side)	AFHT N	(male terminals) No. 2:
   	VCENT	(male terminals) No. 4:
   	IP	(male terminals) No. 5:
   	VS	(male terminals) No. 6:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the A/F sensor (Sensor 1) .

   NO

   Go to step 7.

7. Shorted wire check (AFHT N line)

   -1. Jump the SCS line with the HDS, and wait more than 1 minute.

   -2. Disconnect the following connector.

   PCM connector E (80P)

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/F sensor (Sensor 1) 6P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	PCM connector E (80P) No. 13
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short in the AFHT N wire between the PCM (E13) and the A/F sensor (Sensor 1).

   NO

   Go to step 8.

8. Open wire check (AFHT N line)

   -1. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	A/F sensor (Sensor 1) 6P connector: disconnected
   	PCM connector E (80P): disconnected

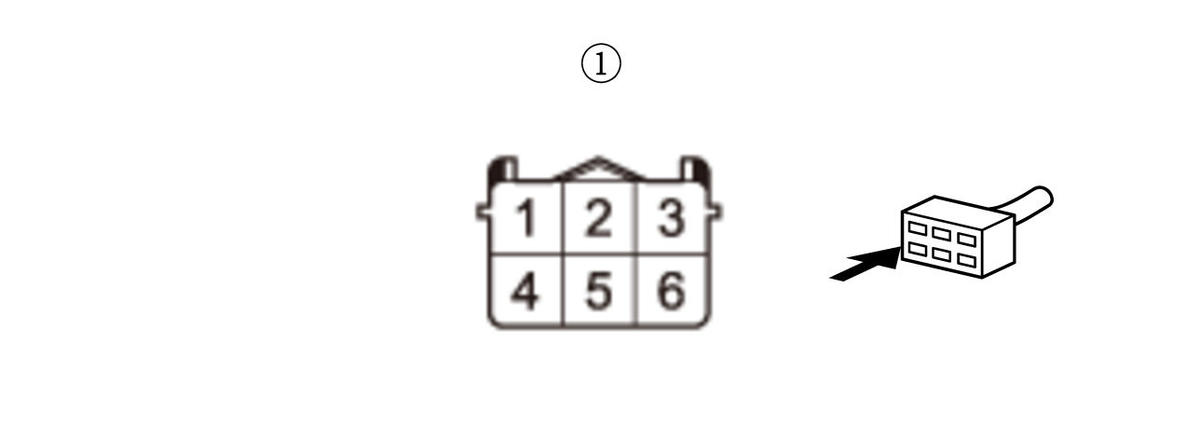

   Test point 1	A/F sensor (Sensor 1) 6P connector (female terminals) No. 2:
   Test point 2	PCM connector E (80P) No. 13

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 9.

   NO

   Repair an open in the AFHT N wire between the PCM (E13) and the A/F sensor (Sensor 1).

9. Open wire check (IGPS (LAF) line)

   -1. Turn the vehicle to the ON mode.

   -2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	A/F sensor (Sensor 1) 6P connector: disconnected
   	PCM connector E (80P): disconnected
   Test point 1	A/F sensor (Sensor 1) 6P connector (female terminals) No. 3:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there battery voltage?

   YES

   The IGPS (LAF) wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

   NO

   Repair an open in the IGPS (LAF) wire between the A/F sensor (Sensor 1) and the No. A11 (7.5 A) fuse in the under-hood fuse/relay box.
