DTC P0134 (1.5 L Engine)

DTC P0134  : A/F Sensor (Sensor 1) Heater System Malfunction

NOTE:

• Before you troubleshoot, review the general troubleshooting information .
• If DTC P2251 is stored at the same time as DTC P0134, troubleshoot DTC P2251 first, then recheck for P0134.

DTC (PGM-FI)

1. Problem verification

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Start the engine, and let it idle without load (in P or N) for at least 1 minute.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC
   P0134 A/F Sensor (Sensor 1) Heater System Malfunction

   Is DTC P0134 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the A/F sensor (Sensor 1), the relay circuit board (PGM-FI subrelay), and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

2. Open wire check (VS line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Jump the SCS line with the HDS, and wait more than 1 minute.

   -3. Disconnect the following connectors.

   A/F sensor (Sensor 1) 6P connector

   PCM connector E (80P)

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	PCM connector E (80P): disconnected
   	A/F sensor (Sensor 1) 6P connector: disconnected

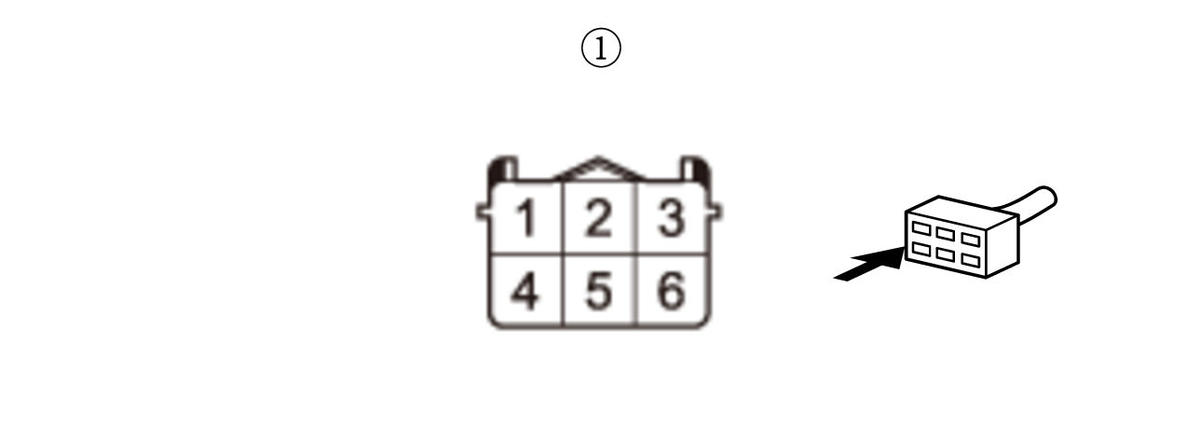

   Test point 1	A/F sensor (Sensor 1) 6P connector (female terminals) No. 6:
   Test point 2	PCM connector E (80P) No. 73

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 3.

   NO

   Repair an open in the VS wire between the PCM (E73) and the A/F sensor (Sensor 1).

3. PCM internal circuit check

   -1. Reconnect the following connector.

   PCM connector E (80P)

   -2. Exit the SCS mode with the HDS.

   -3. Start the engine, and let it idle without load (in P or N) for at least 1 minute.

   -4. Measure the voltage between test point 1 and 2.

   Test condition	Engine running
   	A/F sensor (Sensor 1) 6P connector: disconnected
   Test point 1	A/F sensor (Sensor 1) 6P connector (female terminals) No. 6:
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 0.2 V or less?

   YES

   Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

   NO

   Replace the A/F sensor (Sensor 1) .
