CHECK SYSTEM Display Indication (CHECK STARTING SYSTEM)

1. If this indicator comes on in the gauge control module, the starting system may have had a failure. Connect the HDS to the data link connector located under the driver's side of the dashboard. Check the diagnostic trouble code (DTC) and note it. Then refer to the indicated DTCs troubleshooting, and begin the appropriate troubleshooting procedure.

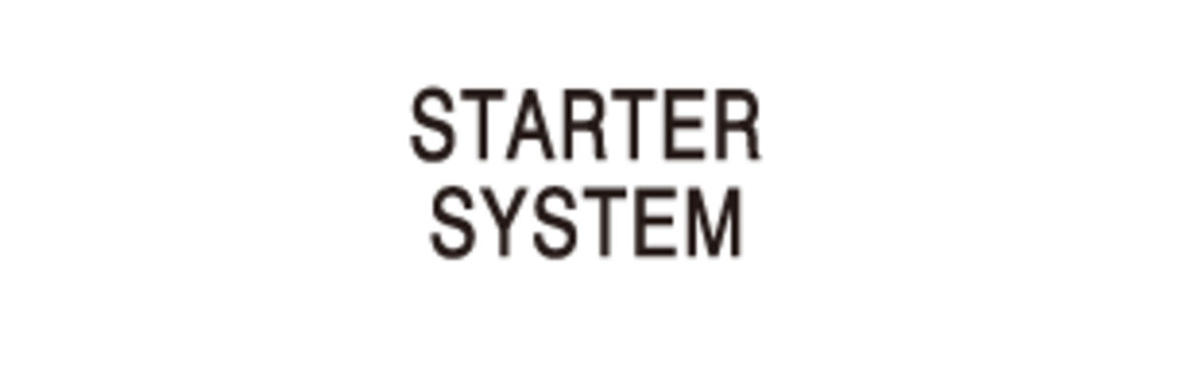

USA models

GHH426645Courtesy of HONDA, U.S.A., INC.

Except USA models

GHH426646Courtesy of HONDA, U.S.A., INC.
