DTC P2563 (1.5 L Engine) (2018 2019 2020 2021)

DTC P2563  : Turbocharger Wastegate Control Actuator Position Sensor Out of Range

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC Description Confirmed DTC Pending DTC
P2563 Turbocharger Wastegate Control Actuator Position Sensor Out of Range

DTC (PGM-FI)

  1. Problem verification 1

    -1. Turn the vehicle to the ON mode.

    -2. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    EWG VOLTAGE FROM LIFT SENSOR Less than 0.31 V

    Do the current condition (s) match the threshold?

    YES

    Go to step 3.

    NO

    Go to step 2.

  2. Problem verification 2

    -1. Turn the vehicle to the ON mode.

    -2. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    EWG VOLTAGE FROM LIFT SENSOR More than 4.78 V

    Do the current condition (s) match the threshold?

    YES

    Go to step 7.

    NO

    Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the turbocharger and the PCM. If the on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the on-board snapshot .

  3. Determine possible failure area (DCWGL line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Turbocharger 5P connector

    -3. Turn the vehicle to the ON mode.

    -4. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    EWG VOLTAGE FROM LIFT SENSOR Less than 0.31 V

    Do the current condition (s) match the threshold?

    YES

    Go to step 6.

    NO

    Go to step 4.

  4. Determine possible failure area (turbocharger wastegate control actuator position sensor, others)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Turbocharger 5P connector: disconnected
    Test point 1 Turbocharger 5P connector (female terminals) No. 2:
    Test point 2 Turbocharger 5P connector (female terminals) No. 3:
    GHH426489Courtesy of HONDA, U.S.A., INC.

    Is there about 5.0 V?

    YES

    Replace the turbocharger .

    NO

    Go to step 5.

  5. Open wire check (VCC2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Turbocharger 5P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 Turbocharger 5P connector (female terminals) No. 2:
    Test point 2 PCM connector E (80P) No. 77
    GHH426491Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The VCC2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the VCC2 wire between the PCM (E77) and the turbocharger.

  6. Shorted wire check (DCWGL line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Turbocharger 5P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 Turbocharger 5P connector (female terminals) No. 4:
    Test point 2 Body ground

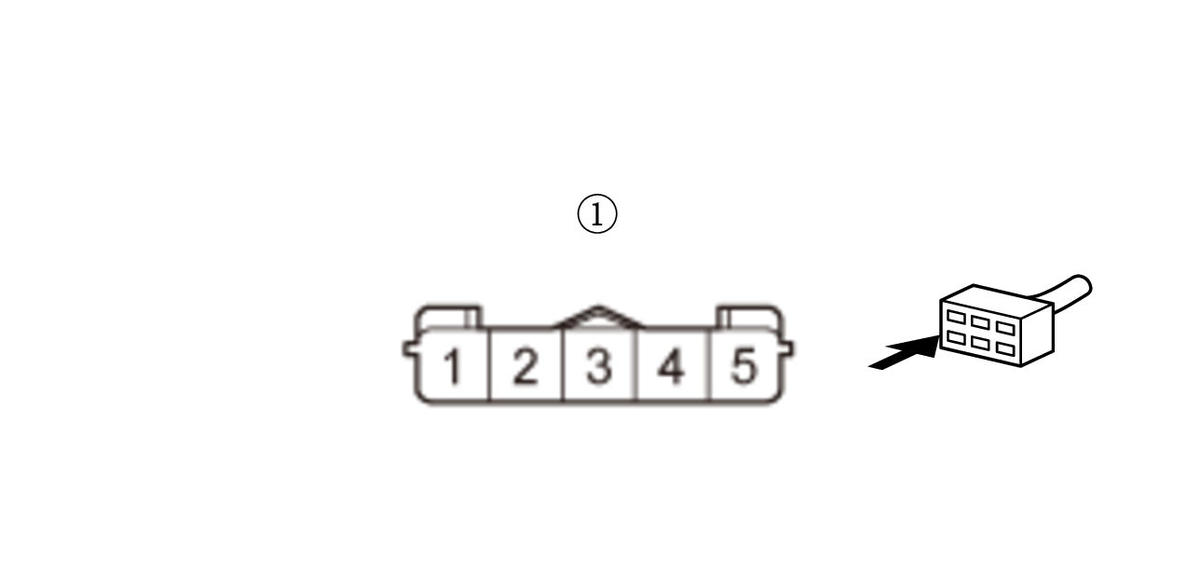

    GHH426493Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short in the DCWGL wire between the PCM (E60) and the turbocharger.

    NO

    The DCWGL wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

  7. Determine possible failure area (turbocharger wastegate control actuator position sensor, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Turbocharger 5P connector

    -3. Connect terminals A and B with a jumper wire.

    Terminal A Turbocharger 5P connector (female terminals) No. 3:
    Terminal B Turbocharger 5P connector (female terminals) No. 4:
    GHH426496Courtesy of HONDA, U.S.A., INC.

    -4. Turn the vehicle to the ON mode.

    -5. Check the parameter (s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    EWG VOLTAGE FROM LIFT SENSOR More than 4.78 V

    Do the current condition (s) match the threshold?

    YES

    Go to step 8.

    NO

    Replace the turbocharger .

  8. Determine possible failure area (SG2 line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire from the turbocharger 5P connector.

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Turbocharger 5P connector: disconnected
    Test point 1 Turbocharger 5P connector (female terminals) No. 2:
    Test point 2 Turbocharger 5P connector (female terminals) No. 3:

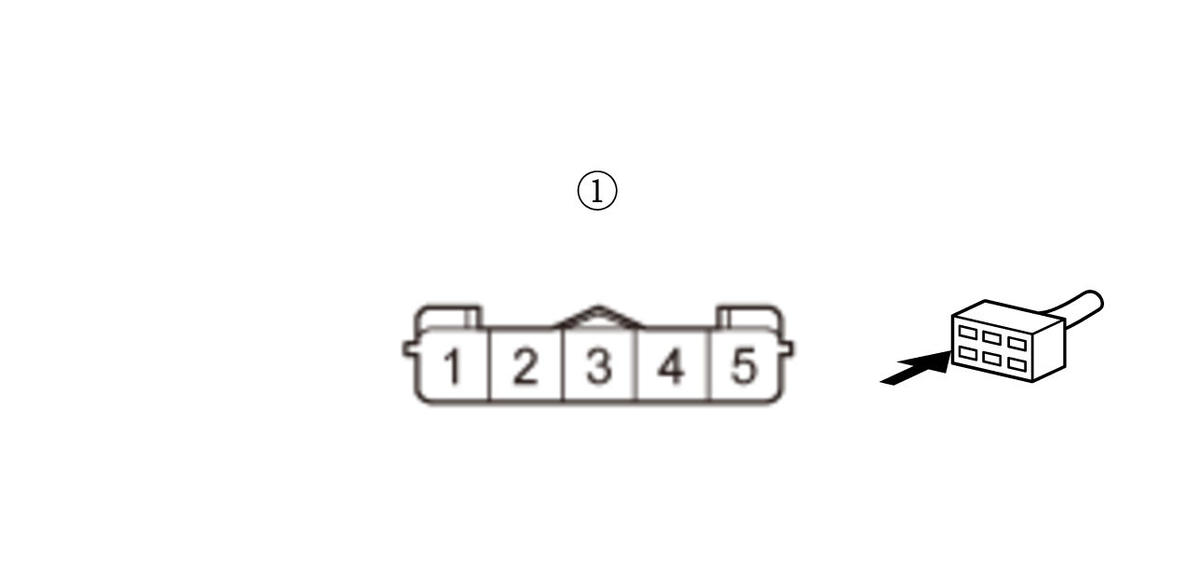

    GHH426499Courtesy of HONDA, U.S.A., INC.

    Is there about 5.0 V?

    YES

    Go to step 10.

    NO

    Go to step 9.

  9. Open wire check (SG2 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Turbocharger 5P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 Turbocharger 5P connector (female terminals) No. 3:
    Test point 2 PCM connector E (80P) No. 78
    GHH426501Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The SG2 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the SG2 wire between the PCM (E78) and the turbocharger.

  10. Open wire check (DCWGL line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Jump the SCS line with the HDS, and wait more than 1 minute.

    -3. Disconnect the following connector.

    PCM connector E (80P)

    -4. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Turbocharger 5P connector: disconnected
      PCM connector E (80P): disconnected
    Test point 1 Turbocharger 5P connector (female terminals) No. 4:
    Test point 2 PCM connector E (80P) No. 60
    GHH426503Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The DCWGL wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good PCM .

    NO

    Repair an open in the DCWGL wire between the PCM (E60) and the turbocharger.
