Rocker Arm and Shaft Disassembly, Reassembly, and Inspection (1.5 L Engine): Inspection

Rocker Arm and Shaft - Inspect

Courtesy of HONDA, U.S.A., INC.

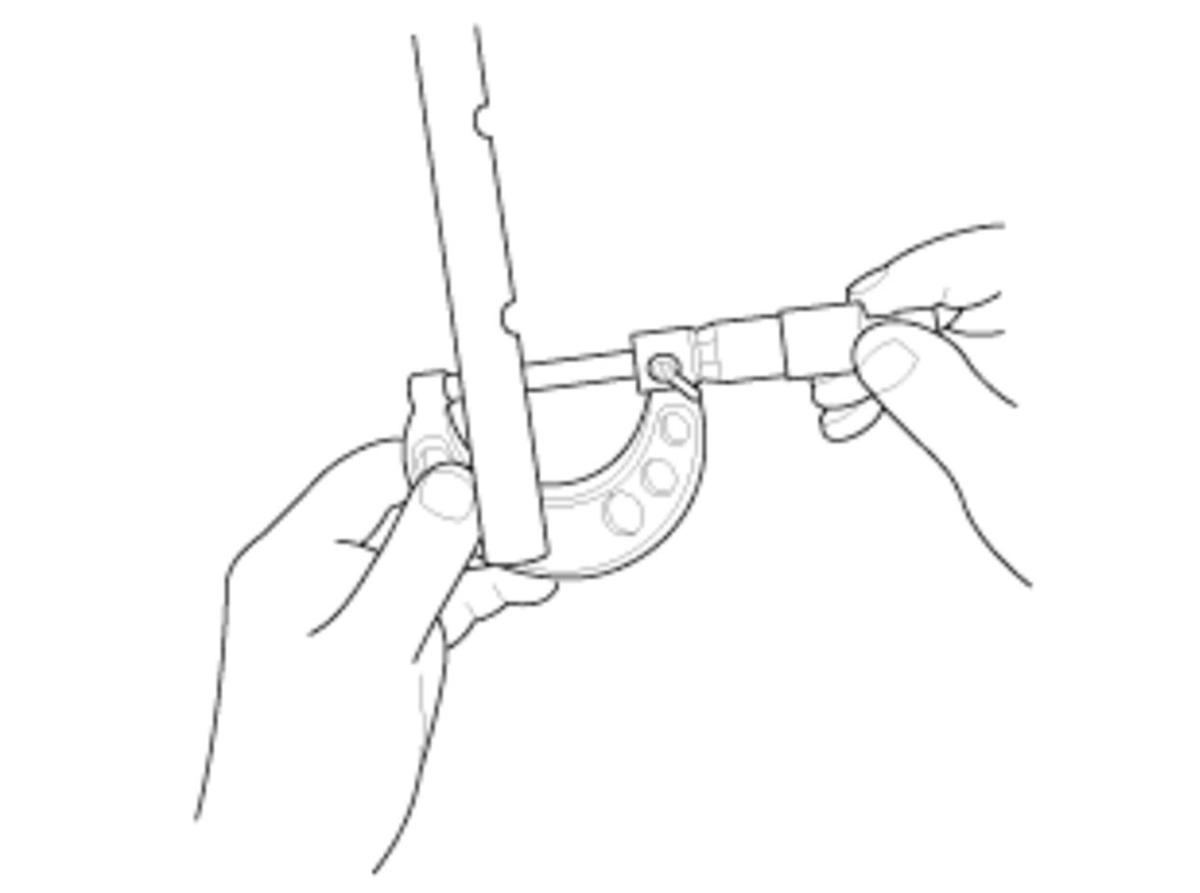

1. Measure the diameter of the rocker shaft at the first rocker location.

Courtesy of HONDA, U.S.A., INC.

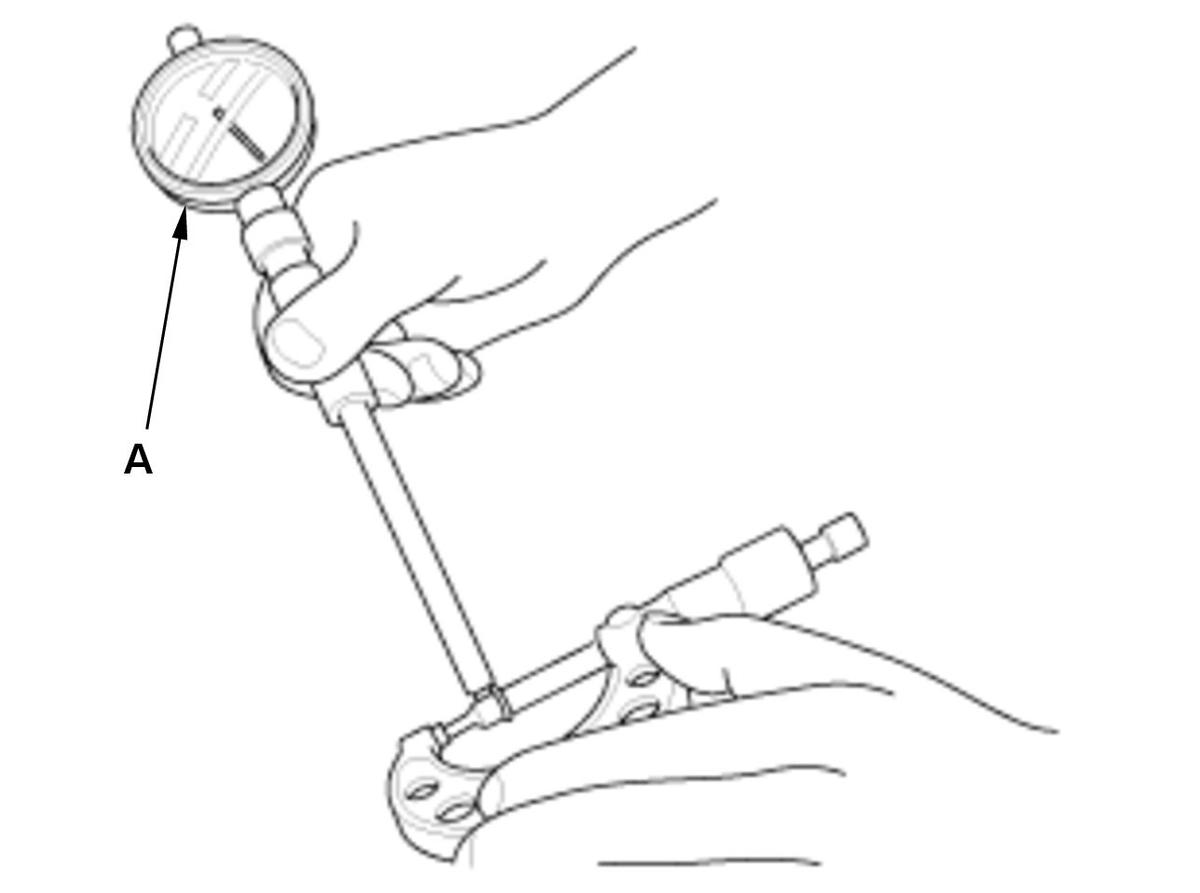

2. Zero the gauge (A) to the rocker shaft diameter.

Courtesy of HONDA, U.S.A., INC.

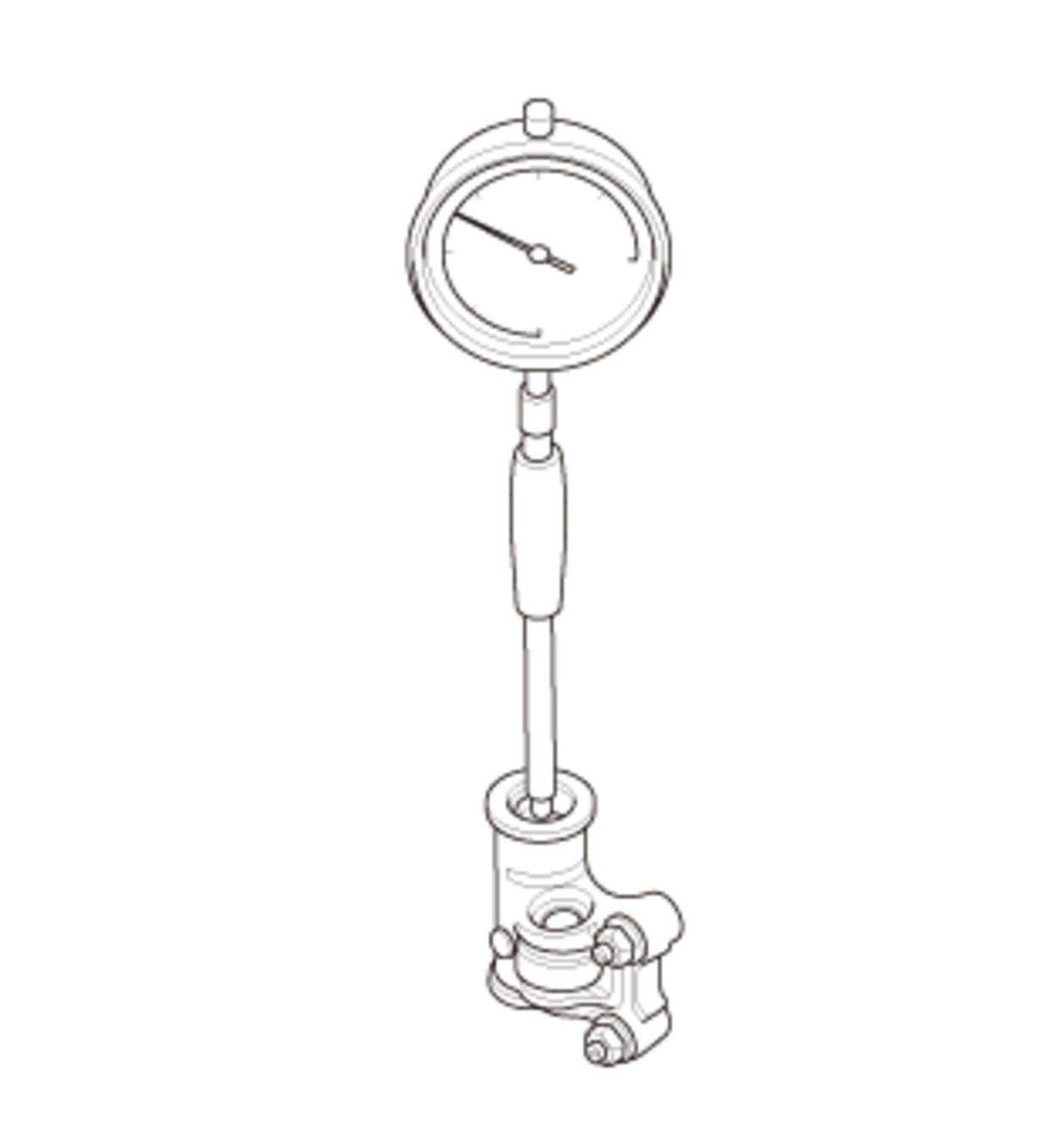

3. Measure the inside diameter of the rocker arm, and check it for an out-of-round condition.

4. Repeat for all rocker arms and both shafts. If the clearance is beyond the service limit, replace the rocker shaft and all out of service limit rocker arms.

Rocker Arm-to-Shaft Clearance
Standard (New):	0.018-0.059 mm (0.00071-0.00232 in)
Service Limit:	0.080 mm (0.00315 in)
