Removal and Installation

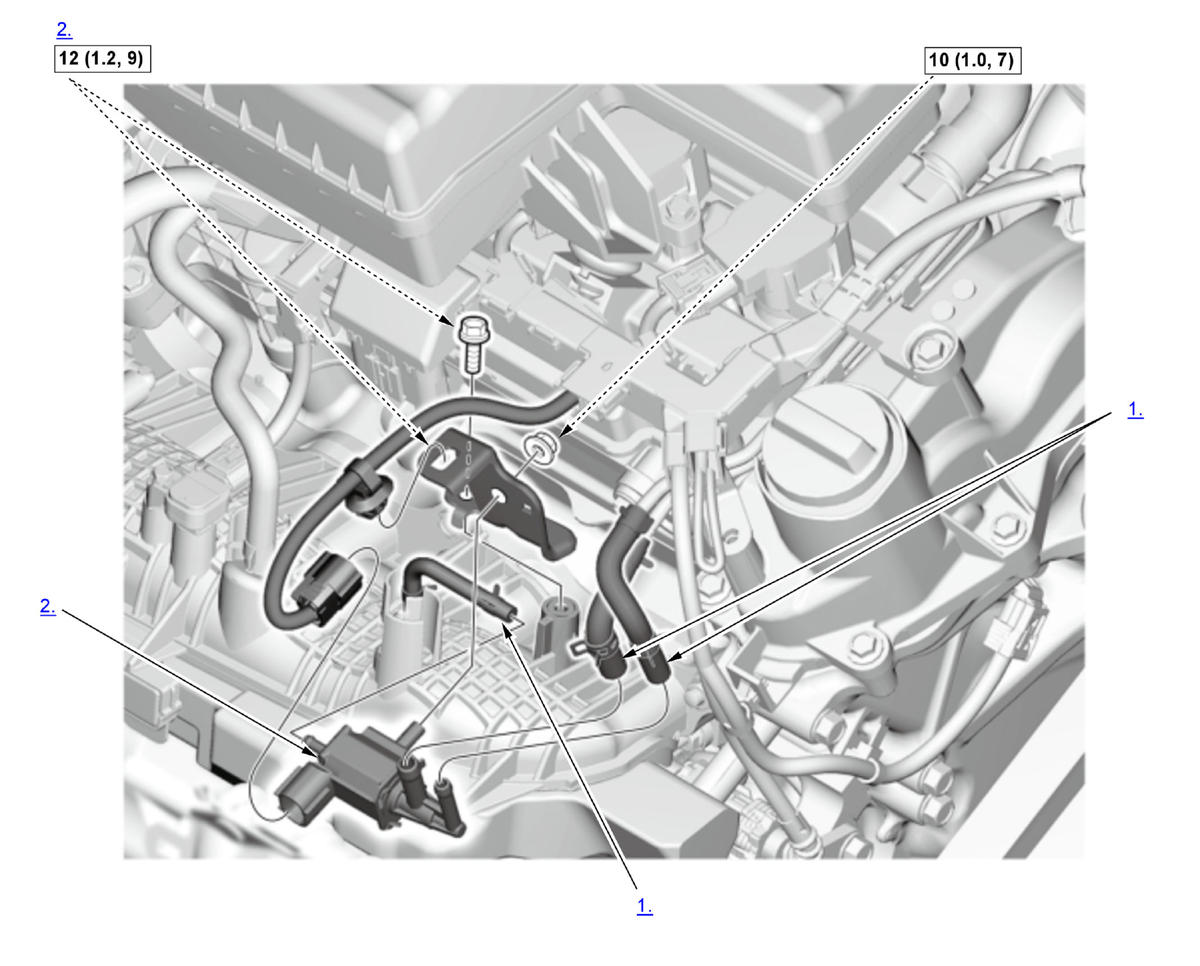

Fig 1: Turbocharger Bypass Control Solenoid Valve Replacement Components With Torque Specifications
GHH427194Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. Hoses - Disconnect
  2. Turbocharger Bypass Control Solenoid Valve - Remove
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
