Removal and Installation

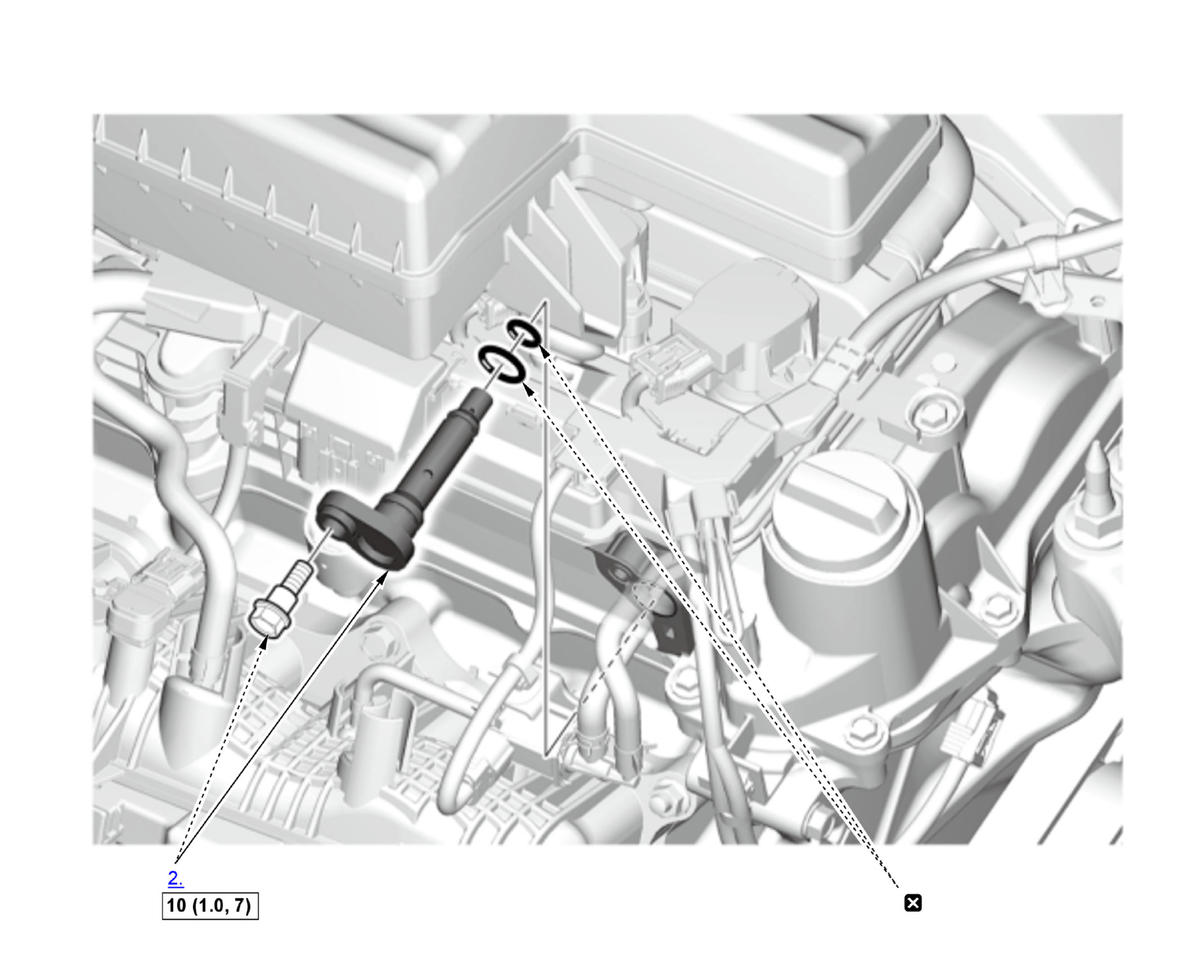

Fig 1: PCV Valve Replacement Components With Torque Specifications
GHH427188Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
Replace
  1. Turbocharger Bypass Control Solenoid Valve - Remove
  2. PCV Valve - Remove
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal with new O-rings.NOTE:  Make sure the O-rings are in place.
