 Courtesy of HONDA, U.S.A., INC.
|
1. Inspect the oil jet and the bolt as follows.NOTE:
Replace the oil jet assembly, if the nozzle is damaged or bent.

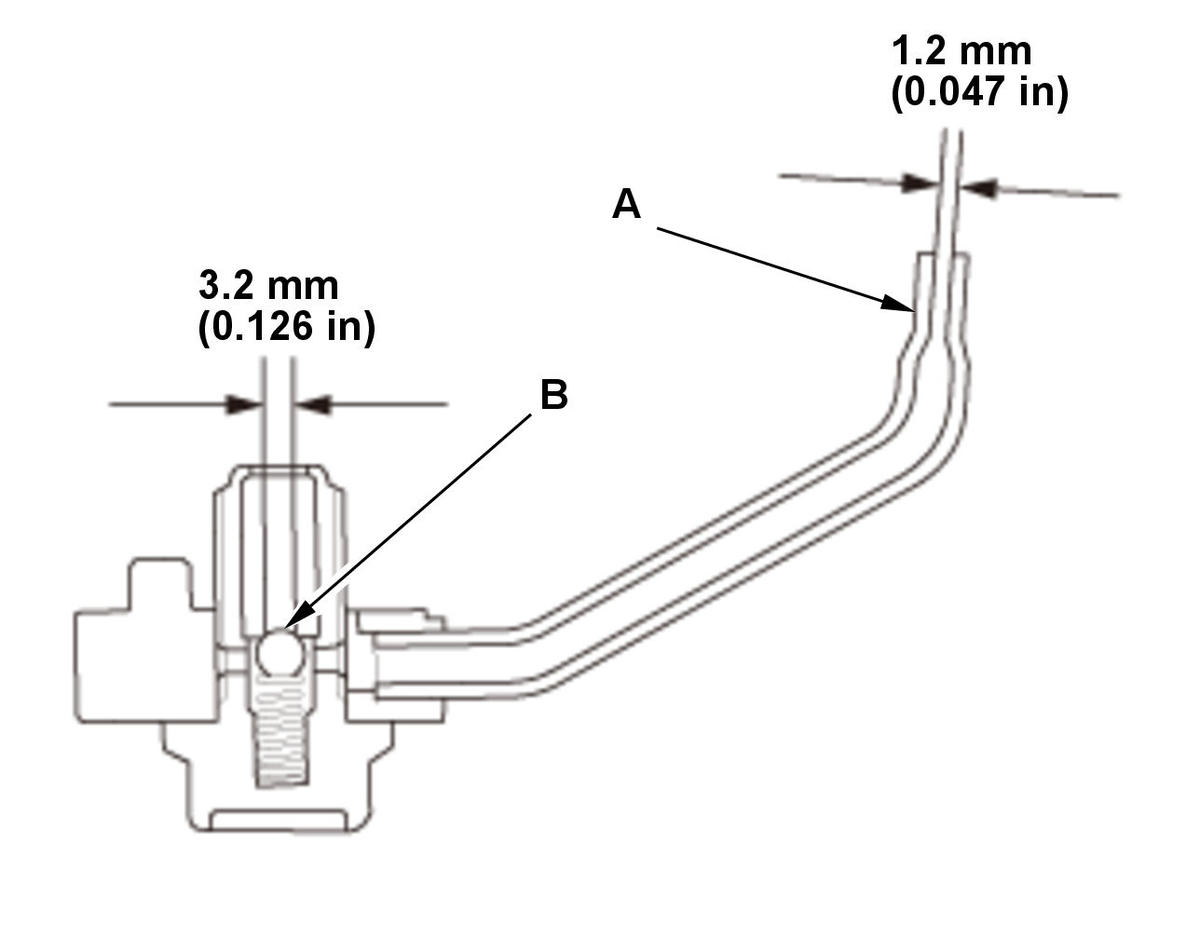

- Make sure that a 1.0 mm (3/64 in) diameter drill bit will go through the nozzle hole (A) (1.2 mm (0.047 in) diameter).
- Insert the other end of a 3.0 mm (1/8 in) drill into the oil intake (3.2 mm (0.126 in) diameter). Make sure the check ball (B) moves smoothly and has a stroke of about 2.0 mm (0.079 in).
- Check the oil jet operation with an air nozzle. It should take at least 175 kPa (1.78 kgf/cm 2, 25.4 psi) to unseat the check ball.
|
