Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (1.5 L Engine): Removal

Engine - Remove
Transmission - Remove
Drive Plate - Remove
Cylinder Head - Remove

Cam Chain Drive Sprocket - Remove

Courtesy of HONDA, U.S.A., INC.

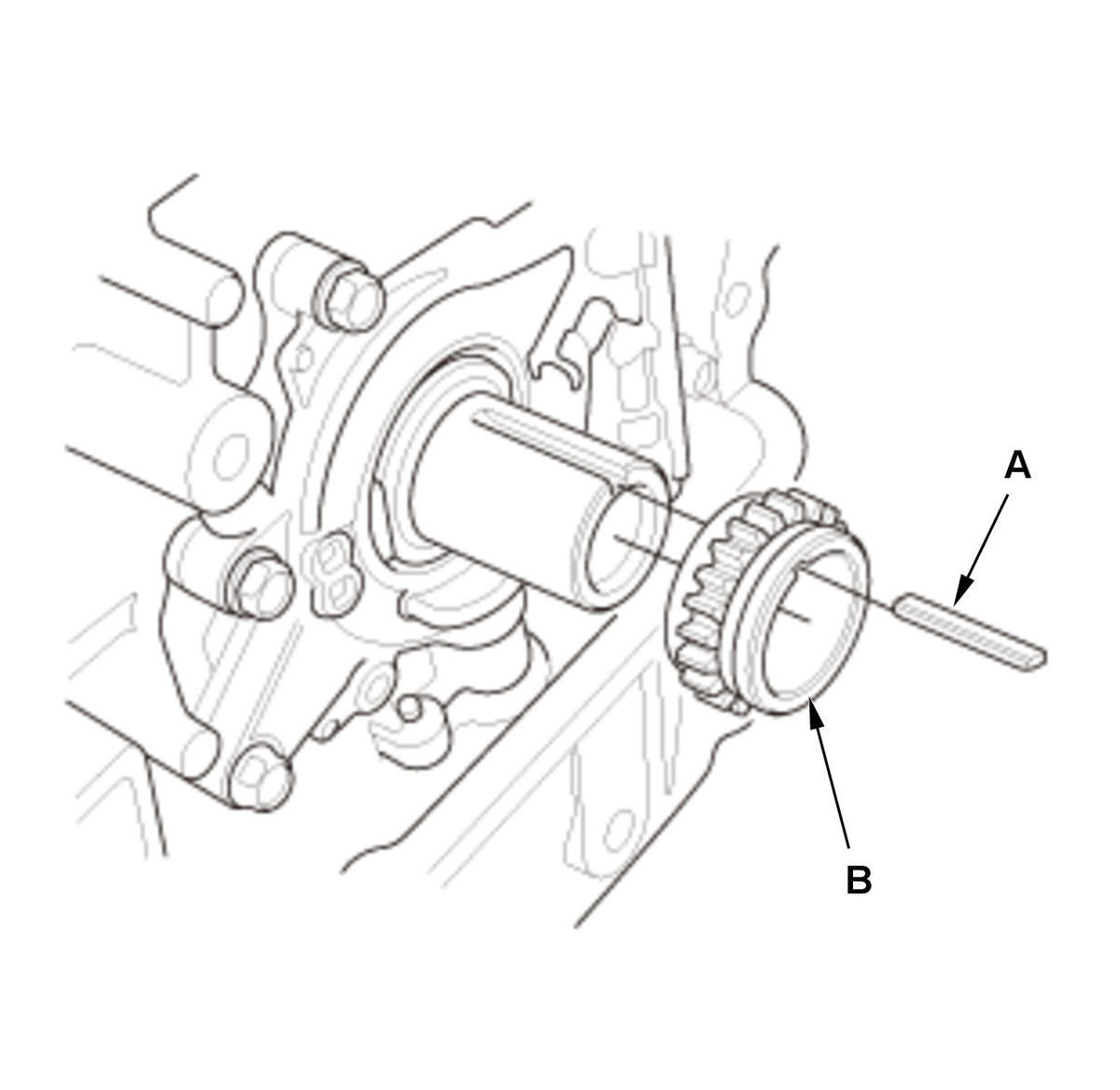

1. Remove the key (A) and the cam chain drive sprocket (B).NOTE: Check the direction of the key. When the key is installed, install the key as same direction of the original one.

Oil Pan - Remove
Oil Pump - Remove

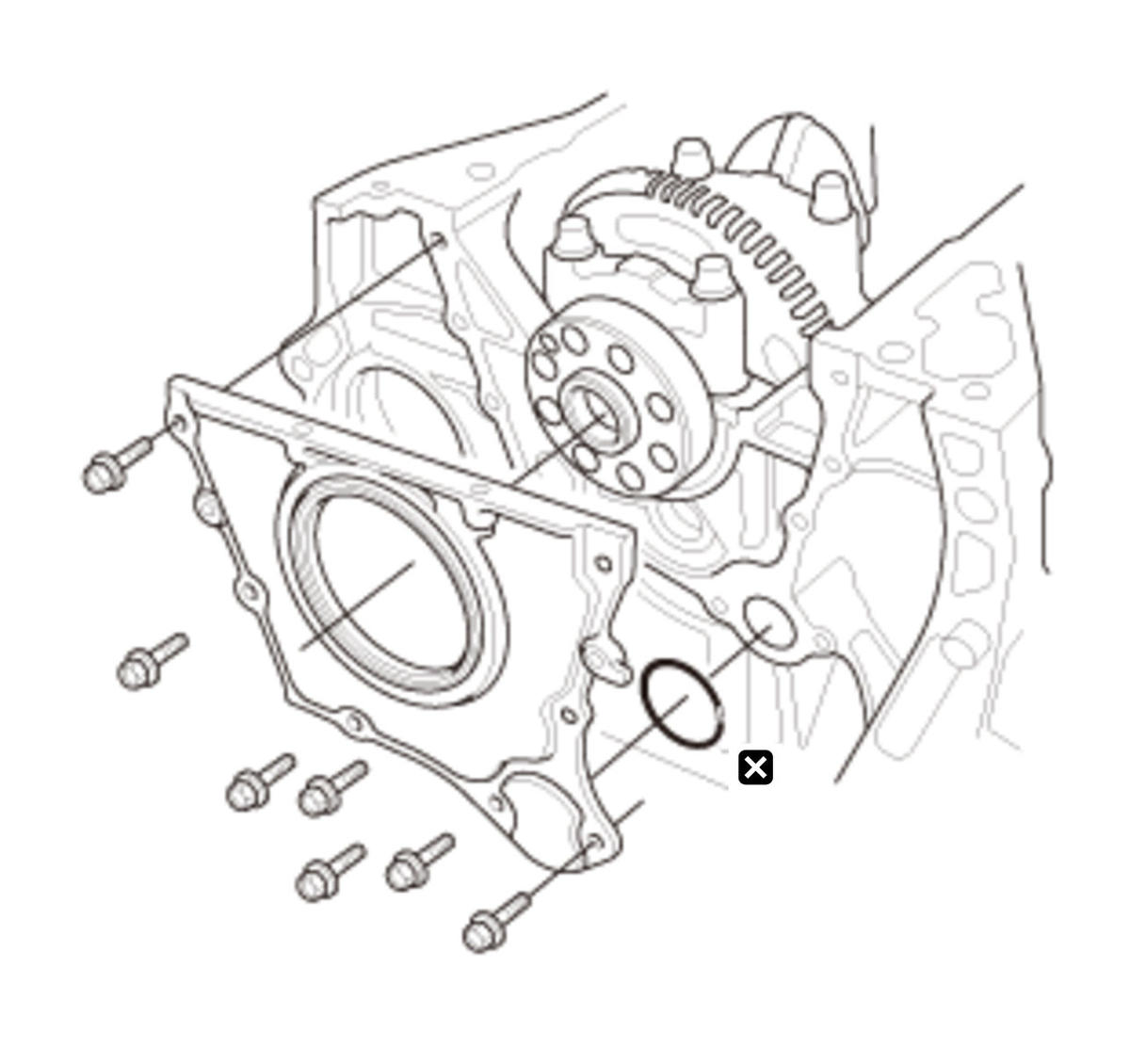

Oil Seal Case - Remove

Courtesy of HONDA, U.S.A., INC.

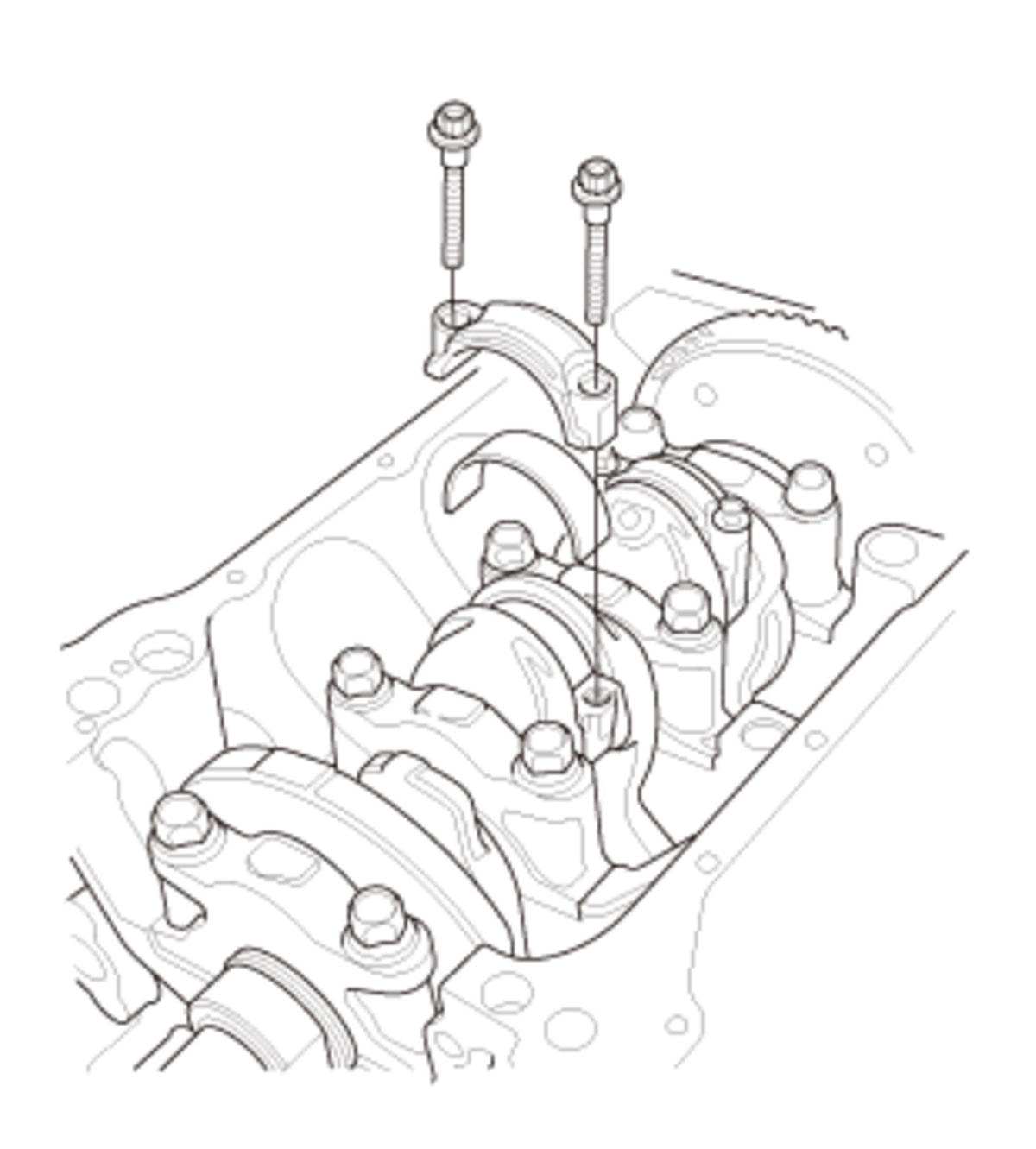

Connecting Rod Cap and Bearing Half - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: Keep all connecting rod caps and connecting rod bearings in order.

Main Bearing Cap and Bearing Half - Remove

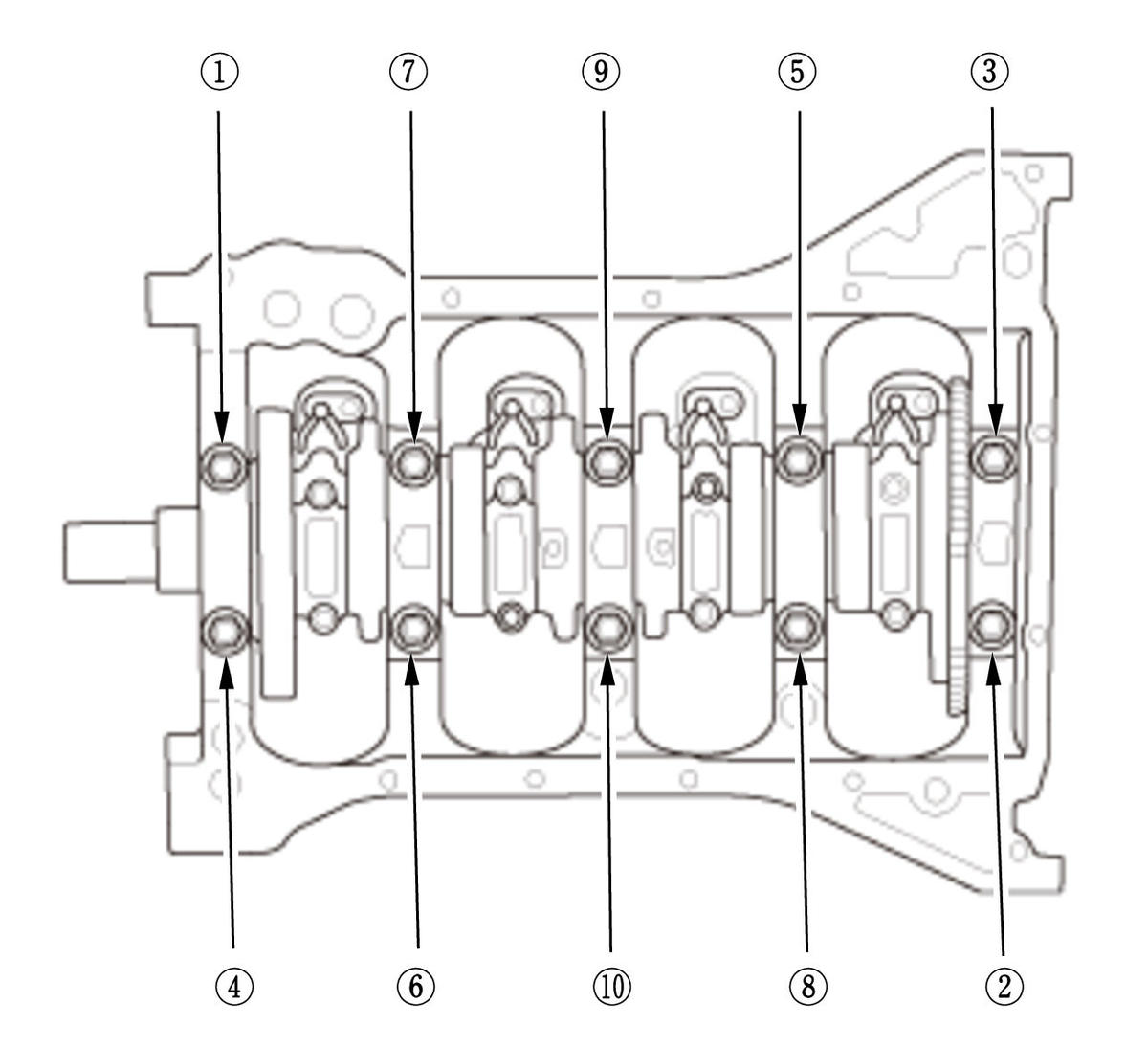

Fig 1: Main Bearing Cap And Bearing Half Bolts Loosening Sequence

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Remove the bearing cap bolts. To prevent warpage, loosen the bolts in sequence 1/3 turn at a time; repeat the sequence until all bolts are loosened.

Courtesy of HONDA, U.S.A., INC.

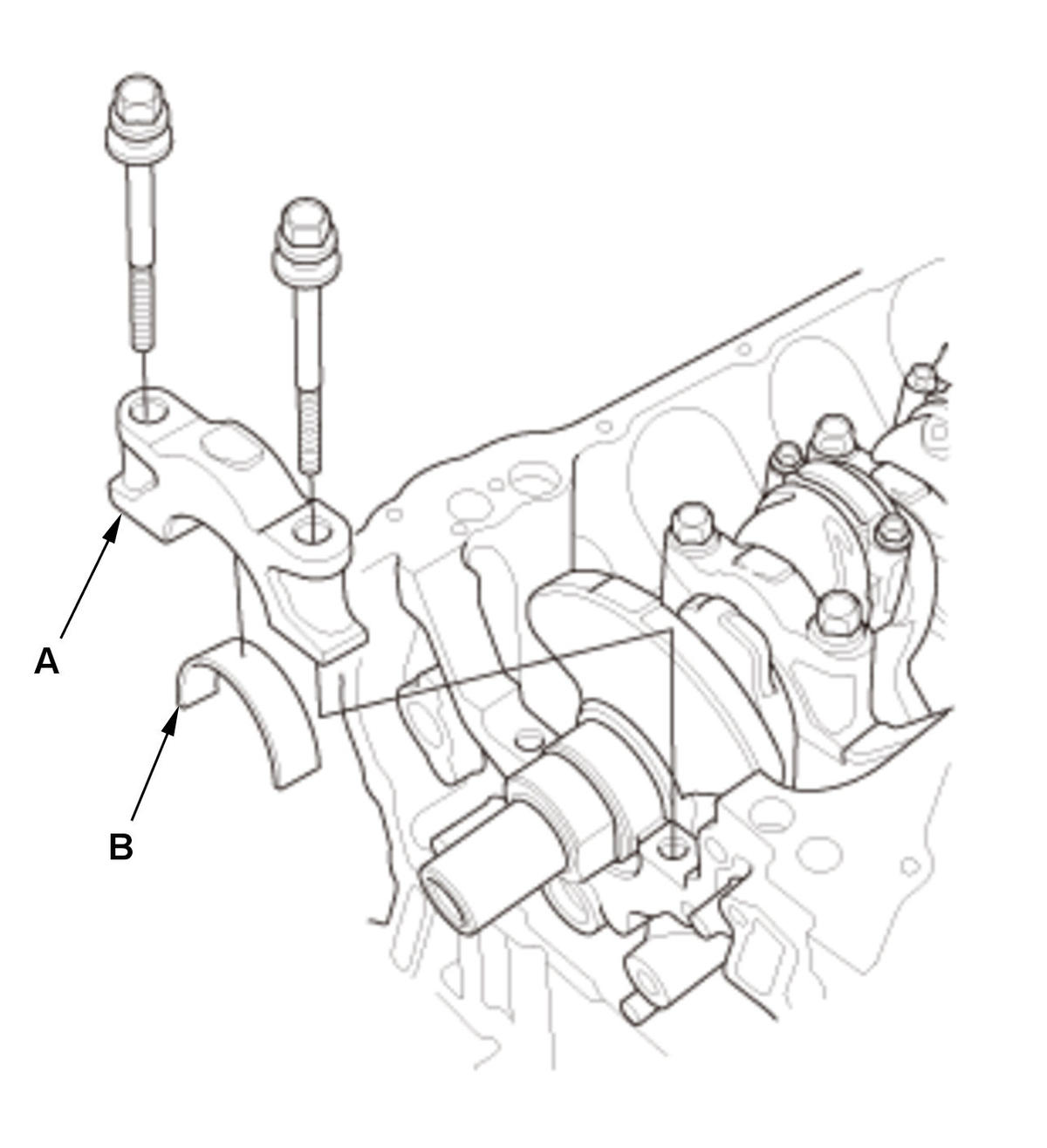

2. Remove the main bearing caps (A) and the main bearings (B).
NOTE:

Check the installed position and direction of the main bearing caps.
When the main bearing caps are installed, install the main bearing caps as same location and direction of the original them.

Crankshaft - Remove

Courtesy of HONDA, U.S.A., INC.

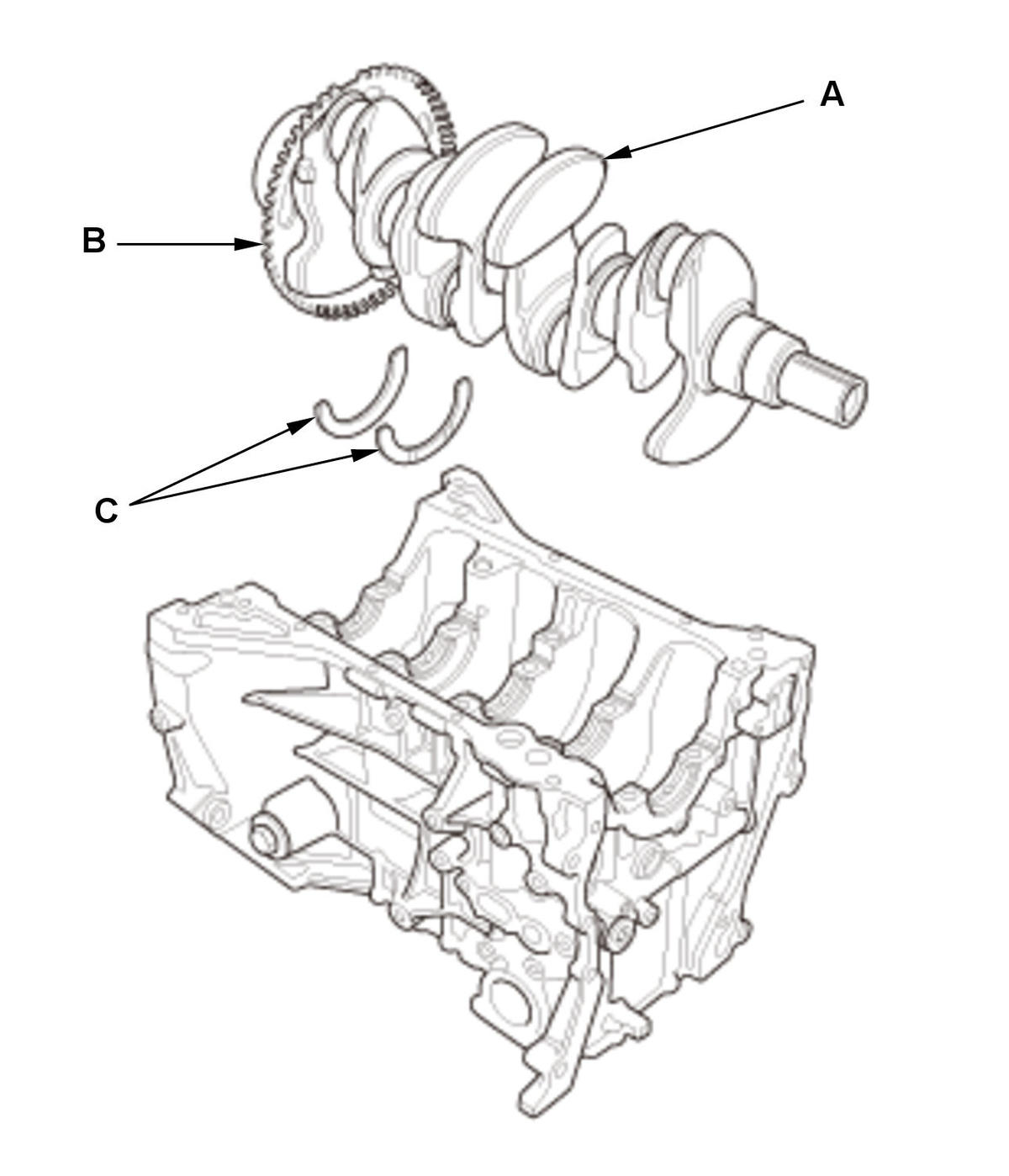

1. Lift the crankshaft (A) out of the engine block, being careful not to damage the CKP pulse plate (B).

2. Remove the thrust washers (C).

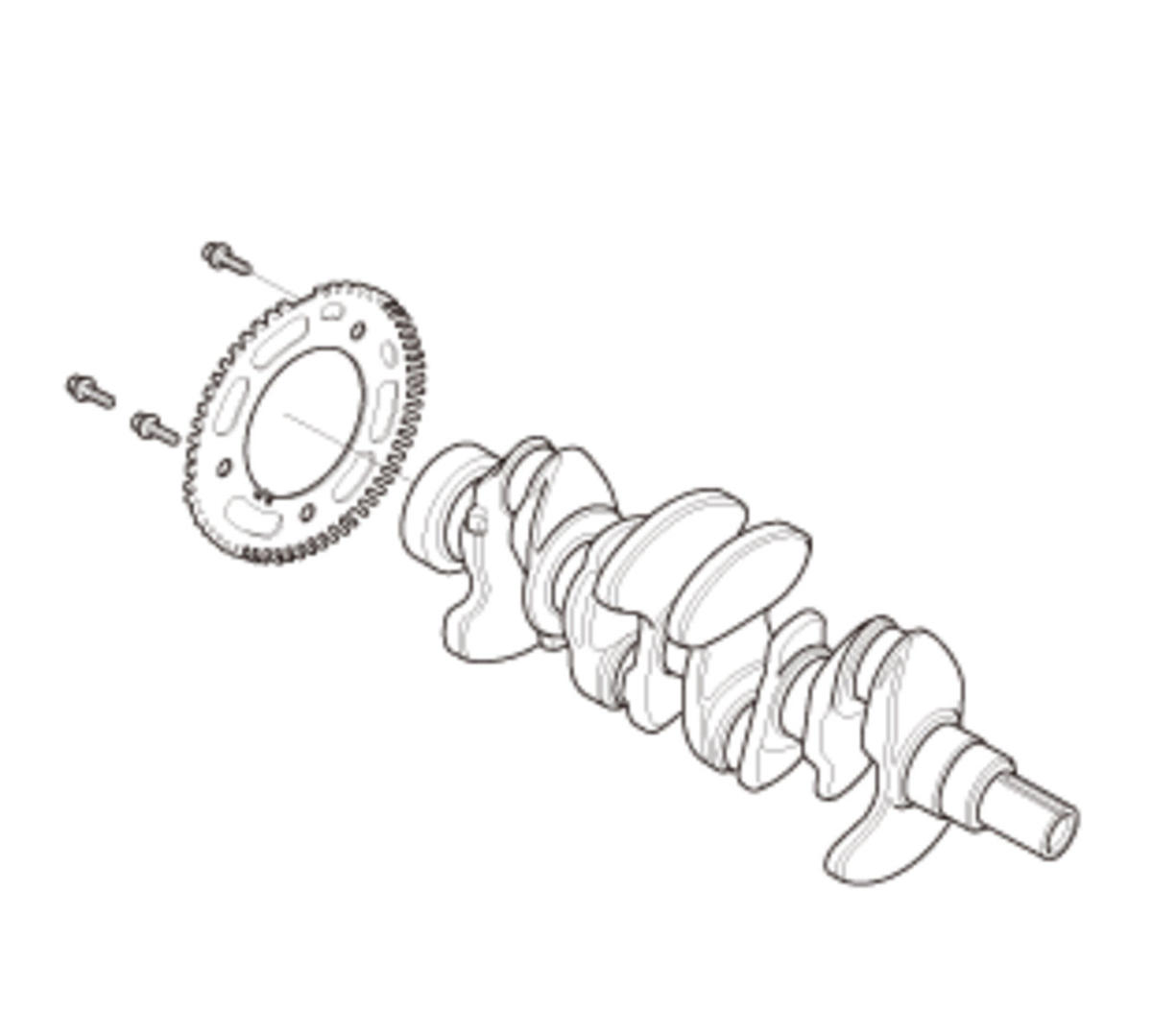

CKP Pulse Plate - Remove

Courtesy of HONDA, U.S.A., INC.
