Crankshaft and CKP Pulse Plate Removal, Installation, and Inspection (1.5 L Engine): Installation

NOTE: How to read the torque specifications .

  1. Crankshaft Main Bearing Clearance - Check
  2. CKP Pulse Plate - Install

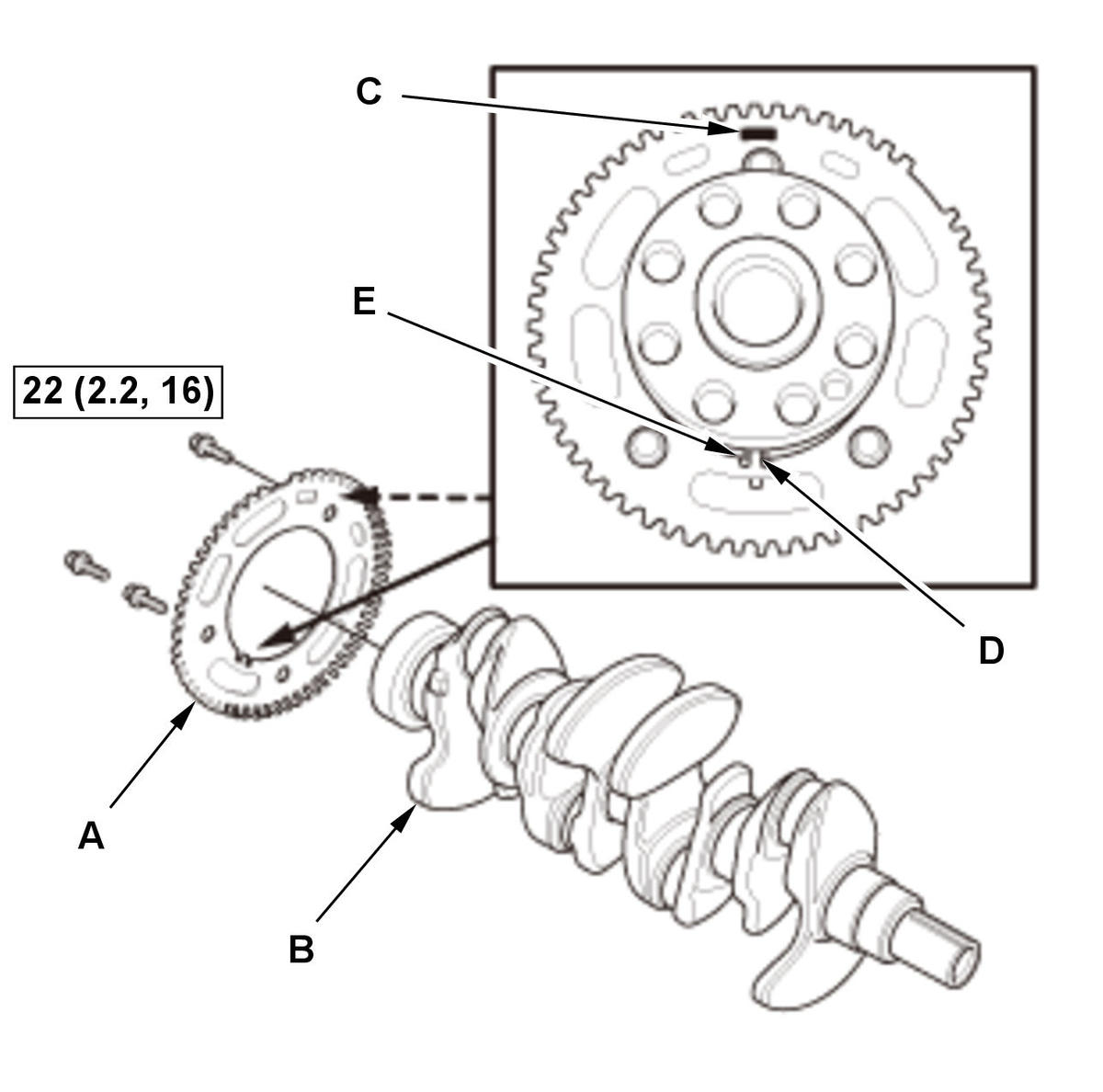

    Fig 1: CKP Pulse Plate With Torque Specifications
    GHH427153Courtesy of HONDA, U.S.A., INC.
      1. Apply new engine oil to the threads and flanges of CKP pulse plate mounting bolts.

    2. Install the CKP pulse plate (A) on the crankshaft (B).


    NOTE:
    • Be careful not to damage the CKP pulse plate.
    • Position the mark (C) facing it out side and align the portion (D) on the CKP pulse plate and groove (E) on the crankshaft.
  3. Crankshaft - Install

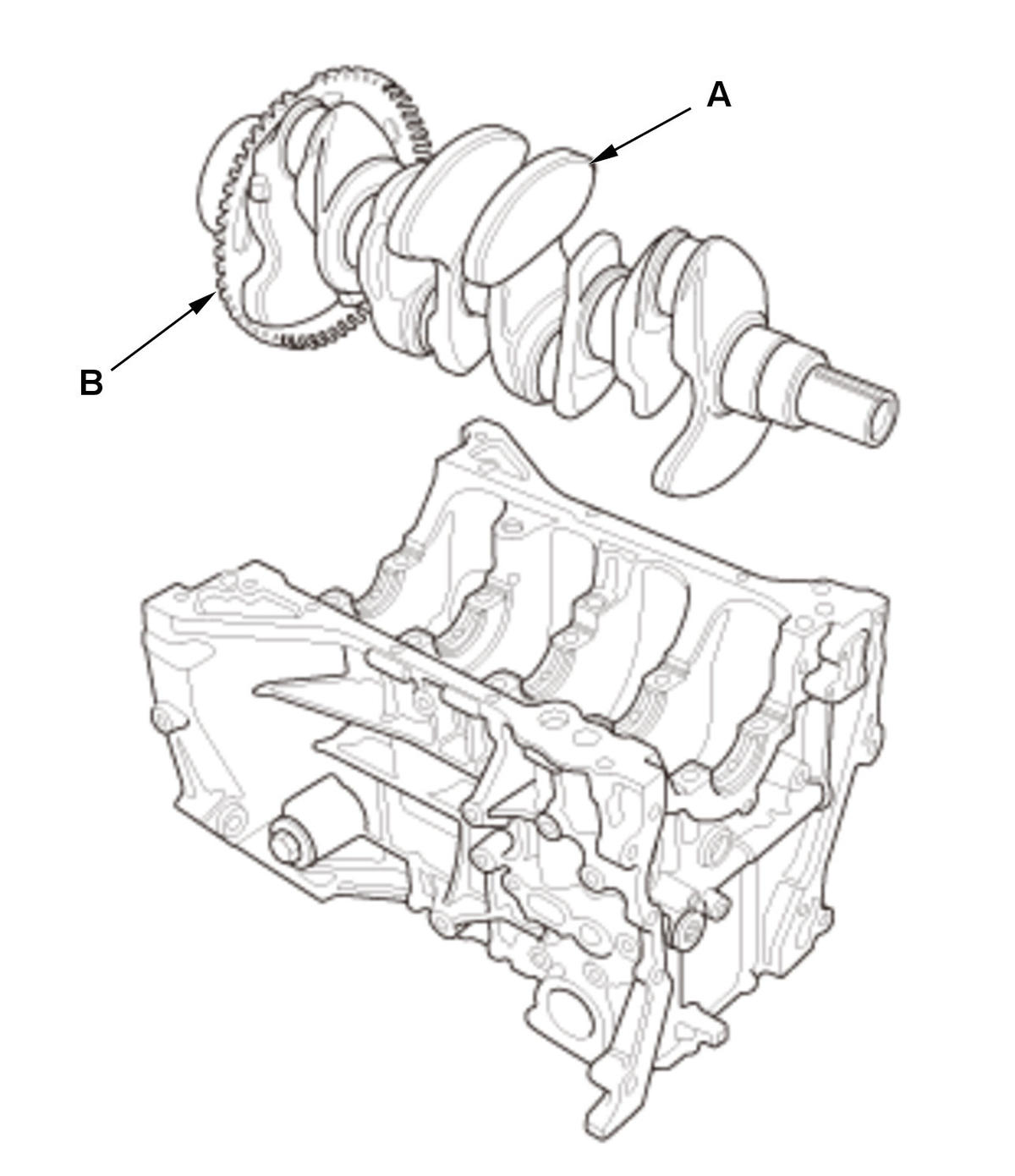

    GHH427154Courtesy of HONDA, U.S.A., INC.
    1. Install the bearing halves in the engine block and the connecting rods.

    2. Apply a coat of new engine oil to the main bearings and the connecting rod bearings.

    3. Hold the crankshaft (A) so rod journal No. 2 and rod journal No. 3 are straight up, then lower the crankshaft into the engine block.


    NOTE:

    Be careful not to damage the journals and the CKP pulse plate (B).

  4. Thrust Washer - Install

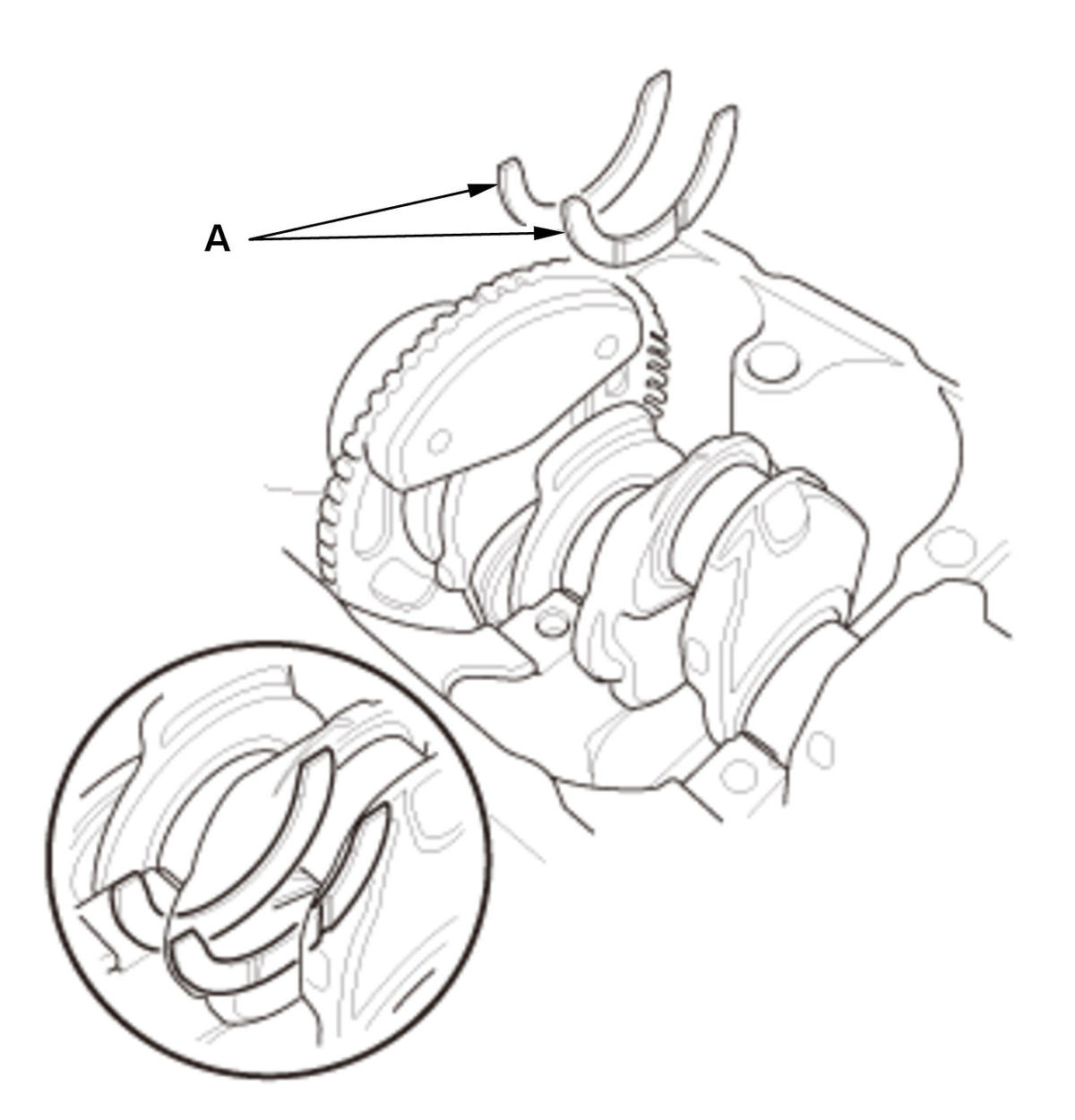

    GHH427155Courtesy of HONDA, U.S.A., INC.
    1. Apply new engine oil to the thrust washer surfaces. Install the thrust washers (A) in the No. 4 journal of the engine block.
  5. Main Bearing Cap and Bearing Half - Install

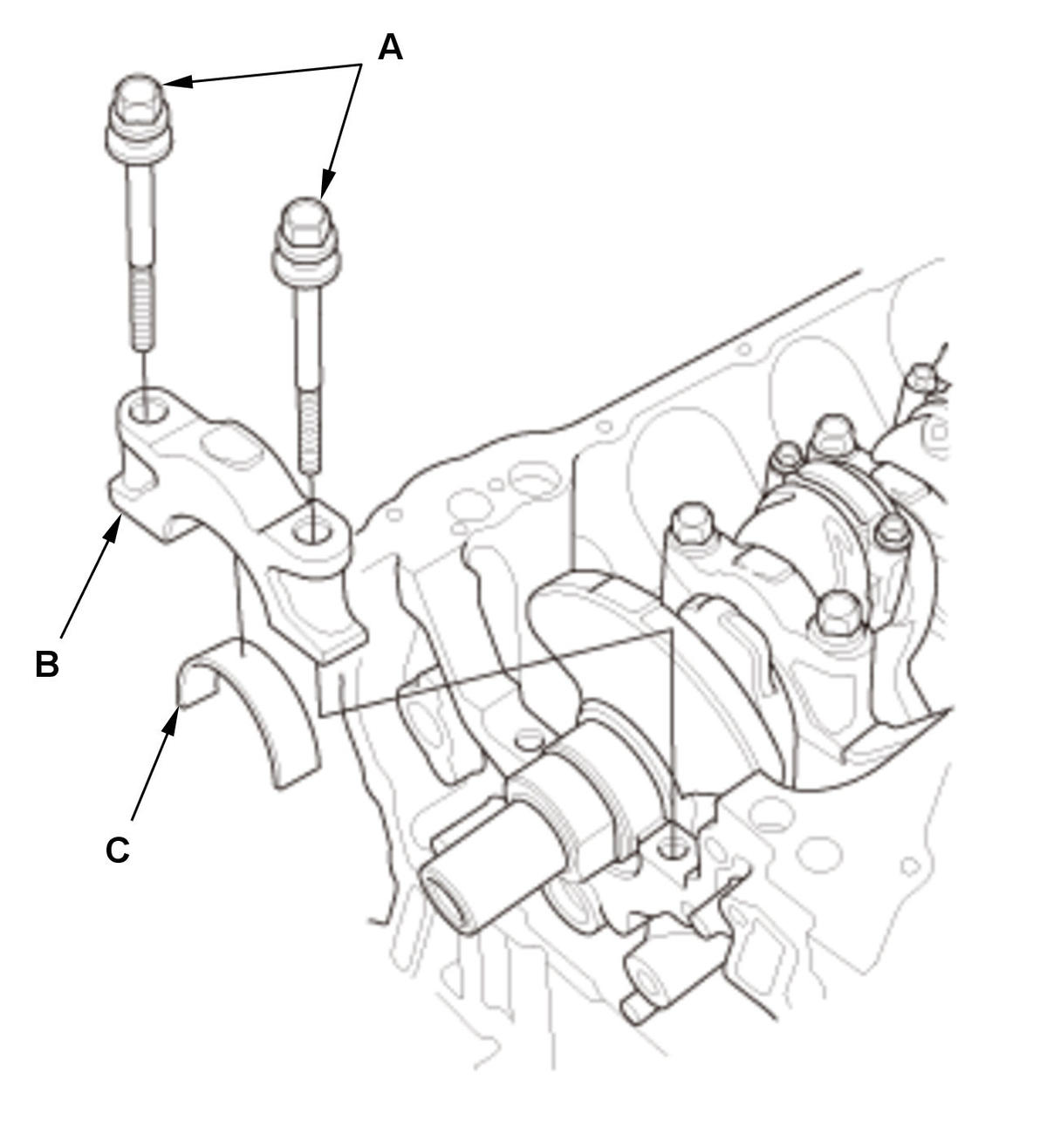

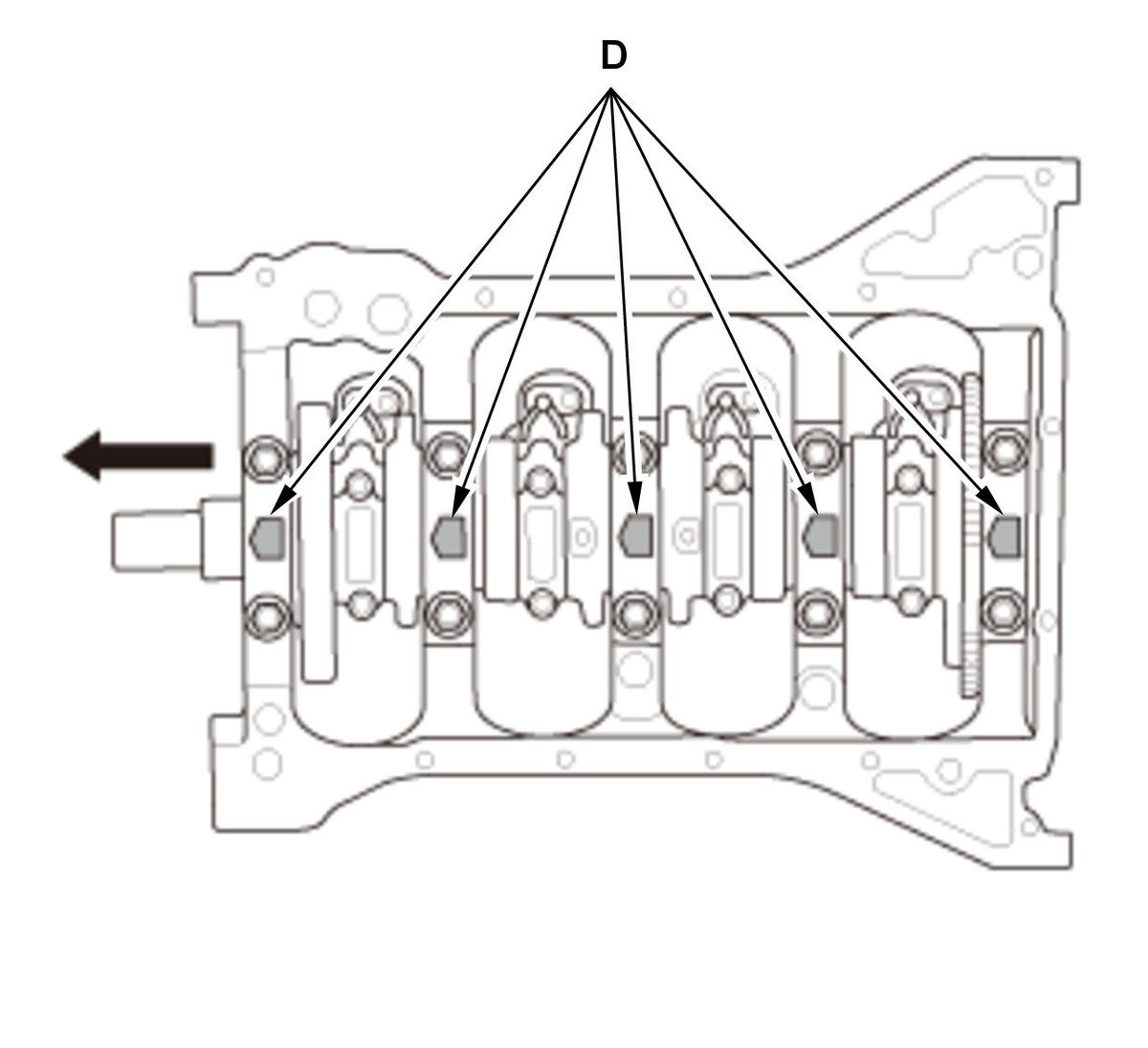

    GHH427156GHH427157Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH427156GHH427157Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    1. Apply new engine oil to the bearing cap bolts (A) threads and flanges.

    2. Install the bearing cap bolts to the main bearing cap (B).

    3. Set the bearing halves (C), the main bearing caps, and the bearing cap bolts in place. Then loosely tighten the bearing cap bolts.


    NOTE:
    • Install the main bearing caps aligning the arrows (D) with the direction to the cam chain case.
    • When loosely tightening the bearing cap bolts, do not sit the bolts on the main bearing caps.

    4. Lightly tap the main bearing caps with a plastic mallet until the main bearing caps sit on the engine block.

  6. Bearing Cap Bolt - Tighten

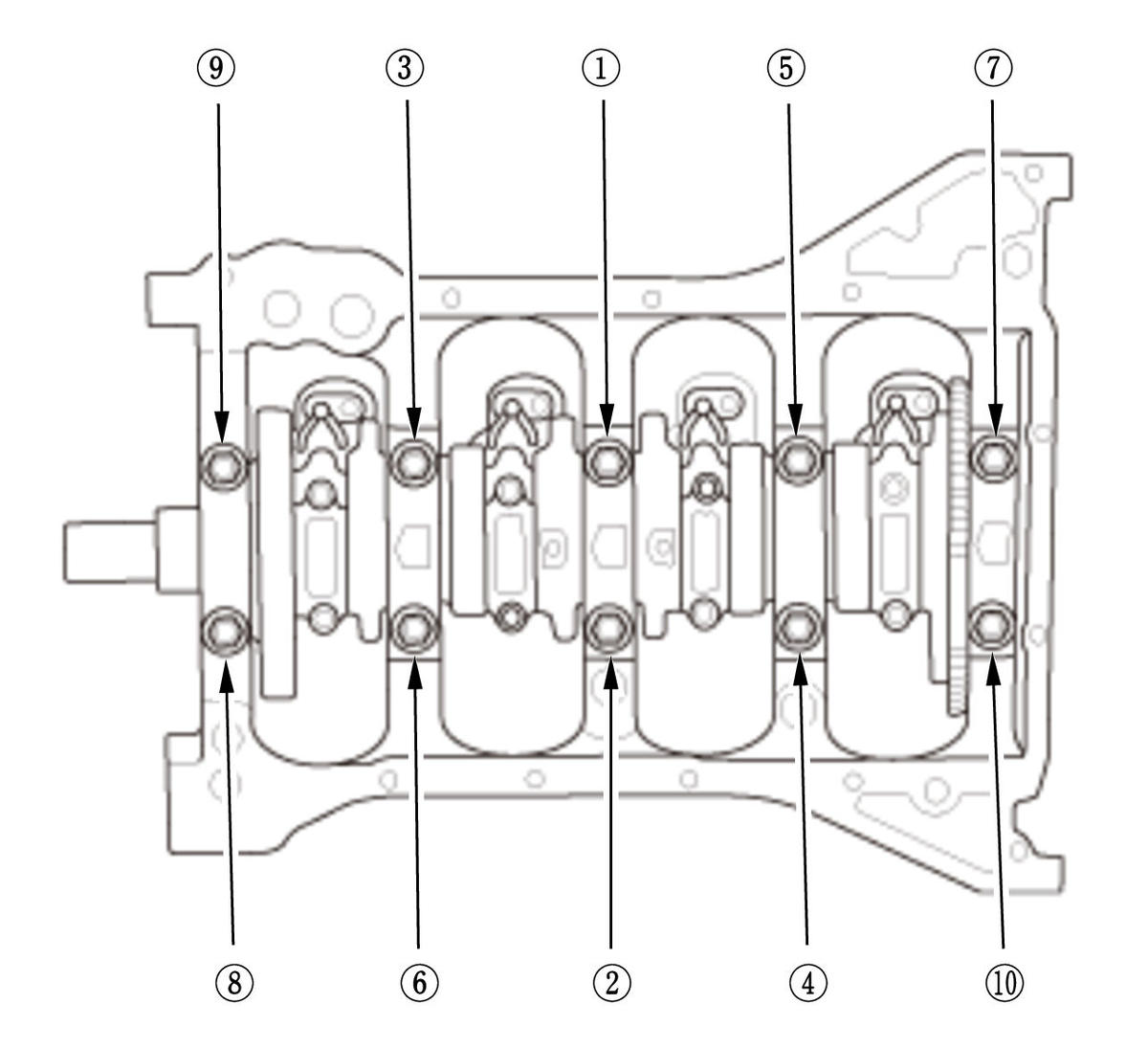

    Fig 2: Bearing Cap Bolts Tightening Sequence

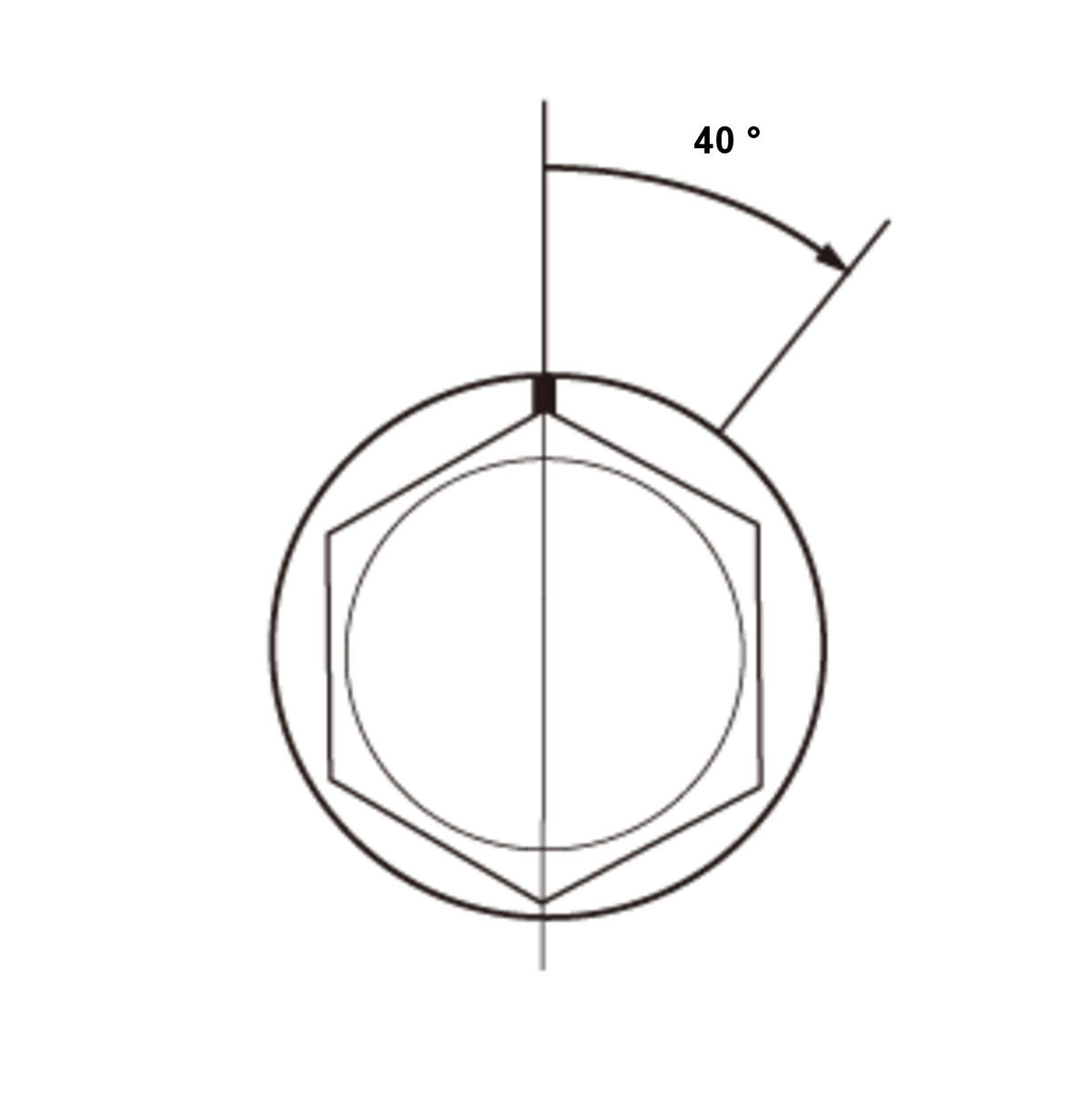

    GHH427158GHH427159Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH427159Courtesy of HONDA, U.S.A., INC.
    1. Tighten the bearing cap bolts, in the numbered sequence shown, to the specified torque.

    NOTE:

    Do not rotate the crankshaft during inspection.

    2. Tighten the bearing cap bolts an additional 40 deg..

    Specified Torque:
    30 N.m (3.1 kgf.m, 22 lbf.ft)
  7. Connecting Rod Bearing Clearance - Check
  8. Connecting Rod Bolt - Inspect

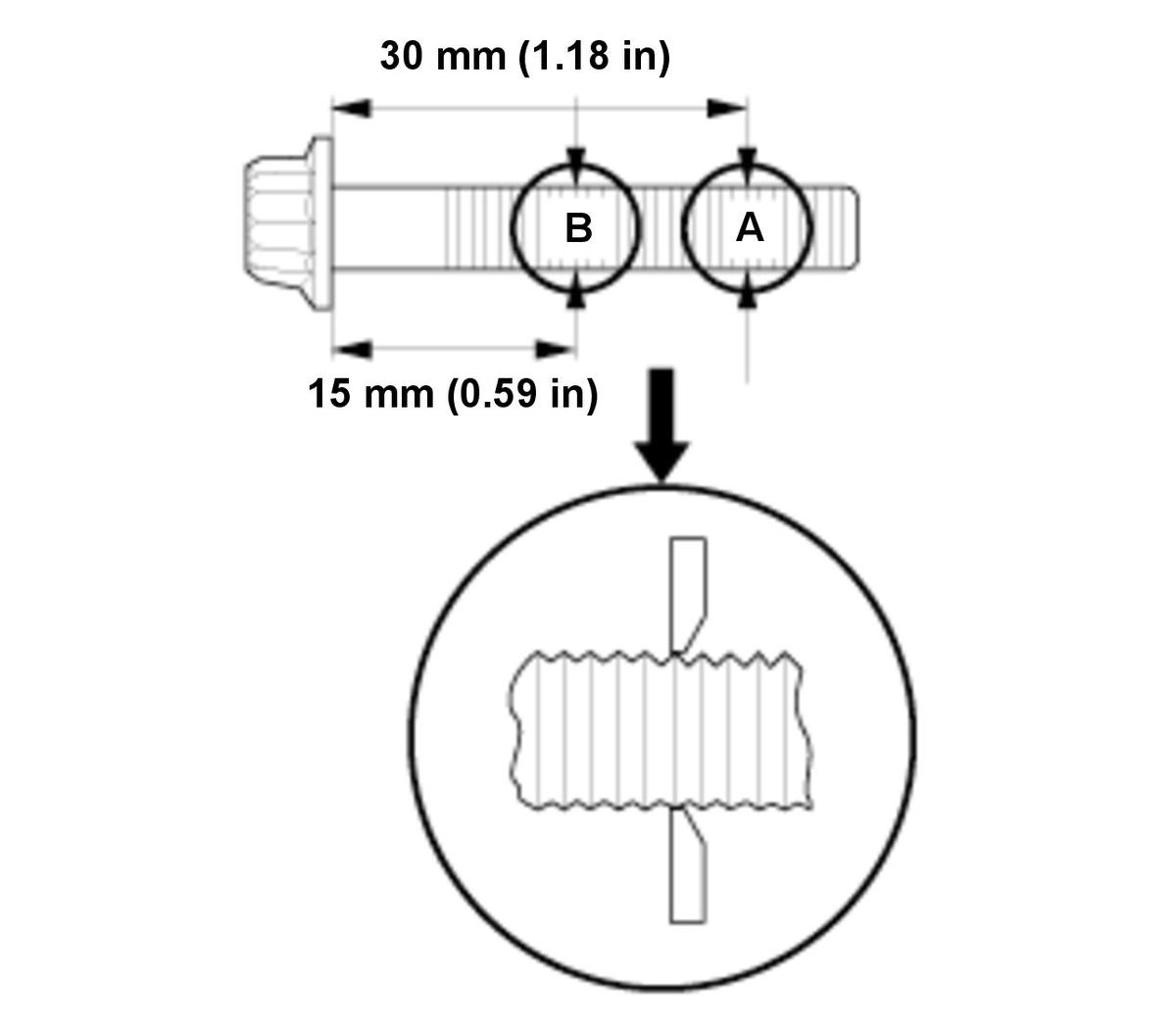

    GHH427160Courtesy of HONDA, U.S.A., INC.
    1. Measure the diameter of each connecting rod bolt at point A and point B.

    2. Calculate the difference in diameter between point A and point B.

    3. If the difference in diameter is out of specification, replace the connecting rod bolt.

    Point A-Point B = Difference in Diameter
    Difference in Diameter
    Specification:  0-0.05 mm (0-0.0020 in)
  9. Connecting Rod Cap and Bearing Half - Install

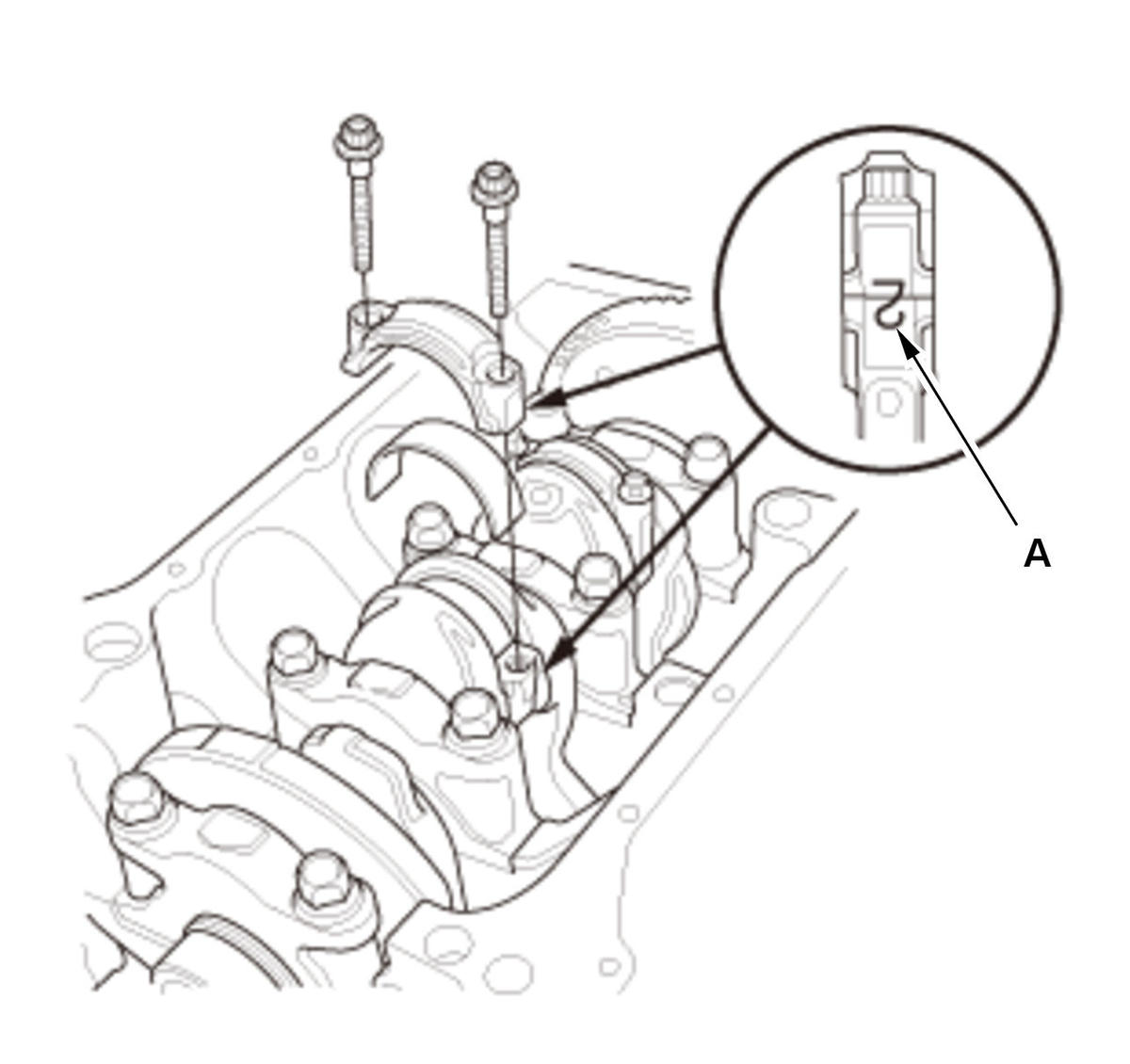

    GHH427161Courtesy of HONDA, U.S.A., INC.
    1. Apply new engine oil to the threads of the connecting rod bolts.

    2. Seat the rod journals into connecting rod No. 1 and connecting rod No. 4. Line up the mark (A) on the connecting rod and the connecting rod cap.

    3. Install the connecting rod caps and the bolts finger-tight.

    4. Rotate the crankshaft clockwise, and seat the journals into connecting rod No. 2 and connecting rod No. 3. Line up the mark on the connecting rod and the connecting rod cap.

    5. Install the connecting rod caps and the bolts finger-tight.

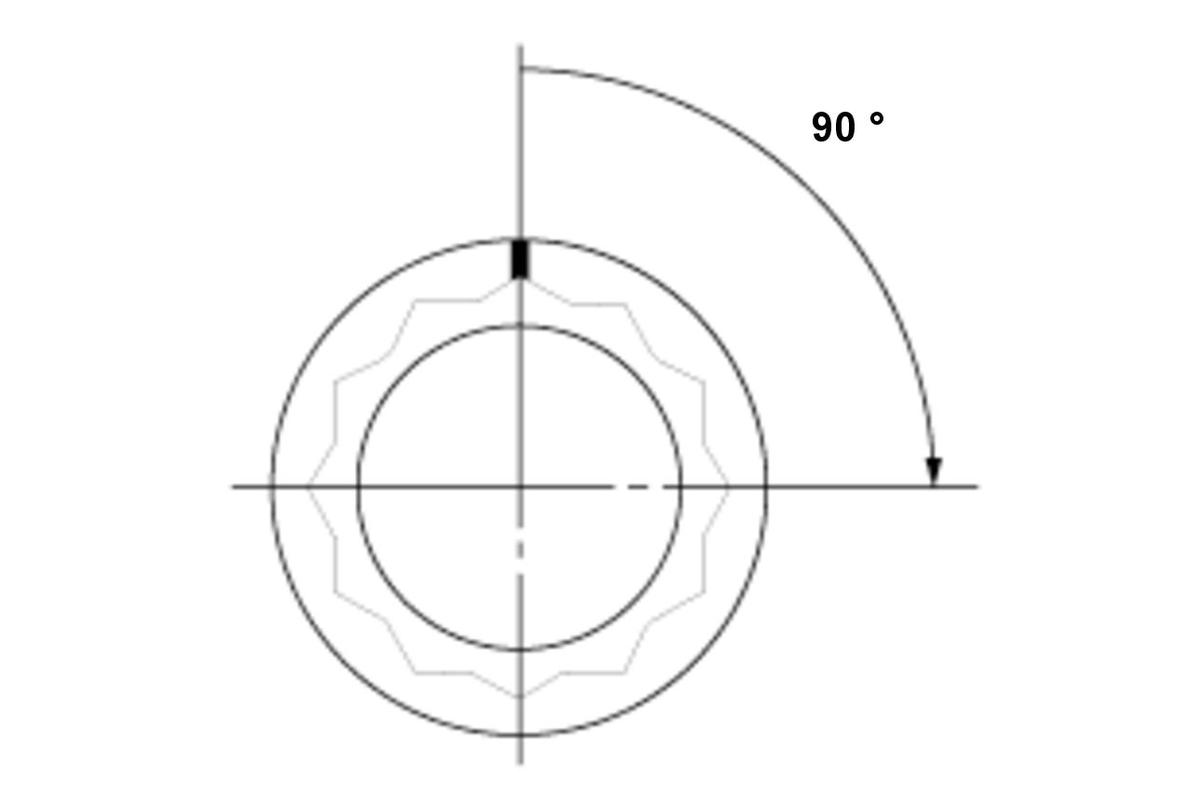

    GHH427162Courtesy of HONDA, U.S.A., INC.
    6. Torque the connecting rod bolts to the specified torque.

    7. Tighten the connecting rod bolts an additional 90 deg..NOTE:  Remove the connecting rod bolt if you tightened it beyond the specified angle, inspect the connecting rod bolts. Do not loosen it back to the specified angle.

    Specified Torque:
    13 N.m (1.3 kgf.m, 10 lbf.ft)
  10. Transmission End Crankshaft Oil Seal - Install

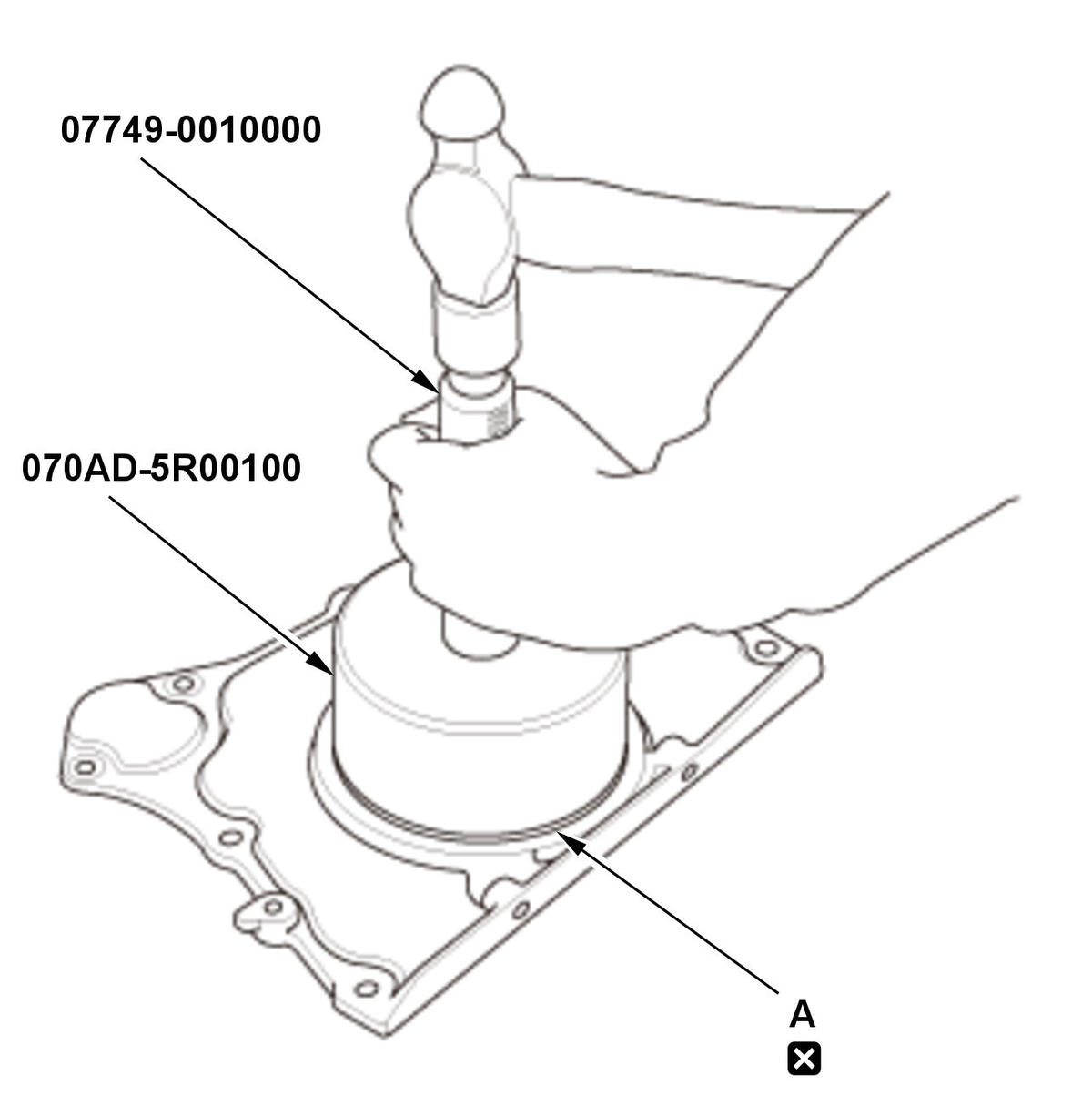

    GHH427163Courtesy of HONDA, U.S.A., INC.
    1. Remove the transmission end crankshaft oil seal.

    2. Clean and dry the transmission end crankshaft oil seal housing.

    3. Apply a light coat of new engine oil to the lip of the new transmission end crankshaft oil seal.

    4. Use the driver handle, 15 x 135L and the oil seal driver attachment, 92 mm to drive a new transmission end crankshaft oil seal (A) squarely into the oil seal case.

  11. Oil Seal Case - Install

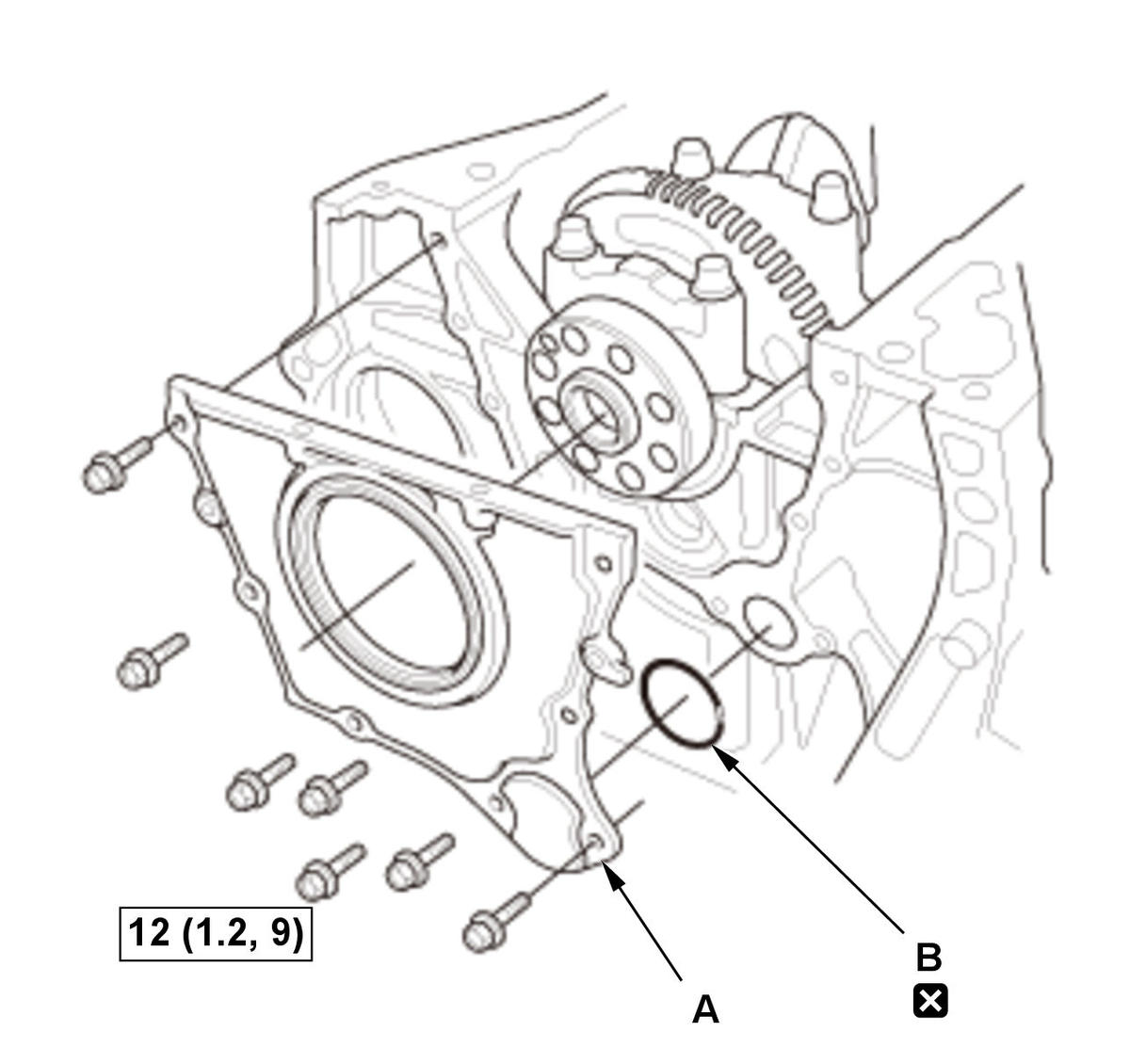

    Fig 3: Oil Seal Case With Torque Specifications
    GHH427164Courtesy of HONDA, U.S.A., INC.
      1. Apply liquid gasket

    to the engine block mating surface of the oil seal case, and to the inside edge of the threaded bolt holes.

    2. Install the oil seal case (A) with a new O-ring (B).

  12. Oil Pump - Install
  13. Oil Pan - Install
  14. Cam Chain Drive Sprocket - Install

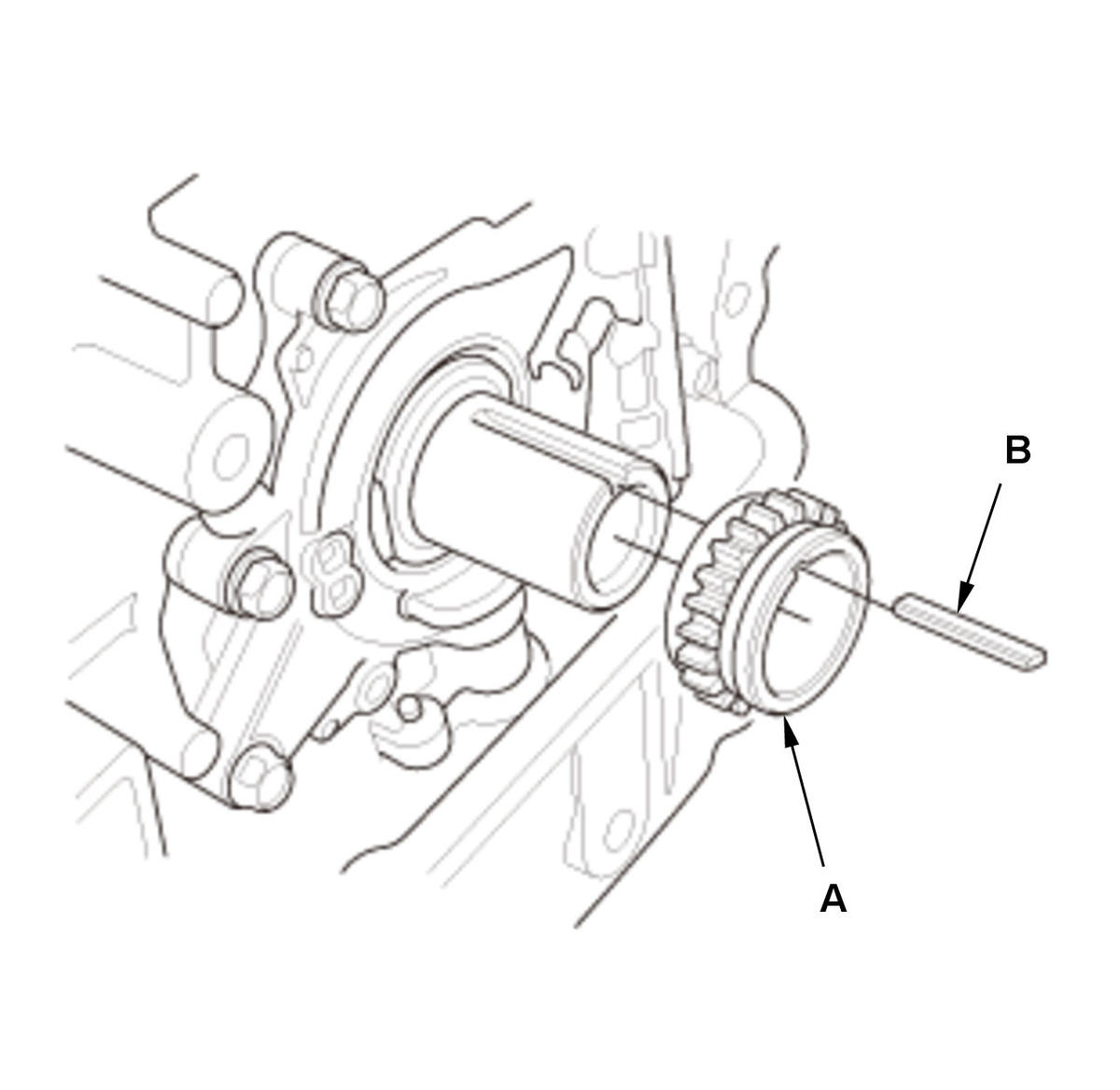

    GHH427165Courtesy of HONDA, U.S.A., INC.
    1. Install the cam chain drive sprocket (A) and the key (B).
  15. Cylinder Head - Install
  16. Drive Plate - Install
  17. Transmission - Install
  18. Engine - Install
