Catalytic Converter Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019)
>>
Removal and Installation
>>
Catalytic Converter Exploded View
Catalytic Converter Exploded View
WU-TWC*1

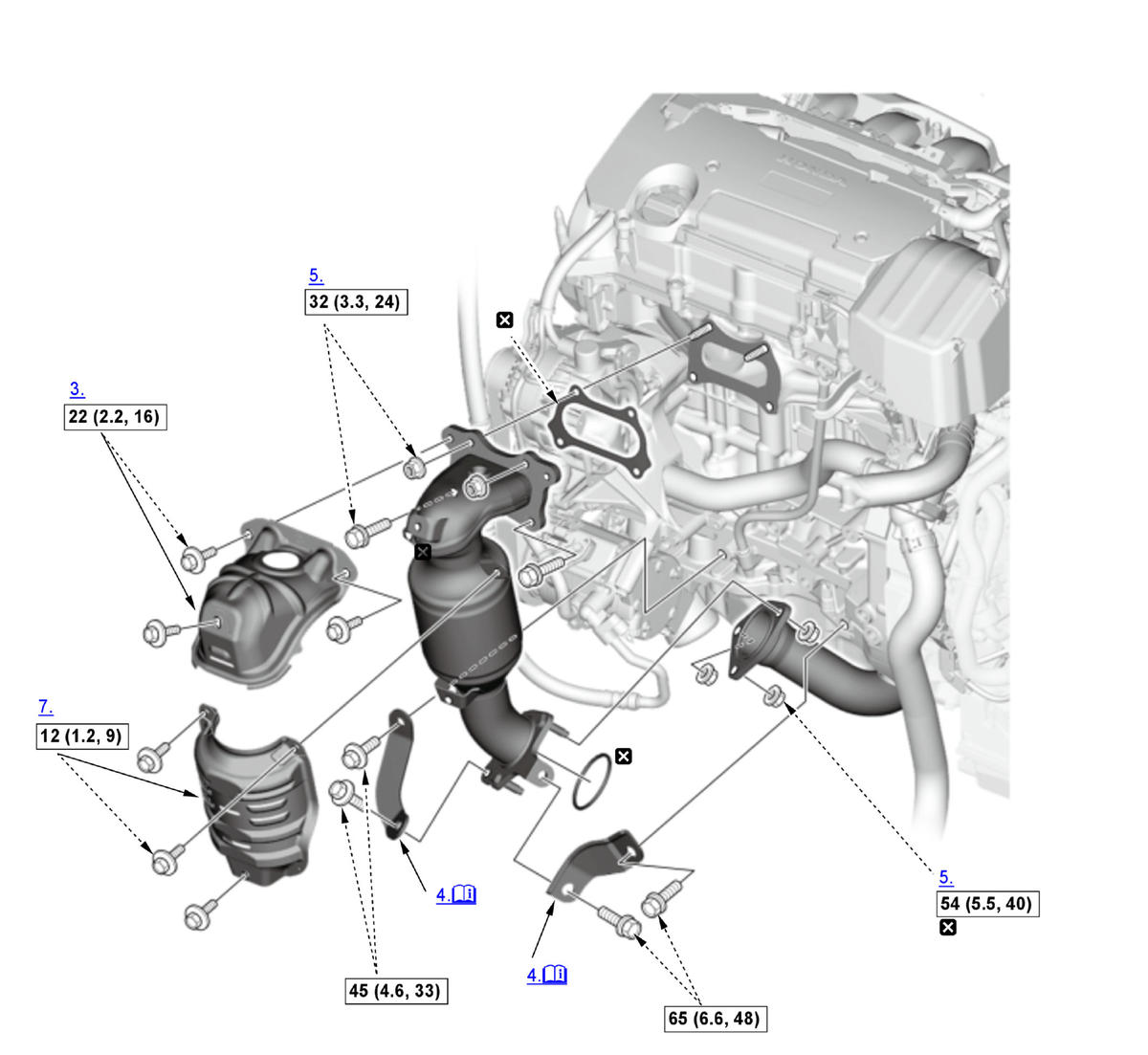

Fig 1: Catalytic Converter Exploded View With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Detailed information, notes and precautions
Torque: N.m (kgf.m, lbf.ft)
Replace
