Camshaft/VTC Actuator/Exhaust Camshaft Sprocket Removal, Installation, and Inspection (2.4 L Engine) (2017 2018 2019): Inspection

VTC Actuator

Intake Camshaft - Remove

VTC Actuator - Inspection

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

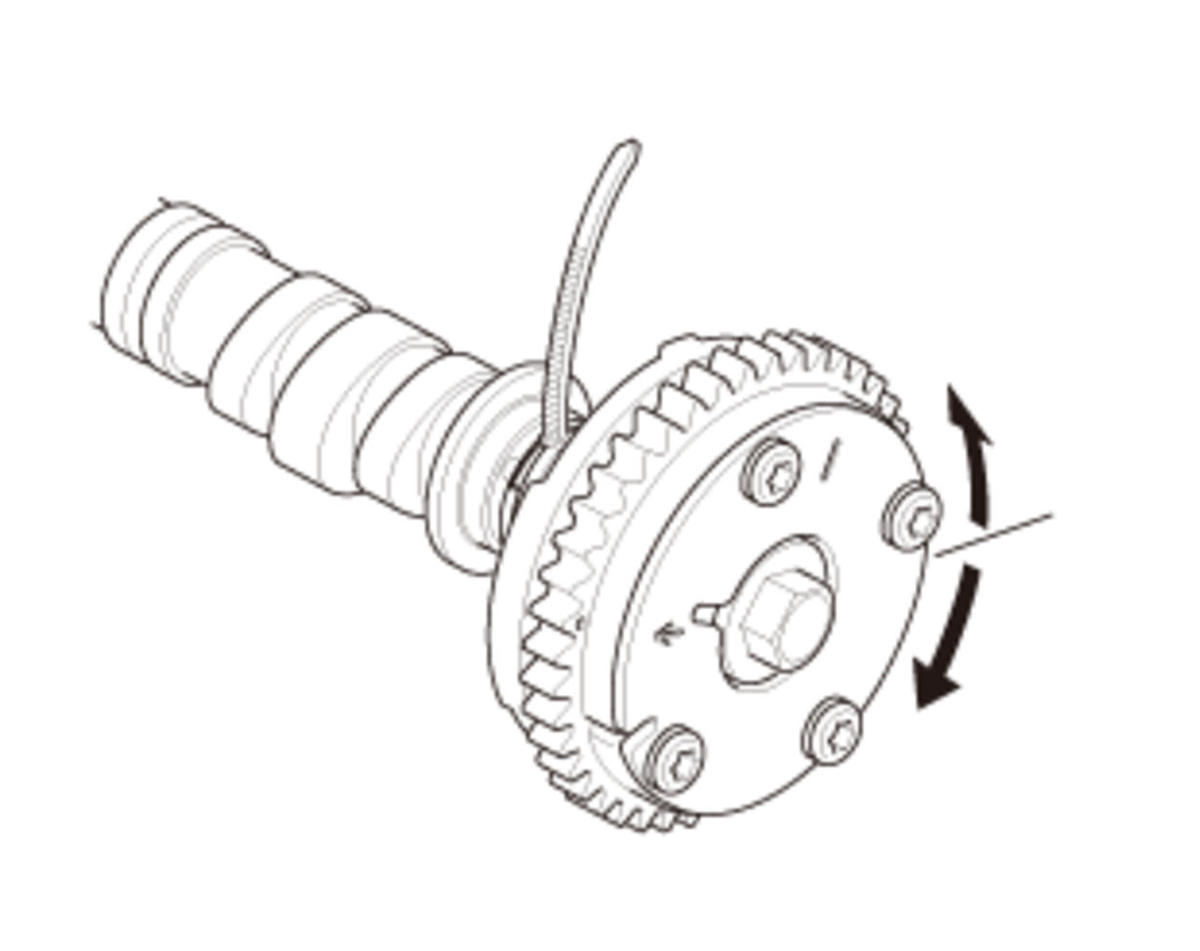

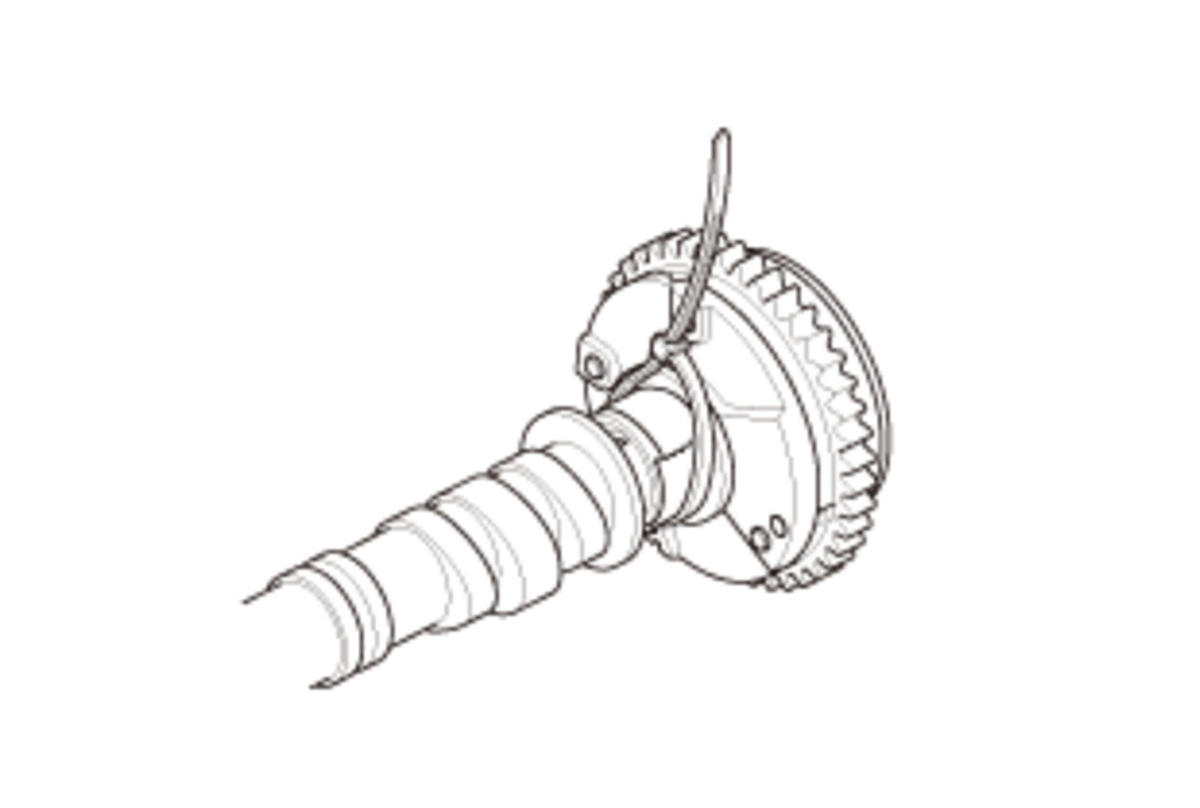

1. Check that the VTC actuator is locked by turning the VTC actuator counterclockwise. If it is not locked, turn the VTC actuator clockwise until it stops, then recheck it. If it is still not locked, replace the VTC actuator.

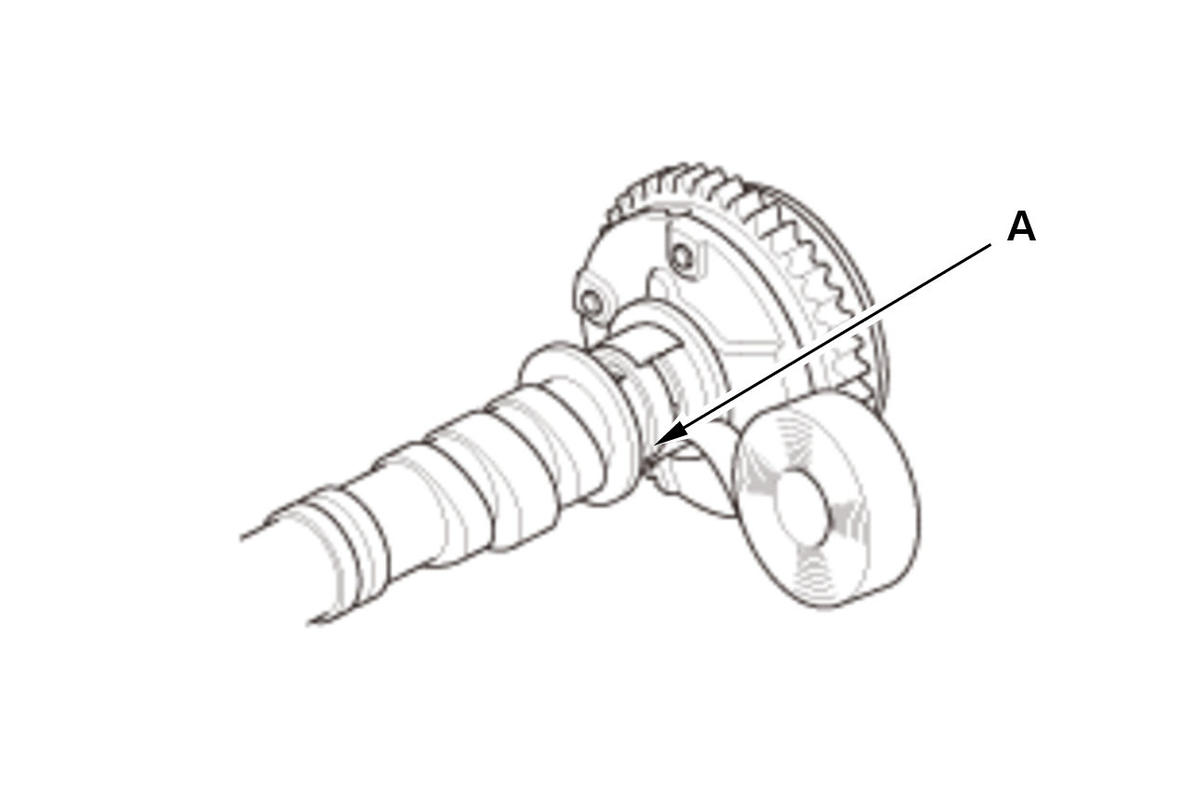

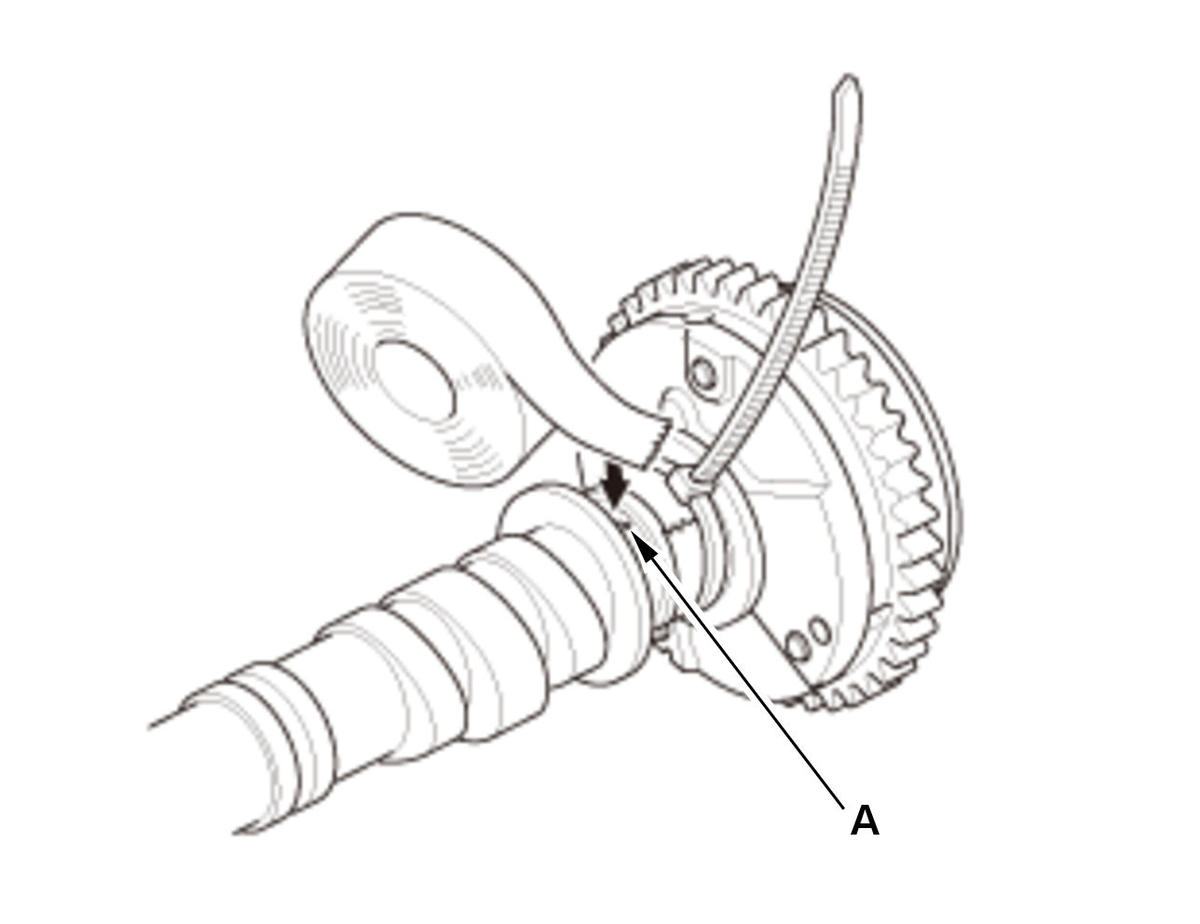

2. Seal the retard holes (A) in the No. 1 camshaft journal with tape and a wire tie.

Courtesy of HONDA, U.S.A., INC.

3. Seal one of the advance holes (A) with tape.

Courtesy of HONDA, U.S.A., INC.

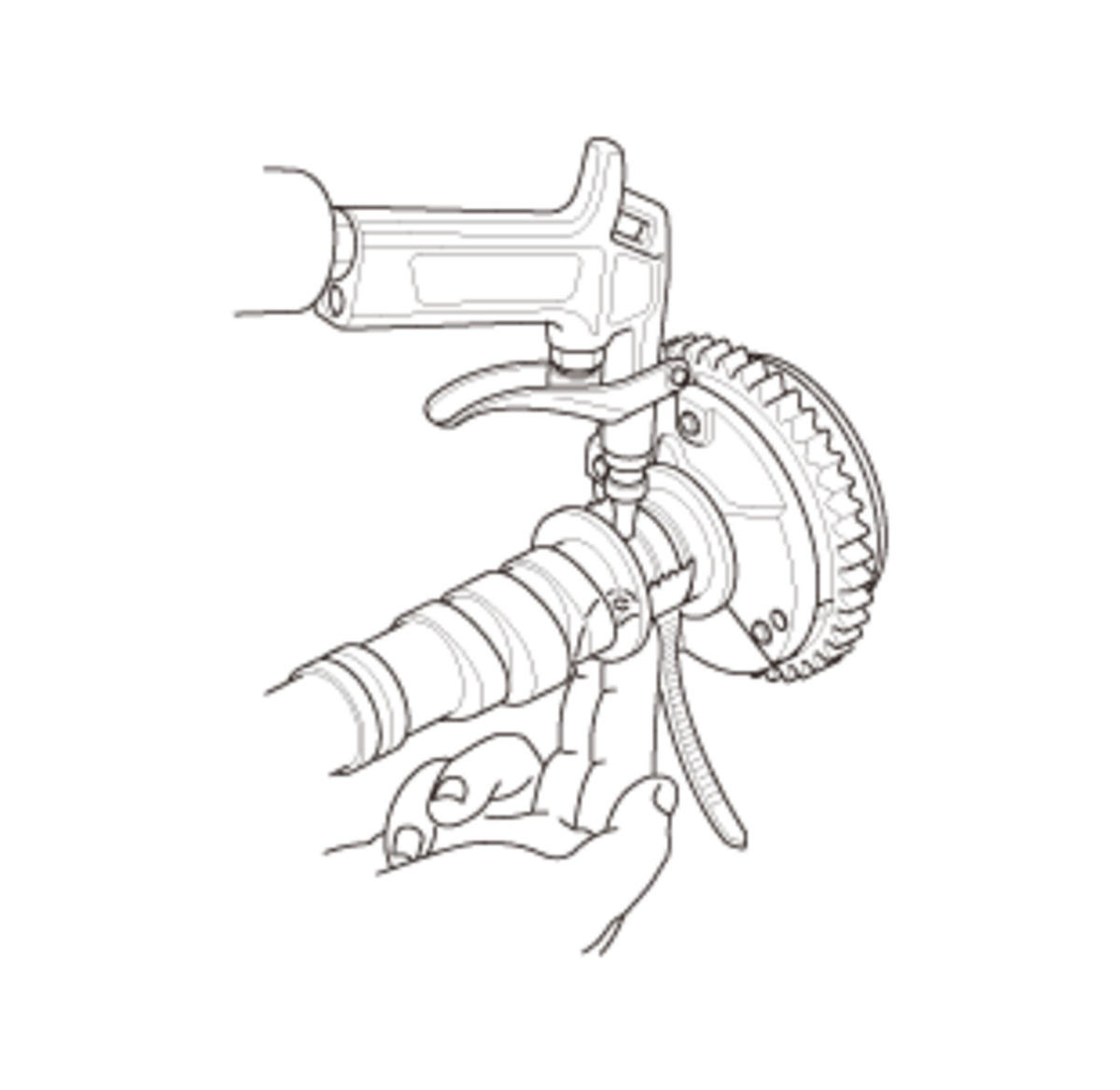

4. Apply air to the unsealed advance hole to release the lock.

Courtesy of HONDA, U.S.A., INC.

5. Check that the VTC actuator moves smoothly. If the VTC actuator does not move smoothly, replace the VTC actuator.

6. Remove the wire tie, the tape, and the adhesive residue from the camshaft journal.

All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Camshaft
Camshaft - Remove
VTC Actuator - Remove
Exhaust Camshaft Sprocket - Remove
Rocker Arm Assembly - Remove
Rocker Arm - Disassemble

Camshaft - Inspect

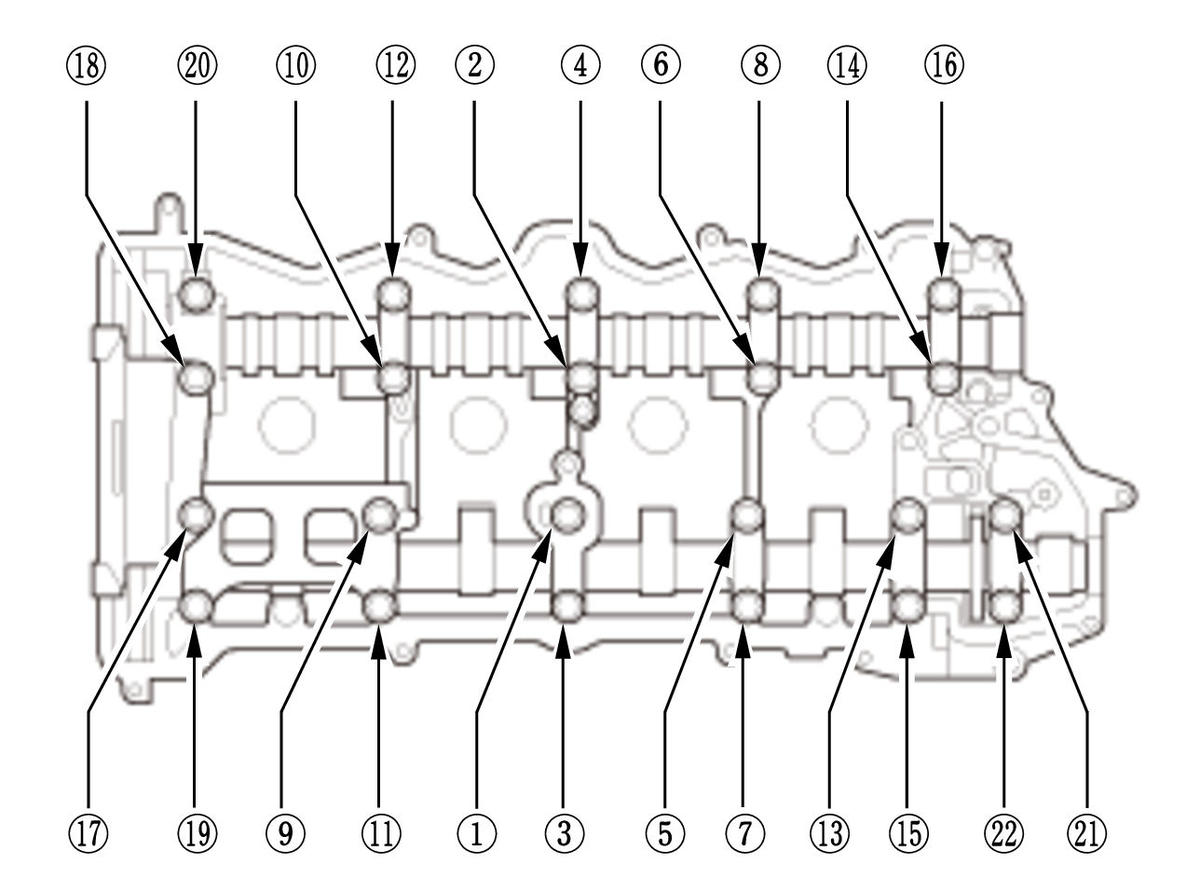

Fig 1: Camshaft Bolts Tightening Sequence

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Put the rocker shaft holders, the camshaft, and the camshaft holders on the cylinder head, then tighten the bolts, in sequence, to the specified torque.

2. Seat the camshaft by pushing it away from the camshaft pulley end of the cylinder head.

Specified Torque:

13 N.m (1.3 kgf.m, 10 lbf.ft)

Courtesy of HONDA, U.S.A., INC.

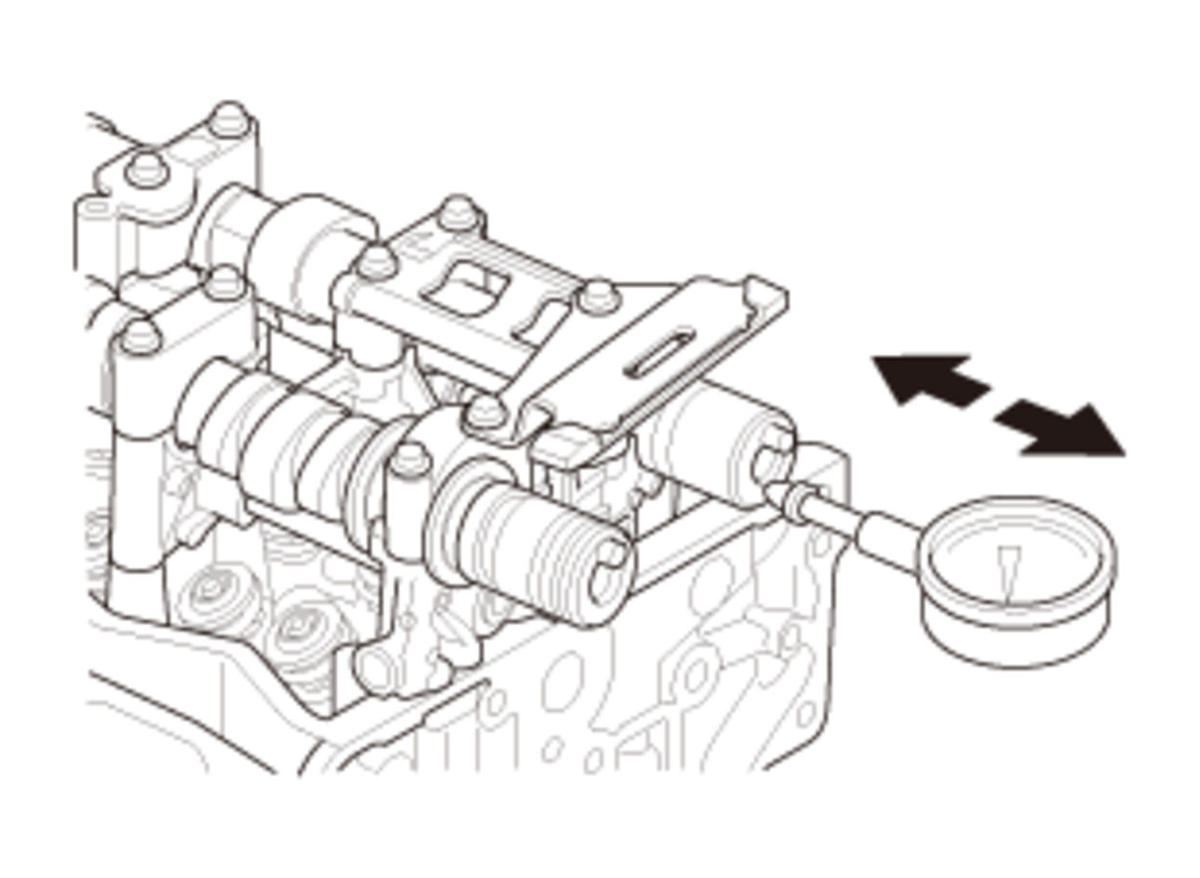

3. Zero the dial indicator against the end of the camshaft, then push the camshaft back and forth, and read the end play. If the end play is beyond the service limit, replace the cylinder head and recheck. If it is still beyond the service limit, replace the camshaft.

4. Loosen the camshaft holder bolts two turns at a time, in a crisscross pattern. Then remove the camshaft holders from the cylinder head.

5. Lift the camshafts out of the cylinder head, and wipe them clean, then inspect the lift ramps. Replace the camshaft if any lobes are pitted, scored, or excessively worn.

6. Clean the camshaft journal surfaces in the cylinder head, then set the camshafts back in place. Place a plastigage strip across each journal.

7. Install the camshaft holders, then tighten the bolts to the specified torque as shown in step 1.

Camshaft End Play
Intake:
Standard (New):	0.05-0.20 mm (0.0020-0.0079 in)
Service Limit:	0.40 mm (0.0157 in)
Exhaust:
Standard (New):	0.05-0.15 mm (0.0020-0.0059 in)
Service Limit:	0.40 mm (0.0157 in)

Courtesy of HONDA, U.S.A., INC.

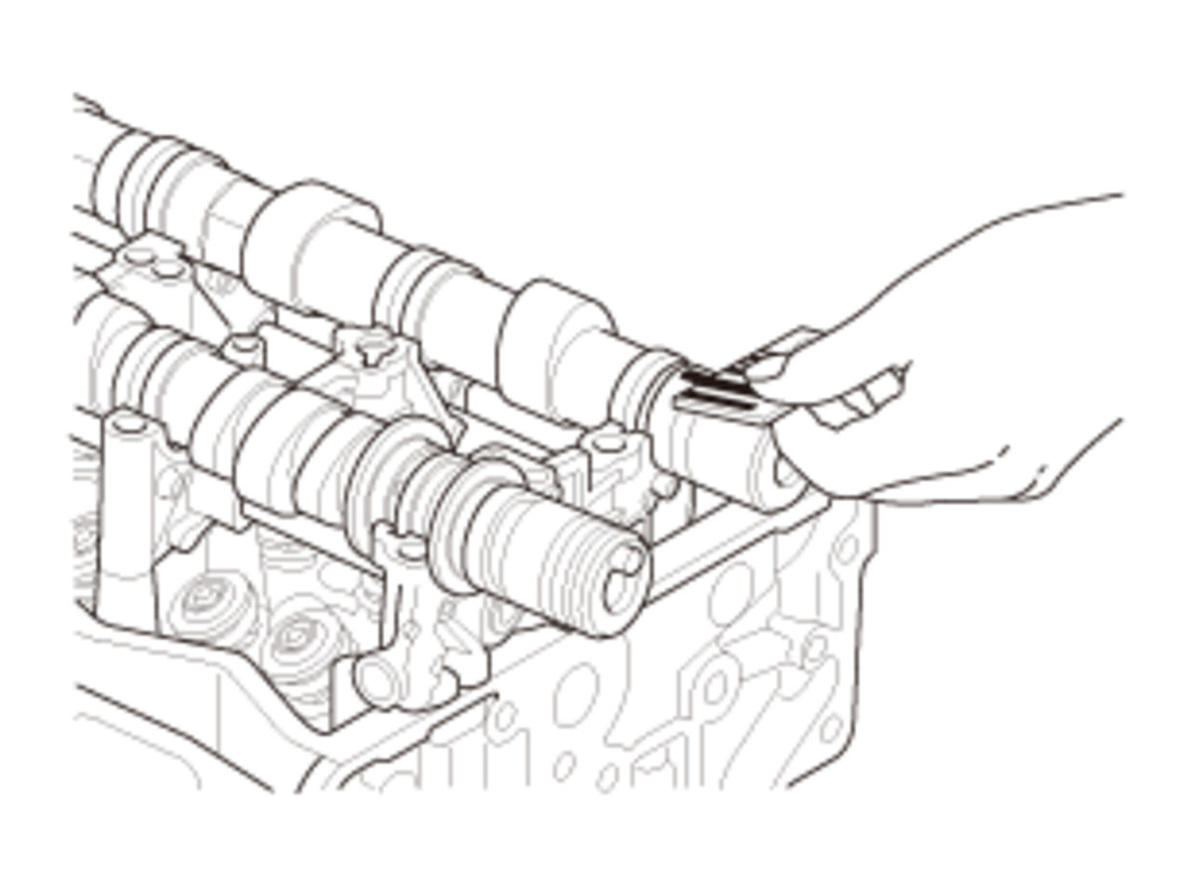

8. Remove the camshaft holders. Measure the widest portion of plastigage on each journal:

If the camshaft-to-holder clearance is within the service limits, go to step 10.
If the camshaft-to-holder clearance is beyond the service limit, and the camshaft has been replaced, replace the cylinder head.
If the camshaft-to-holder clearance is beyond the service limit, and the camshaft has not been replaced, go to step 9.

Camshaft-to-Holder Oil Clearance
Standard (New):
No. 1 Journal:	0.030-0.069 mm (0.00118-0.00272 in)
Service Limit:	0.150 mm (0.00591 in)
No. 2, No. 3, No. 4, No. 5, and No. 6 Journals:	0.060-0.099 mm (0.00236-0.00390 in)
Service Limit:	0.150 mm (0.00591 in)

Courtesy of HONDA, U.S.A., INC.

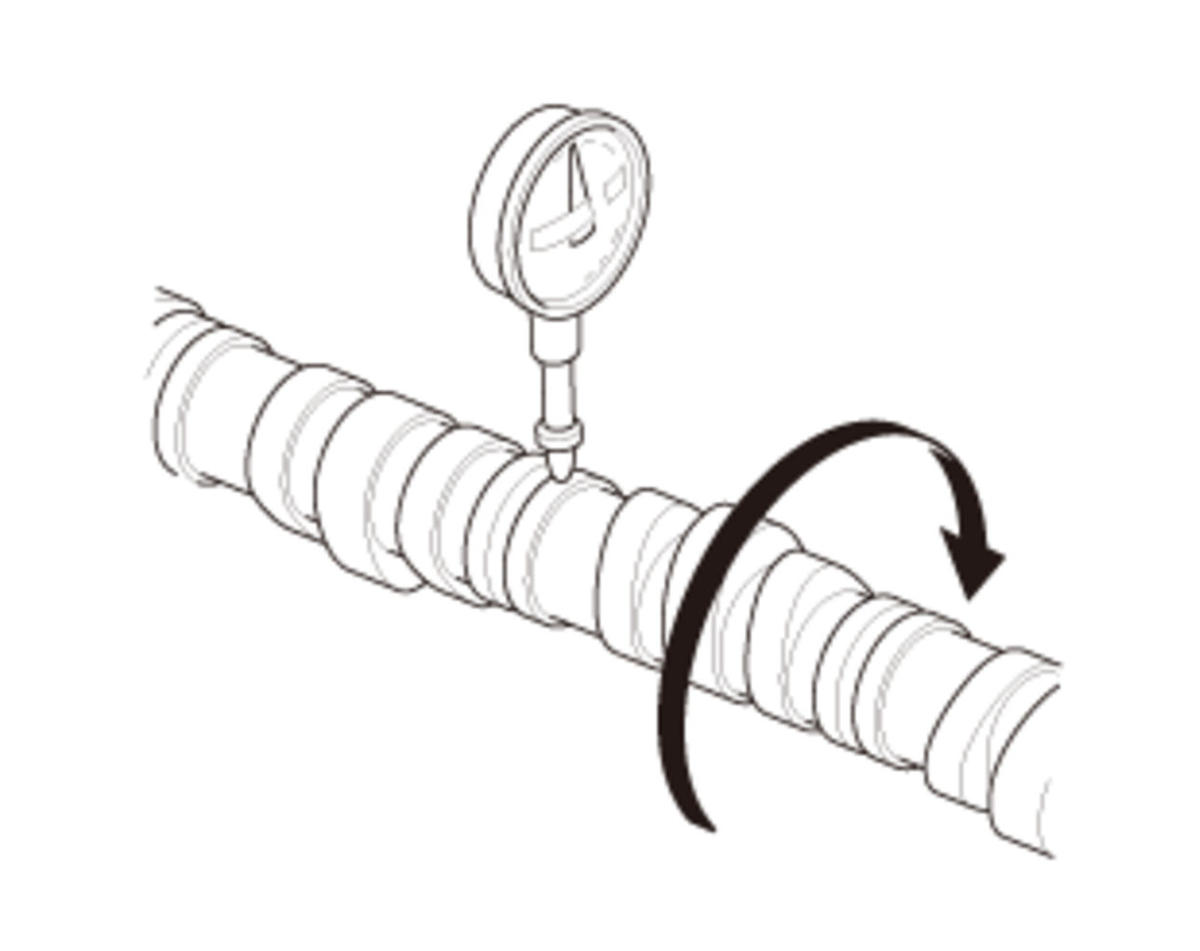

9. Check the total runout with the camshaft supported on V-blocks:

If the total runout of the camshaft is within the standard, replace the cylinder head.
If the total runout is beyond the standard, replace the camshaft and recheck the camshaft-to-holder oil clearance. If the oil clearance is still beyond the standard, replace the cylinder head.

Camshaft Total Runout
Standard (New):	0.03 mm (0.0012 in) max.

Courtesy of HONDA, U.S.A., INC.

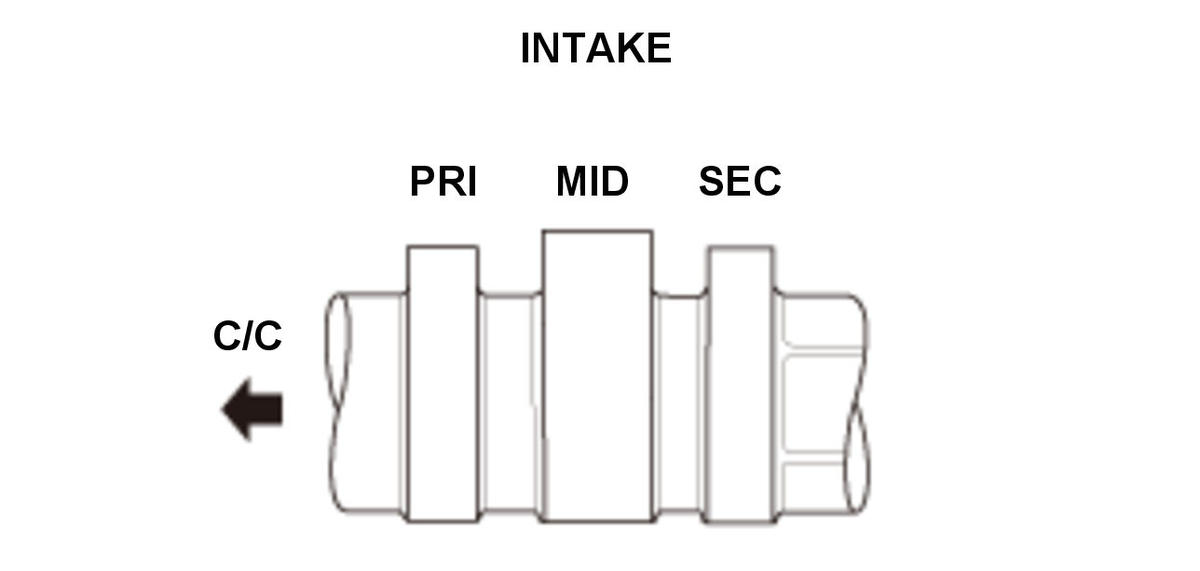

10. Measure cam lobe height.

Cam Lobe Height Standard (New):

PRI: Primary	MID: Mid	SEC: Secondary
C/C: Cam Chain

	INTAKE	EXHAUST
PRI	33.858 mm (1.33299 in)	34.340 mm (1.35197 in)
MID	35.252 mm (1.38787 in)
SEC	33.858 mm (1.33299 in)

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
